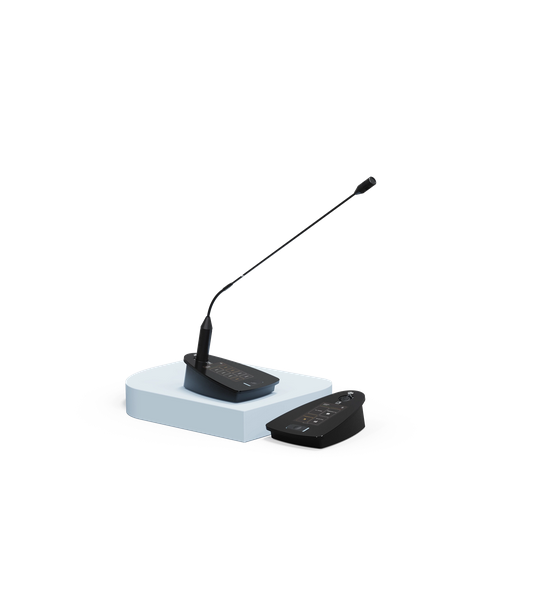

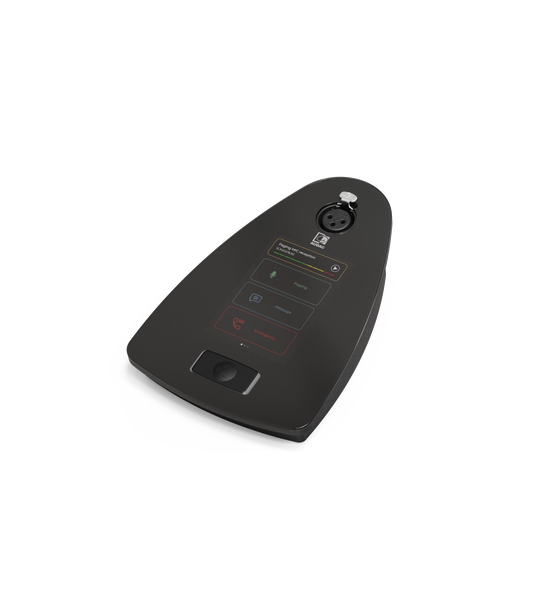

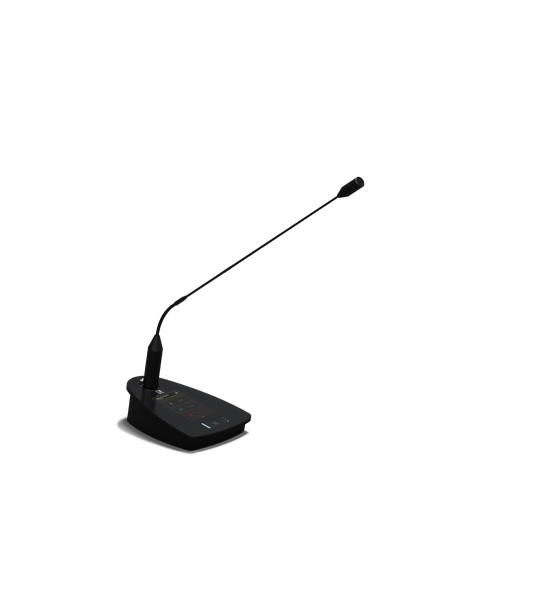

Krmilna enota AUDAC NPM200
DANTE programabilni mikrofonski podstavek
SISTEMSKE SPECIFIKACIJE
| Control | 4 programmable touch buttons (transparent window name tag) | |||
| Programmable rotary encoder | ||||
| Indicators | RGB LED’s (each button) | |||
| 360° RGB LED light bar (16 LED) | ||||
| Configurable settings | Fully configurable button & rotary functions – Routing | |||
| Fully configurable button & rotary functions – Volume up / down | ||||
| Fully configurable button & rotary functions – Mute | ||||
| Fully configurable button & rotary functions – Toggle relay | ||||
| Configuration | Audac Touch™ | |||
| Power | Supply | PoE powered (IEEE 802.3at) | ||
| Connectors | Microphone | Optional (not included) | ||

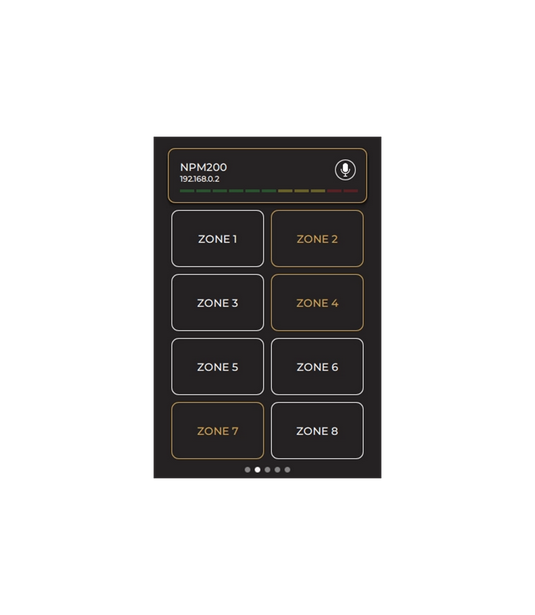

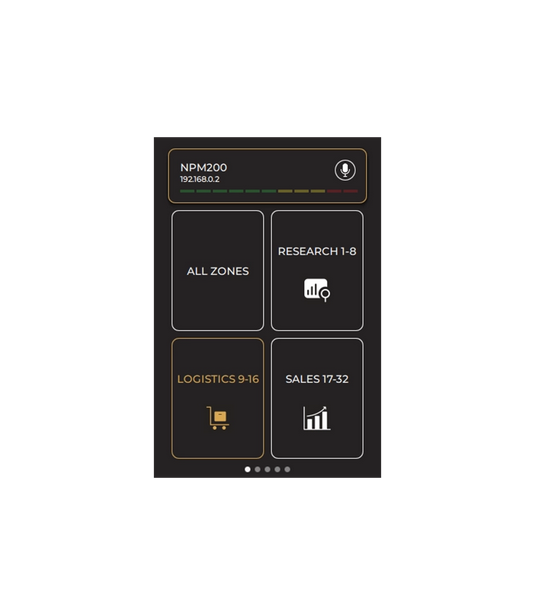

| Indicators | Fully configurable touchscreen interface | |||
| Touchscreen interface (3.5”) + RGB LED (PTT) | VU, Clipping | |||
| Audio status (recording, playback, paging, …) | ||||
| Device status | ||||
| Bus / priority status | ||||
| Zones / functions overview | ||||
| Configuration | Audac Touch™ | |||
| Configurable settings | Fully configurable user interface – Group selection | |||
| Fully configurable user interface – Message selection | ||||
| Fully configurable user interface – Zones selection | ||||
| PTT (toggle* & press & hold) *Coming later | ||||
| IP settings | ||||
| Device name | ||||
| Gain | ||||
| Phantom power | ||||
| Pilot tone | ||||
| DSP (EQ, Filters) | ||||
| Pre-recorded messages | Yes | |||
| Pre-programmed events | Yes | |||
| Integrated DSP | Yes (EQ, Filters, …) | |||
| Integrated chime | Yes (Programmable) | |||
| Phantom power | +48 V DC | |||
| Connectors | XLR Female (mic in) | |||

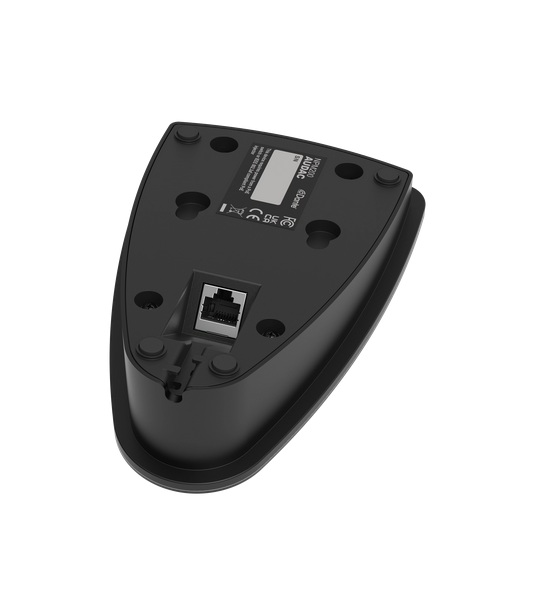

| RJ45 (network + PoE) | ||||
LASTNOSTI IZDELKA
| Colours | Black (RAL9005) (NPM200) |
| Dimensions | 110 x 58 x 166 mm (W x H x D) |
| Weight | 0.5 kg (Approx) |
| Construction | Die-cast metal |
| Front finish | Elegant front panel with glass |
