Audio procesna matrika AUDAC LUNA U
- 12 mikrofonskih/linijskih vhodov in 8 izhodov
- 12 GPIO vhodov in 12 izhodov
- Možnost razširitve do 32 x 32 kanalov Dante™/AES67 (z dodatno razširitveno kartico)
- Združljivo z vsemi stranskimi/vhodnimi in izhodnimi napravami Dante™/AES67 (opcijsko)
- 32 mono ali 16 stereo prilagodljivih con
- Deluje takoj po zaslugi preproste in prilagodljive oblike
- Velika prilagodljivost za vnos, izhod in preslikavo con
- Vse-v-enem brezplačna platforma za oblikovanje in nadzor – AUDAC Touch™
- AudioBridge za prilagodljiv prenos zvoka (za vse vhode in izhode)
- Funkcija samodejnega posodabljanja (OTA).
SISTEMSKE SPECIFIKACIJE
| Inputs | Mic / Line inputs | 12 |
| GPIO Inputs | 12 (in) | |
| USB Inputs (Type C) | Front (file transfer) | |
| Mass storage for messages | ||
| Rear (file transfer) | ||
| Outputs | Line outputs | 8 |
| GPIO Outputs | 12 (out) | |
| Fault | NO & NC relay contact | |
| Network audio I/O | Optional Dante™/AES67 (Up to 32×32 Channels with SL-NAC8) | |
| Zones | 32 Mono | |
| 16 Stereo | ||
| Configurable settings | ALC (Automatic Gain control) | Yes |
| AEC (Acoustic Echo cancellation) | No | |
| Integrated event scheduler | Yes | |
| Phantom power on inputs | +48 V DC | |
| WaveTune (input & zone) | 7-band EQ | |
| WavePreset (output) | 12xBiquad +LP+HP | |
| Delay (output) | 2000 ms (target) | |
| Mono / stereo zones (configurable) | Yes | |
| Mixing | Yes | |
| Talkover | Yes | |
| Paging | Yes | |
| Priorities | 4 each zone | |
| Integrated generator | Sine or Pnoise or Wnoise | |
| Output Volume offset | Yes | |
| Others | Antiphase, bass & treble, input volume, … | |
| DSP Processor | Dual core SHARC | |
| ARM Linux core | ||
| Configuration | Audac Touch™ | |

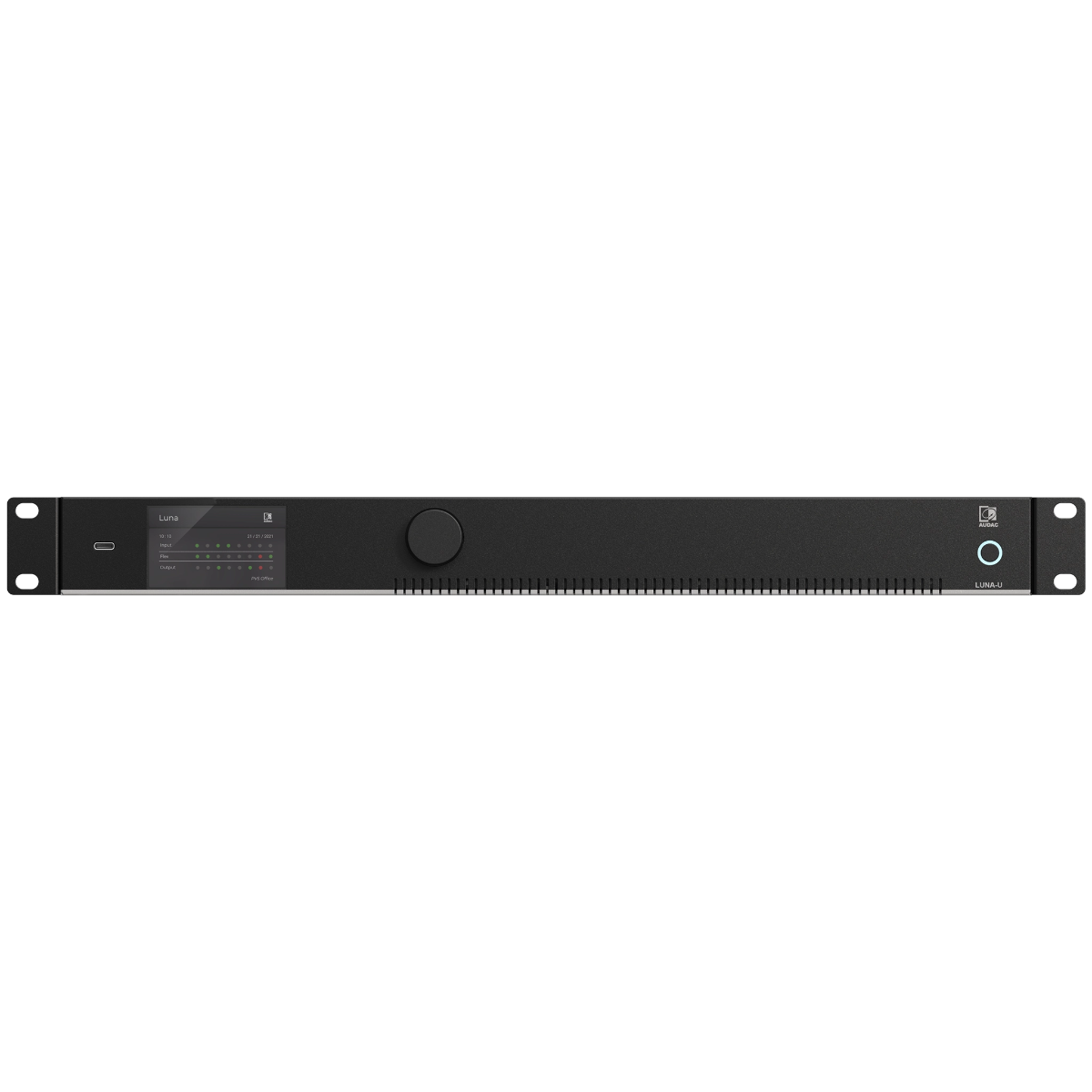

| Controls & indicators | Front panel | 2.8” LCD Display with rotary encoder |
| Interface ports | RS-232 | |
| RS-485 | ||
| Gigabit Ethernet (RJ45 primary) | ||
| Power | Supply | 100 ~ 240 V AC / 50 ~ 60 Hz |
| 24 V DC | ||
LASTNOSTI IZDELKA
| Dimensions | 482 x 44 x 335 mm (W x H x D) |
| Mounting | 19” |
| Unit height | 1 HE |
| Construction | Steel |
| Colours | Black (RAL9005) |
