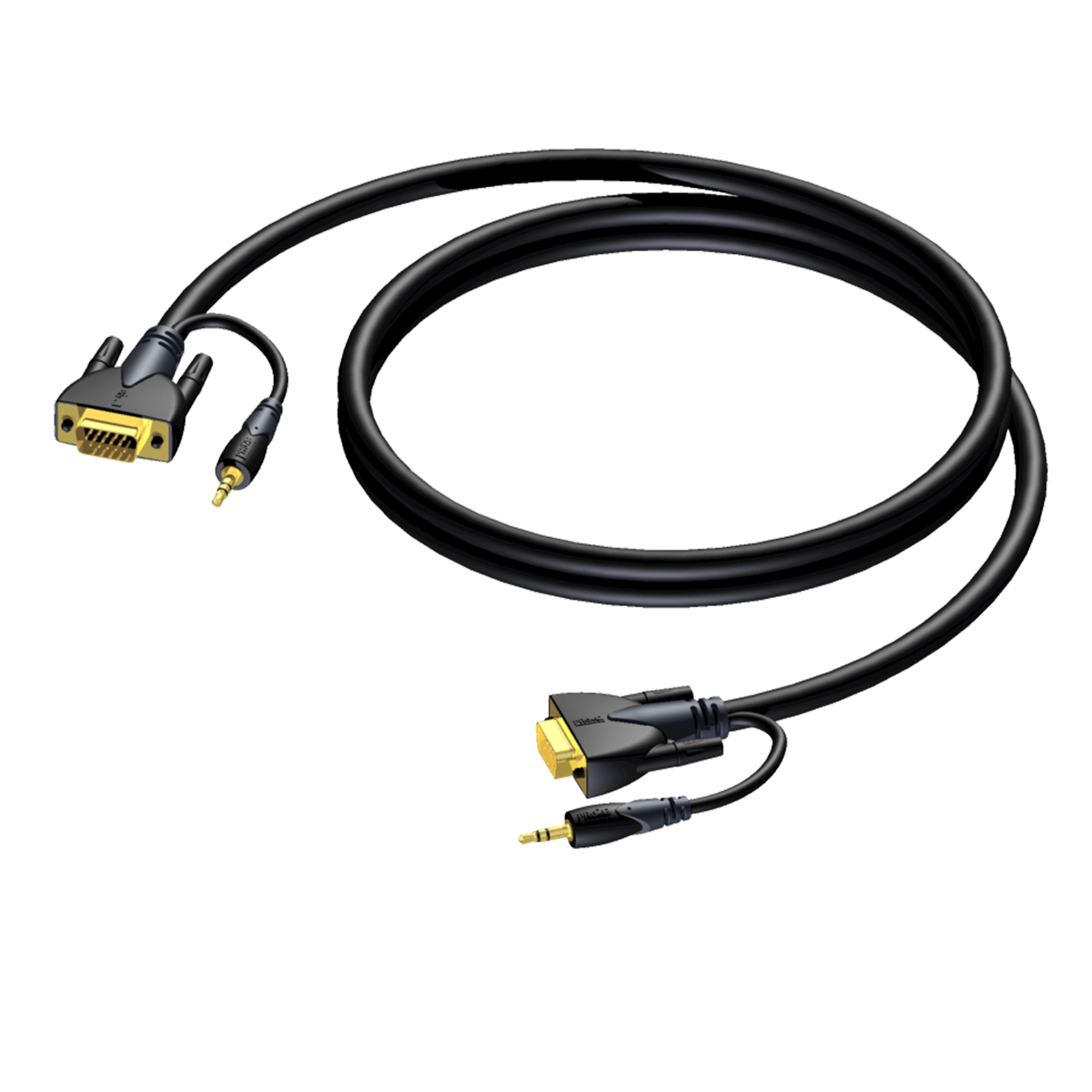

VGA kabel PROCAB CLV115
VGA kabel PROCAB CLV115, je iz serije kvalitetnejših VGA kablov. Podpira EDID in DDC. Izjemno kvaliteto doprinese pozlačena priključka. Kabel poleg VGA priključka na obeh straneh ima še zvočni stereo priključek jack 3,5 mm. Dobava je možna 1,5; 15; 20; 25; 30 metrov.
| Physical Characteristics | ||||
|---|---|---|---|---|
| Inner conductor | Insulation | Material | FPE 1.55 mm (Ø) | |
| Colours | White | |||
| Shielding | Aluminium foil | Al-mylar, 100% coverage – 25% Overlap | ||
| Drain wire | BC 7 x 0.12 mm (Ø) (OFC) | |||
| Audio | Insulation | Material | PE 7540 0.7 mm (Ø) | |
| Colours | Grey / Purple | |||
| Shielding | Spiral | CCA 28 x 0.12 mm (Ø) | ||
| Overall shielding | Aluminium foil | Al-mylar, 100% coverage – 25% Overlap | ||
| Drain wire | BC 7 x 0.16 mm (Ø) (OFC) | |||
| Outer jacket | Material | PVC 7.5 mm (Ø) | ||
| Colours | Black | |||
| Type of cable | 75 Ω VGA video cable | |||
| Inner conductor | Material | BC 7 x 0.12 mm (Ø) (OFC) | ||
| Audio | Material | BC 10 x 0.12 mm (Ø) (OFC) | ||
| Filling | Cotton Yarn | |||
| Inner conductor | American Wire Gauge | 28 AWG | ||
| Fitted connectors | SVGA male | |||
