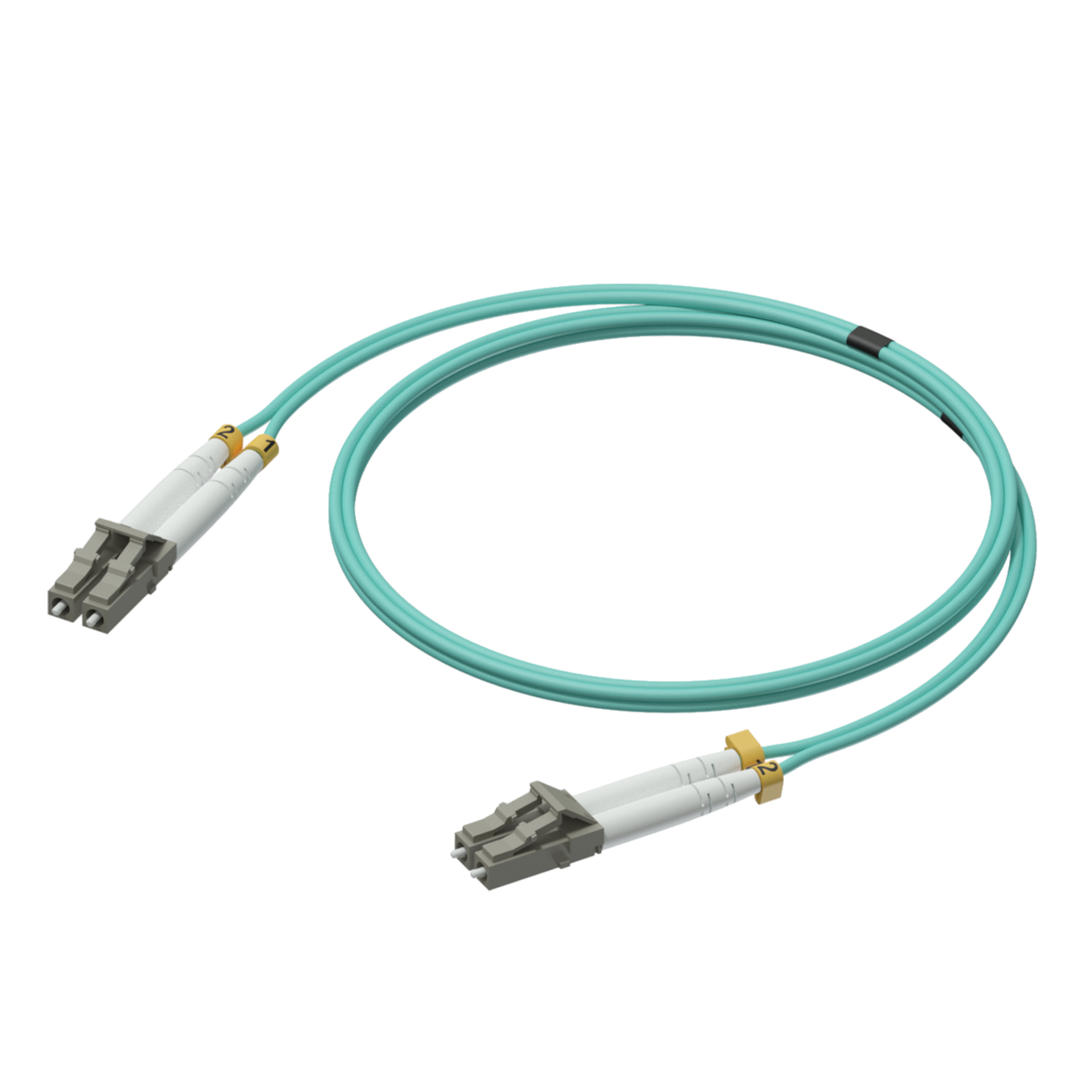

Optični kabel PROCAB FBL130
FBL130 je lasersko optimiziran hibridni večmodalni optični kabel tipa OM3 (50/125 μm), primeren za 10 gigabitni omrežni standard. Oba konca sta zaključena z dupleks LC / PC priključki, kar omogoča neposredno povezavo med oddajnimi in sprejemnimi enotami.
Na voljo v naslednjih dolžinah:
-FBL130/0,5 (0,5 m)
-FBL130/1 (1 m)
-FBL130/1,5 (1,5 m)
-FBL130/3 (3 m)
| Fizične lastnosti | ||||
|---|---|---|---|---|
| Inner conductor | Insulation | Material | Aramid yarn | |
| Outer jacket | Material | LSHF 2.0 x 4.0 mm (Ø) | ||
| Colours | Aqua | |||
| Type of cable | Fiber optic LC/PC to LC/PC duplex | |||
| Inner conductor | Material | 50/125 OM3 / Multimode | ||
| 50 / 2.5 μm multimode glass | ||||
| Number of conductors | 2 (duplex) | |||
| Connection type | LC MM Duplex connector (beige housing with boot) | |||
| Cladding diameter | 125 ± 1 μm (Ø) | |||
| Standardi in pravila | ||||
|---|---|---|---|---|
| RoHS2 compliant | According EU Directive 2011/65/EU | |||
| Reach compliant | According EC 1907/2006 | |||
| Indoor / outdoor | Indoor | |||
| Circuit integrity | n/a | |||
| Smoke emissions | According IEC 61034 | |||
| Zero halogen compounds | According EN 50267-2-1 | |||
| IEC 60754 | ||||
| Cabling standard | ANSI TIA-EIA 568B.3 | |||
| Bellcore GR-409 | ||||
| OFNR-UL/CSA FT4 | ||||
| Mehanične lastnosti | ||||
|---|---|---|---|---|
| Temperature range | Fixed installation | – 20 °C till + 80 °C | ||
| Mobile installation | – 15 °C till + 60 °C | |||
| Bending radius | Fixed installation | 10 x outer diameter | ||
| Mobile installation | 20 x outer diameter | |||
| Max tension | Short term | 200 N | ||
| Long term | 100 N | |||
| Crush resistance | 1000 (N / 100 mm) | |||
| Optične značilnosti | ||||
|---|---|---|---|---|
| Maximum attenuation | ≤ 2.5 dB @ 850 nm | |||
| ≤ 0.8 dB @ 1300 nm | ||||
| Insertion loss | ≤ 0.3 dB | |||
| Return loss | ≥ 35 dB | |||
| Minimum bandwidth | 1500 MHz @ 850 nm | |||
| 500 MHz @ 1300 nm | ||||
