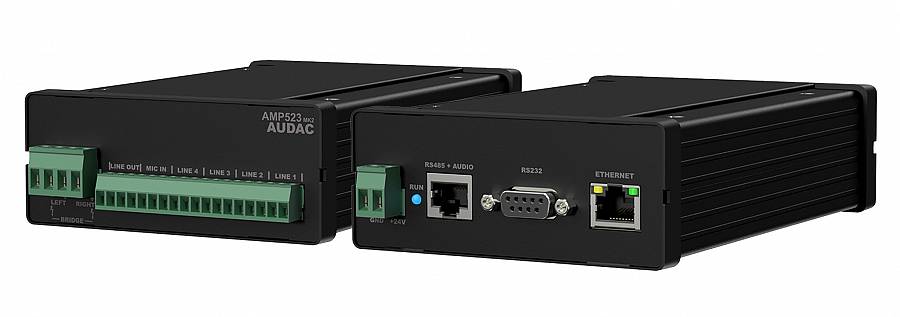

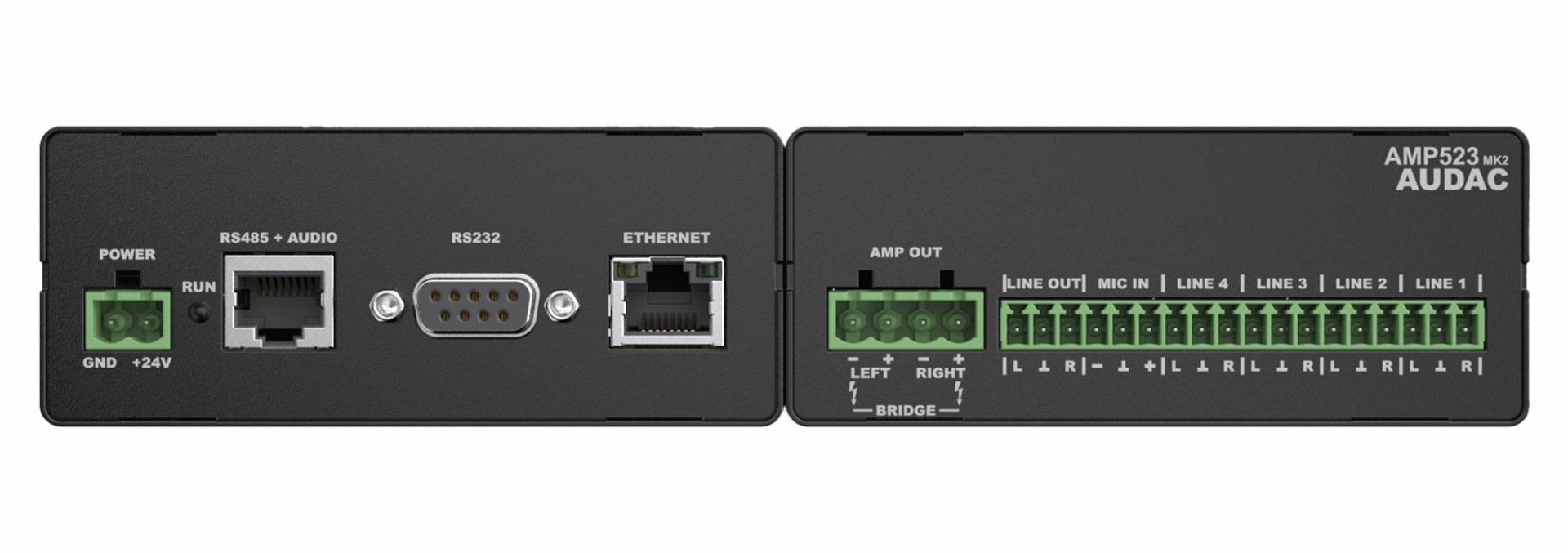

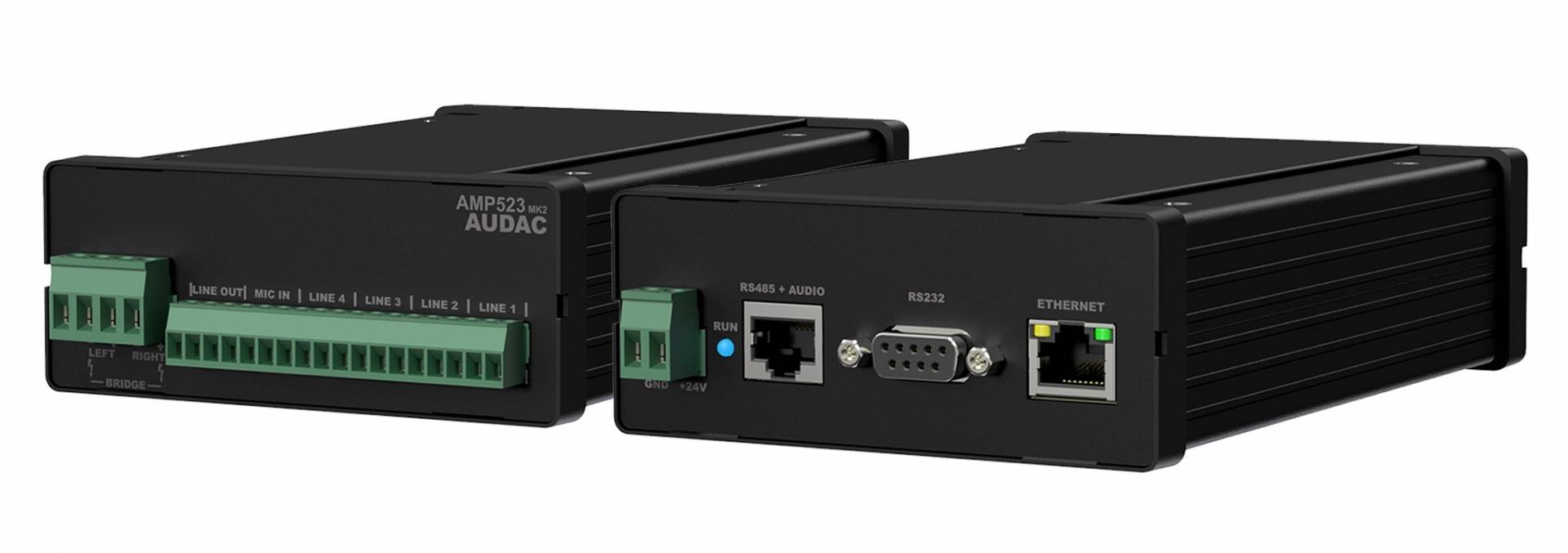

Ojačevalec AUDAC AMP523
AMP523 je mini stereo ojačevalec z močjo 2 x 15 W. Popolnoma se prilega majhnim sistemom ozvočenj, ki zahtevajo kompaktne in varčne avdio rešitve.
Pohvali se lahko s kompaktno izvedbo in zelo visoko učinkovitostjo.
| Continuous power (AES) | @ 4 Ω Stereo: 2 x 15 W @ 8 Ω Stereo: 2 x 7.5 W Satellite @ 8 Ω Bridge: 30 W |
|---|---|
| Inputs – Unbalanced Stereo | Type: 4 x Stereo Unbalanced Line |
| Inputs – Balanced Stereo | Connector: 18-pin Euro Terminal Block (Pitch – 3.81 mm) Impedance: 20 kΩ Sensitivity: -10 dBV ~ +4 dBV |
| Balanced Microphone | Type: 1 x Balanced Microphone Connector: 18-pin Euro Terminal Block (Pitch – 3.81 mm) Impedance: 47 kΩ Sensitivity: -45 dBV ~ -20 dBV |
| Other Connections | Type: 1 x RS-485 + Differential audio Connector: RJ45 Type: 1 x RS-232 Type: 1 x Ethernet |
| Outputs | Type: 1 x Stereo Loudspeaker Connector: 4-pin Euro Terminal Block (Pitch – 5.08 mm) |
| THD+N (@ 1 kHz) | < 0.1% |
| Crosstalk (@ 1 kHz) | < -75 dB |
| Signal / Noise | > 95 dB |
| Power Consumption | Standby: < 3.0 W (PSD242 included) |
| Power Supply | 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz) |
| Efficiency | 87% |
| Cooling | Passive |
| Protection | Over heating DC Short circuit Limiter |
| Control | RS-232 TCP/IP RS-485 |
| Socket Connections (AUDAC Touch™) | 2 sockets |
Product Features
| Dimensions | 108 x 44 x 165 mm (W x H x D) |
|---|---|
| Weight | 0.81 kg |
| Accessories Included | PSD241 – Power supply 24V / 1.67 A (Efficiency Level V) |
| Optional Accessories | Wall Controller (MWX45) WMI18/22 & WLI18/22 Wall input unit MBS1xx Wall mounting brackets TR3030 100V Transformer 30 W WP2xx Universal wall panel |
