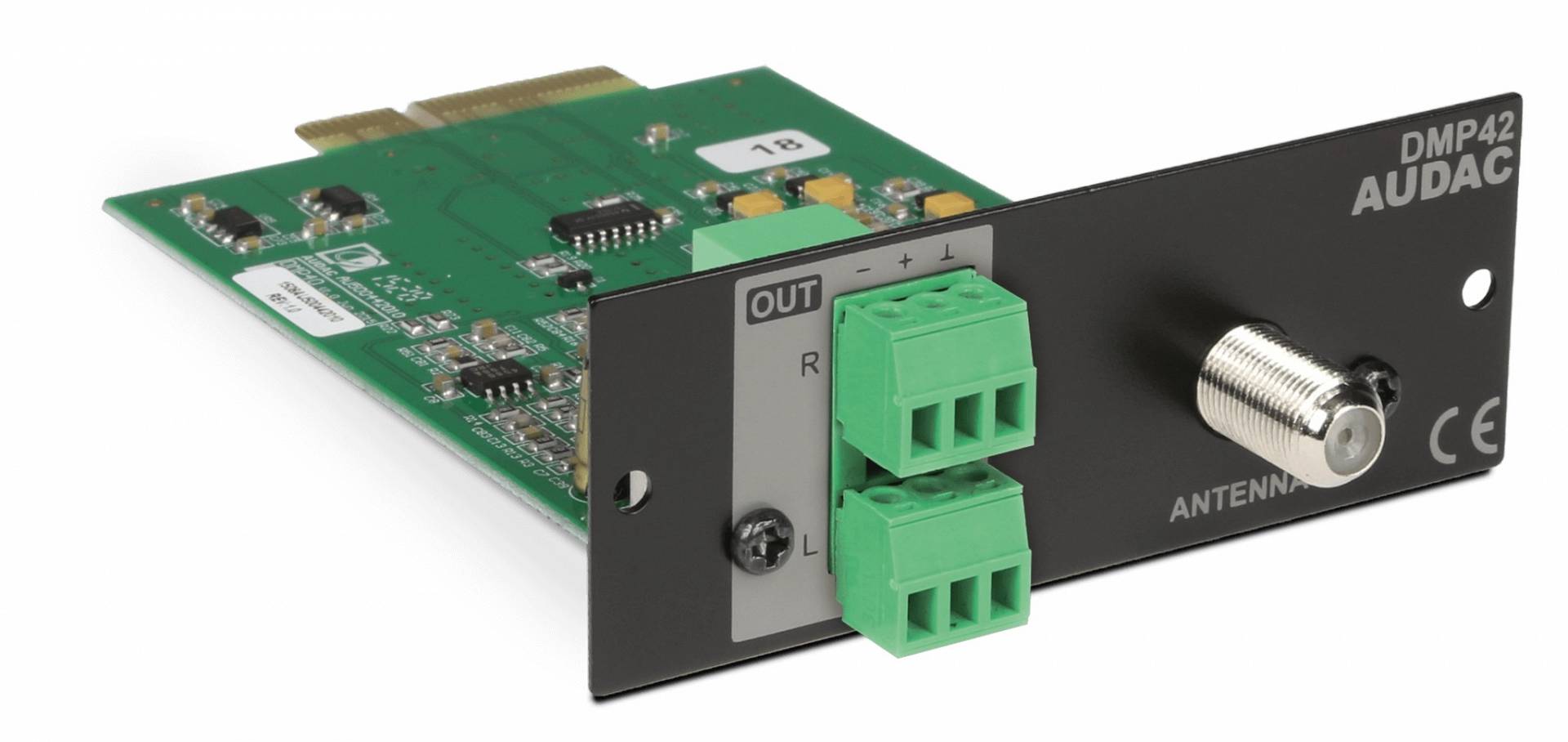

Modularni predvajalnik AUDAC DMP42
DMP42 je profesionalni DAB / DAB + in FM sprejemnik z modularno tehnologijo SourceCon ™. Ta edinstvena tehnologija zagotavlja implementacijo plug & play na vse združljive naprave.
| Connection | SourceCon™ interface card slot |
|---|
DAB
| Crosstalk (@ 1 kHz) | 53 dB |
|---|---|
| Sensitivity (1W/1m) | -99 dBm |
| Signal / Noise | 81 dB |
| THD+N (@ 1 kHz) | 0.026% |
| Tuning Range (-10 dB) | Band-3: 171 ~ 240 MHz L-Band: 1452 ~ 1492 MHz |
| Frequency Response (± 3 dB) | 42 Hz – 20 kHz |
FM
| Crosstalk (@ 1 kHz) | 26 dB |
|---|---|
| Frequency Response (± 3 dB) | 30 Hz – 12.5 kHz |
| Sensitivity (1W/1m) | -108 dBm |
| Signal / Noise | 52 dB |
| THD+N (@ 1 kHz) | 0.22% |
| Tuning Range (-10 dB) | 87.5 ~ 108 MHz |
Inputs
| Type | F-type antenna connection (75 Ω) |
|---|
Outputs
| Level | +8 dB ~ -32 dB |
|---|---|
| Type | Balanced stereo line outputs (3-pin Euro Terminal Block, Pitch – 3.81 mm) |
Power
| Consumption | 1.5 W |
|---|
Product Features
| Dimensions | 87 x 34.5 x 114 mm (W x H x D) |
|---|---|
| Mounting | SourceCon™ interface card slot |
| Weight | 0.074 kg |
| Accessories Included | Antenna cable |
| Optional Accessories | ASK40S 4-way antenna splitter kit RGA10 – Outdoor FM antenna RGA12 – Outdoor DAB/DAB+ antenna |
 |
