Mikrofonski kabel PROCAB MC305

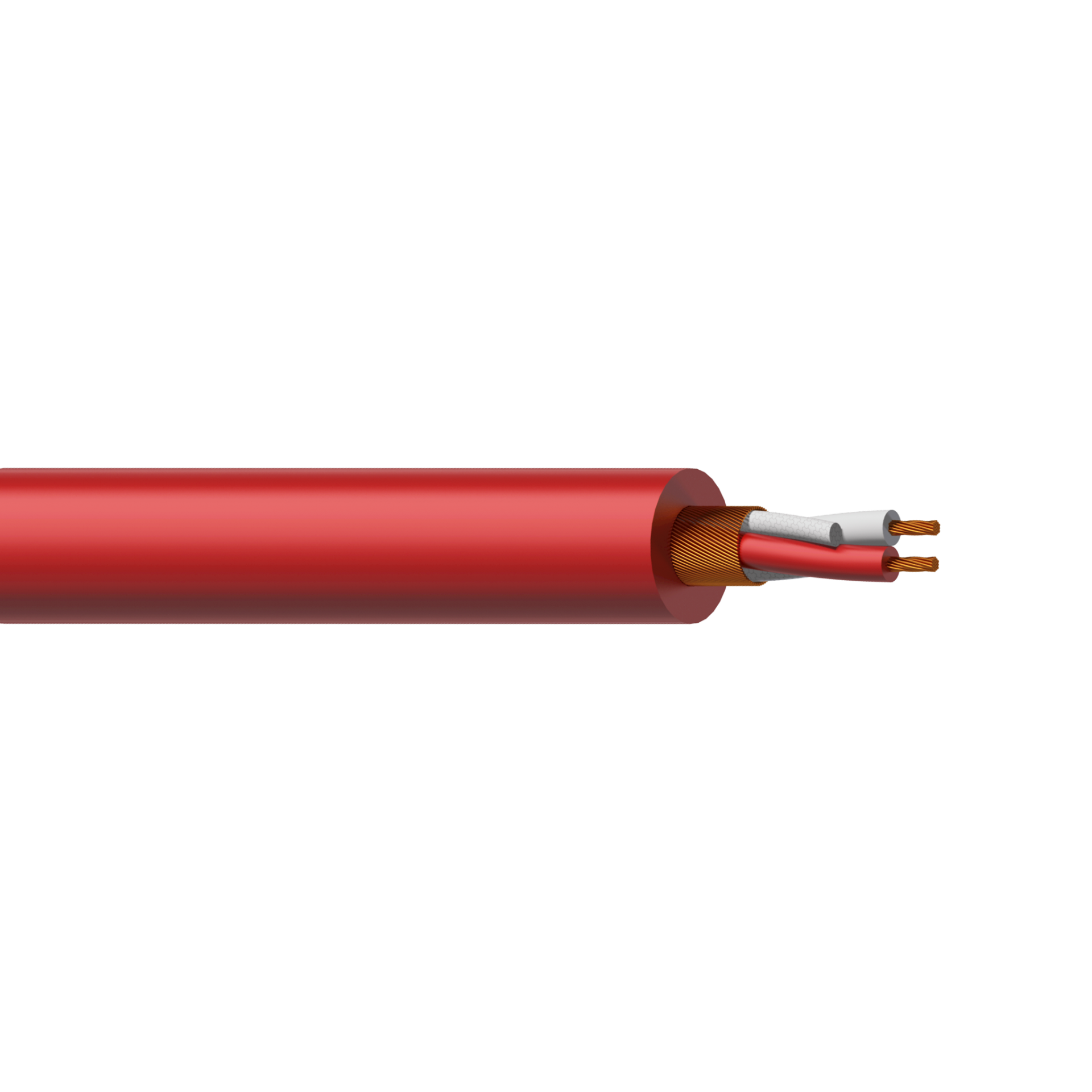

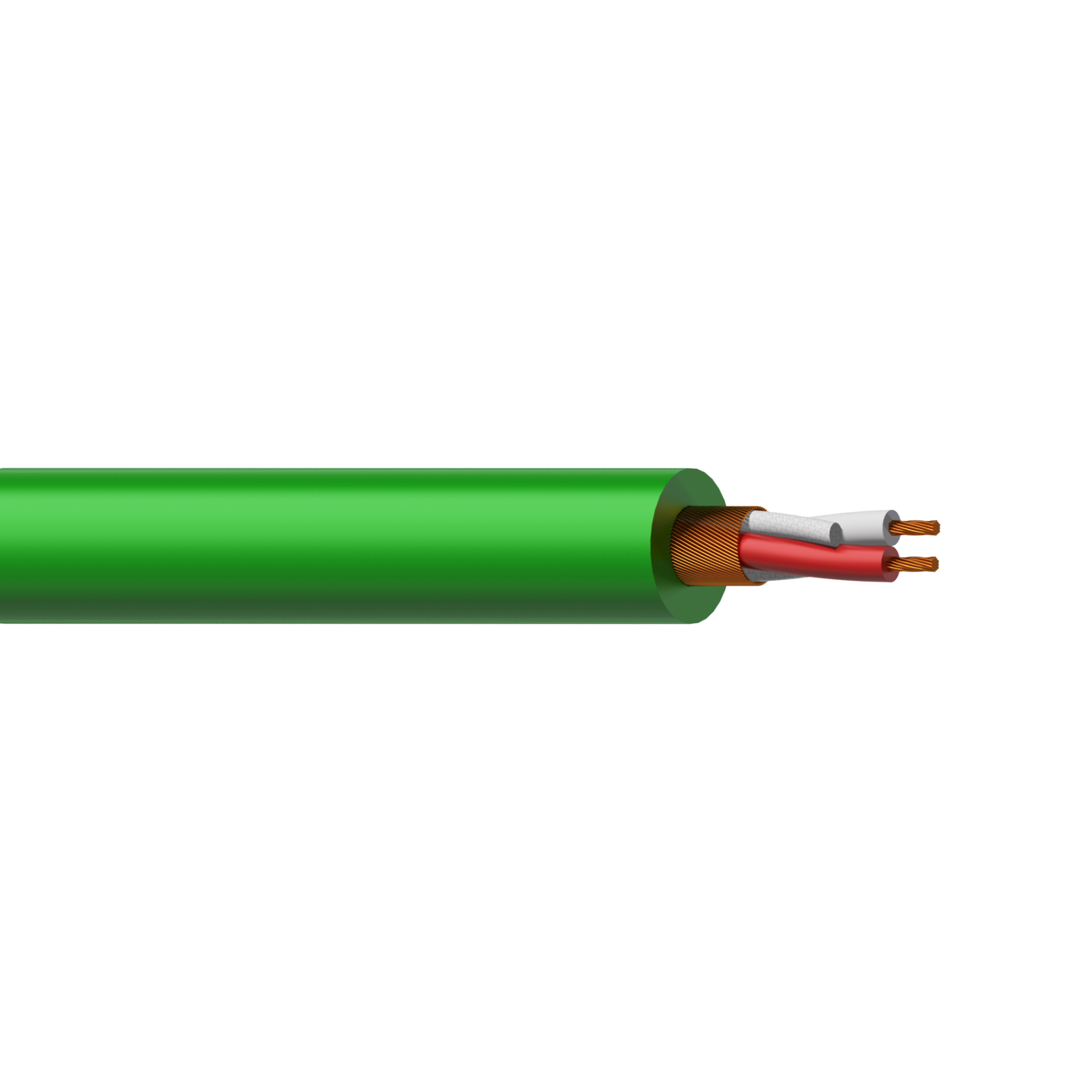

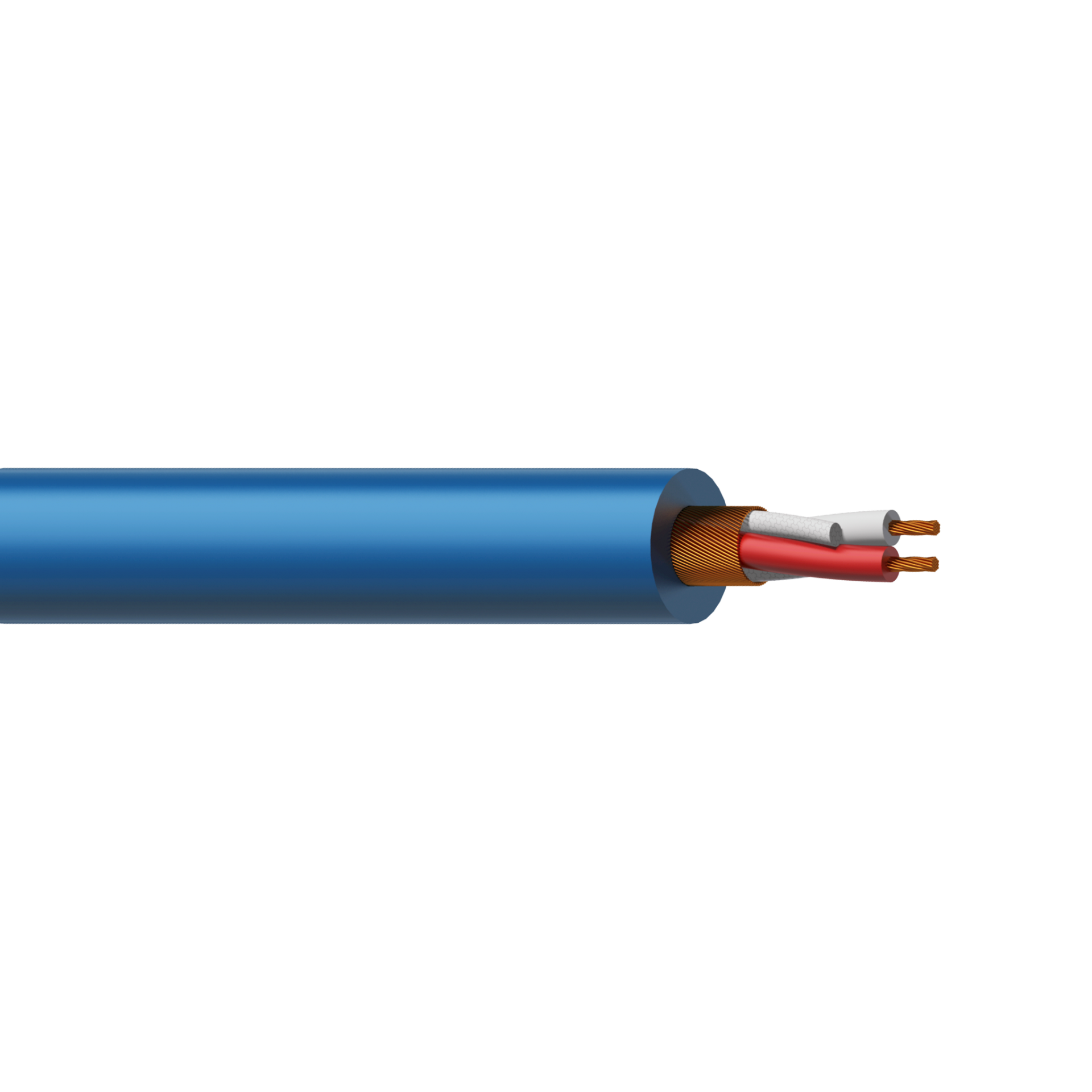

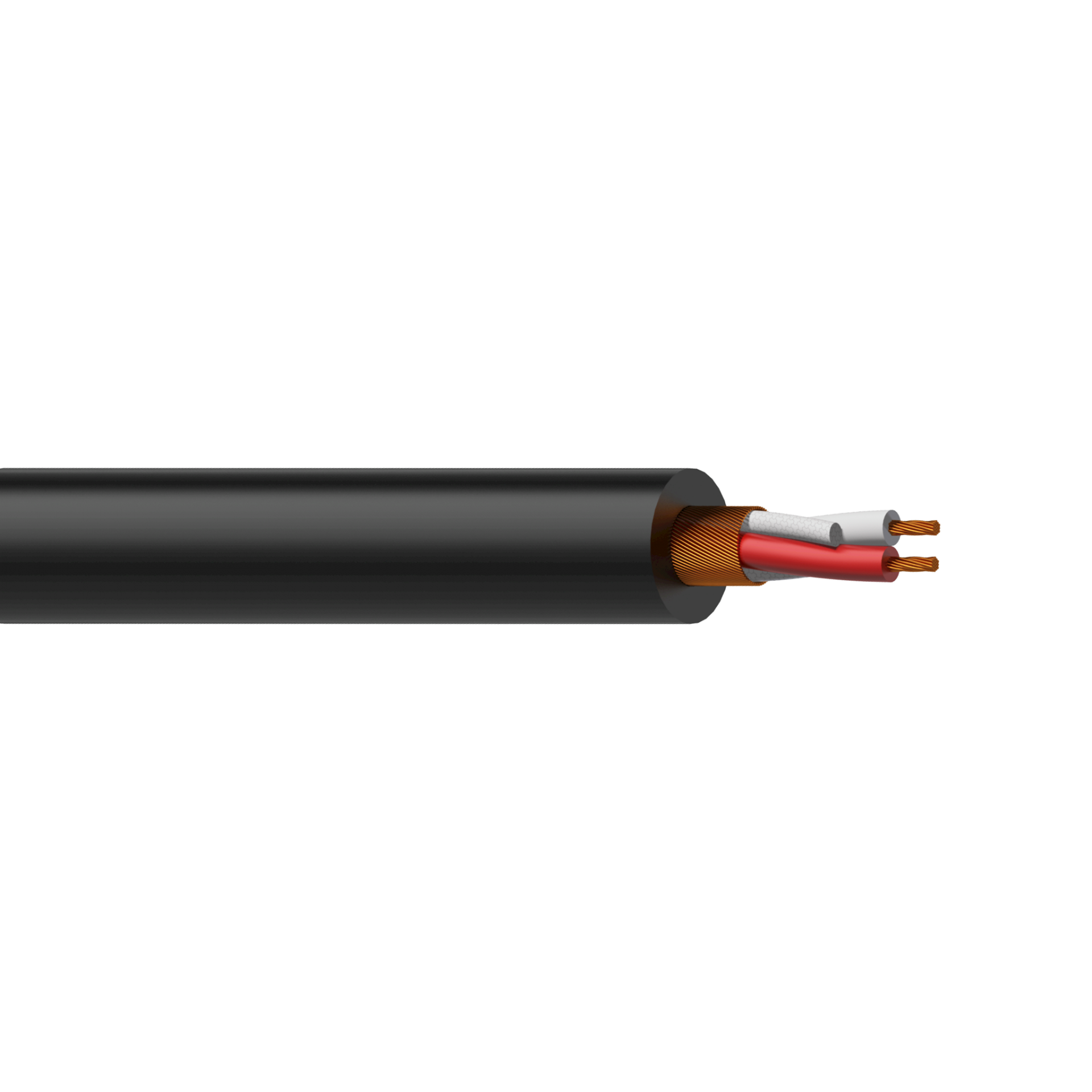

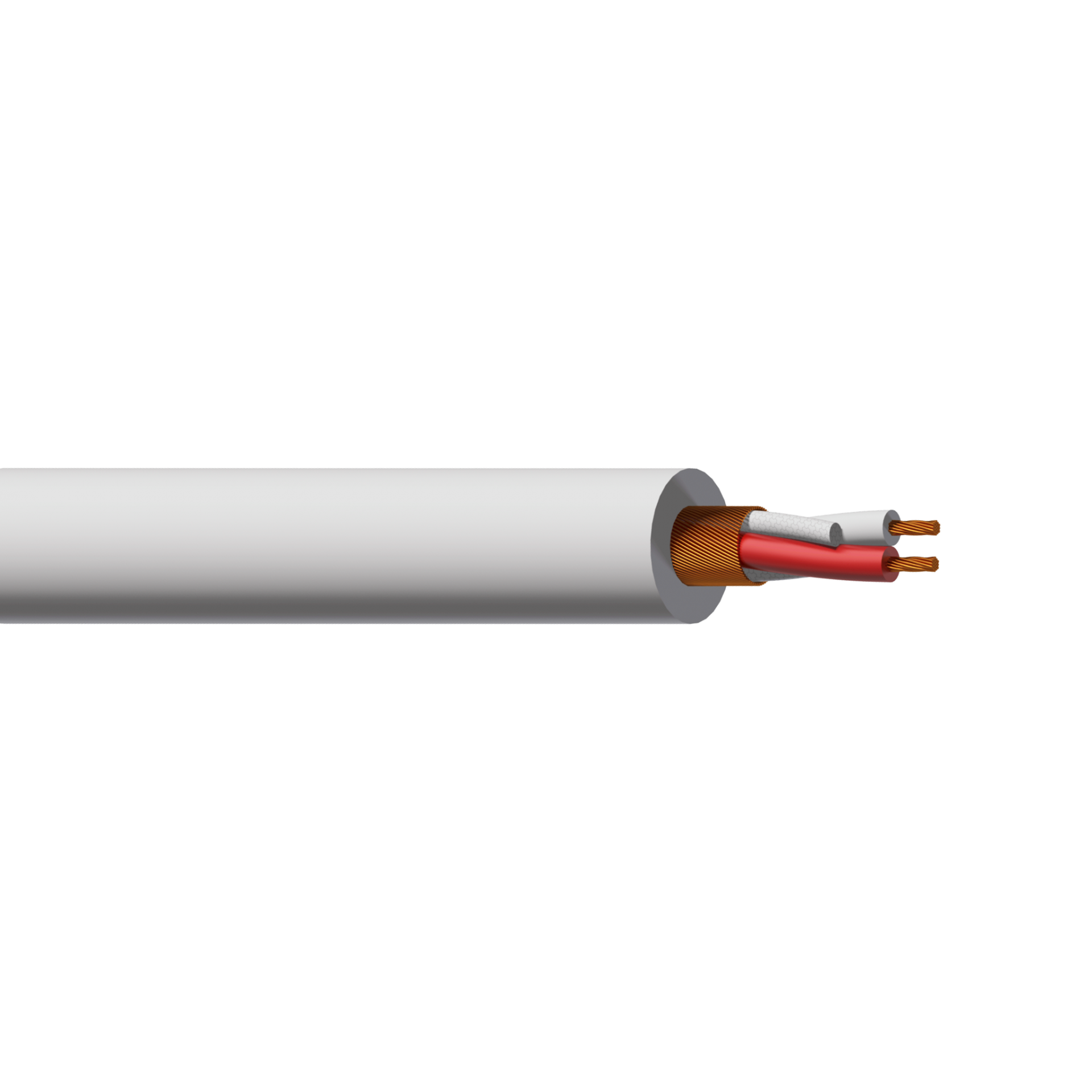

Mikrofonski kabel PROCAB MC305, je visoko kvaliteten kabel, primeren za notranjo, zunanjo in mobilno uporabo. Zaradi njegove fleksibilnosti je enostaven za uporabo. Preplet paric daje odlično zaščito pred zunanjimi motnjami, in šumi. Sestavljen je iz dveh paric preseka 0,22 mm2 . Dobavljiv je v 100 m kolutu in v petih barvah rdeči, črni zeleni, beli in modri.
| Fizične lastnosti | ||||
|---|---|---|---|---|
| Inner conductor | Insulation | Material | LDPE 1.4 mm (Ø) | |
| Colours | White / Red | |||
| Shielding | Spiral | BC 64 x 0.12 mm (Ø) (OFC) | ||
| Outer jacket | Material | Flexible PVC 6 mm (Ø) | ||
| Colours | Black | |||
| White | ||||
| Green | ||||
| Type of cable | 24 AWG Microphone cable | |||
| Inner conductor | Material | BC 20 x 0.12 mm (Ø) (OFC) | ||
| Section | 0.23 mm² | |||
| Filling | Cotton Yarn | |||
| Inner conductor | Number of conductors | 2 | ||
| Conductor twisting | Yes | |||
| Mehanične lastnosti | ||||
|---|---|---|---|---|
| Temperature range | Fixed installation | – 40 °C till + 80 °C | ||
| Flexible installation | – 25 °C till + 70 °C | |||
| Bending radius | Fixed installation | 6 x outer diameter | ||
| Flexible installation | 8 x outer diameter | |||
| Električne lastnosti | ||||
|---|---|---|---|---|
| Capacitance | Cond/Shield | 81.5 pF / m @ 1 MHz | ||
| Cond/Cond | 42 pF / m @ 1 MHz | |||
| Characteristic impedance | 95 Ω ± 1 Ω | |||
