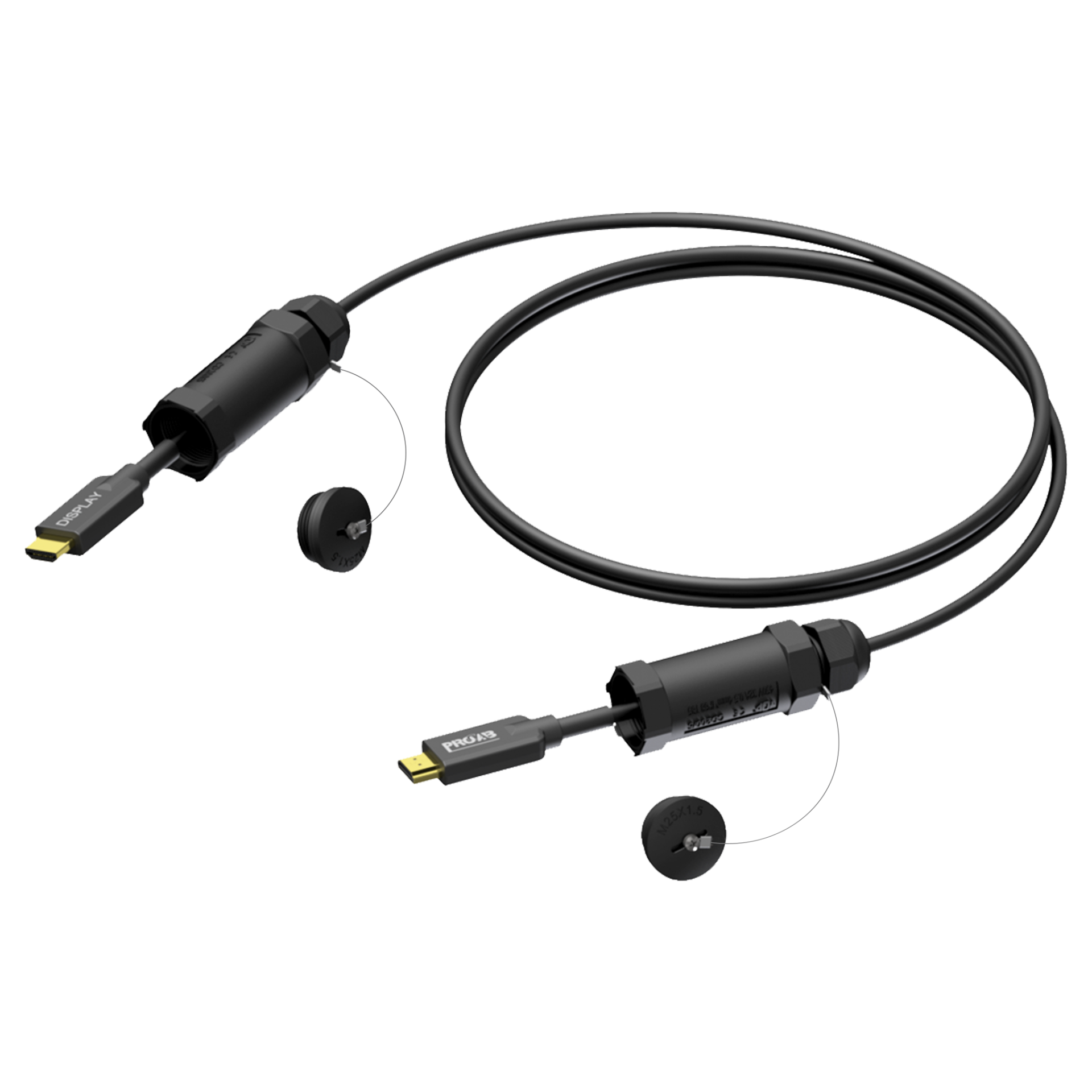

HDMI kabel PROCAB PRV220A
PRV220A je optični kabel HDMI 2.0, ki lahko prenaša ločljivosti do ultra HD 4K 2160p (4096 x 2160) 4: 4: 4 pri 60 Hz s pasovno širino 18 Gbps prek optičnih vlaken, kar izključuje možnost elektronskih motenj.
Na voljo v naslednjih dolžinah:
-PRV220A/15 (15 m)
-PRV220A/50 (50 m)
-PRV220A/75 (75 m)
-PRV220A/100 (100 m)
| Lastnosti izdelka | ||||
|---|---|---|---|---|
| Accessories | Included | Screwdriver | ||
| Fizične lastnosti | ||||
|---|---|---|---|---|
| Inner conductor | Insulation | Material | PE 0.9 mm (Ø) | |
| PE 1 mm (Ø) | ||||
| Shielding | Aluminium foil | Al-mylar, 100% coverage – 25% Overlap | ||
| Drain wire | TC 11 x 0.08 mm (Ø) (OFC) | |||
| Overall shielding | Aluminium foil | Al-mylar, 100% coverage – 25% Overlap | ||
| Outer jacket | Material | TPU 5.8 mm (Ø) | ||
| Colours | Black | |||
| Armor | Material | Kevlar | ||
| Stainless steel | ||||
| Strength test | Crush test | 200 kg (Short term) | ||
| 100 kg (Long term) | ||||
| Bending radius | 10 D (Dynamic) / 20 D (Static) | |||
| Tensile strength test | 40 kg (Long term) | |||
| 80 kg (Short term) | ||||
| Connector bending test | > 10000 cycles | |||
| Connector pull out force | 2 kg | |||
| Inner conductor | Material | TC 11 x 0.08 mm (Ø) (OFC) | ||
| TC 19 x 0.08 mm (Ø) (OFC) | ||||
| TC 30 x 0.08 mm (Ø) (OFC) | ||||
| TC 41 x 0.08 mm (Ø) (OFC) | ||||
| 50/125 OM3 / Fiber (4x) | ||||
| Section | 0.05 mm² | |||
| 0.08 mm² | ||||
| 0.14 mm² | ||||
| 0.25 mm² | ||||
| Number of conductors | 12 | |||
| Conductor twisting | Yes | |||
| Mehanične lastnosti | ||||
|---|---|---|---|---|
| Temperature range | Mobile installation | – 40 °C till + 80 °C | ||
