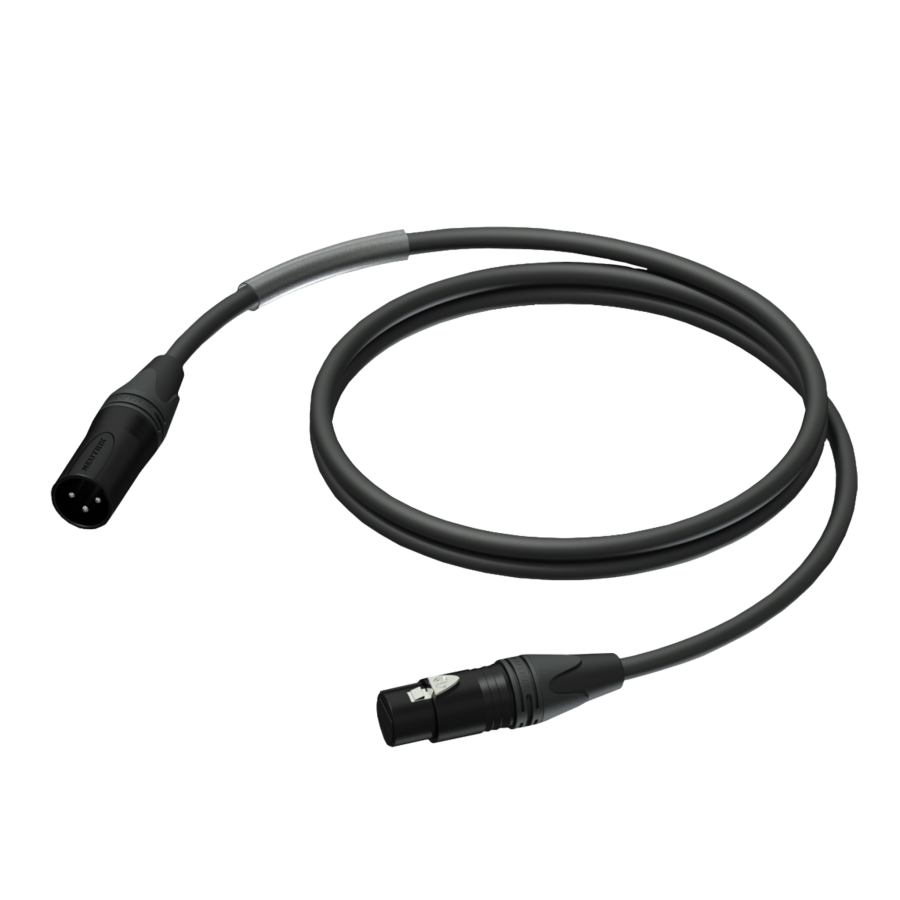

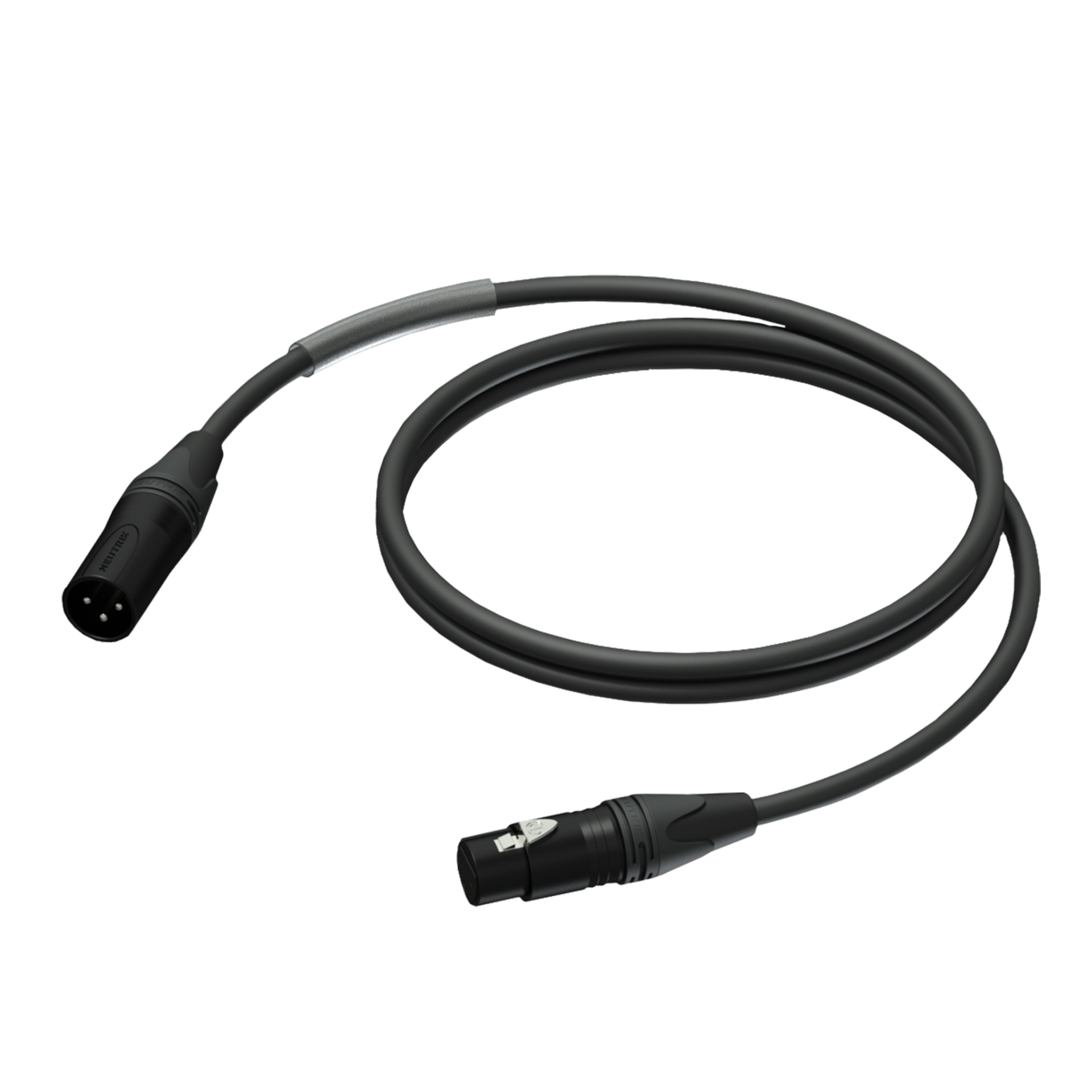

DMX kabel PROCAB PRD953
PRD953 je 110 Ohm DMX-AES / EBU kabel, izdelan s kablom PMX222 in opremljen s 3-pinskim XLR priključkom Neutrik. Bakreno pleteno pletenje 22 AWG (0,34 mm²) z dvojno zaščito (Al-folija + TC pletenje) je popolnoma primerno za profesionalno uporabo v zelo zahtevnih aplikacijah.
Na voljo v naslednjih dolžinah:
-PRD953/0,5 (0,5 m)
-PRD953/1 (1 m)
-PRD953/1,5 (1,5 m)
-PRD953/3 (3 m)
-PRD953/5 (5 m)
-PRD953/10 (10 m)
-PRD953/15 (15 m)
-PRD953/20 (20 m)
| Fizične lastnosti | ||||
|---|---|---|---|---|
| Inner conductor | Insulation | Colours | White / Red | |
| Overall shielding | Aluminium foil | Al-mylar, 100% coverage – 25% Overlap | ||
| Braiding | TC 16 x 8 x 0.1 mm (Ø) (OFC) | |||
| Outer jacket | Material | Highflex PVC 6.5 mm (Ø) | ||
| Colours | Dark grey | |||
| Type of cable | 110 Ω DMX-AES cable | |||
| Inner conductor | Material | TC 17 x 0.16 mm (Ø) (OFC) | ||
| Section | 0.342 mm² | |||
| Filling | Cotton Yarn | |||
| Inner conductor | American Wire Gauge | 22 AWG | ||
| Number of conductors | 2 | |||
| Connection type | XLR-3 Male to XLR-3 Female | |||
| Mehanične lastnosti | ||||
|---|---|---|---|---|
| Temperature range | Fixed installation | – 40 °C till + 80 °C | ||
| Mobile installation | – 25 °C till + 70 °C | |||
| Bending radius | Fixed installation | 6 x outer diameter | ||
| Mobile installation | 8 x outer diameter | |||
| Električne lastnosti | ||||
|---|---|---|---|---|
| Capacitance | Cond/Shield | 79 pF / m @ 1 MHz | ||
| Cond/Cond | 50 pF / m @ 1 MHz | |||
| Lead resistance | Shielding | 52 Ω / 100 m | ||
| Characteristic impedance | 110 Ω ± 3 Ω | |||
