Brezžični mikrofonski sistem LD Systems U518 HBH 2
Profesionalni brezžični mikrofonski sistemi LD Systems U500 zagotavljajo cenovno ugodno in kvalitetno profesionalno audio opremo, ki je bila razvita v Nemčiji.

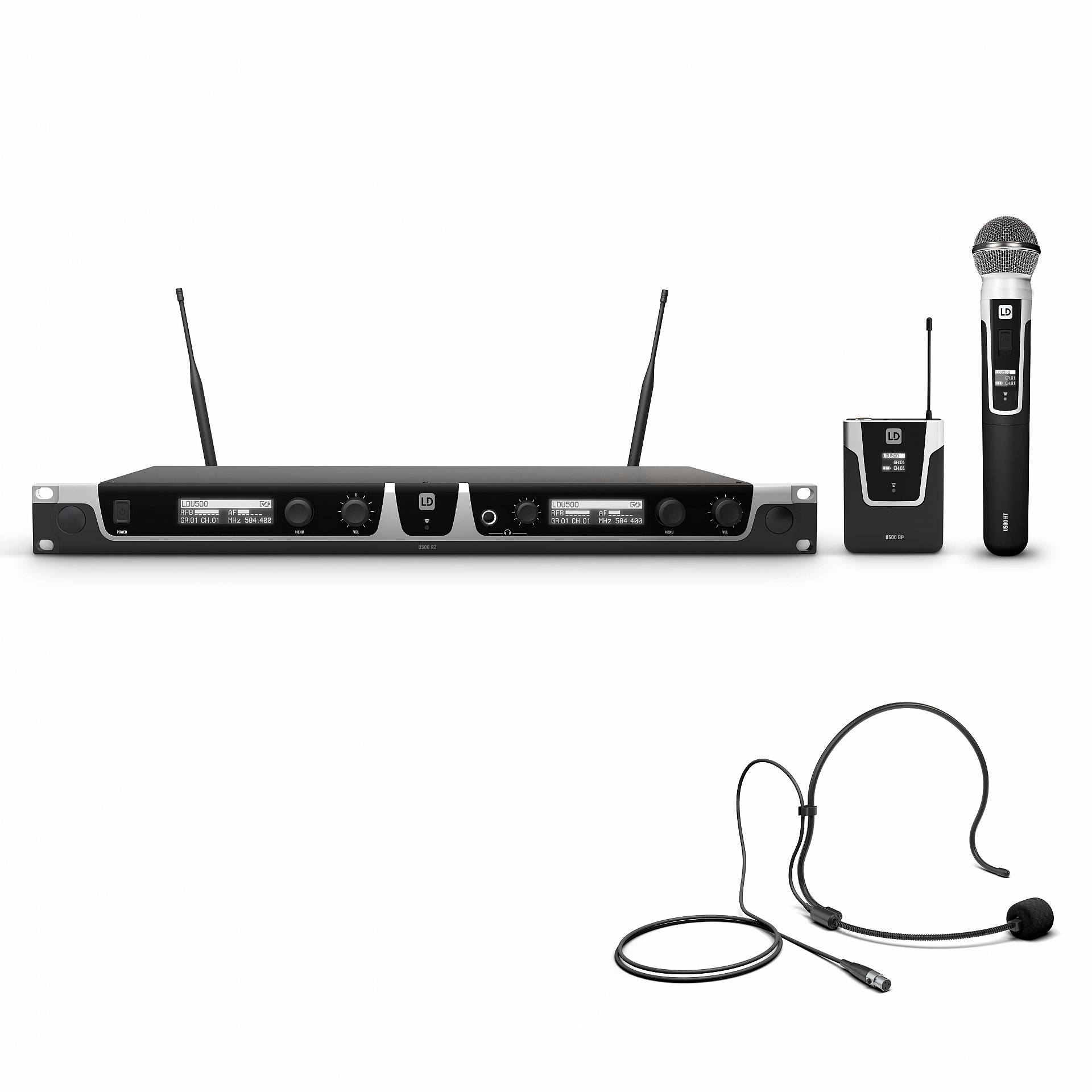

Brezžični mikrofonski sistem LD Systems U518 HBH 2 vključuje:
-ročni oddajnik
-sprejemnik
-brezžični ročni mikrofon
-naglavni mikrofon

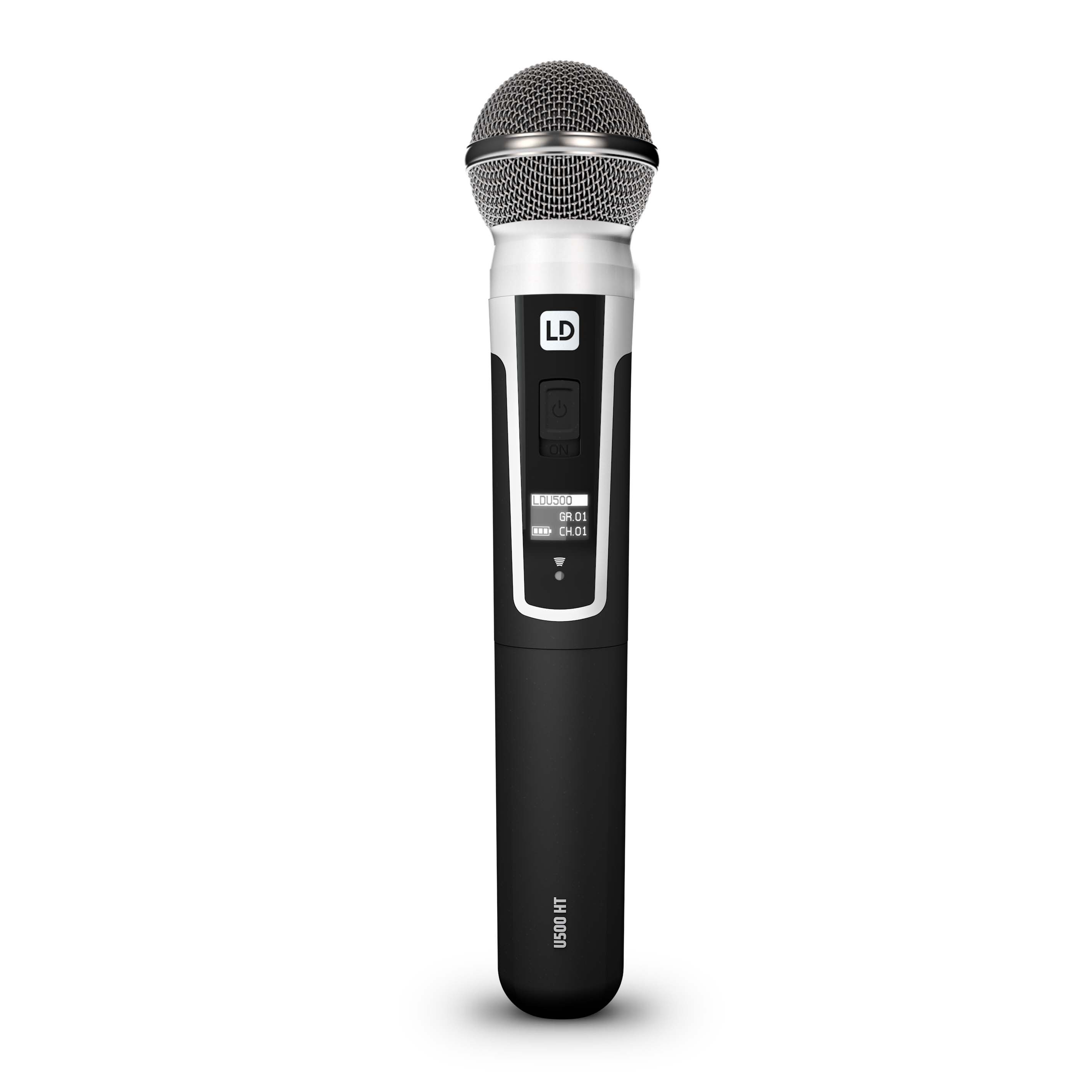

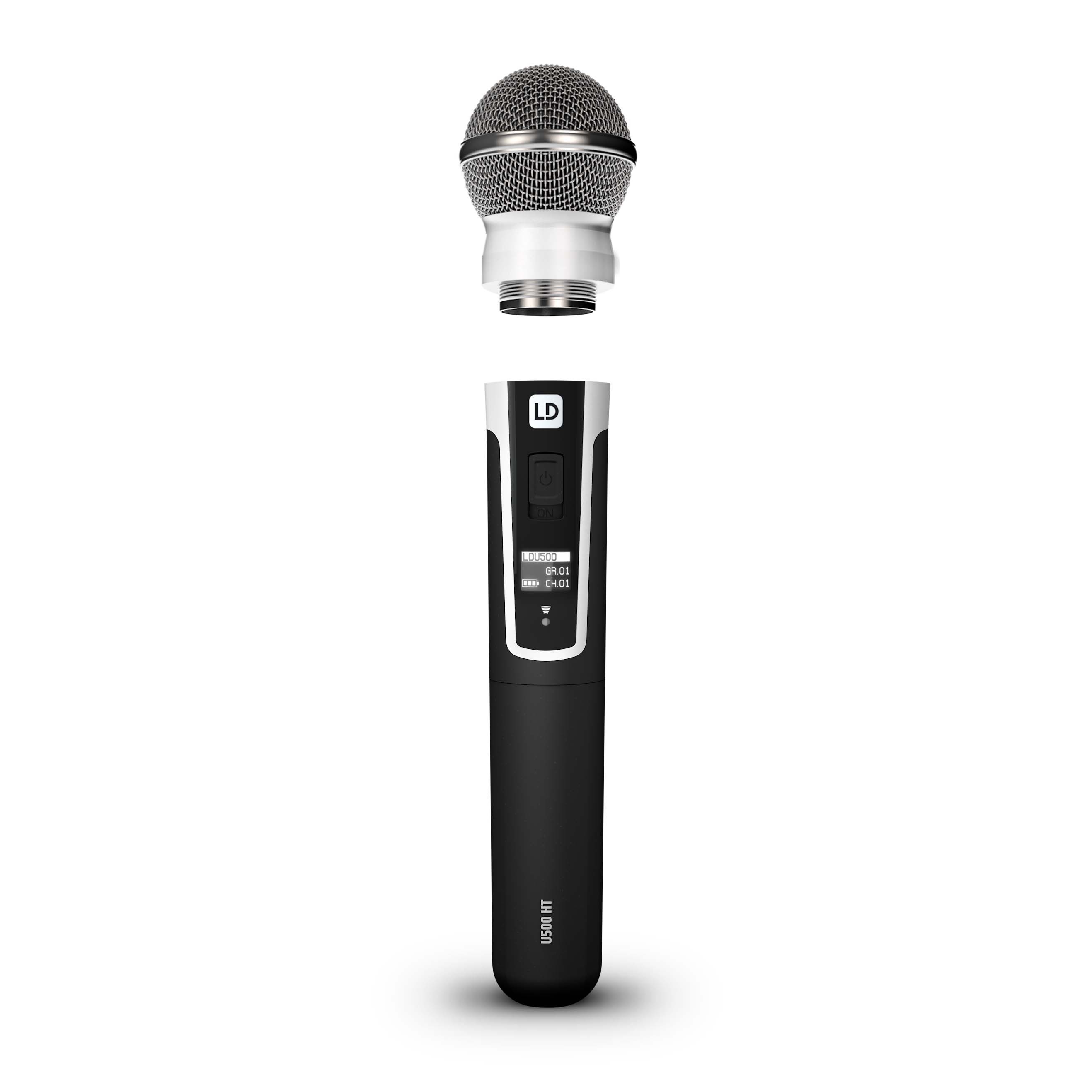

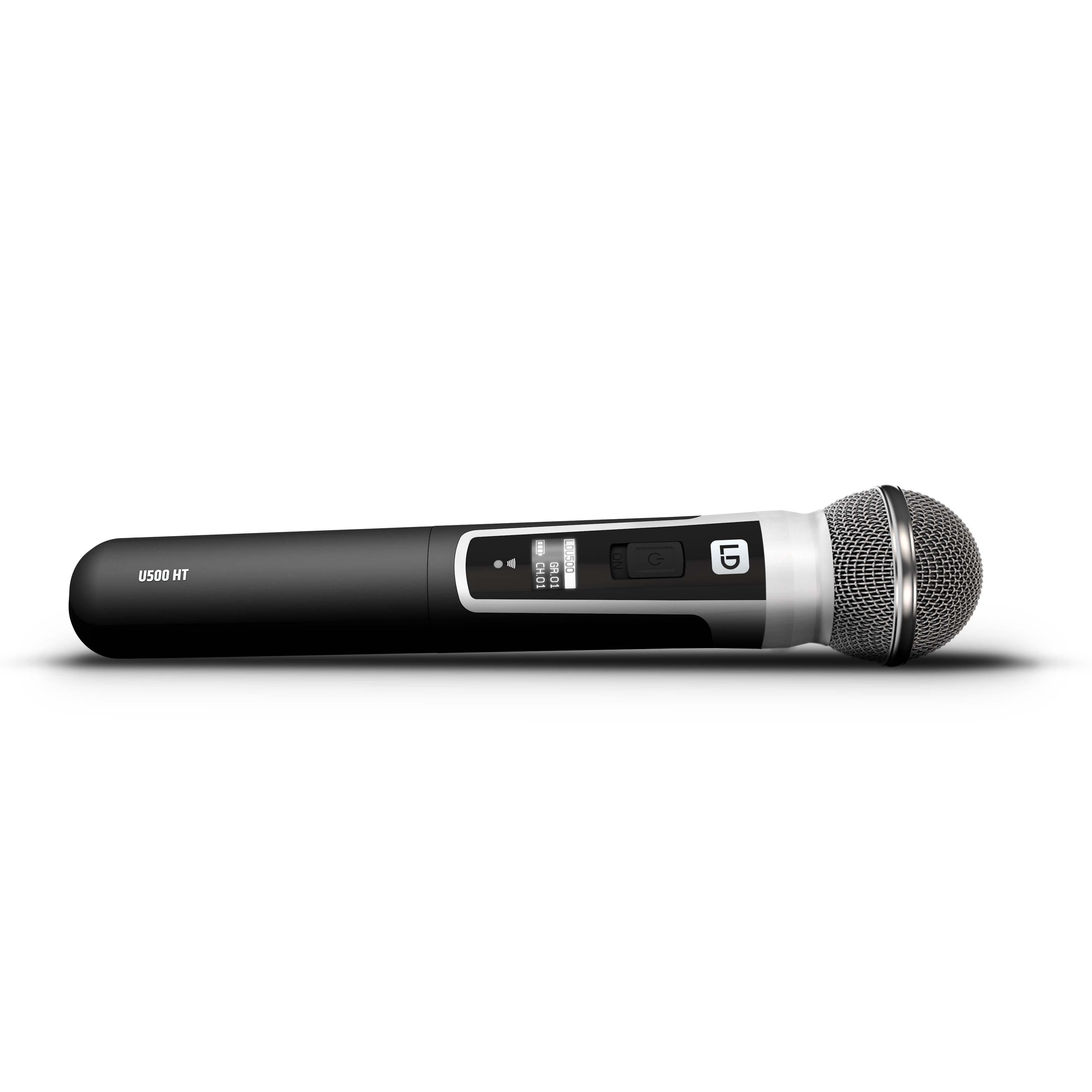

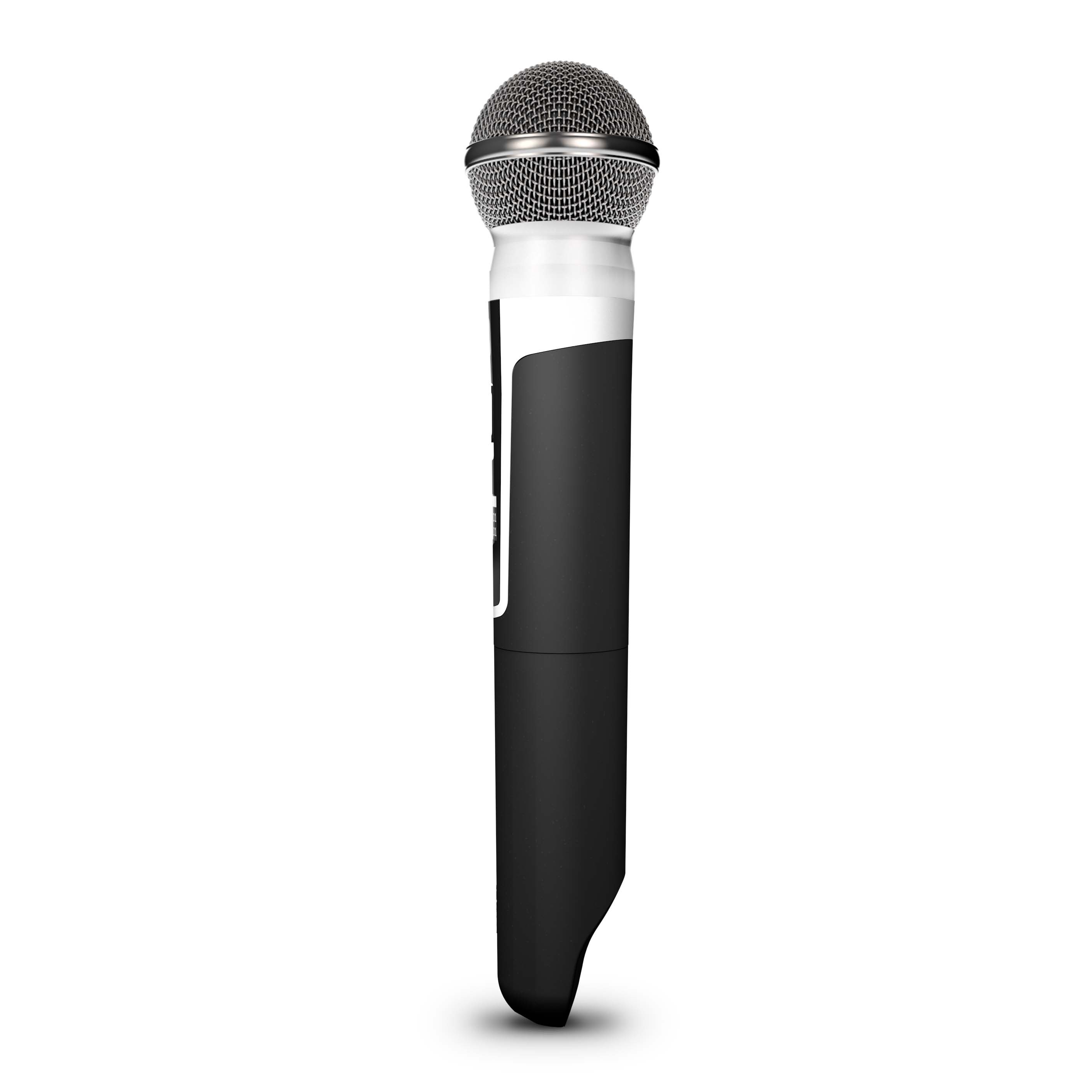

ROČNI MIKROFON
Product type
switchable gain
Transmission frequency range
1785 – 1800 MHz
Type
Microphones
Groups
8
Microphone type
Dynamic
Frequency response
60 – 16000 Hz
Signal-to-noise ratio
>95 dB
Rated HF output power
Variable (10, 30, 50 mW)
Length
257 mm
Diameter
51 mm
Weight
0,25 kg
Other features
interchangeable capsule

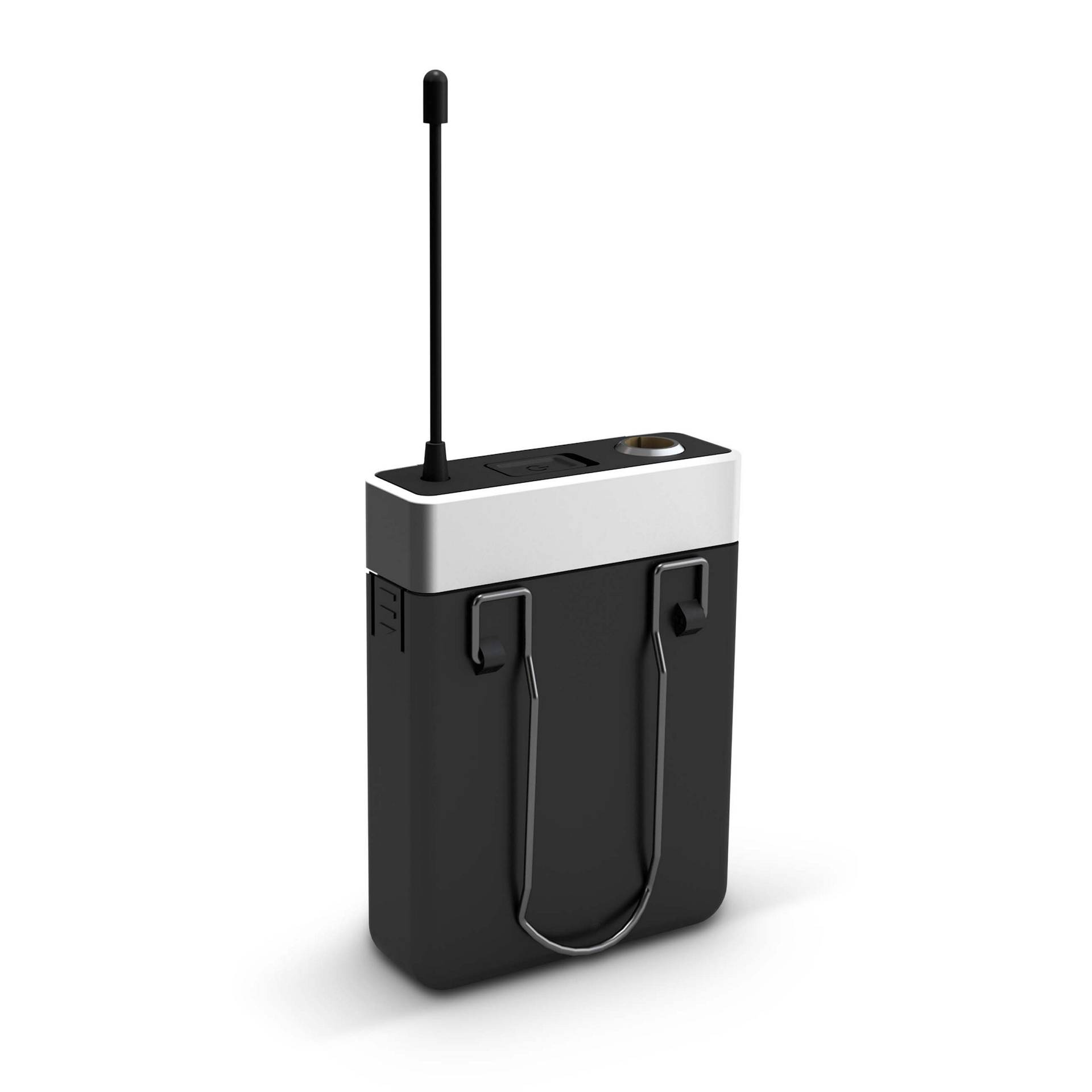

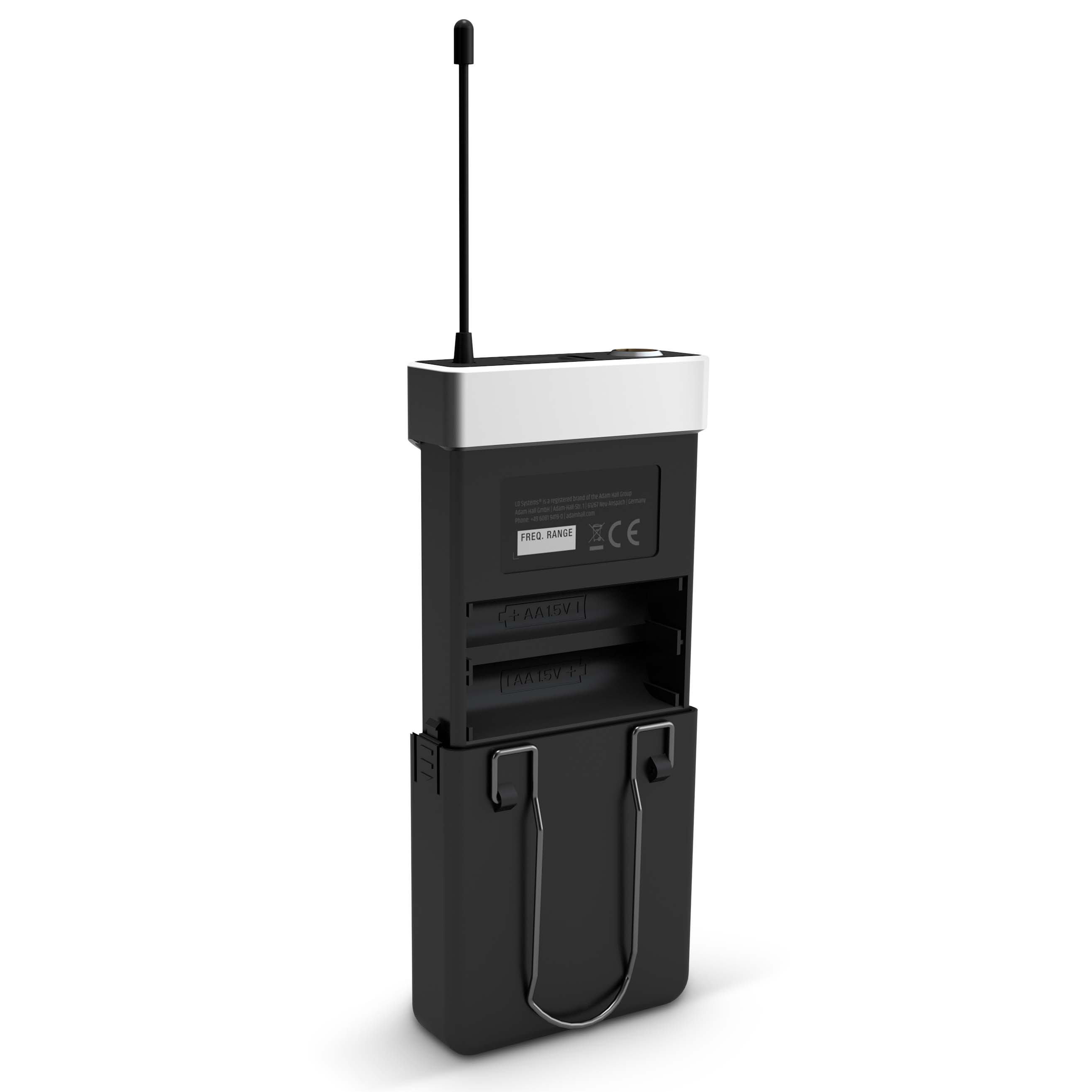

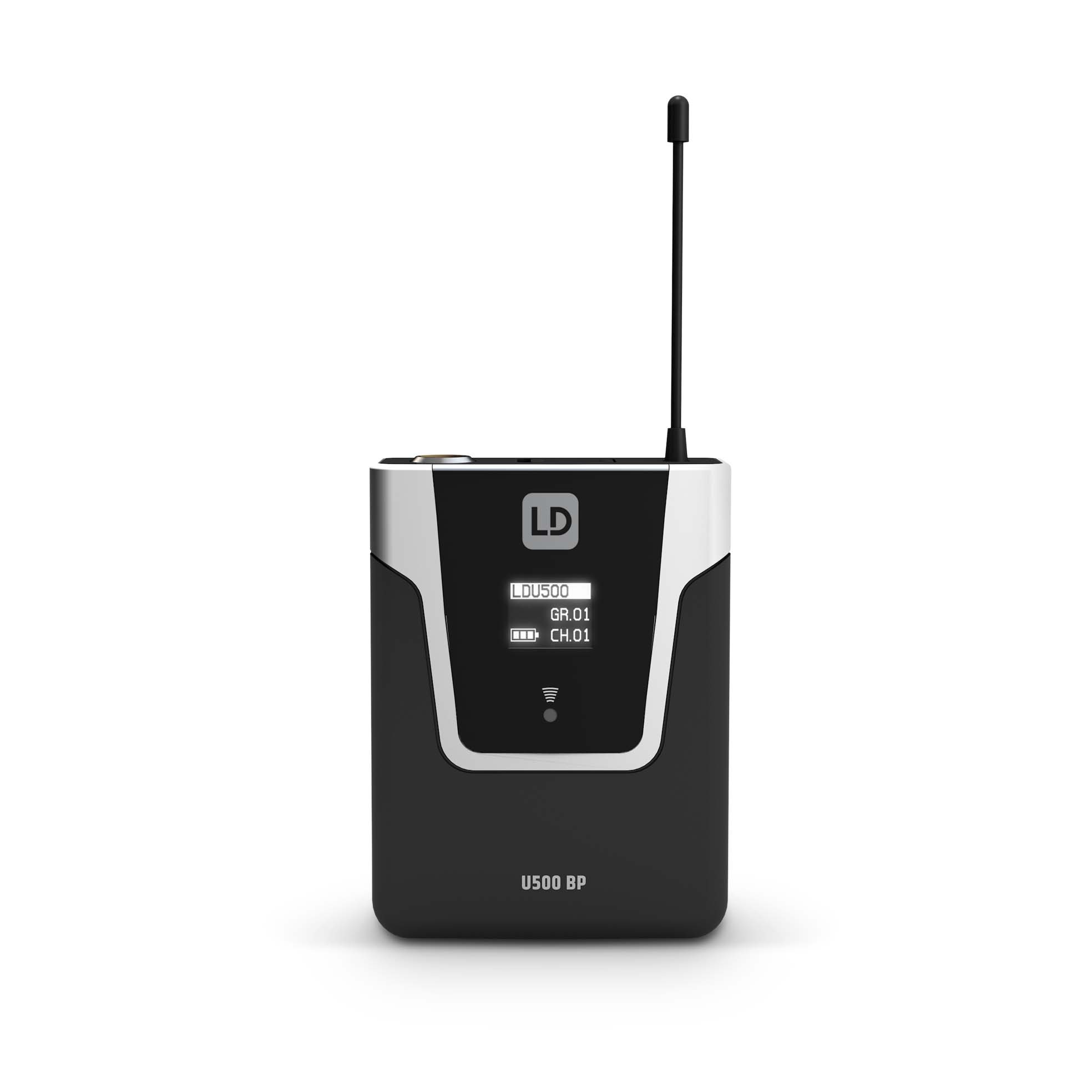

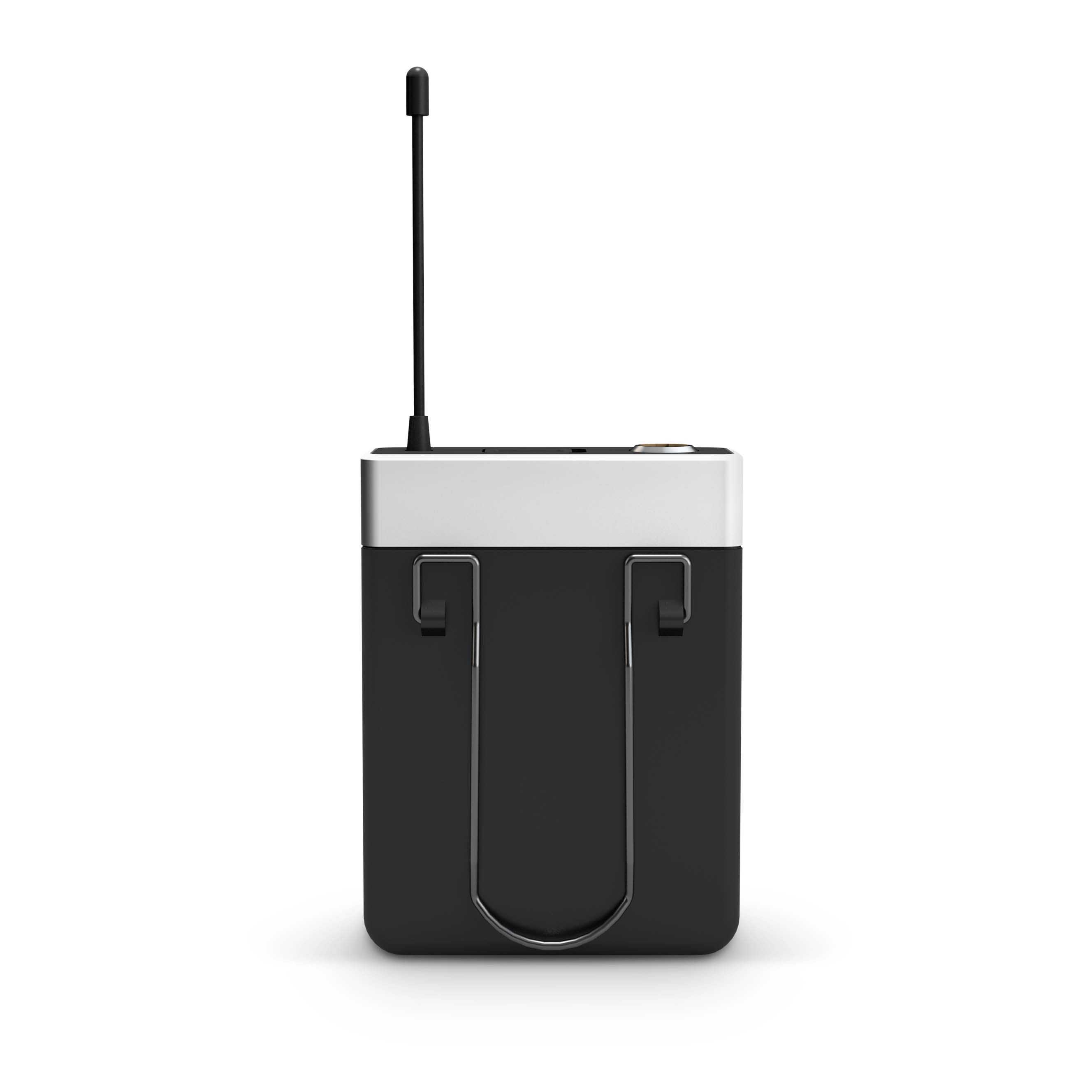

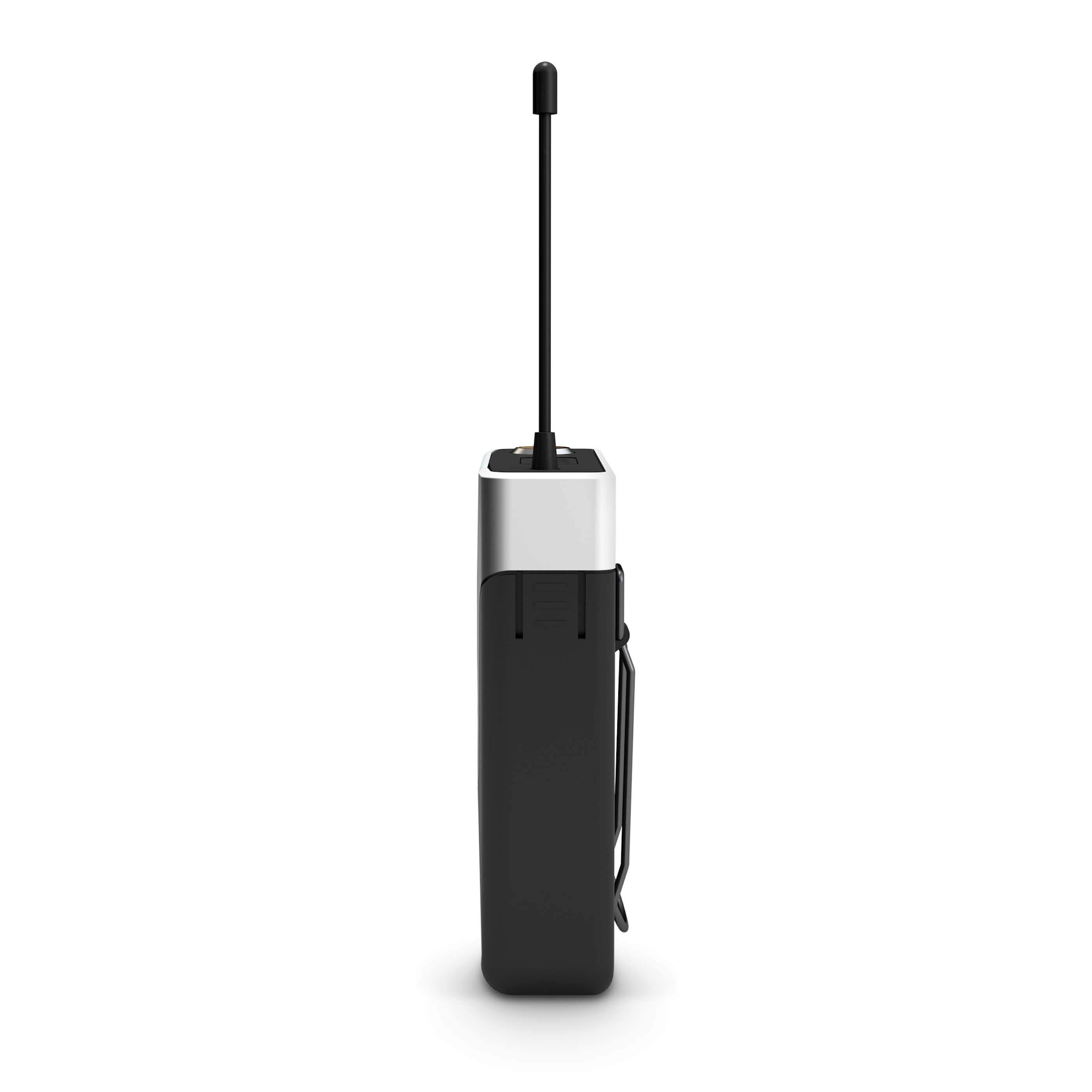

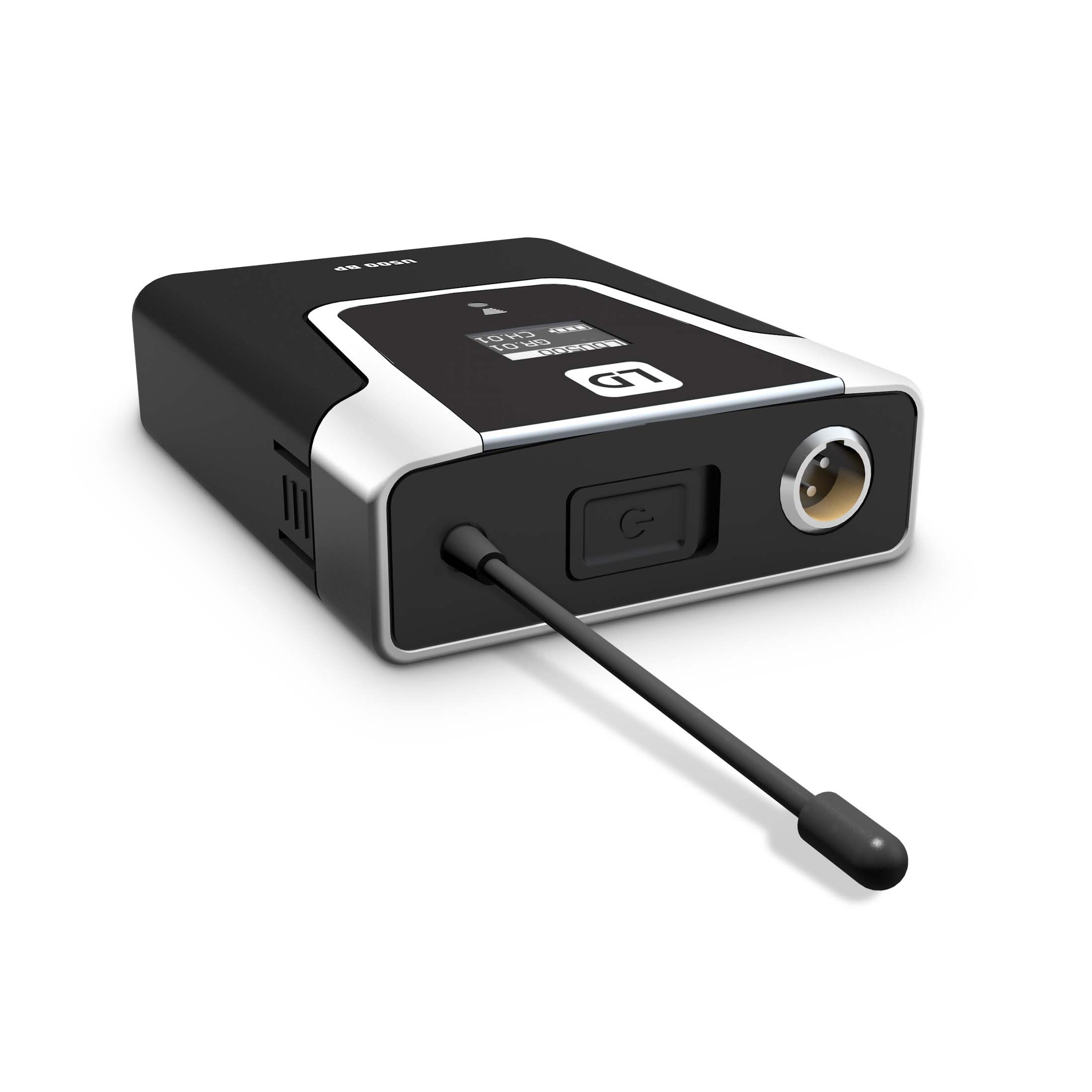

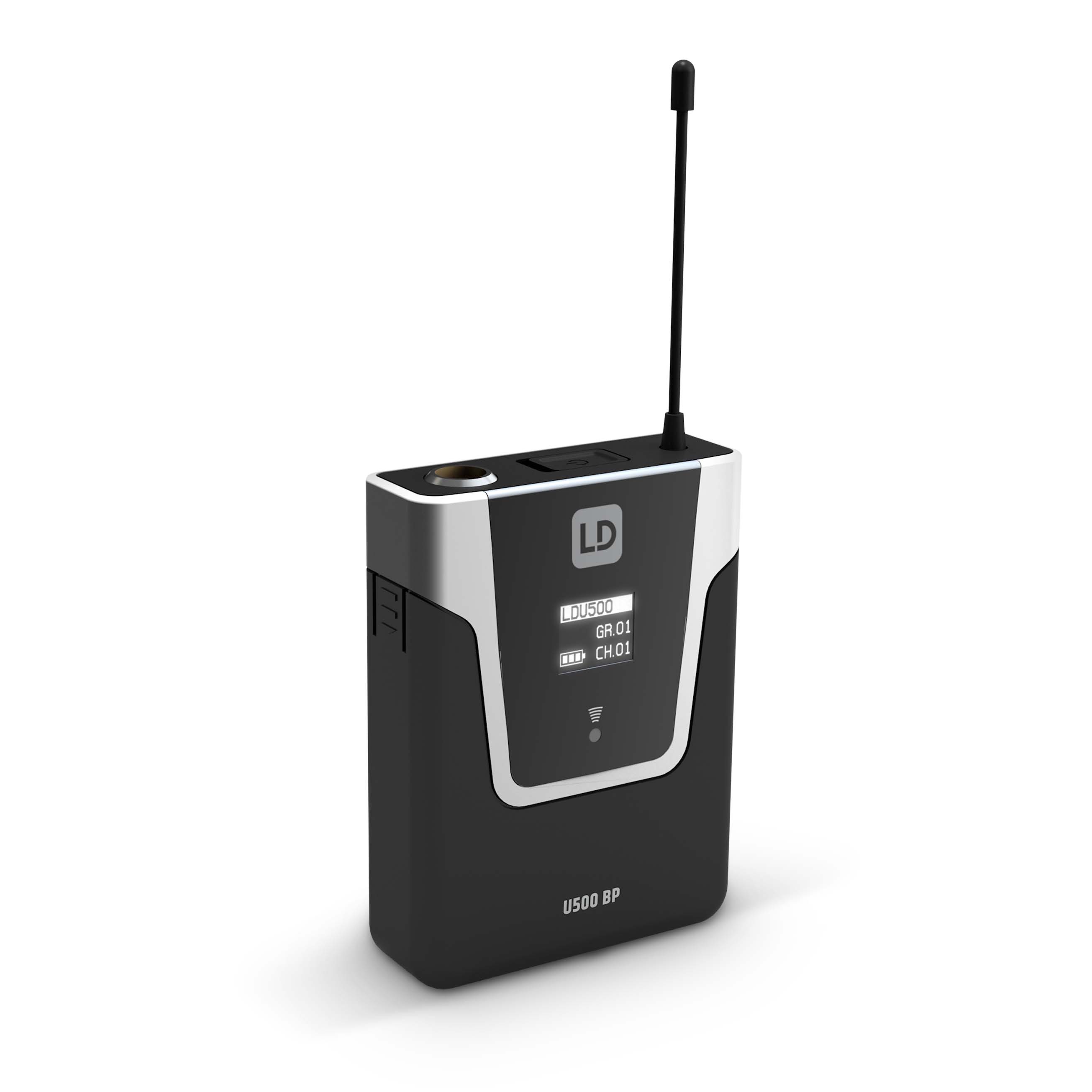

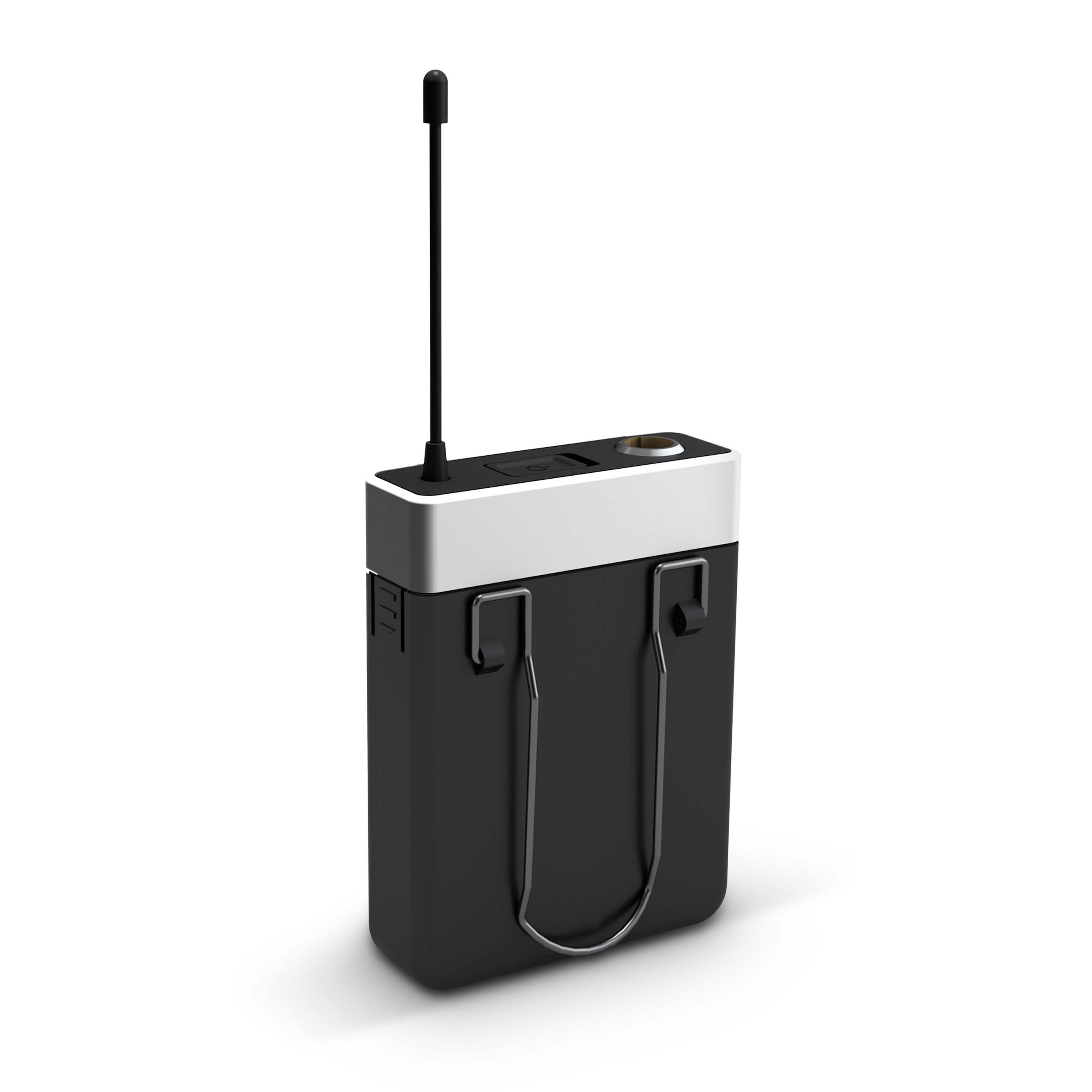

ROČNI ODDAJNIK
Product type
Wireless Microphone System Accessories
Type
Belt Packs
Channels
96 (8 groups of 12 channels)
Inputs
Mini-XLR (3-pin)
Frequency response
30 – 16000 Hz
Signal-to-noise ratio
>90 dB
Rated HF output power
Variable (2mW, 10mW, 30mW)
Operating voltage
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Controls
arrow keys (up/down value entry) , Power On/Off , select
Indicators
OLED Display
Width
65 mm
Height
86 mm
Depth
23 mm
Weight
0,09 kg
Other features
detachable antenna , IR frequency synchronisation , Pilot tone squelch, switchable gain , switchable gain , switchable RF power , Wireless Microphone System Accessories

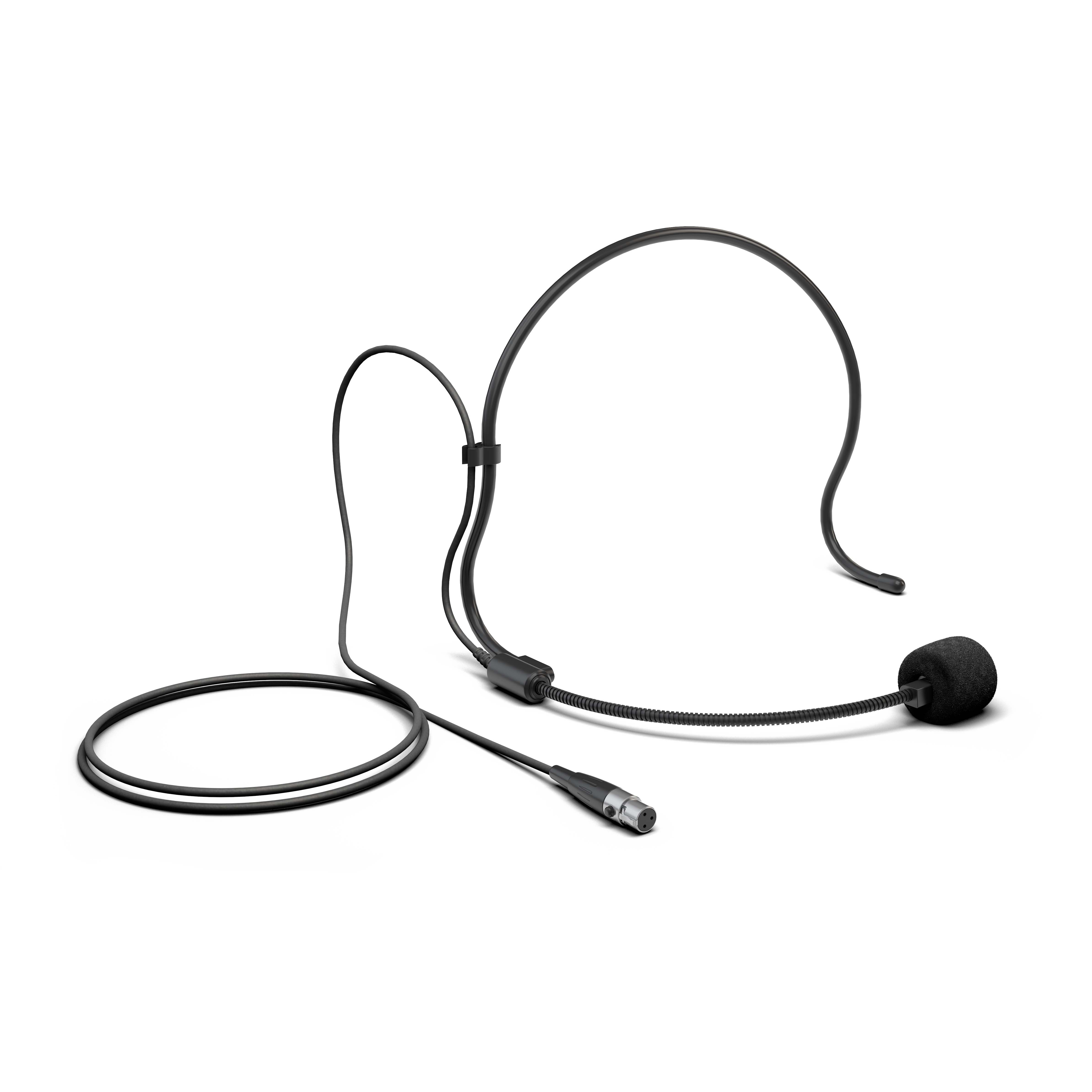

NAGLAVNI MIKROFON
Type
Headsets
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Frequency response
20 – 20.000 Hz
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Weight
0,049 kg
Accessories (included)
Foam windscreen

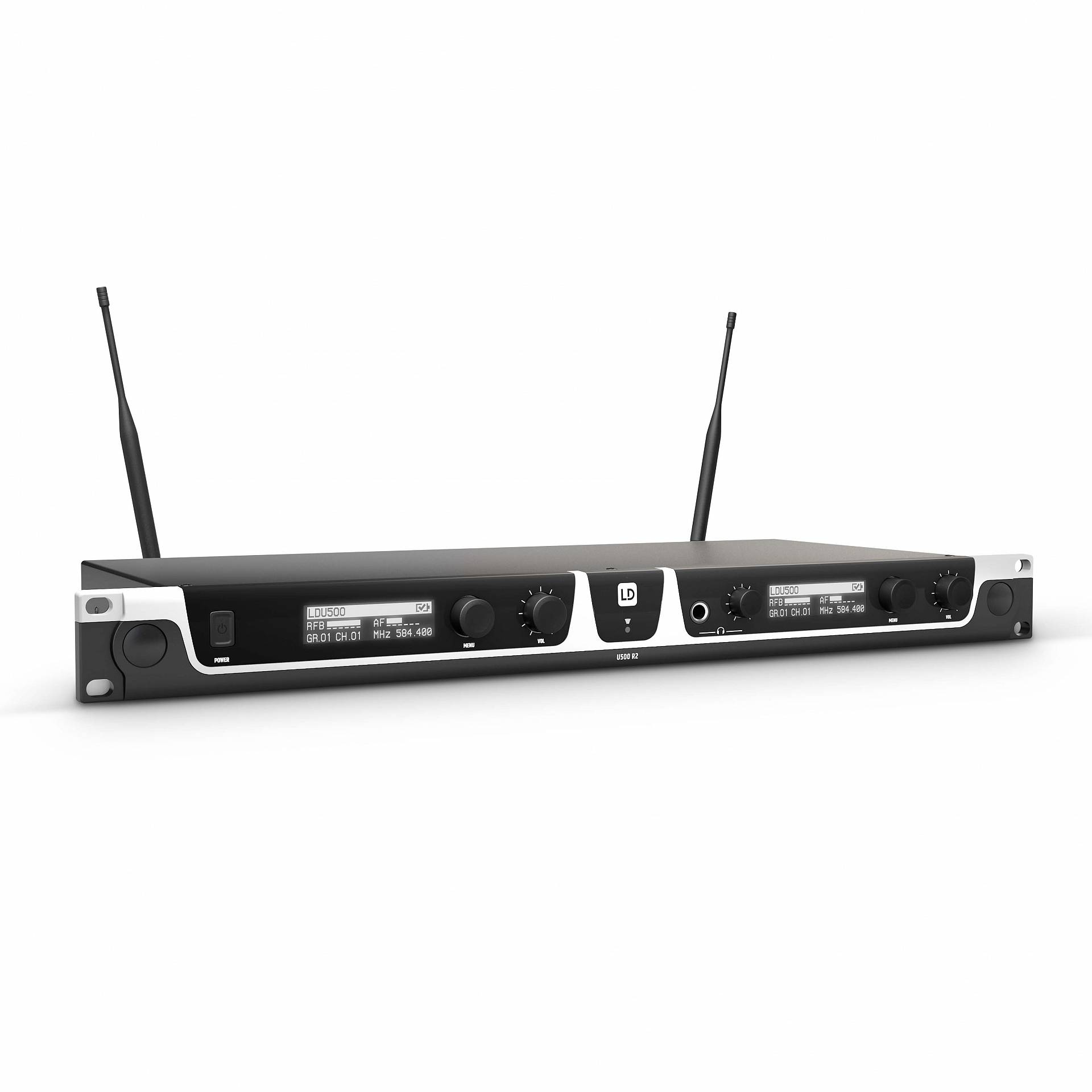

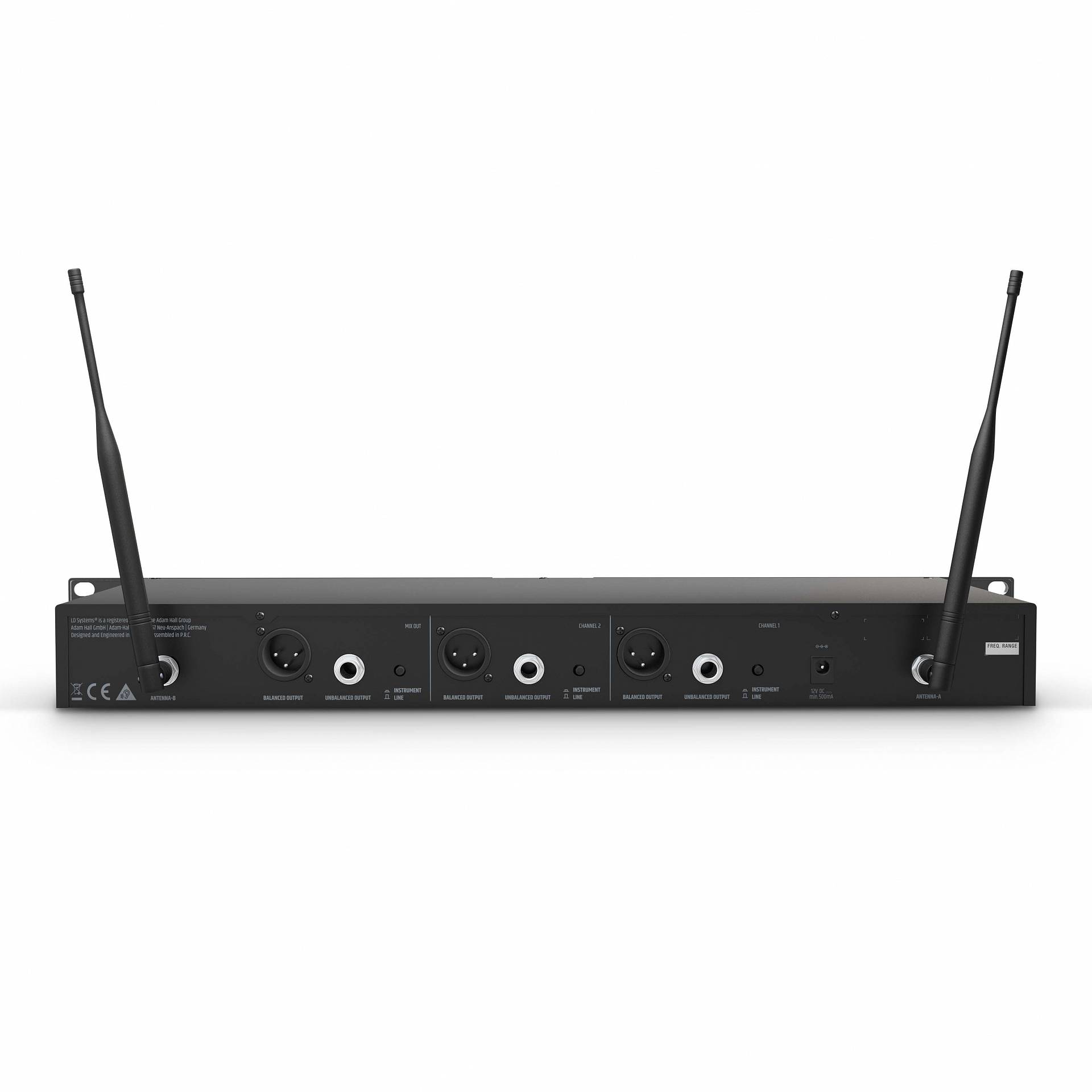

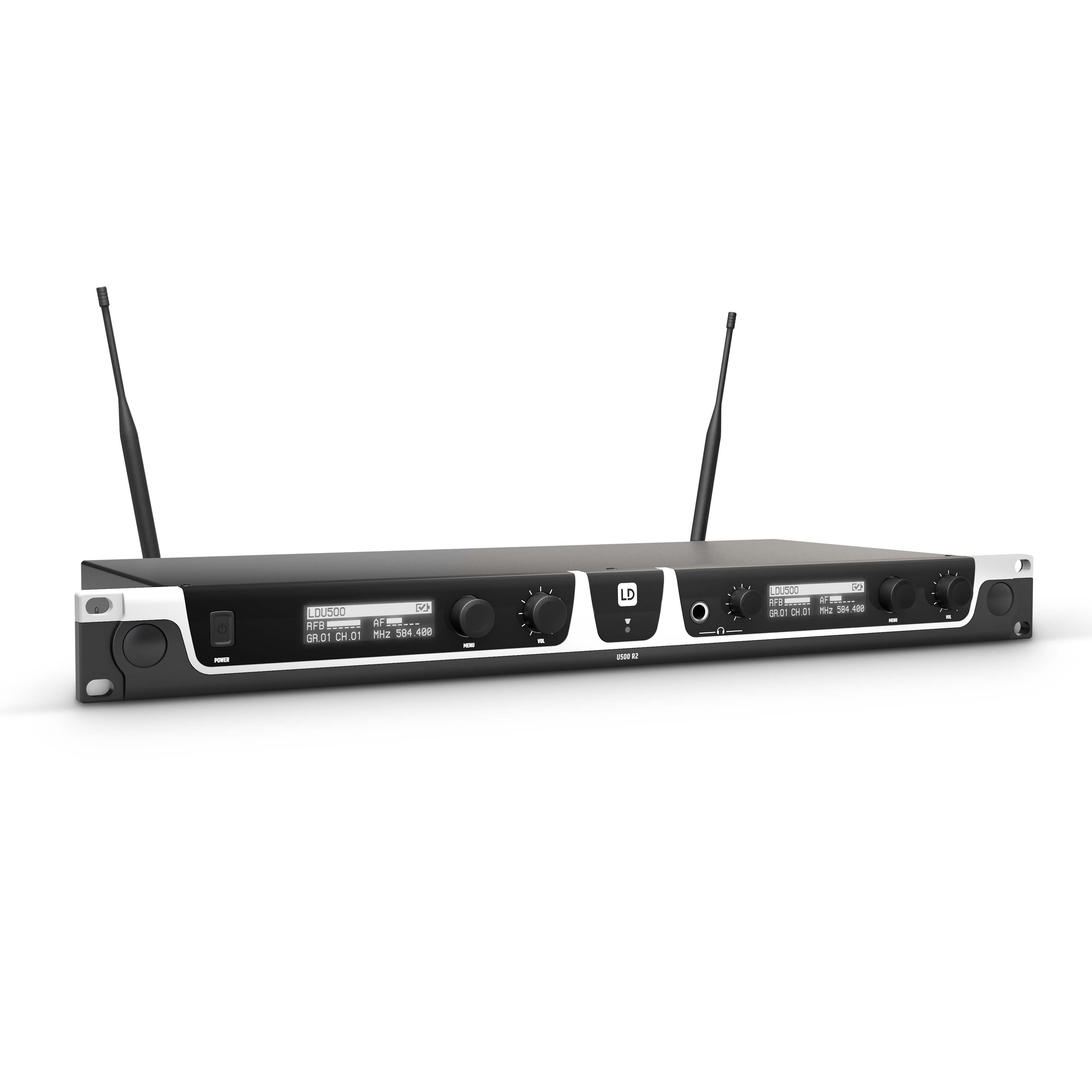

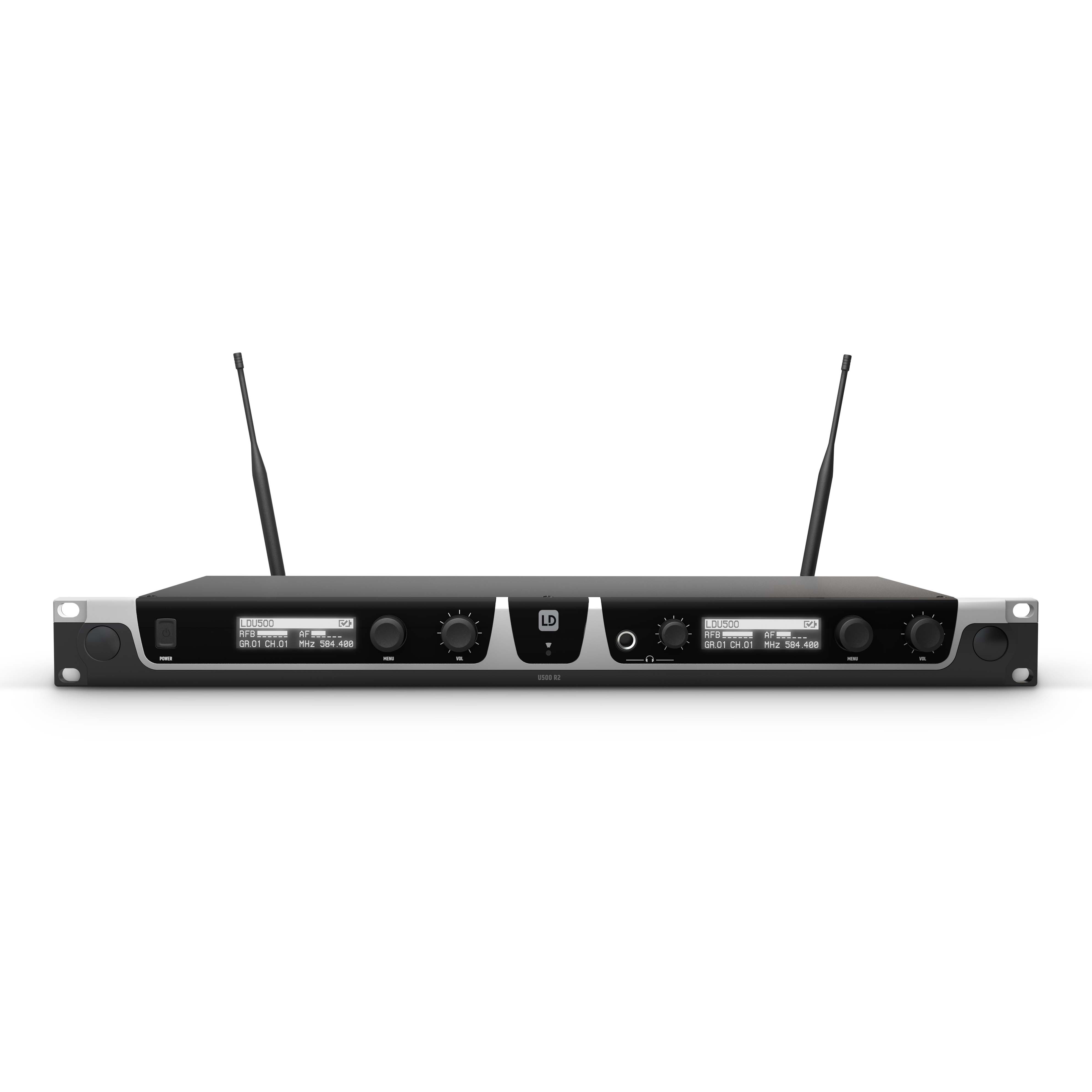

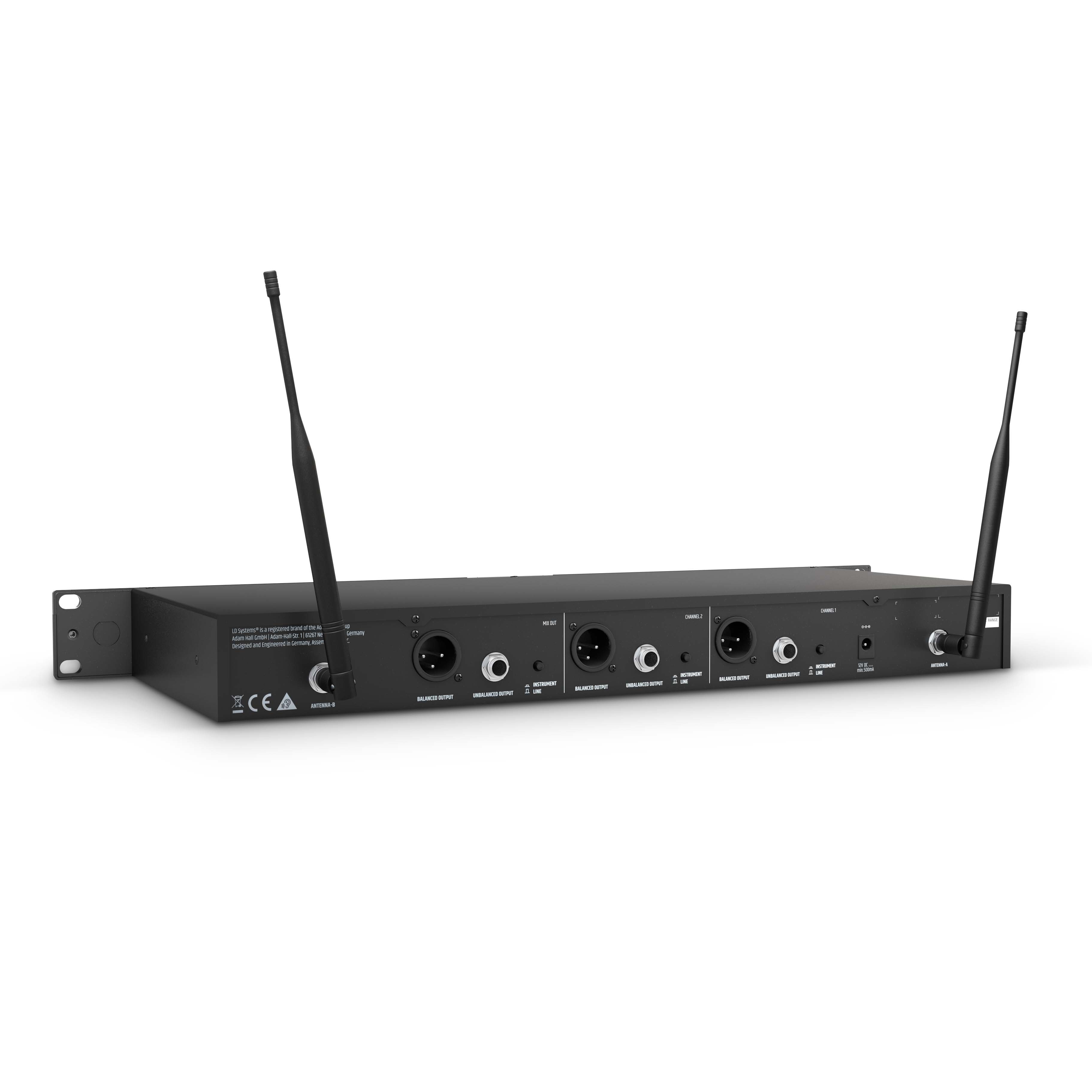

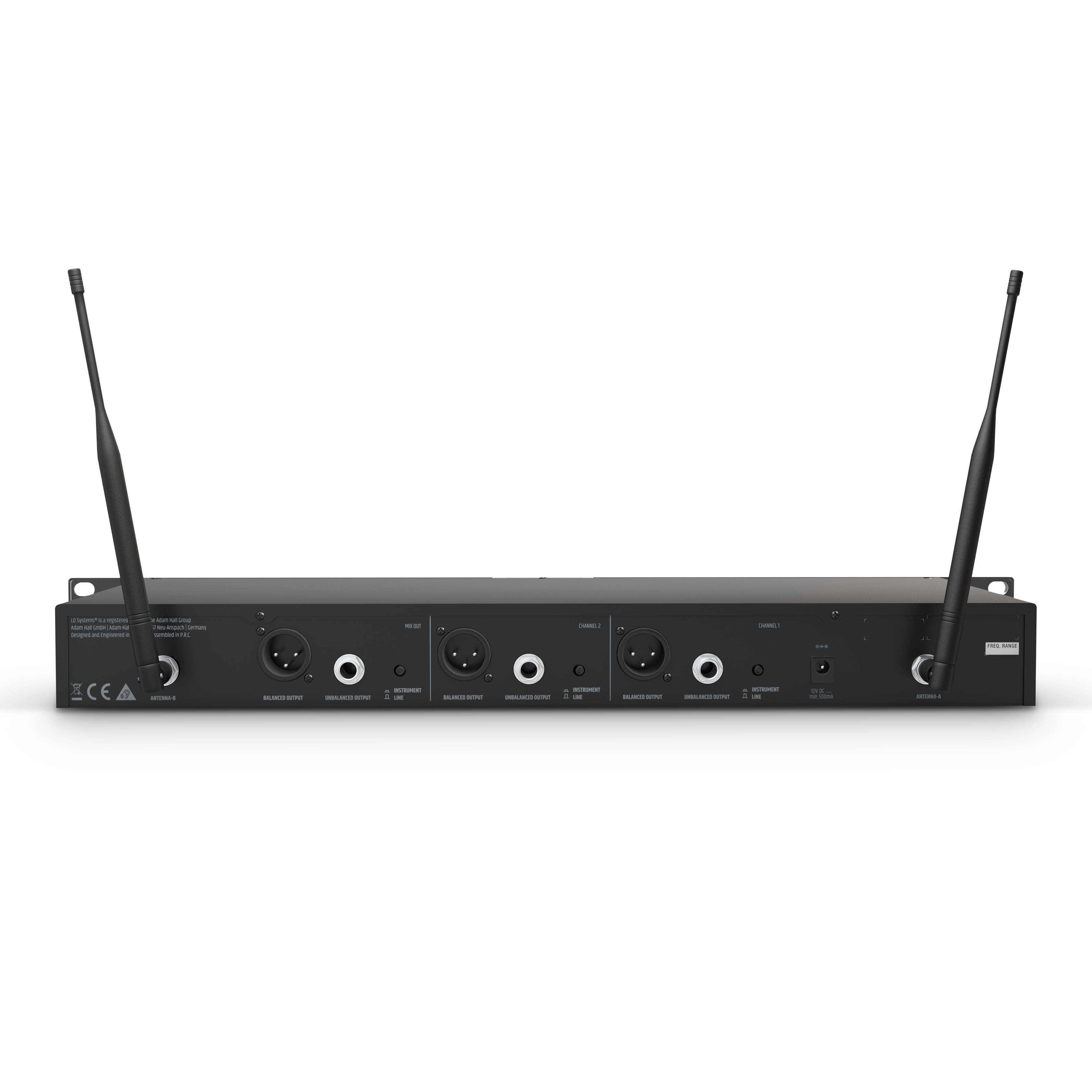

SPREJEMNIK
Type
Receivers
Modulation Type
FM
Antenna inputs
2
Antenna connector
BNC
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.1 %
Signal-to-noise ratio
> 100 dB
Audio output, balanced
2 x XLR
Audio output, unbalanced
2 x 6.3 mm TS
Audio mix output, balanced
XLR
Audio mix output, unbalanced
2 x 6.3 mm TS
Max. output level
+20 dBu (balanced) dBu
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Controls
2 x volume , Down , Up
Indicators
2 x OLED Display
Width
483 mm
Height
45 mm
Depth
5.2 mm
Weight
2,05 kg
Accessories (included)
2 x antenna , Batteries , Power supply
Other features
channel search function
