Brezžični mikrofonski sistem LD Systems U506 HHD
Profesionalni brezžični mikrofonski sistemi LD Systems U500 zagotavljajo cenovno ugodno in kvalitetno profesionalno audio opremo, ki je bila razvita v Nemčiji.

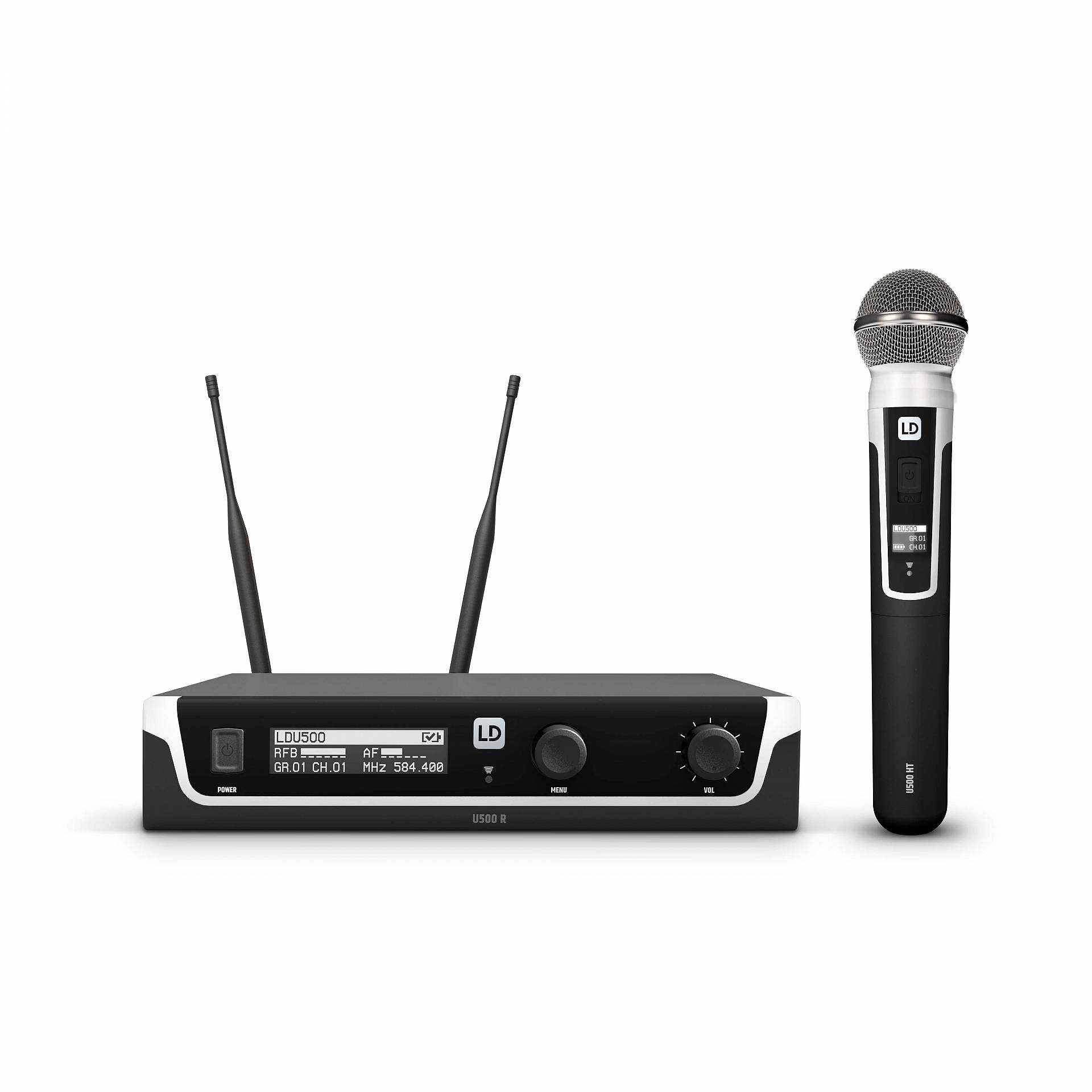

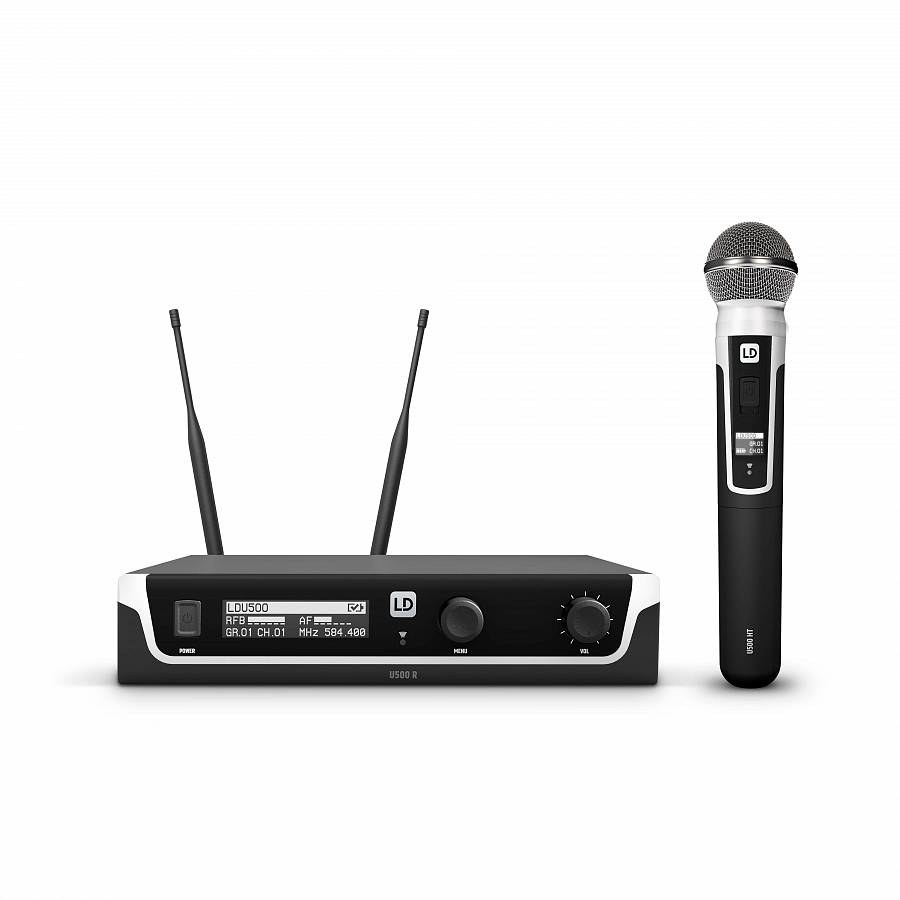

Brezžični mikrofonski sistem LD Systems U506 HHD vključuje:
-sprejemnik
-brezžični ročni mikrofon

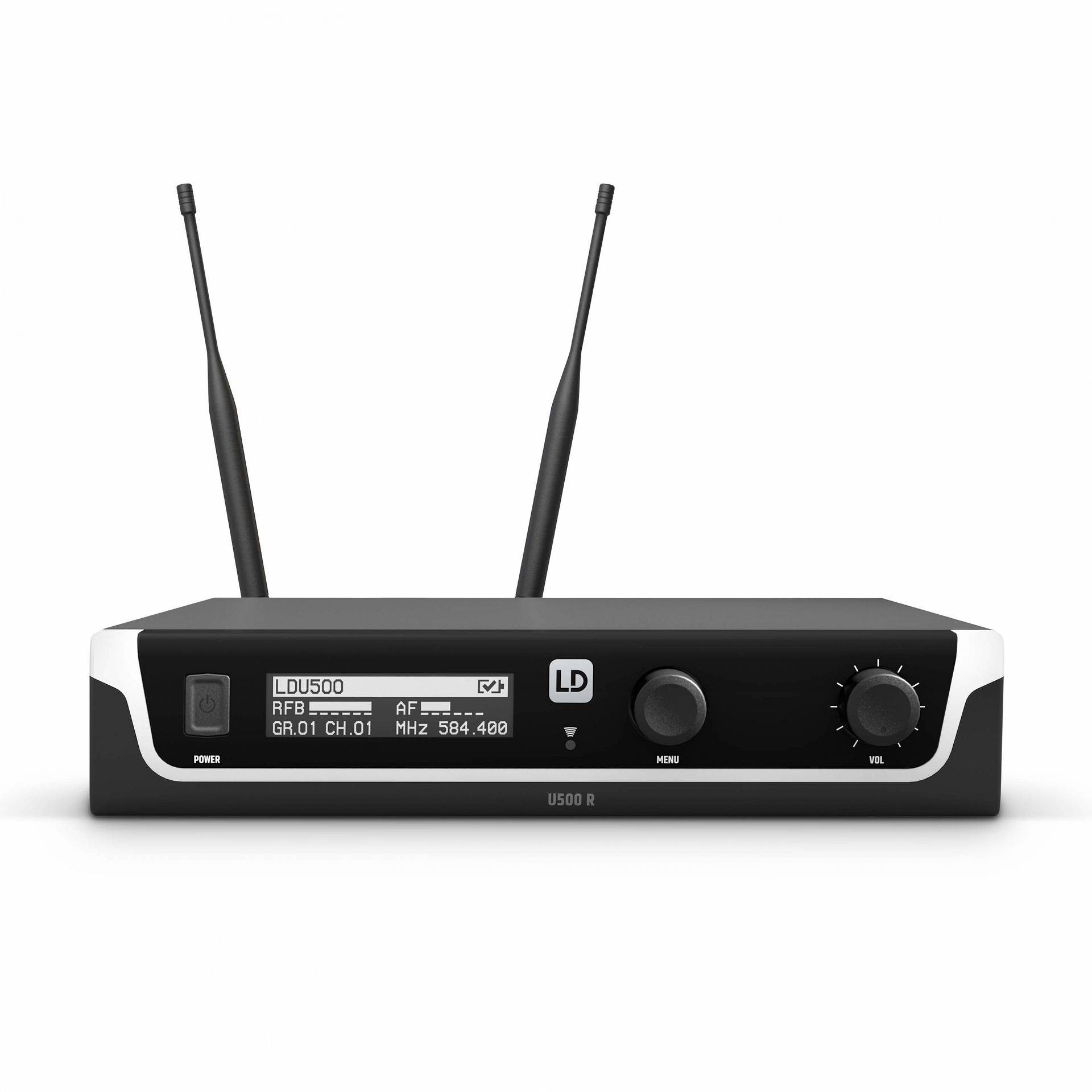

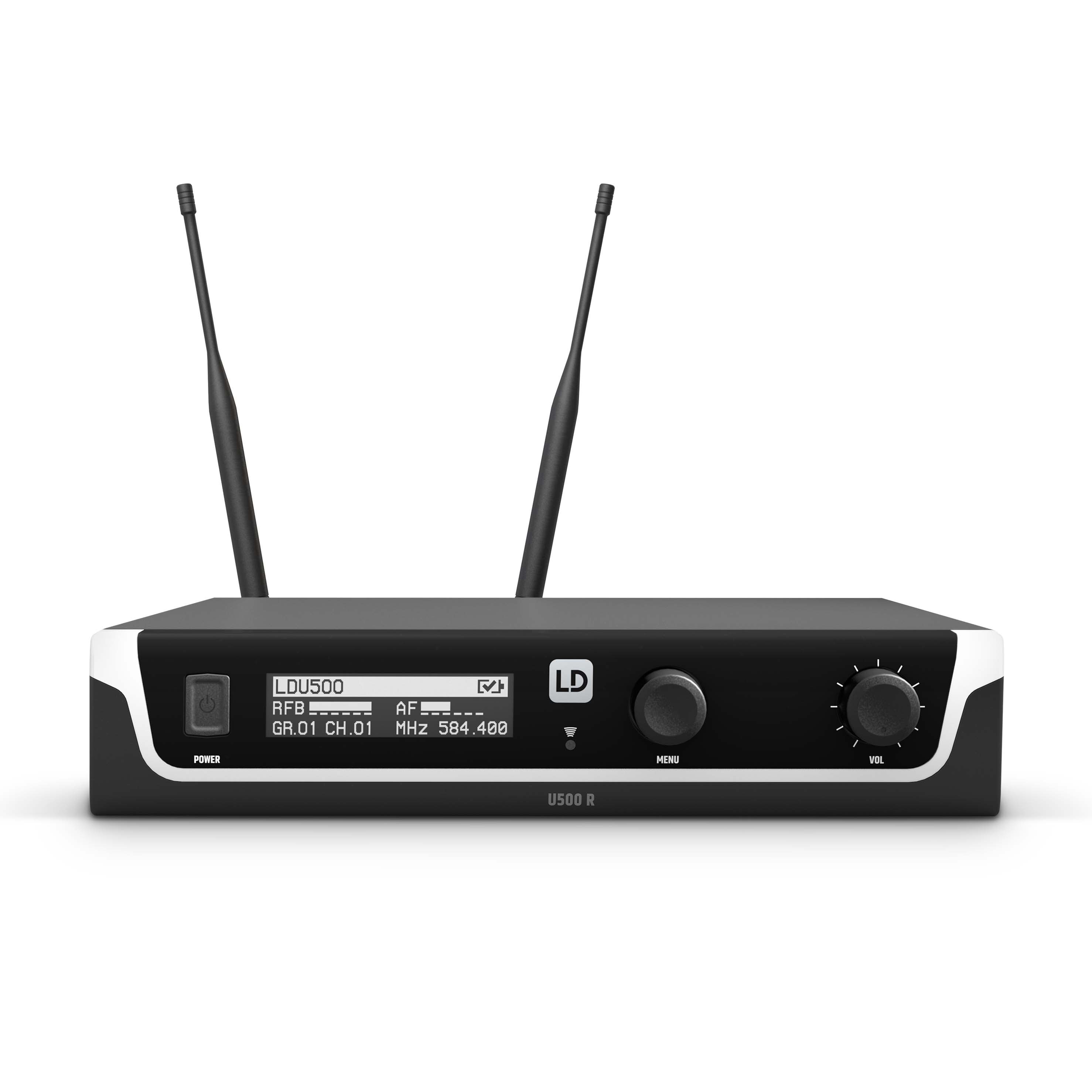

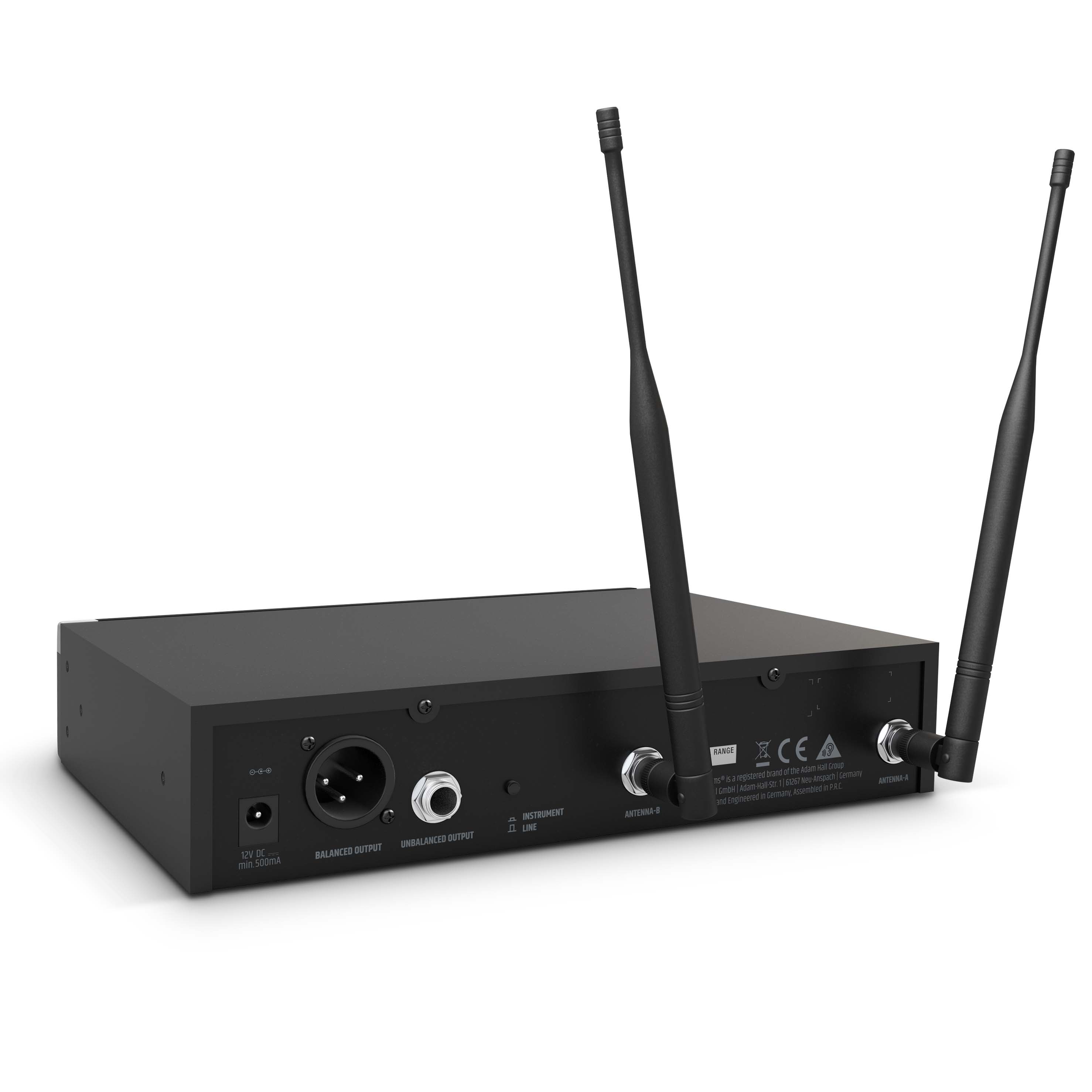

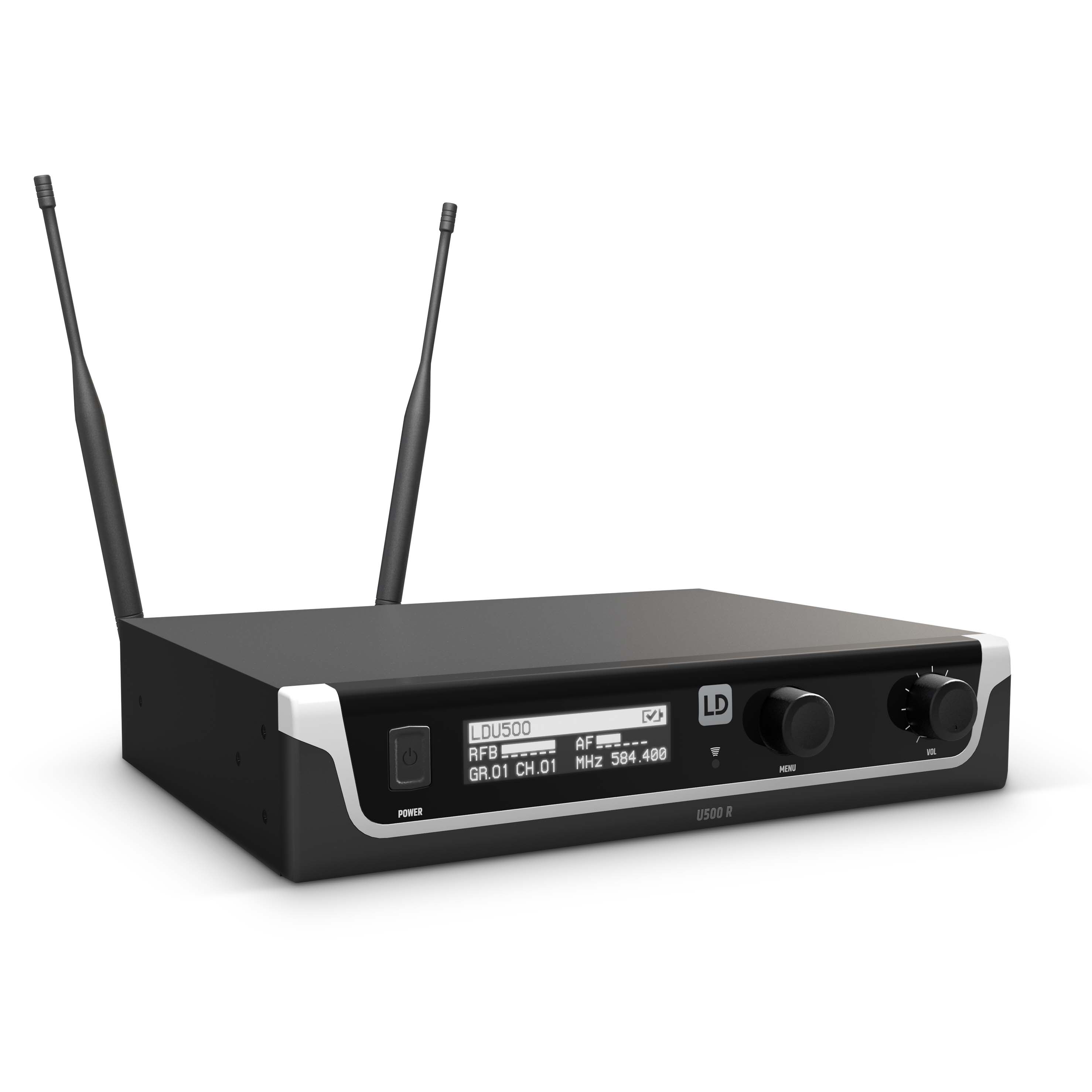

SPREJEMNIK
Product type
Wireless Microphone System Accessories
Type
true diversity
Modulation Type
FM
Groups
8
Antenna inputs
2
Antenna connector
BNC
Frequency response
30 – 16000 Hz
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
> 100 dB

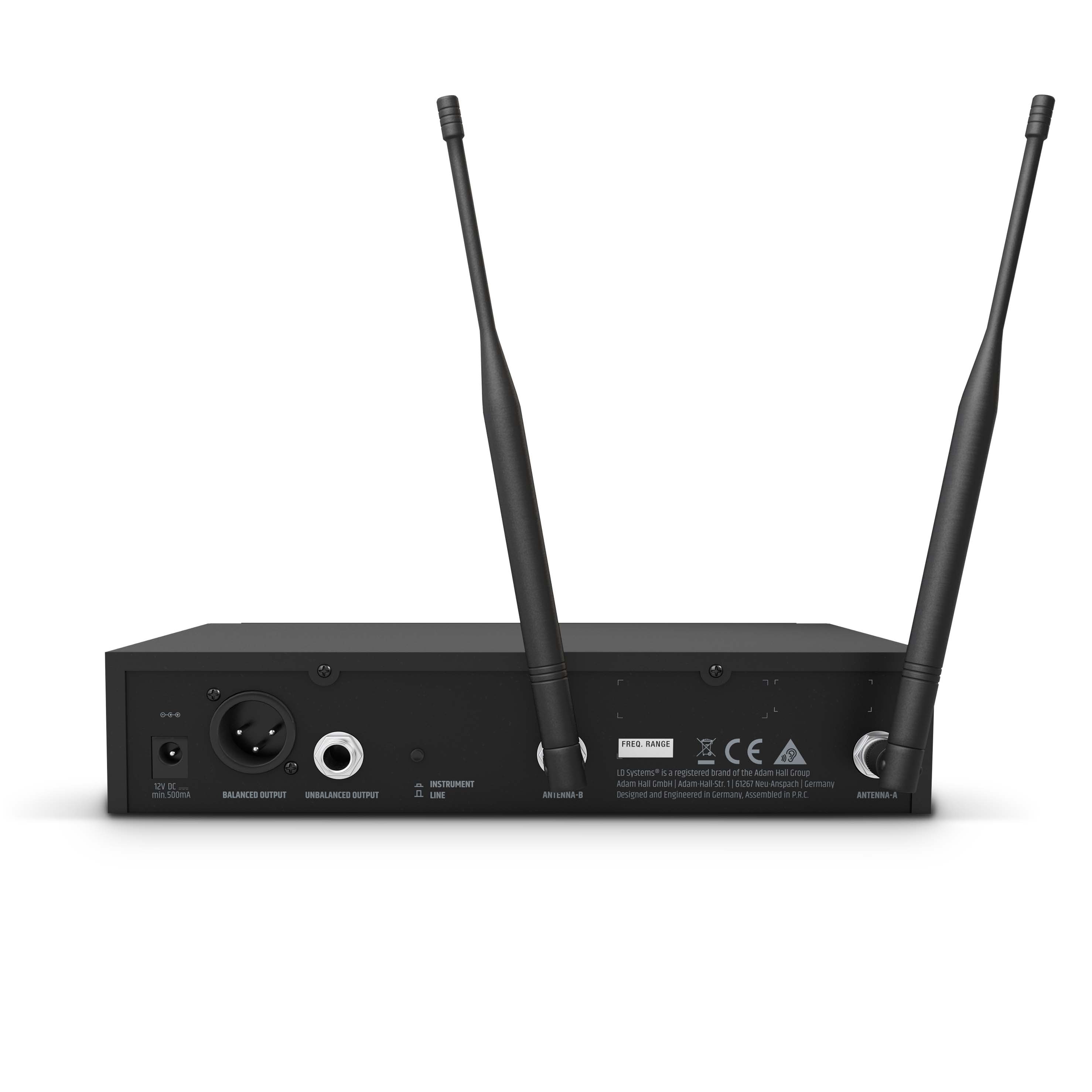

Audio output, balanced
balanced XLR – 12 dBV / 6.3 mm TRS – 18 dBV
Audio output, unbalanced
6.3 mm jack
Max. output level
+10 dBu
Controls
digital encoder , volume
Operating voltage
12 – 18 V DC
Operating voltage
12 V DC, 500 mA
Width
212 mm
Height
44 mm
Depth
159 mm
Weight
0,85 kg
Accessories (included)
2 x antenna , Audio cable , power adapter
Other features
channel search function , IR frequency synchronisation , Pilot tone

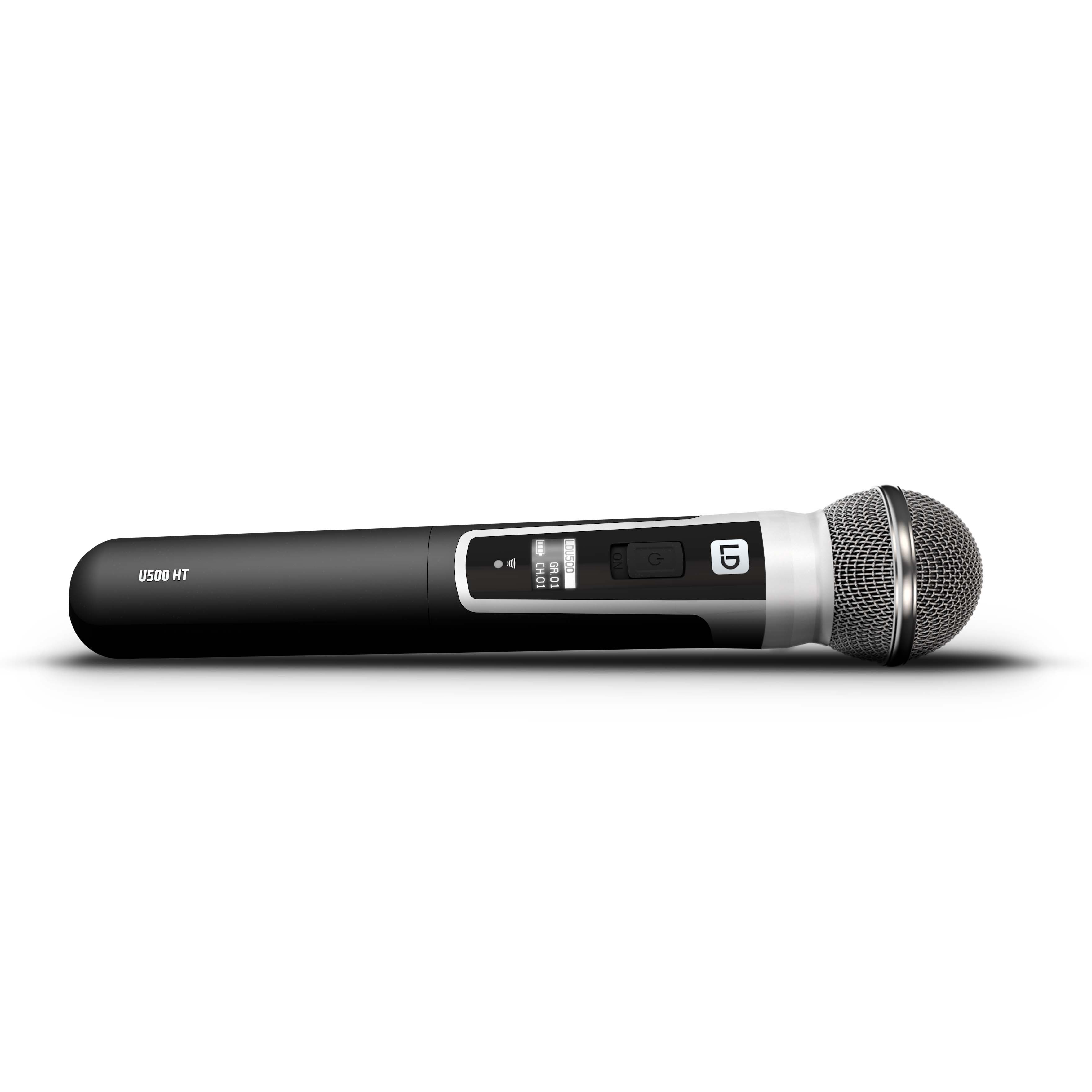

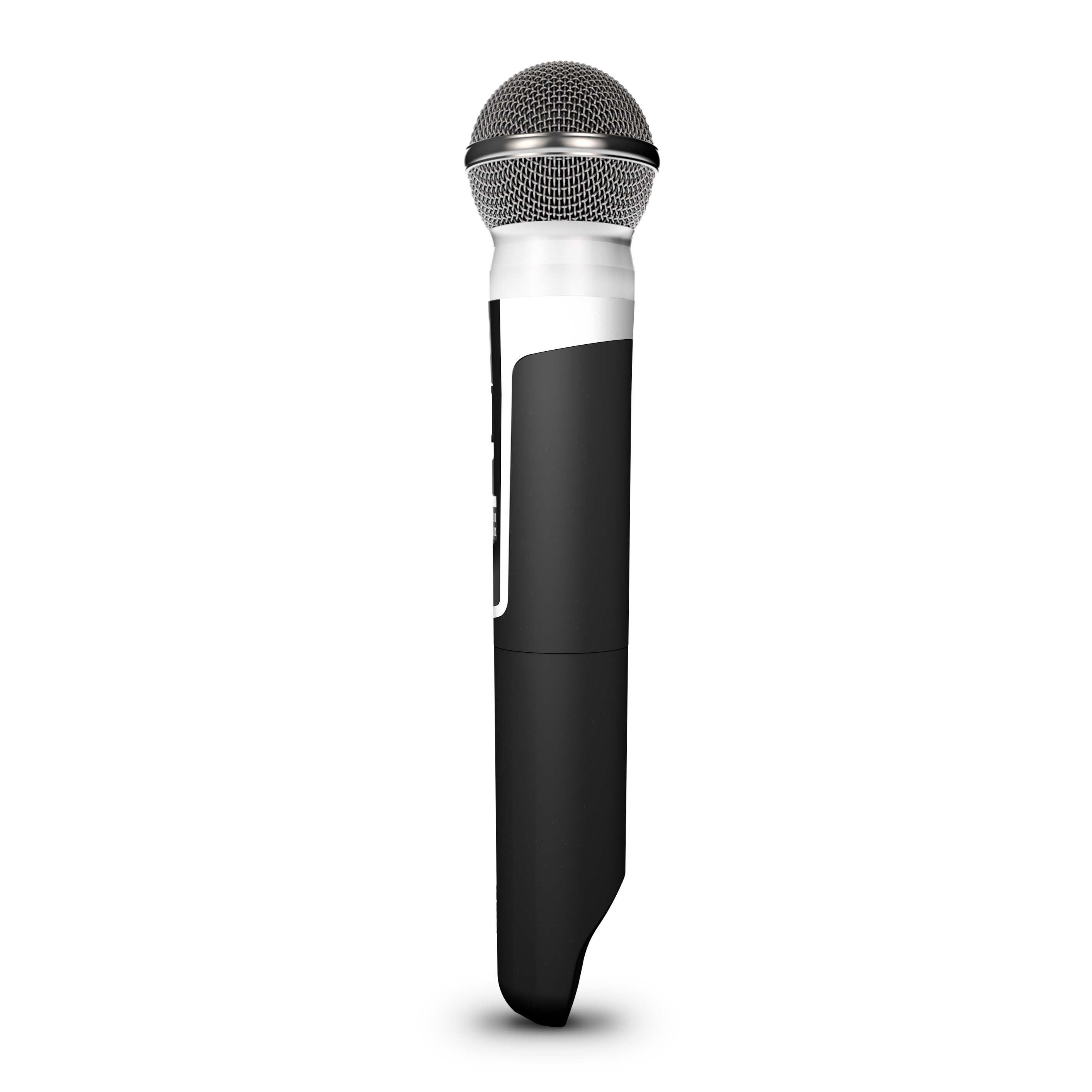

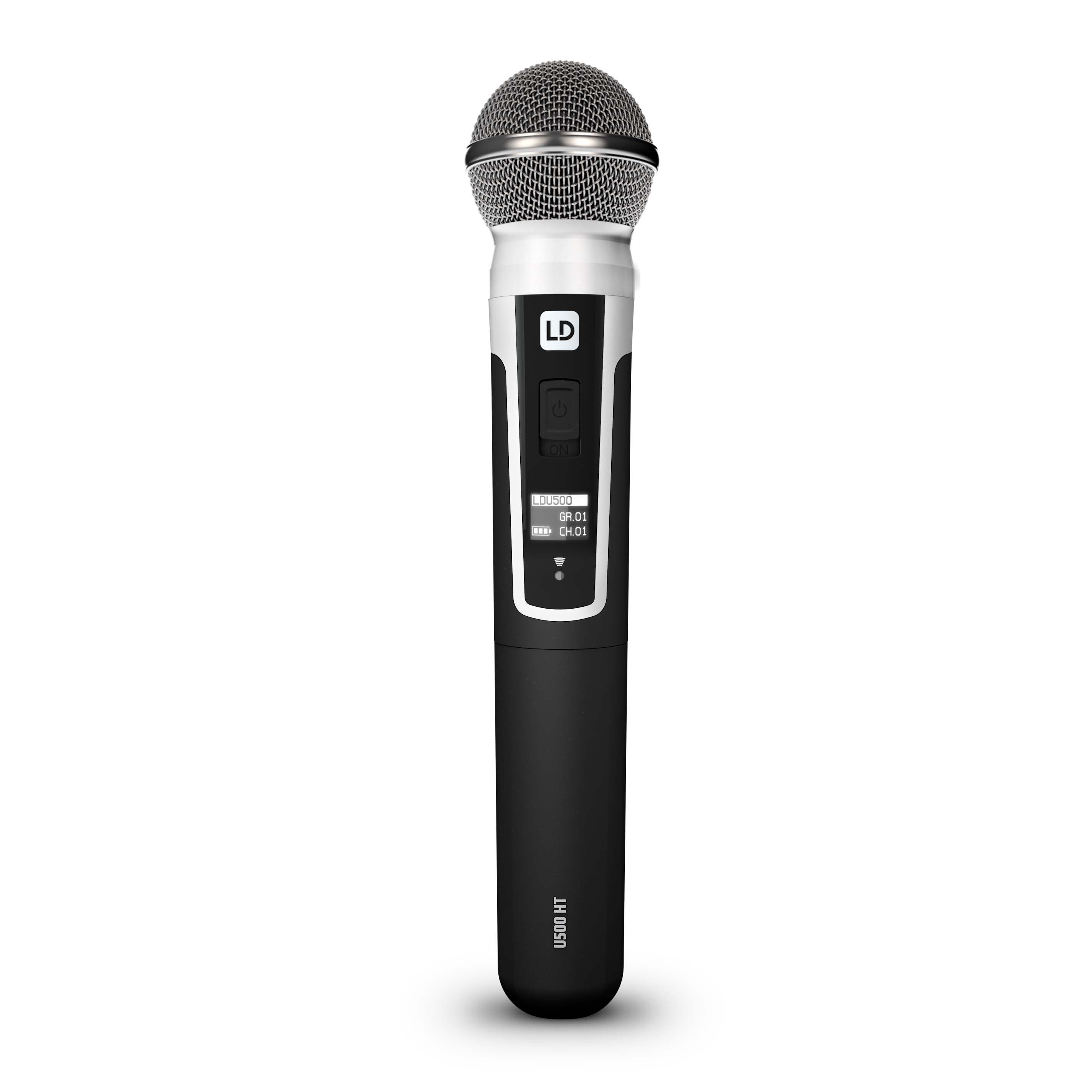

MIKROFON
Transmission frequency range
655 – 679 MHz
Type
Microphones
Channels
96 (8 groups of 12 channels)
Microphone type
Dynamic
Directivity
Cardioid
Frequency response
60 – 16,000 Hz
Rated HF output power
Variable (2mW, 10mW, 30mW)
Indicators
OLED Display
Operating time
>10 h (with alkaline batteries)
Length
252 mm
Diameter
52 mm
Controls
menu , Power On/Off , Set
Operating voltage
2 x 1.5 V AA
Weight
0,25 kg
Other features

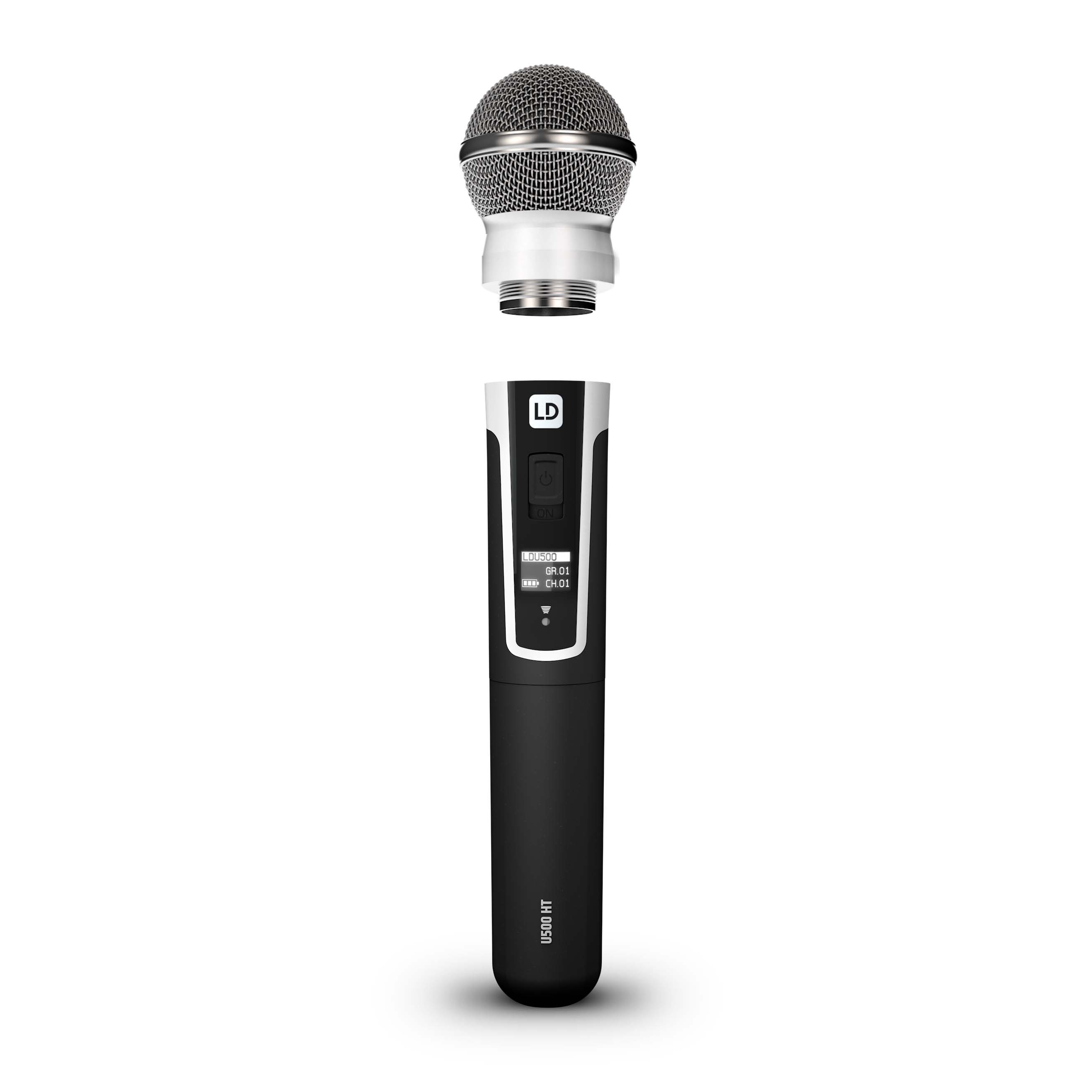

interchangeable capsule , Pilot tone squelch, switchable gain , switchable gain , switchable RF power
