Brezžični mikrofonski sistem LD Systems U506 HHD 2
Profesionalni brezžični mikrofonski sistemi LD Systems U500 zagotavljajo cenovno ugodno in kvalitetno profesionalno audio opremo, ki je bila razvita v Nemčiji.
Brezžični mikrofonski sistem LD Systems U506 HHD 2 vključuje:
-sprejemnik
-2 x brezžični ročni mikrofon
MIKROFON
Product type
Wireless Microphone System Accessories
Transmission frequency range
655 – 679 MHz
Type
Microphones
Channels
96 (8 groups of 12 channels)
Microphone type
Dynamic
Directivity
Cardioid
Frequency response
60 – 16,000 Hz
Rated HF output power
Variable (2mW, 10mW, 30mW)
Operating time
>10 h (with alkaline batteries)
Length
252 mm
Diameter
52 mm
Controls
menu , Power On/Off , Set
Indicators
OLED Display
Operating voltage
2 x 1.5 V AA
Weight
0,25 kg
Other features
interchangeable capsule , Pilot tone squelch, switchable gain , switchable gain , switchable RF power

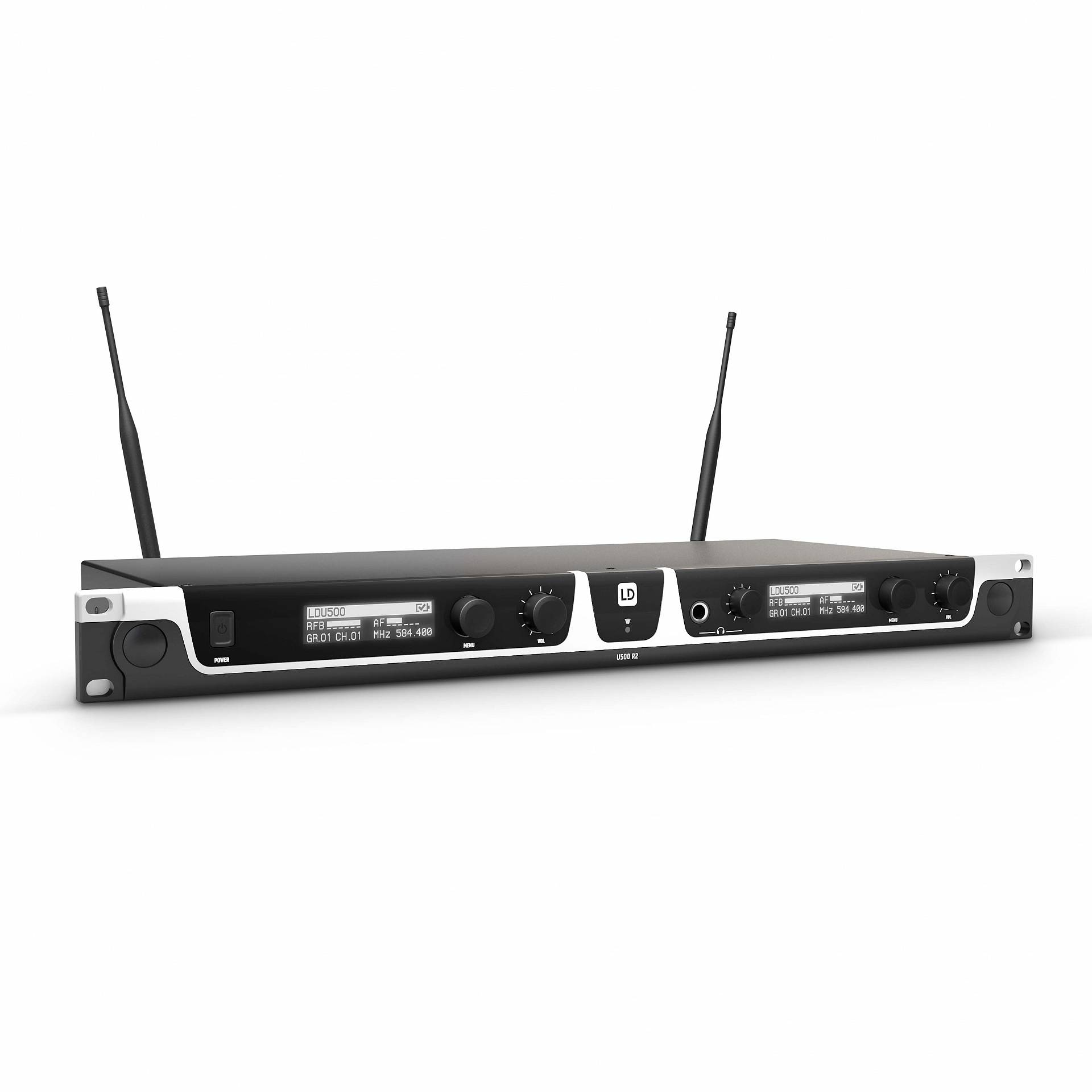

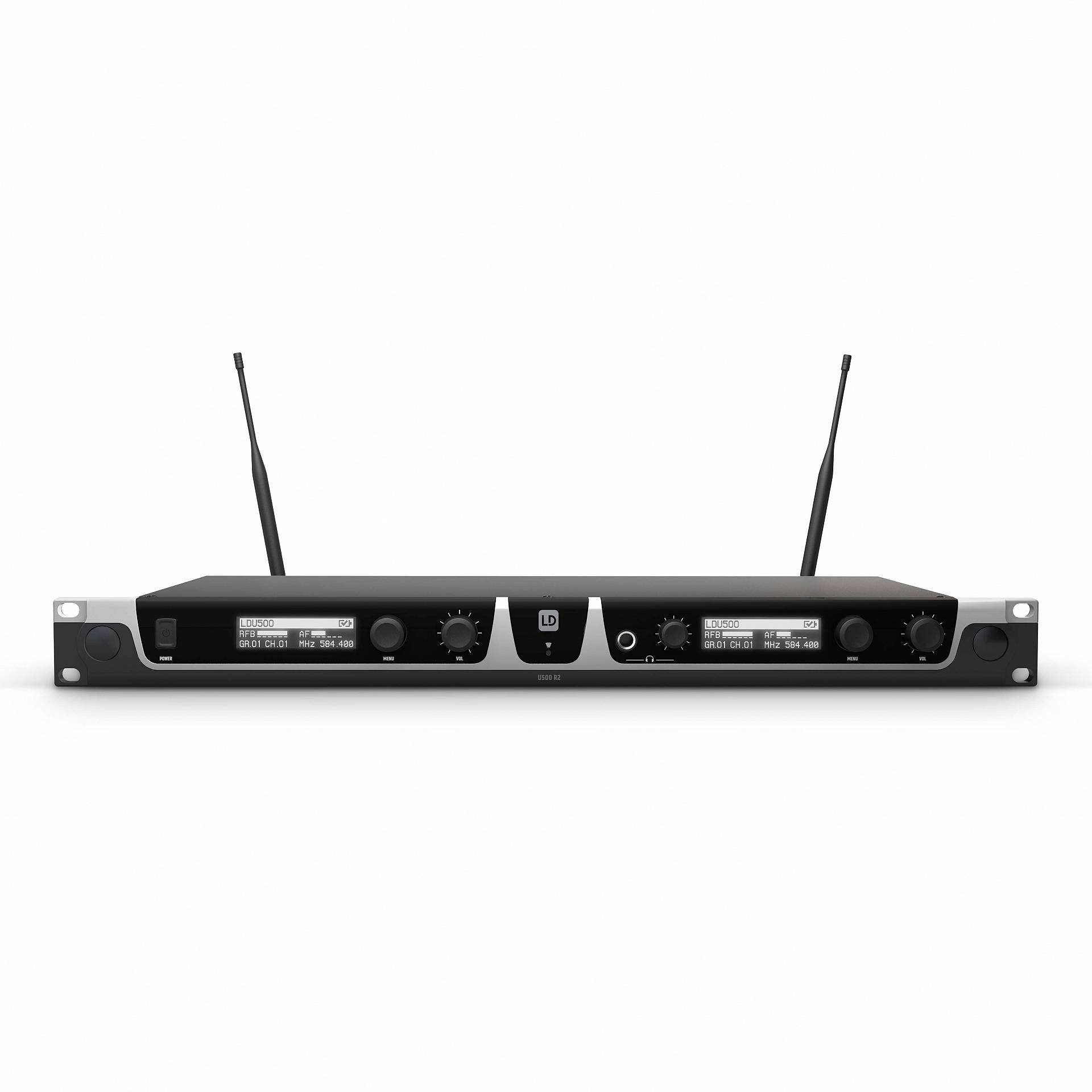

SPREJEMNIK
Type
true diversity
Modulation Type
FM
Channels
2 x 96 (8 groups of 12 channels)
Groups
8
Antenna inputs
2
Antenna connector
BNC
Frequency response
60 – 16.000 Hz
Noise reduction
Squelch
Signal-to-noise ratio
> 105 dB
Audio output, balanced
2 x XLR
Audio mix output, balanced
XLR
Audio mix output, unbalanced
6.3 mm jack
Max. output level
symmetrical -8 dBu
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Controls
volume headphones
Indicators
2 x audio level , 2 x HF level A/B , 2 x multifunction LC display
Operating voltage
1,000 mA , 13.5 V DC
Width
483 mm
Height
45 mm
Depth
190 mm
Weight
2,05 kg
Accessories (included)
2 x antenna , Batteries , Power supply
Other features
channel search function , IR frequency synchronisation
