Brezžični mikrofonski sistem LD Systems U506 HHC 2
Profesionalni brezžični mikrofonski sistemi LD Systems U500 zagotavljajo cenovno ugodno in kvalitetno profesionalno audio opremo, ki je bila razvita v Nemčiji.
Brezžični mikrofonski sistem LD Systems U506 HHC 2 vključuje:
-sprejemnik
-2 x brezžični ročni mikrofon

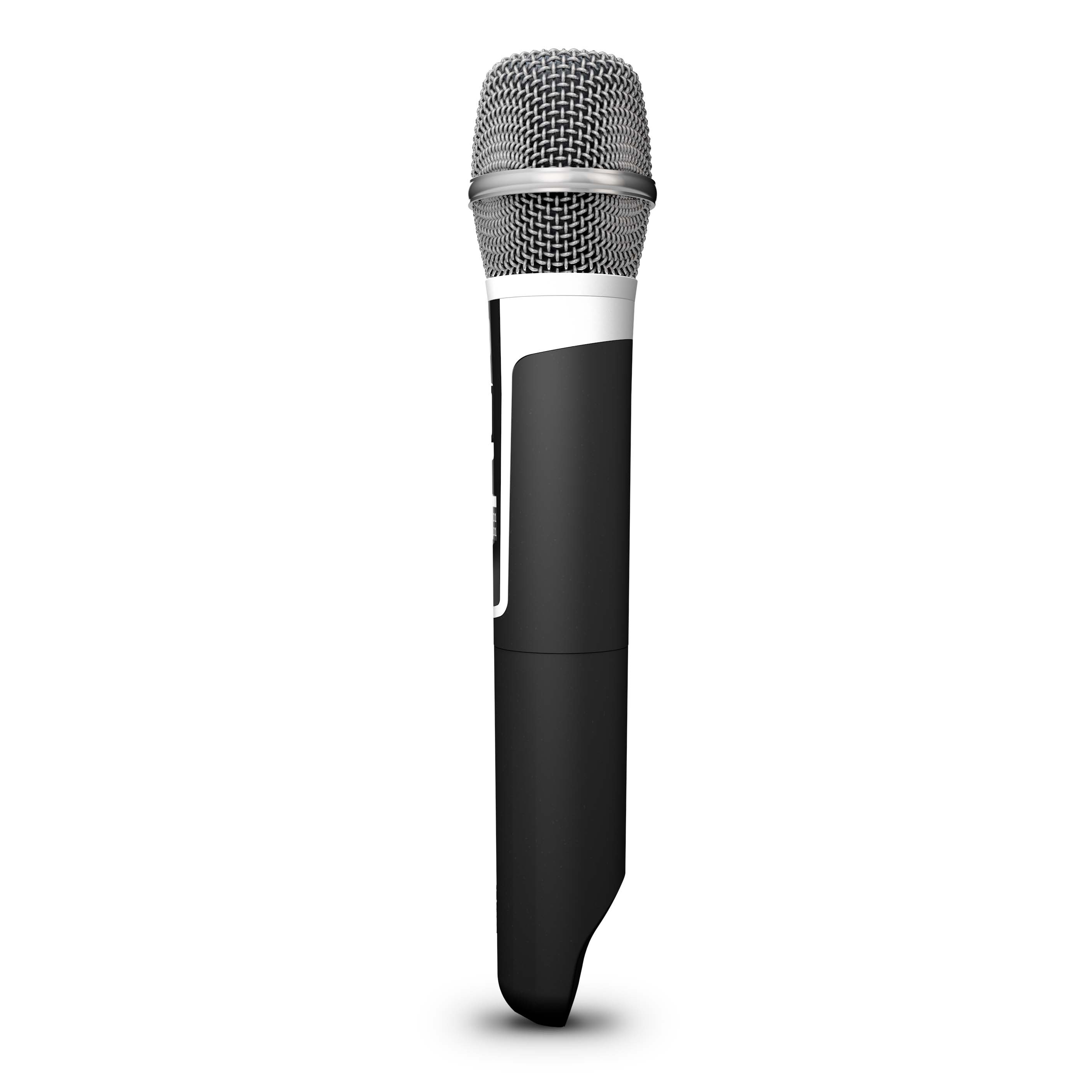

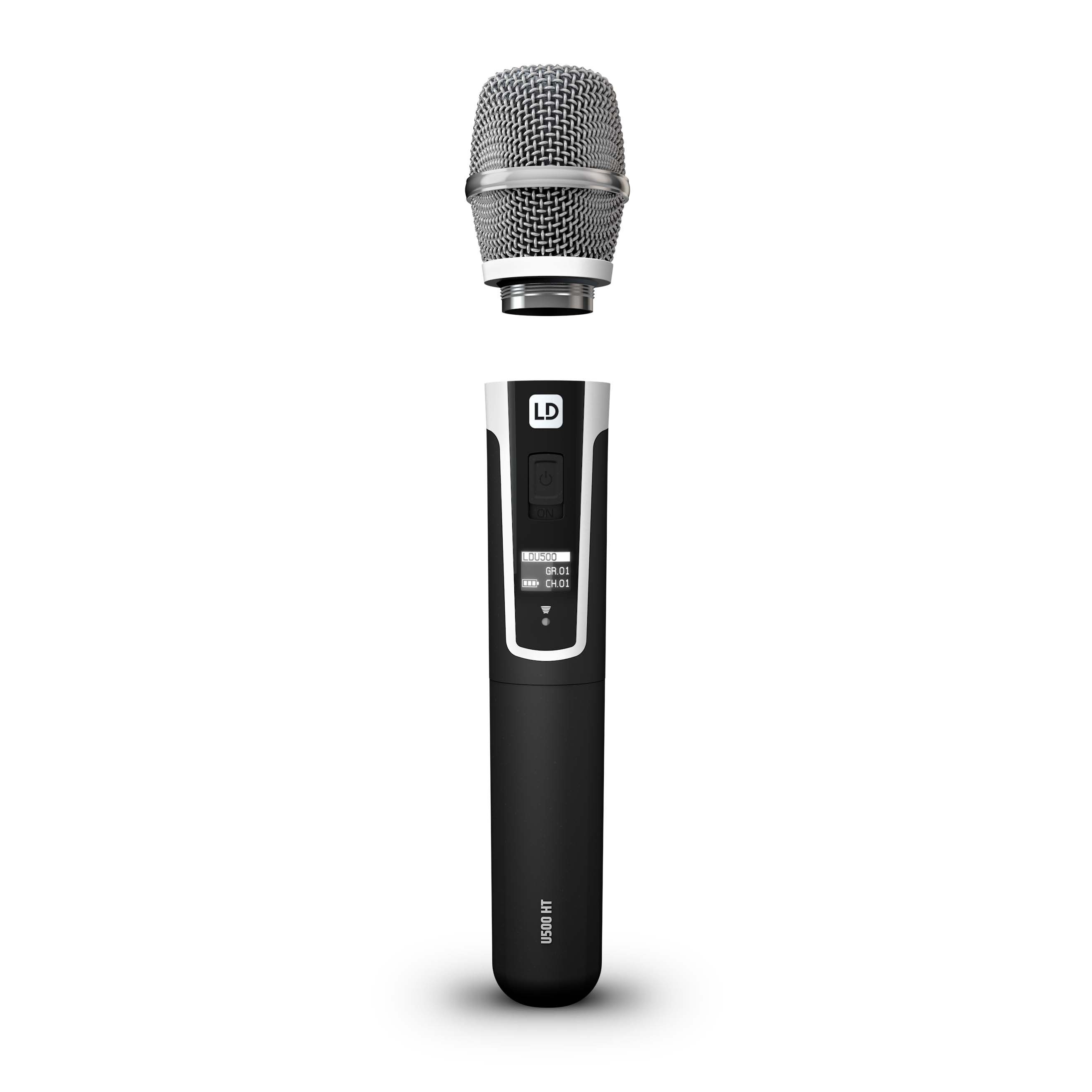

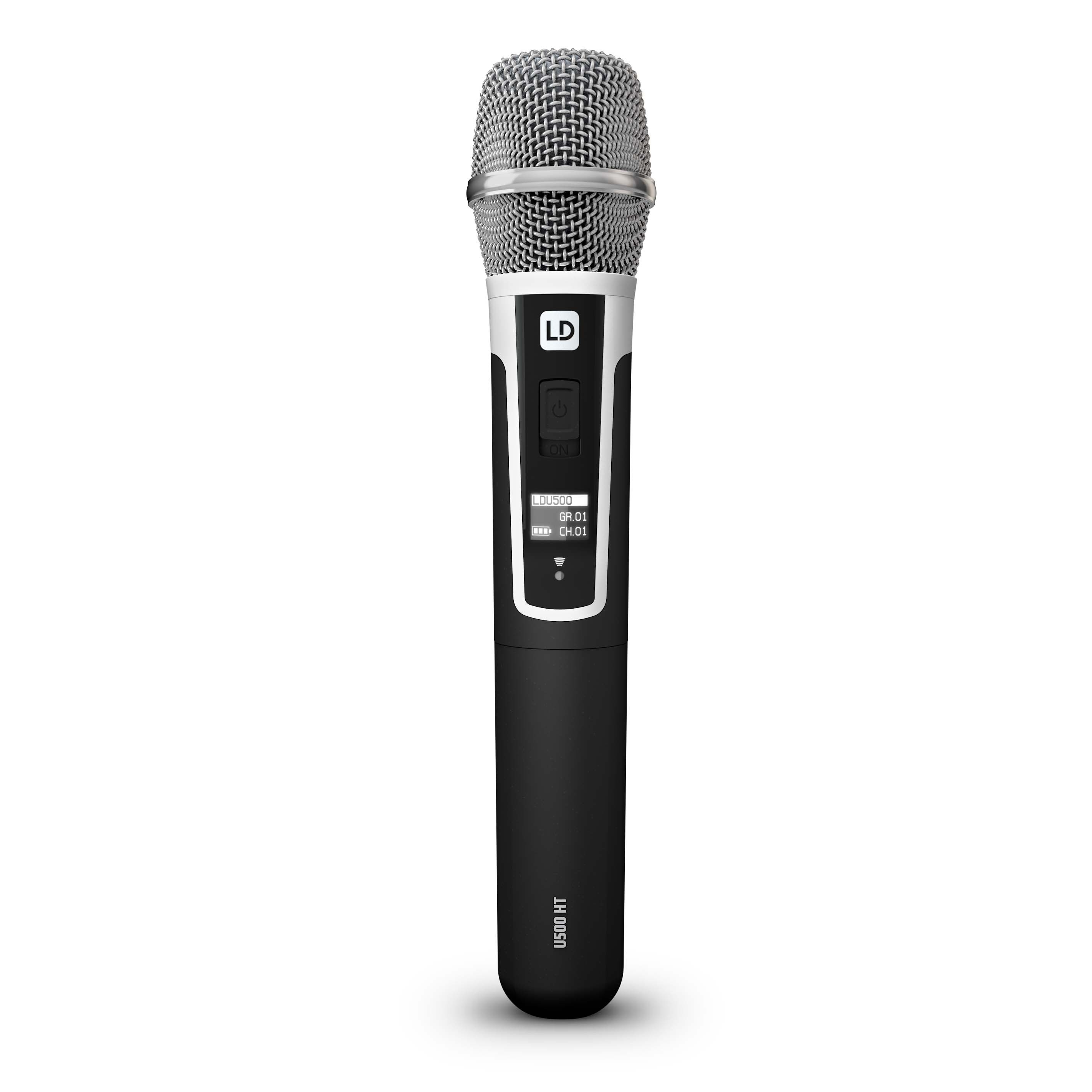

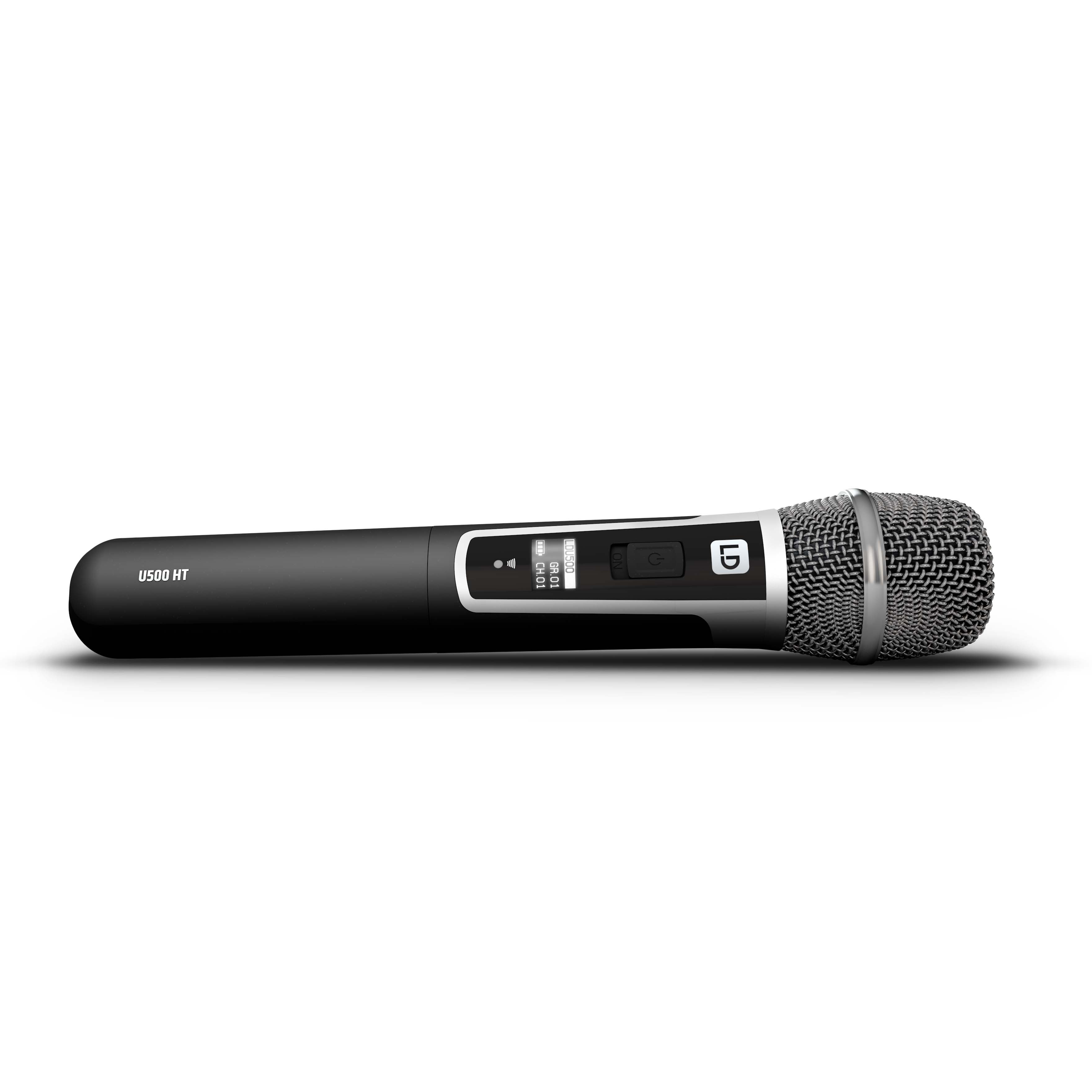

MIKROFON
| Product type | Wireless Microphone System Accessories |
| Type | Microphones |
| Transmission frequency range | 655 – 679 MHz |
| Channels | 160 |
| Groups | 10 |
| Microphone type | condenser |
| Directivity | Cardioid |
| Rated HF output power | Variable (2mW, 10mW, 30mW) |
| Signal-to-noise ratio | 95 dB |
| Operating time | >10 h (with alkaline batteries) |
| Length | 255 mm |
| Diameter | 49 mm |
| Controls | Power |
| Indicators | multifunction LC display |
| Operating voltage | 2 x AA battery |
| Weight | 0,25 kg |
| Other features | IR frequency synchronisation |

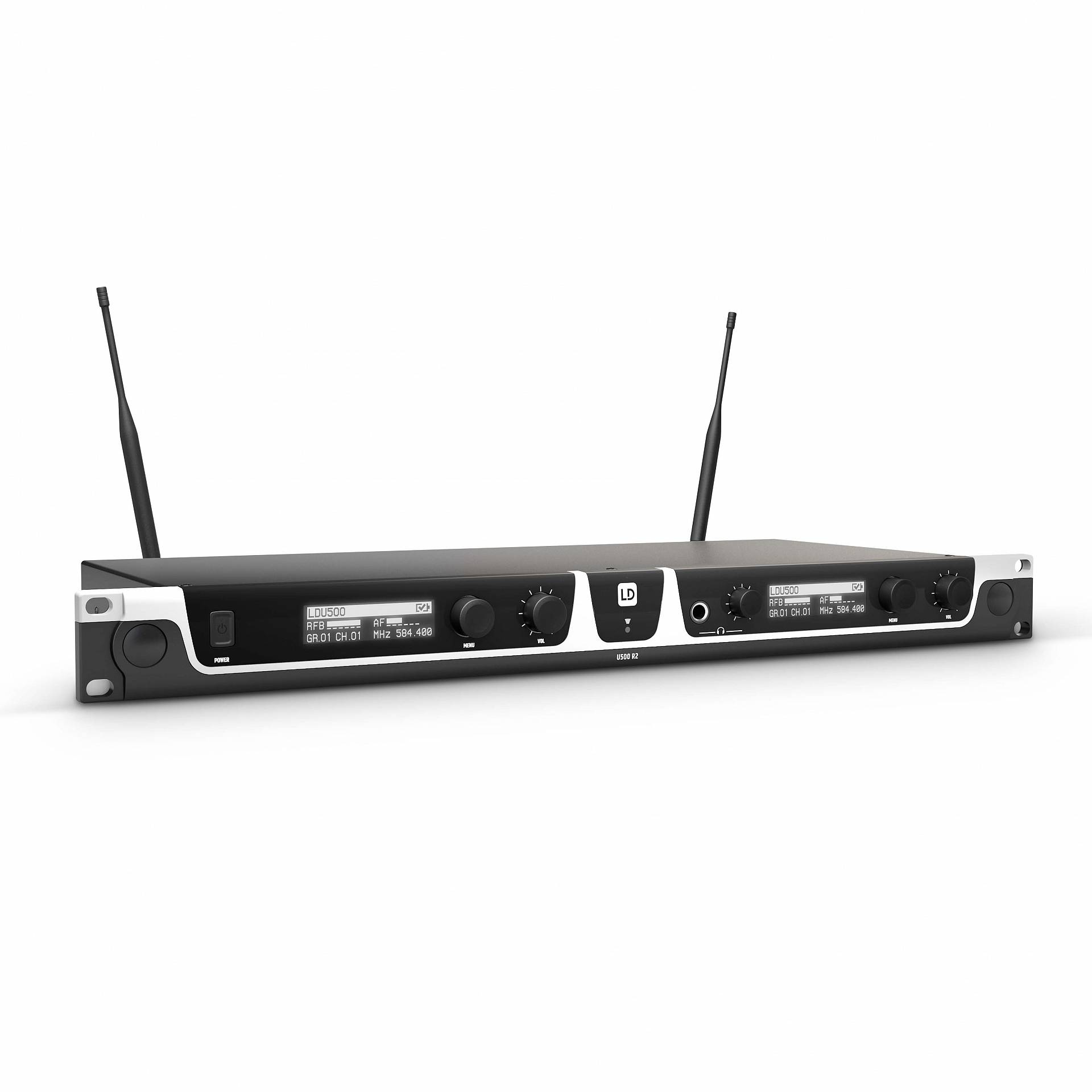

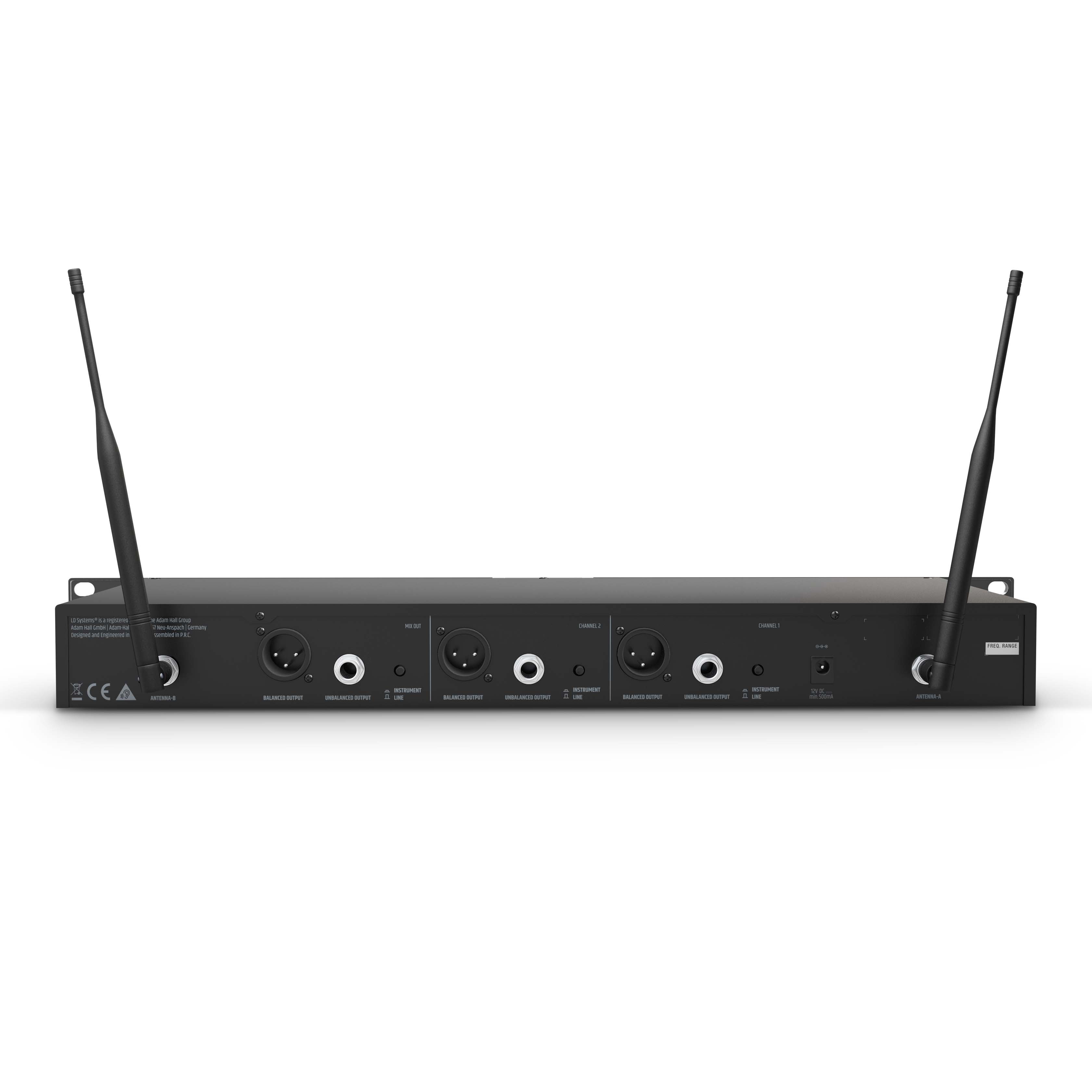

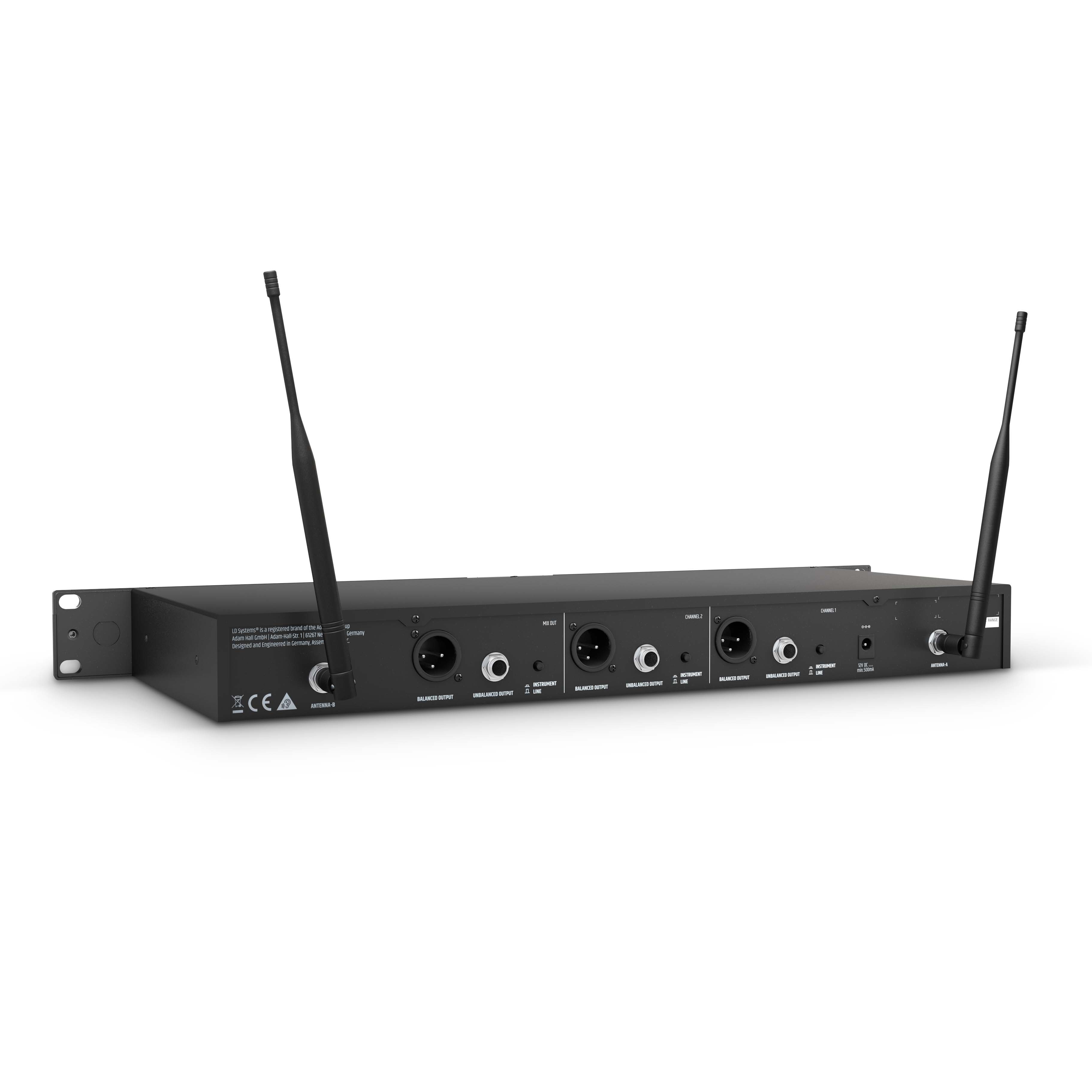

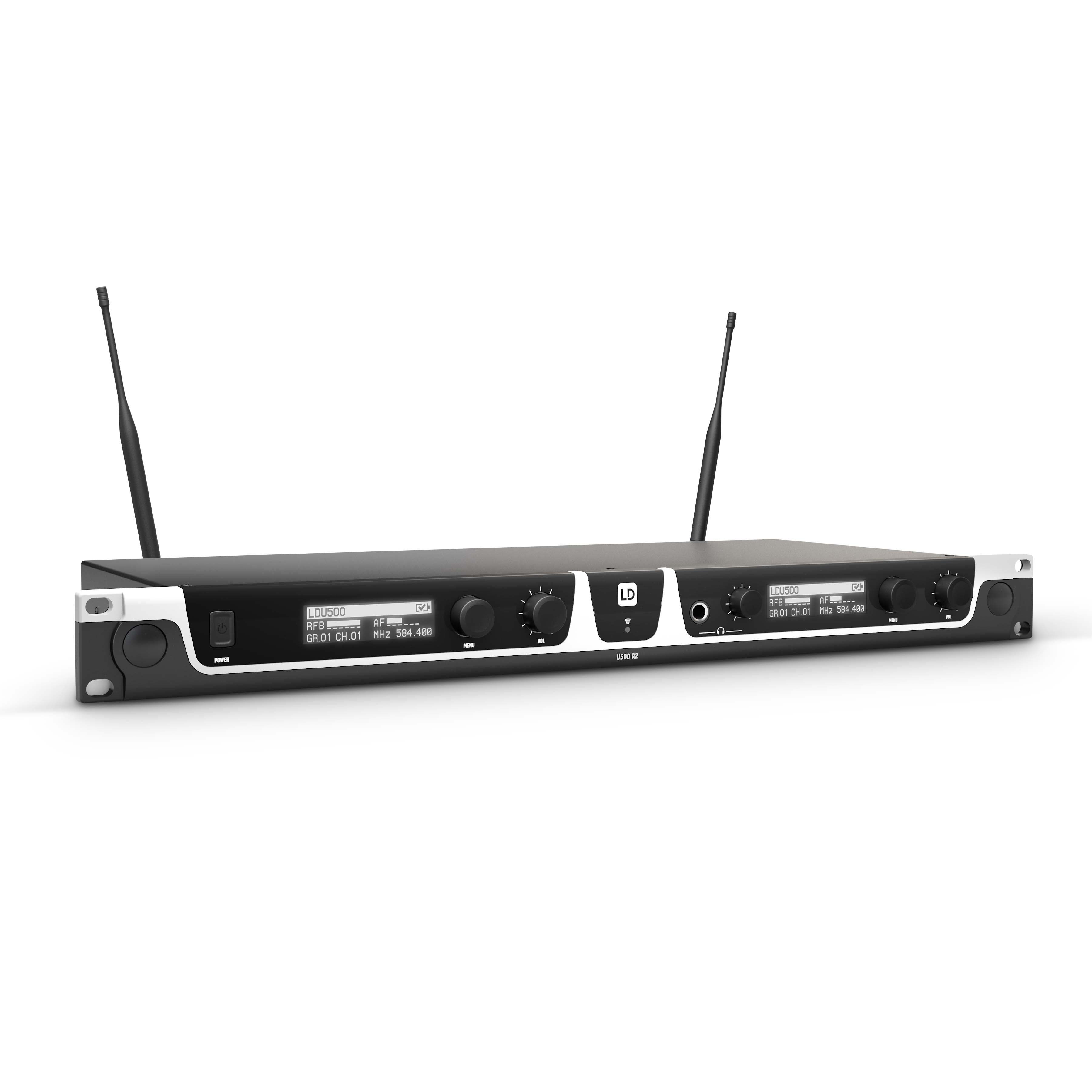

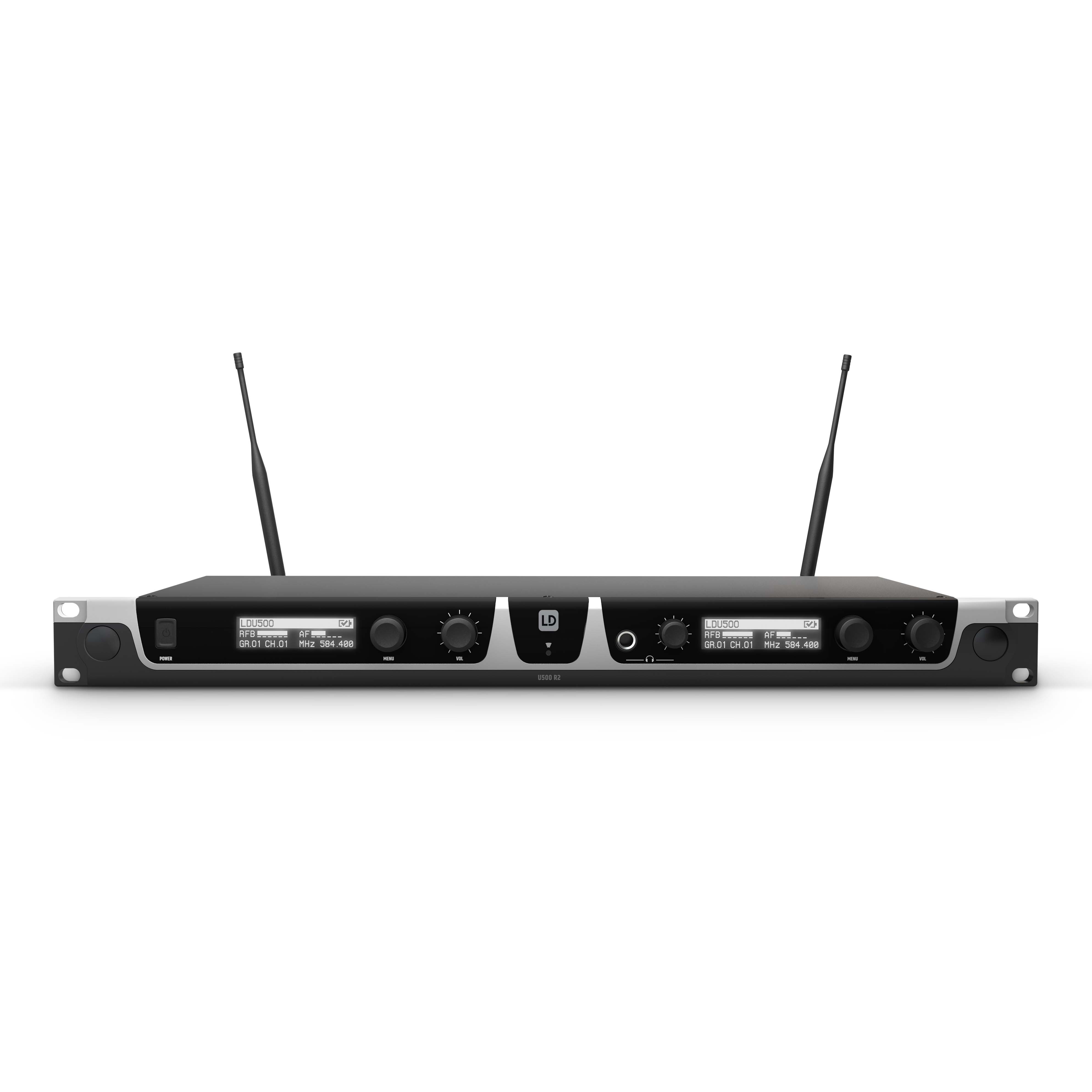

SPREJEMNIK
| Type | true diversity |
| Modulation Type | FM |
| Channels | 2 x 96 (8 groups of 12 channels) |
| Groups | 8 |
| Antenna inputs | 2 |
| Antenna connector | BNC |
| Frequency response | 60 – 16.000 Hz |
| Noise reduction | Squelch |
| Signal-to-noise ratio | > 105 dB |

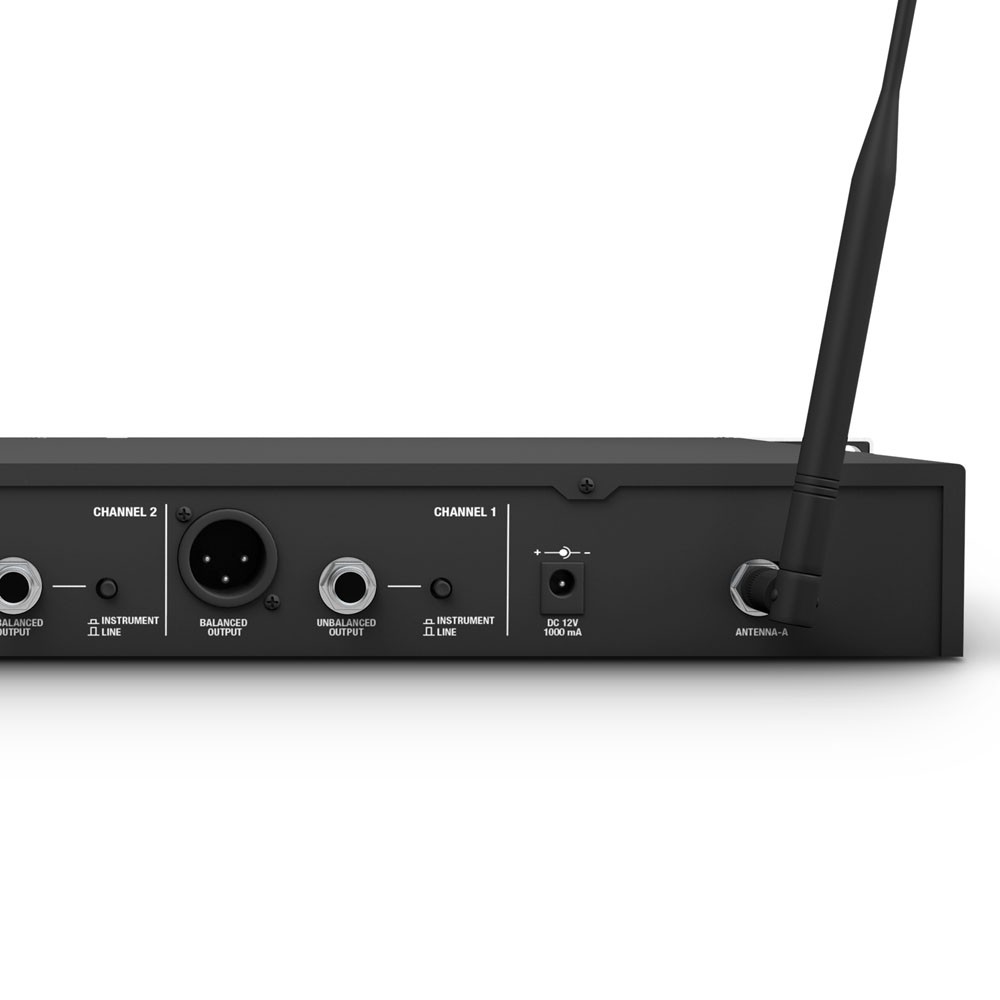

| Audio output, balanced | 2 x XLR |
| Audio mix output, balanced | XLR |
| Audio mix output, unbalanced | 6.3 mm jack |
| Max. output level | symmetrical -8 dBu |
| Headphones ouput | 1 |
| Headphones outputs | 6.3 mm TRS |
| Controls | volume headphones |
| Indicators | 2 x multifunction LC display |
| Operating voltage | 13.5 V DC |
| Width | 483 mm |
| Height | 45 mm |
| Depth | 190 mm |
| Weight | 2,05 kg |
| Accessories (included) | Power supply |
| Other features | channel search function |
