Brezžični mikrofonski sistem LD Systems U506 BPH 2

Profesionalni brezžični mikrofonski sistemi LD Systems U500 zagotavljajo cenovno ugodno in kvalitetno profesionalno audio opremo, ki je bila razvita v Nemčiji.

Brezžični mikrofonski sistem LD Systems U506 BPH 2 vključuje:

-sprejemnik

-2 x naglavni mikrofon

-2 x oddajnik

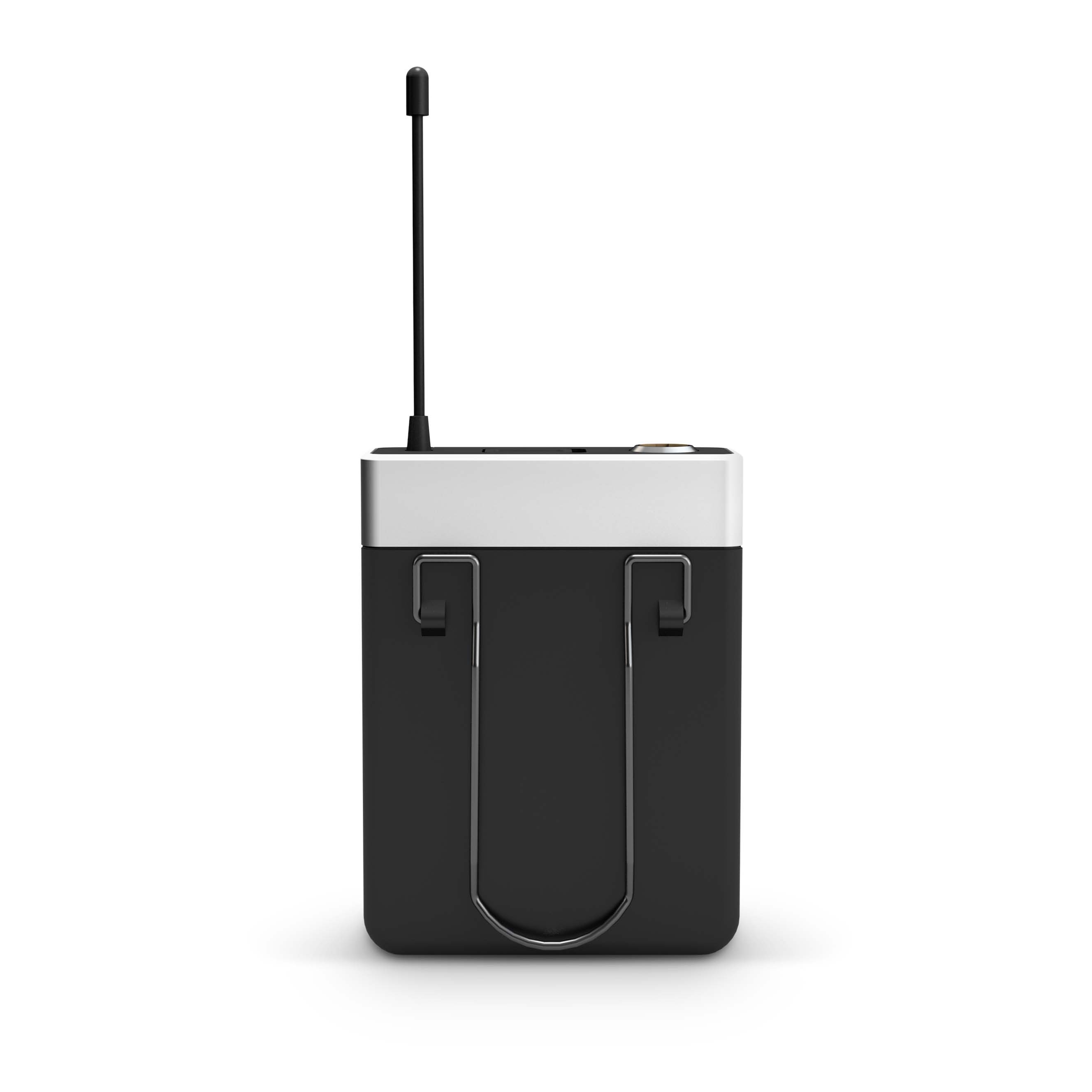

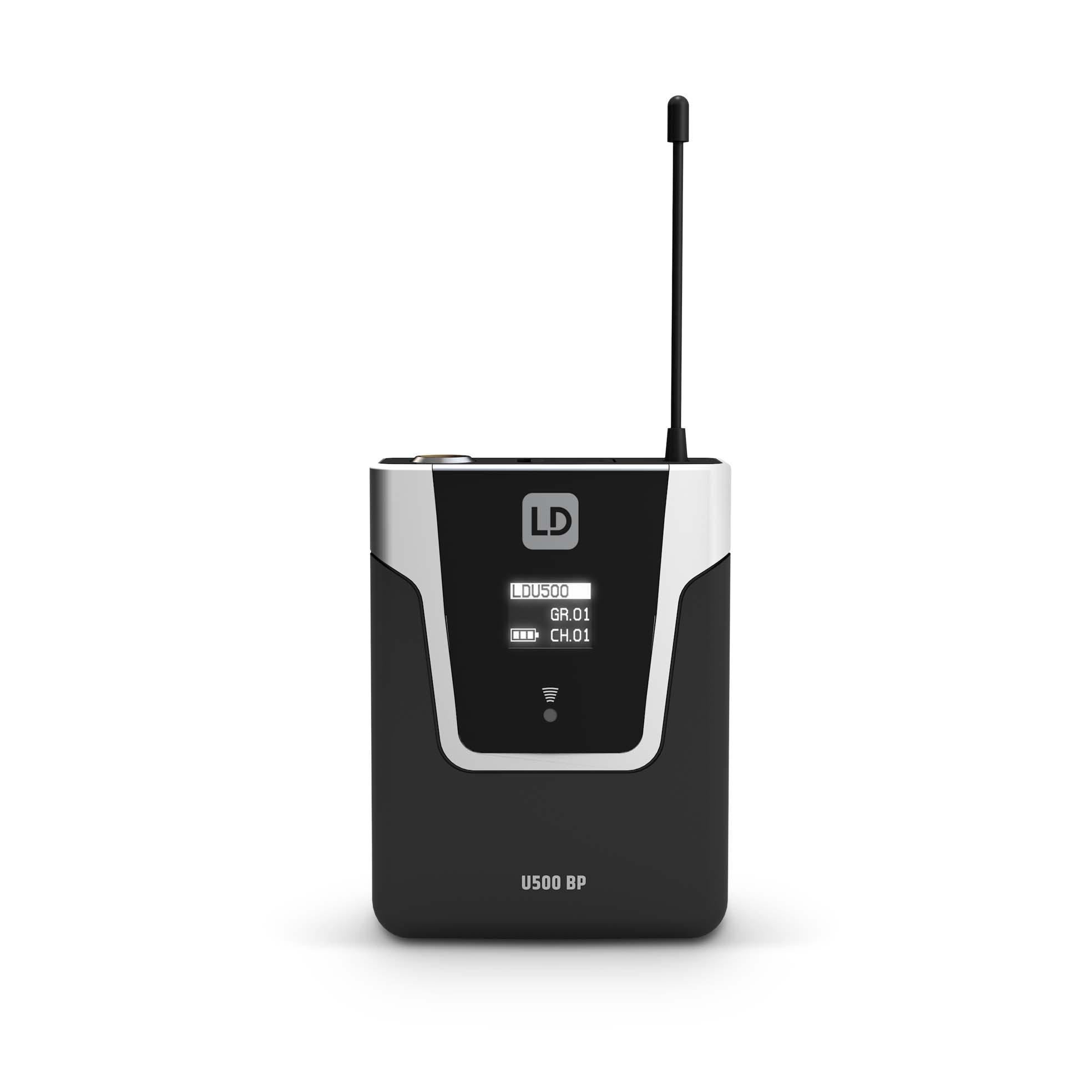

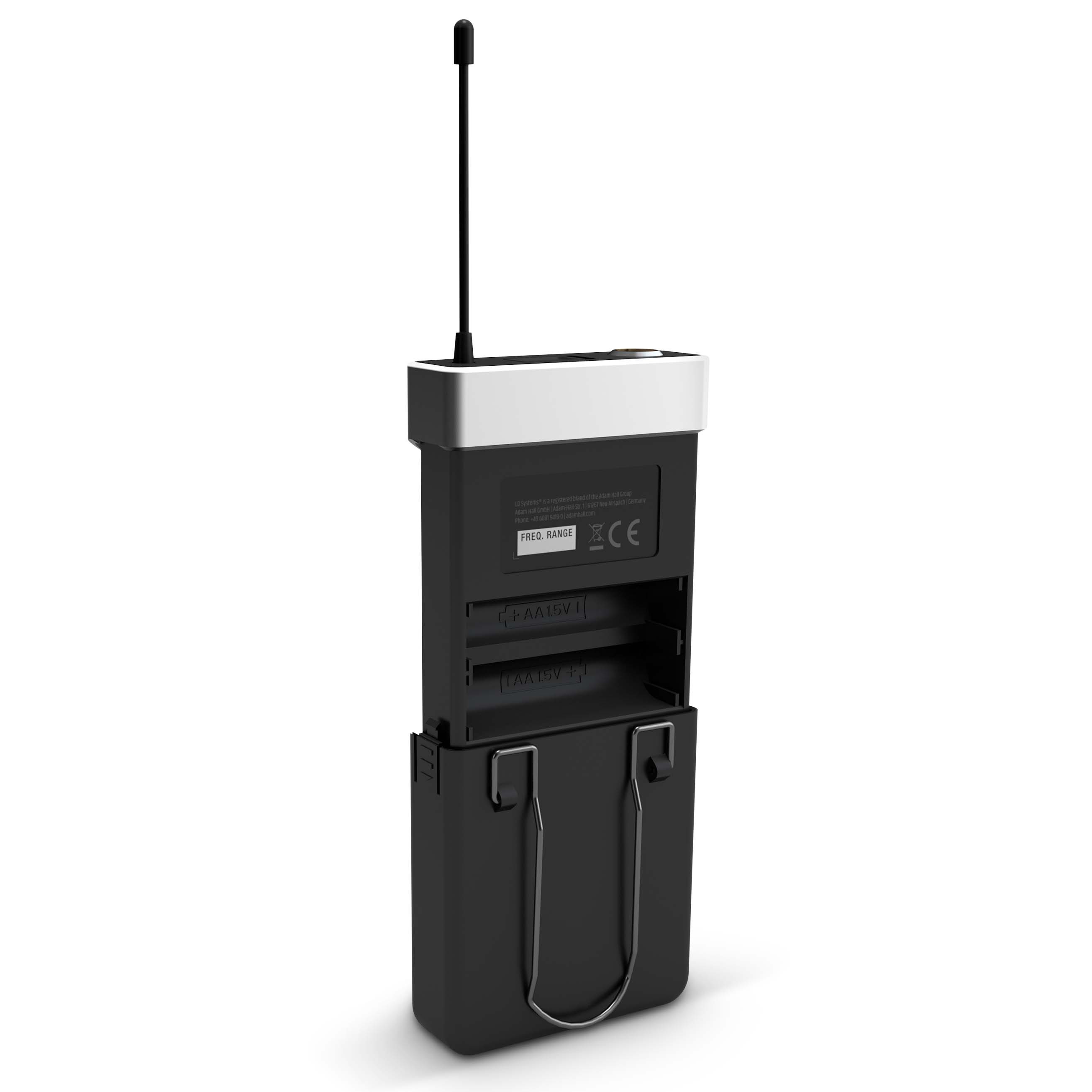

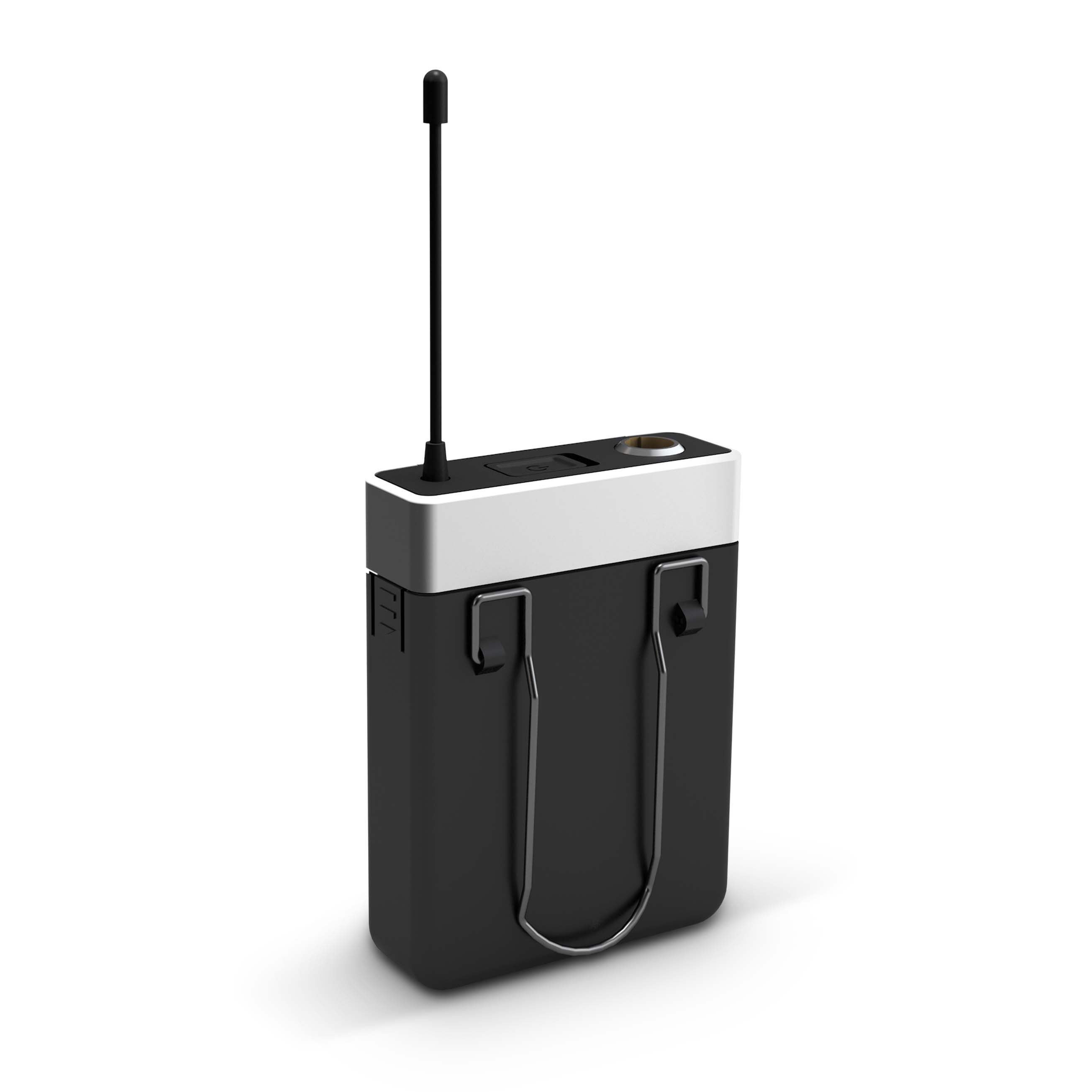

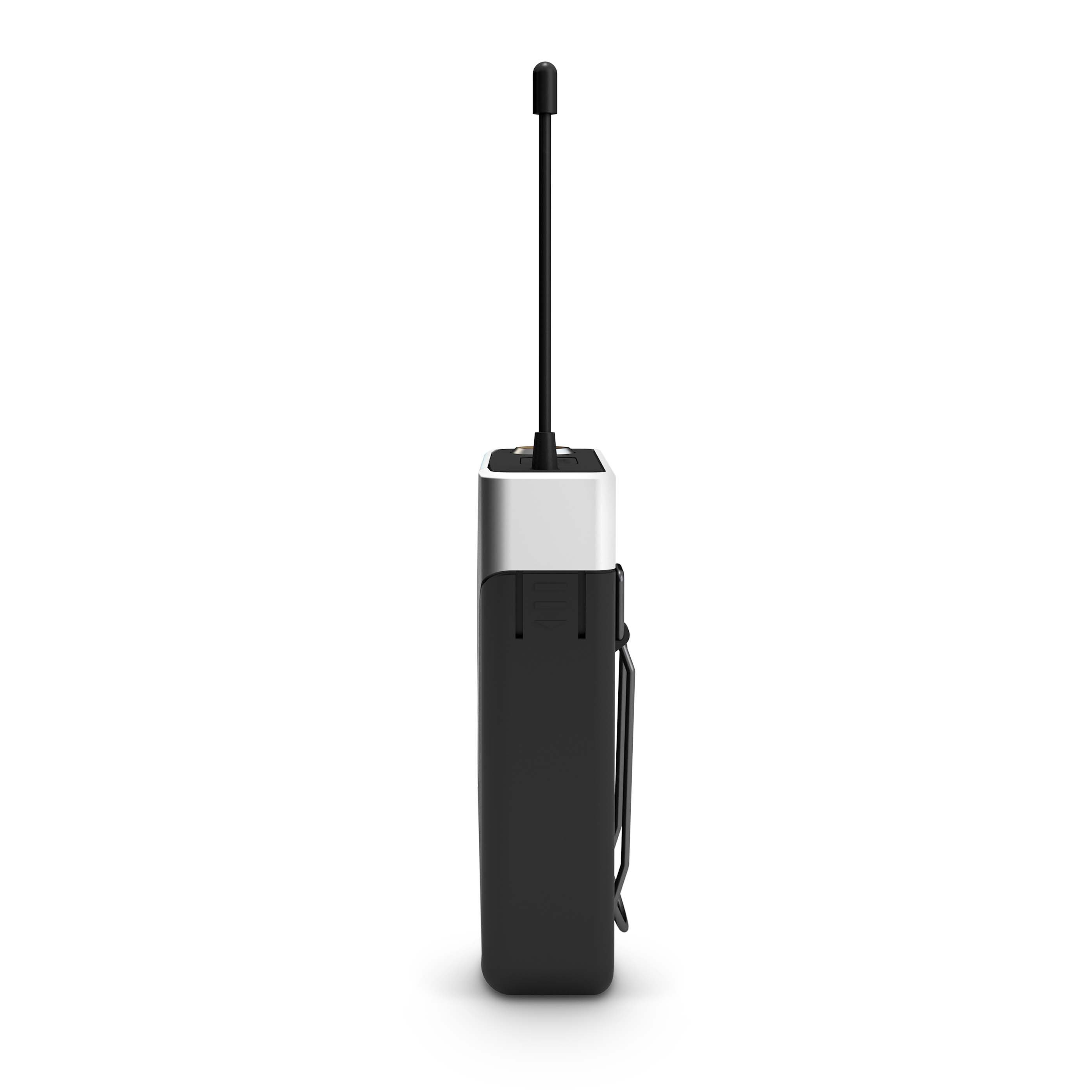

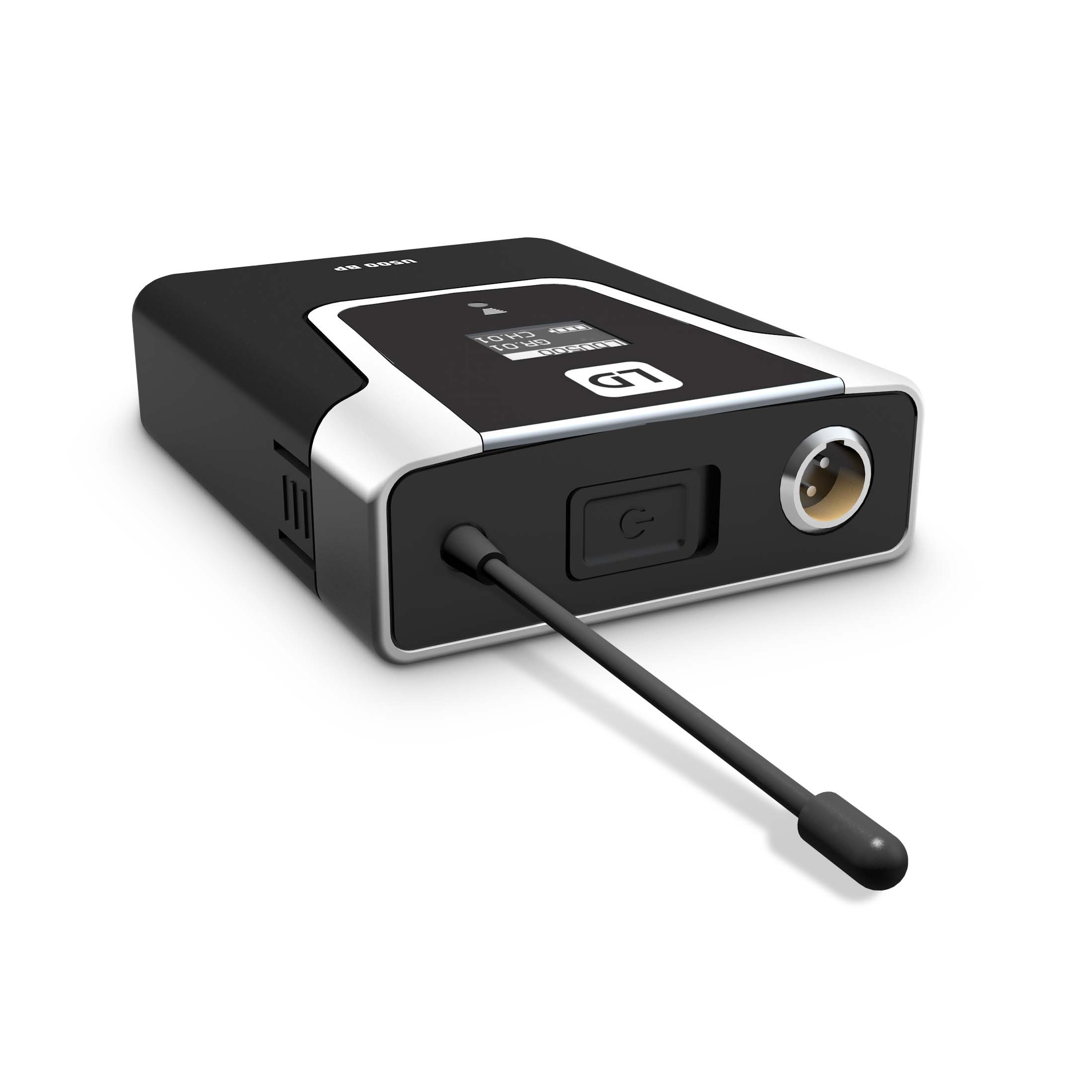

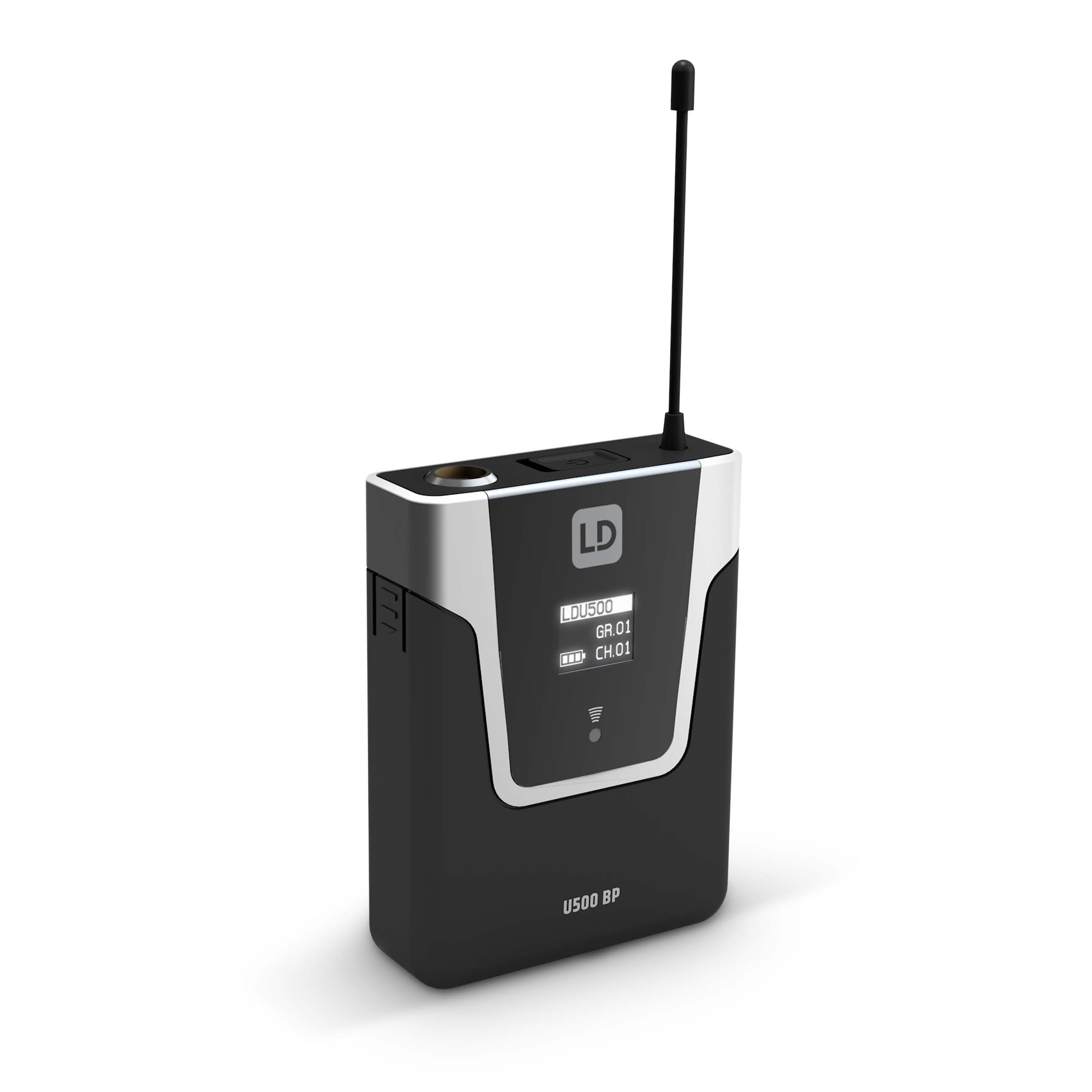

ODDAJNIK
Product type Wireless Microphone System Accessories
Type Bodypack
Transmission frequency range 655 – 679 MHz
Channels 96 (8 groups of 12 channels)
Groups 8
Inputs Mini-XLR (3-pin)
Frequency response 30 – 16000 Hz
Rated HF output power Variable (2mW, 10mW, 30mW)
Signal-to-noise ratio >90 dB
Operating time >10 h (with alkaline batteries)
Controls Set
Indicators OLED Display
Operating voltage 2 x AA battery
Width 65 mm
Height 86 mm
Depth 23 mm
Weight 0,09 kg
Other features switchable RF power

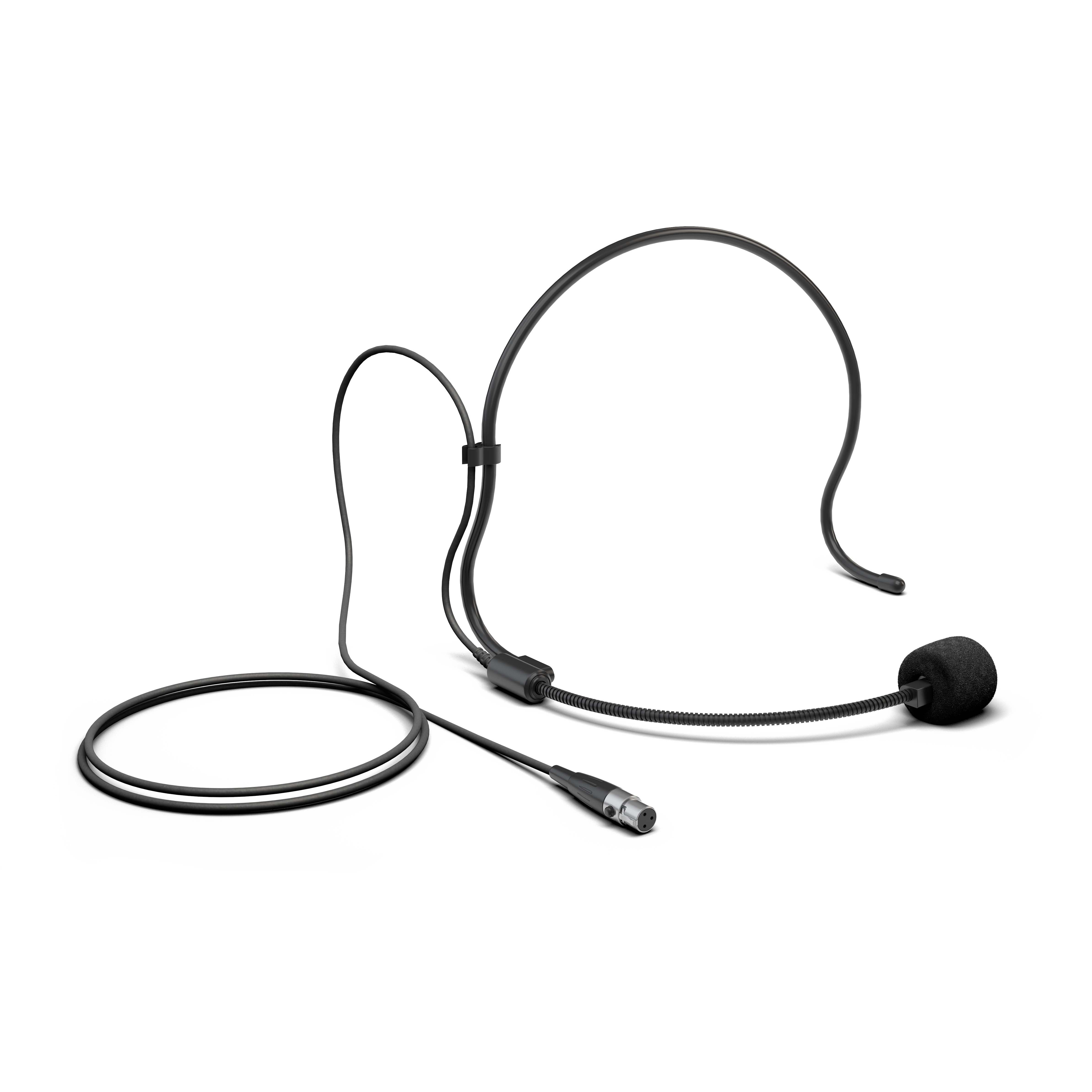

MIKROFON
Type Headsets
Directivity Cardioid
Nominal impedance 680 Ohm(s)
Frequency response 20 – 20.000 Hz
Phantom power requierements 5 V
Microphone input Mini-XLR (3-pin, female)
Weight 0,049 kg
Accessories (included) Foam windscreen

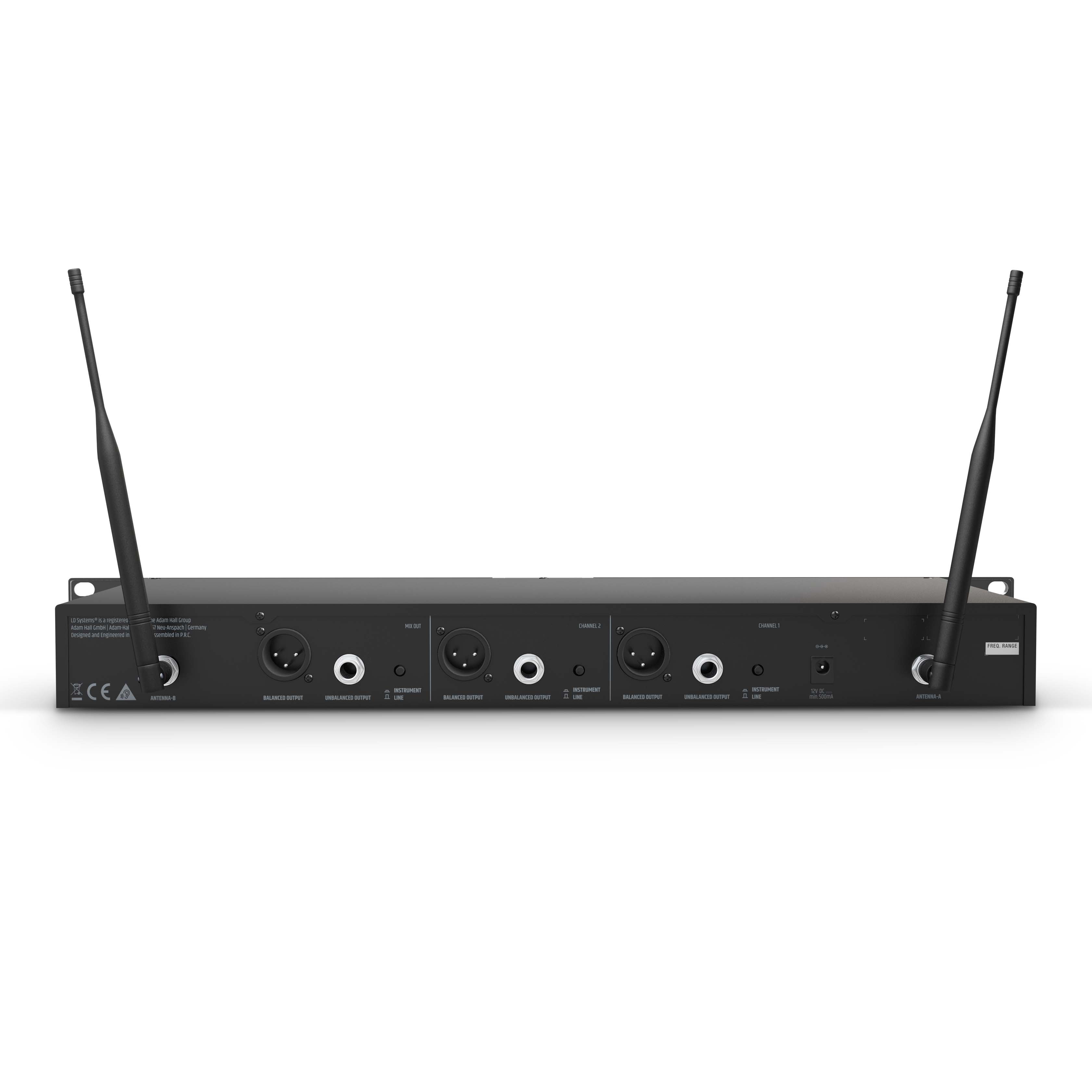

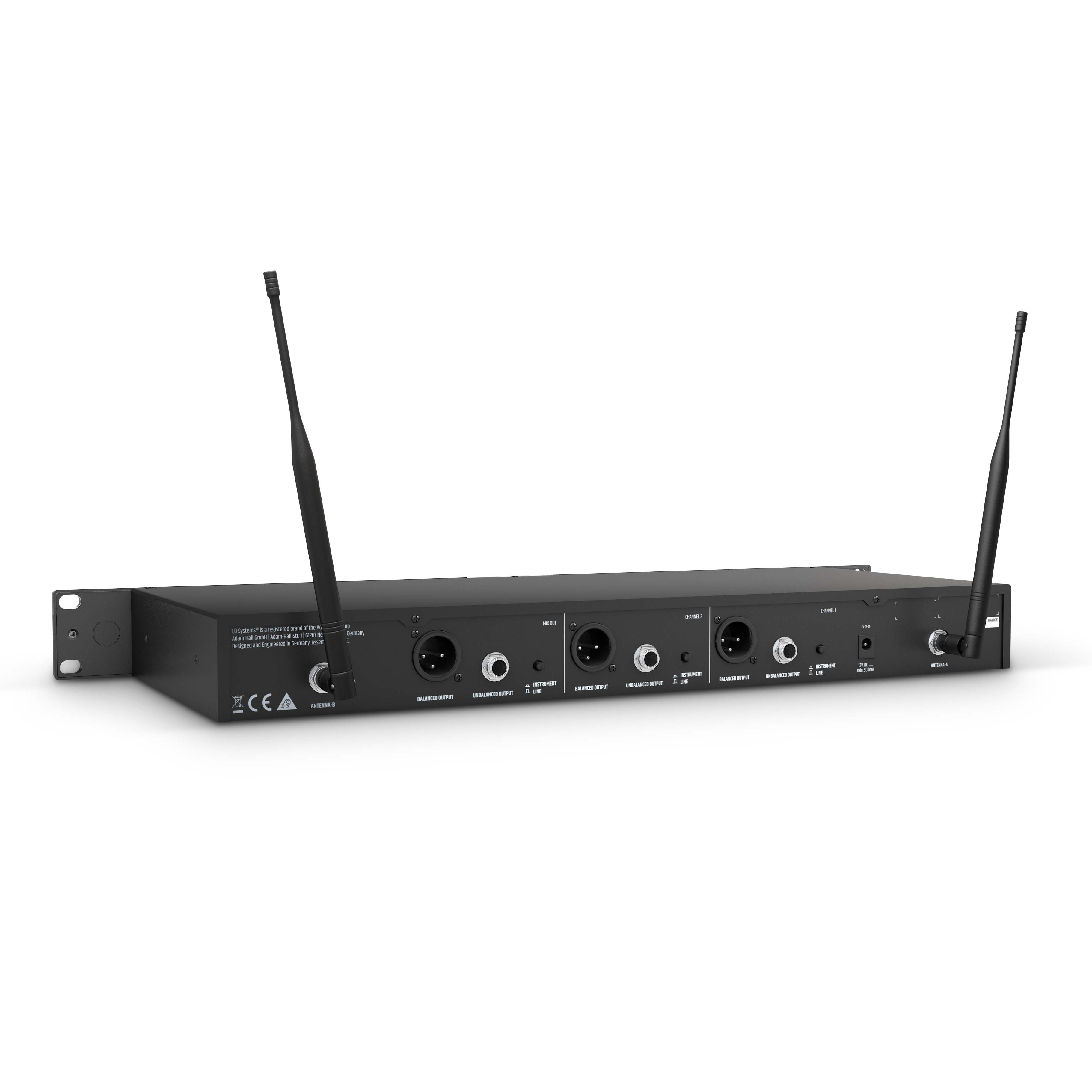

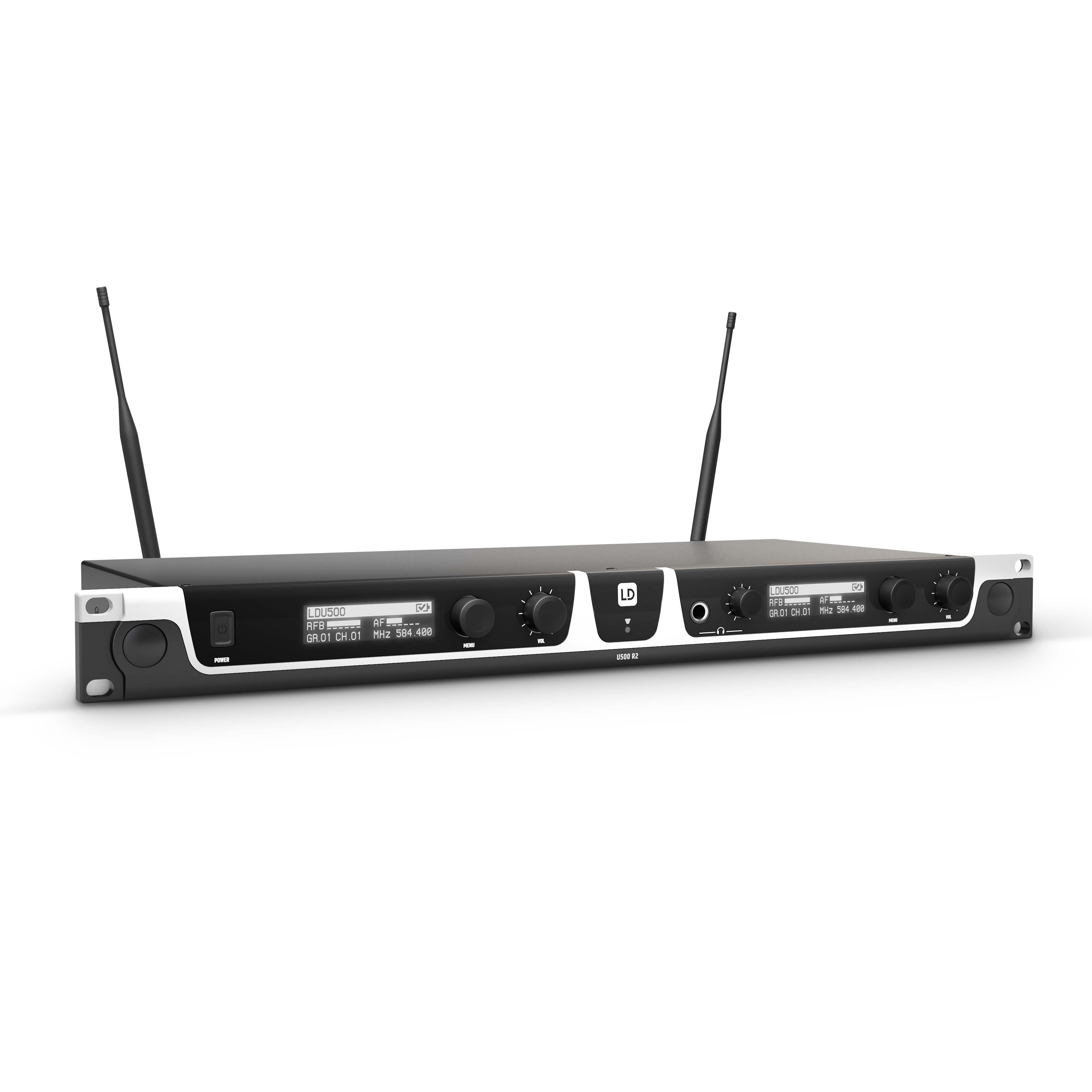

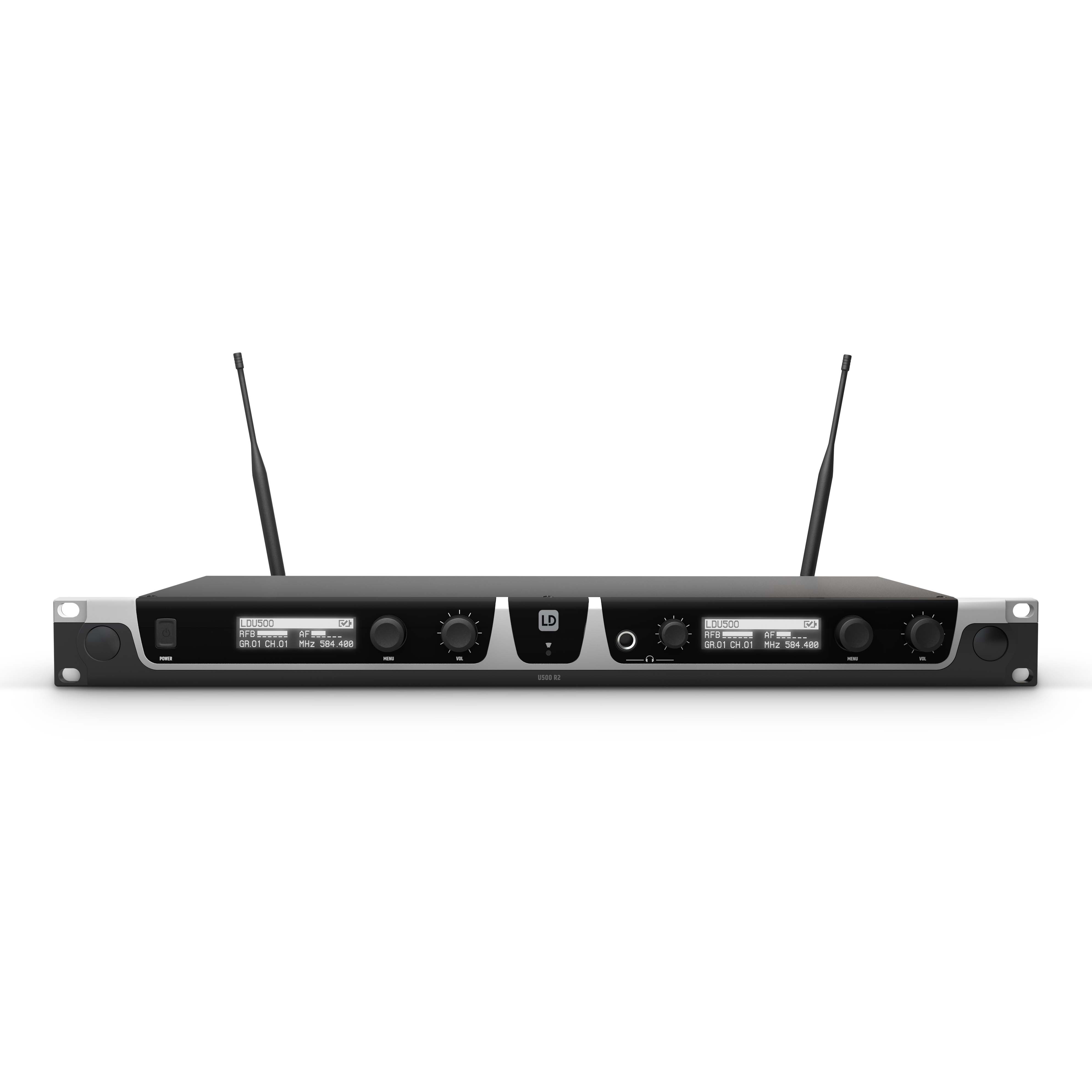

SPREJEMNIK
Type true diversity
Modulation Type FM
Channels 2 x 96 (8 groups of 12 channels)
Antenna inputs 2
Antenna connector BNC
Frequency response 60 – 16.000 Hz
Noise reduction Squelch
Signal-to-noise ratio > 105 dB
Audio output, balanced 2 x XLR
Audio mix output, balanced XLR
Audio mix output, unbalanced 6.3 mm jack
Max. output level symmetrical -8 dBu
Headphones ouput 1
Headphones outputs 6.3 mm TRS
Controls volume headphones
Indicators 2 x multifunction LC display
Operating voltage 13.5 V DC
Width 483 mm
Height 45 mm
Depth 190 mm
Weight 2,05 kg
Accessories (included) Power supply
Other features IR frequency synchronisation
