Brezžični mikrofonski sistem LD Systems U505 HHC
Profesionalni brezžični mikrofonski sistemi LD Systems U500 zagotavljajo cenovno ugodno in kvalitetno profesionalno audio opremo, ki je bila razvita v Nemčiji.
Brezžični mikrofonski sistem LD Systems U505 HHC vključuje:
-sprejemnik
-brezžični ročni mikrofon
SPREJEMNIK
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Antenna inputs
2
Antenna connector
BNC
Frequency response
30 – 16000 Hz
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
> 100 dB
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack
Max. output level
+10 dBu
Controls
digital encoder , volume
Operating voltage
12 – 18 V DC
Operating voltage
12 V DC, 500 mA
Width
212 mm
Height
44 mm
Depth
159 mm
Weight
0,85 kg
Accessories (included)
2 x antenna , Audio cable , power adapter
Other features
channel search function , Pilot tone

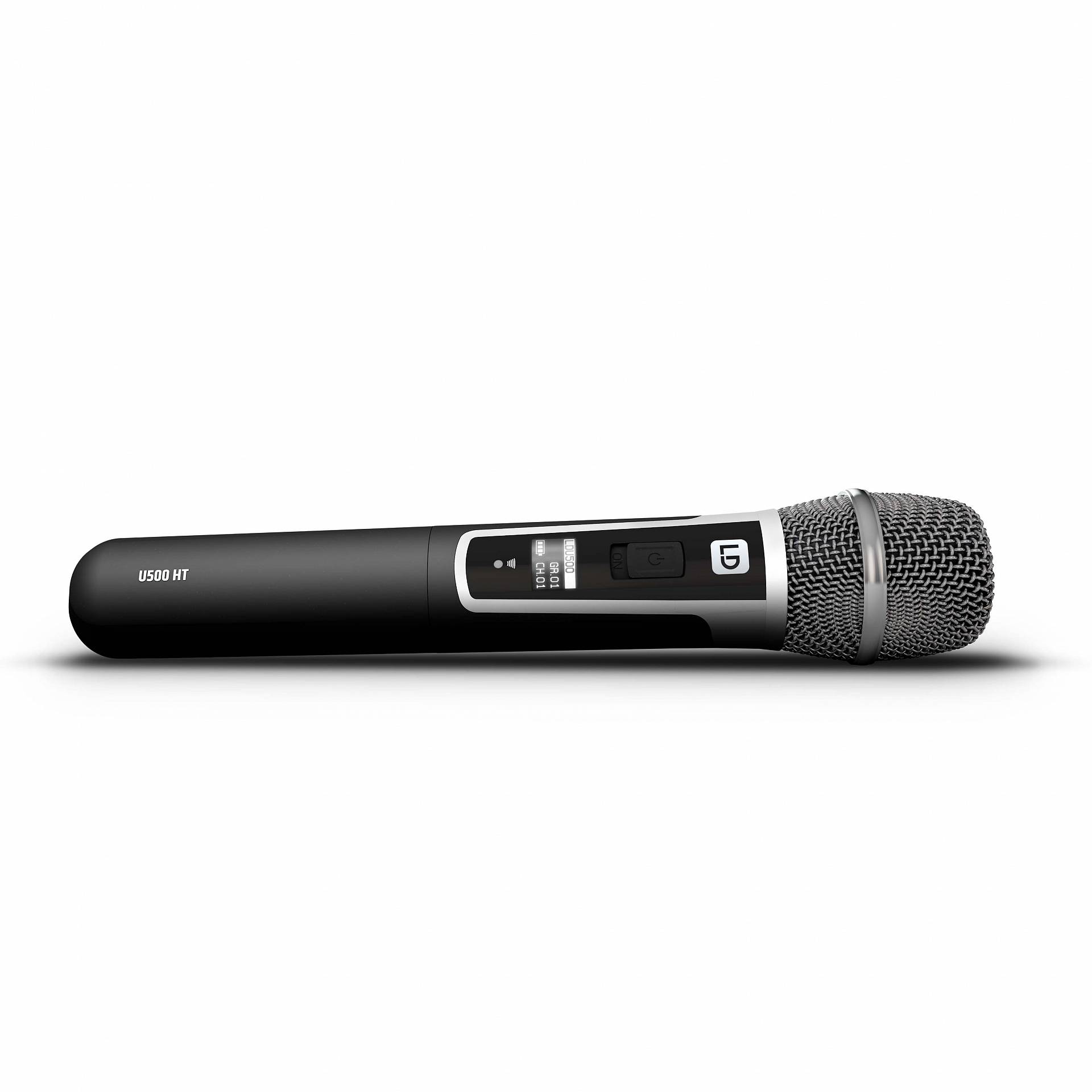

MIKROFON
Transmission frequency range
584 – 608 MHz
Type
Microphones
Channels
96 (8 groups of 12 channels)
Groups
8
Microphone type
condenser
Directivity
Cardioid
Frequency response
60 – 16.000 Hz
Signal-to-noise ratio
>95 dB
Rated HF output power
Variable (2mW, 10mW, 30mW)
Indicators
OLED Display
Operating time
>10 h (with alkaline batteries)
Length
257 mm
Diameter
50 mm
Controls
arrow keys (up/down value entry) , Power , Power On/Off , select
Operating voltage
2 x AA battery
Weight
0,25 kg
Other features
incl. batteries , IR frequency synchronisation
