Brezžični mikrofonski sistem LD Systems U505 HHC 2
Profesionalni brezžični mikrofonski sistemi LD Systems U500 zagotavljajo cenovno ugodno in kvalitetno profesionalno audio opremo, ki je bila razvita v Nemčiji.
Brezžični mikrofonski sistem LD Systems U505 HHC 2 vključuje:
-sprejemnik
-2 x brezžični ročni mikrofon

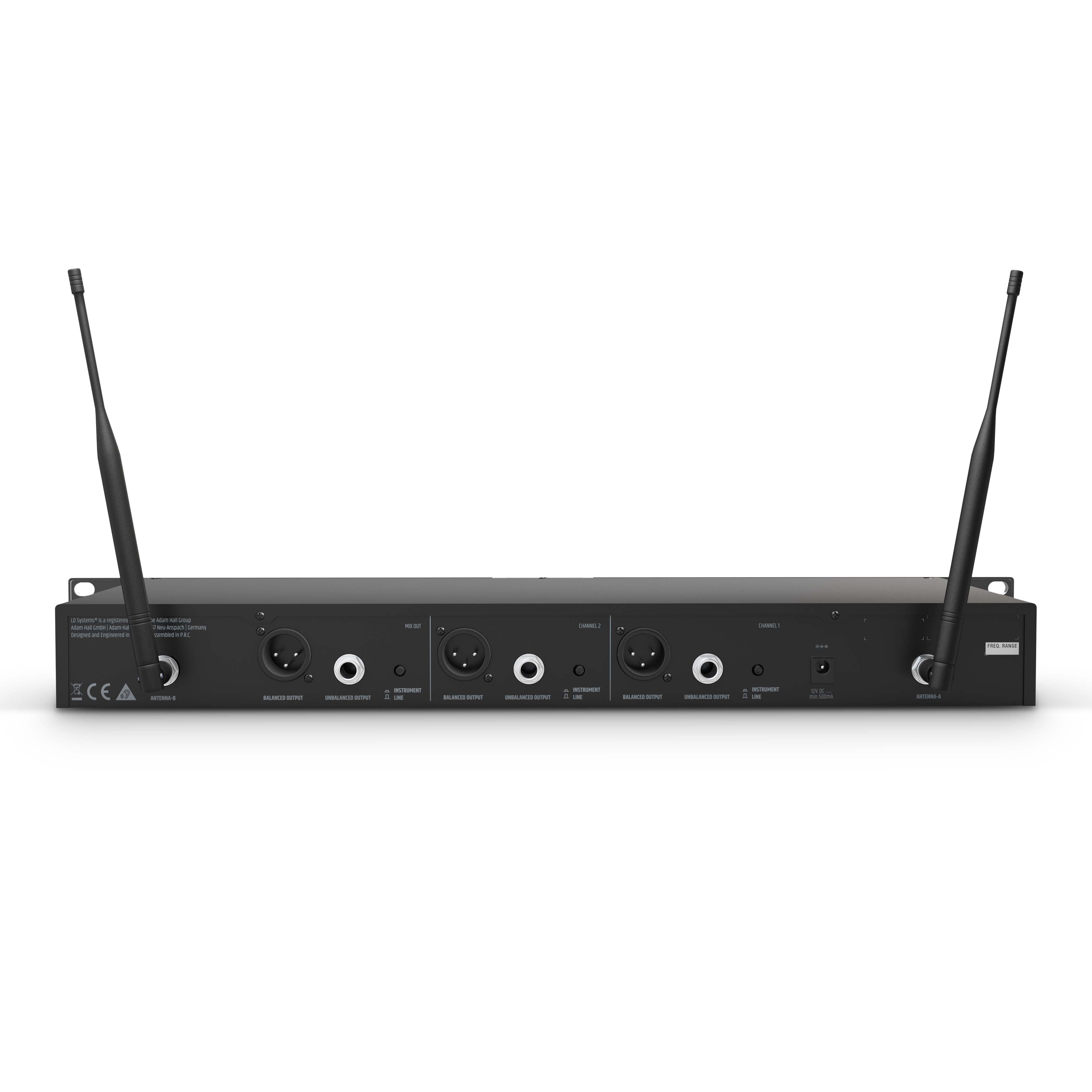

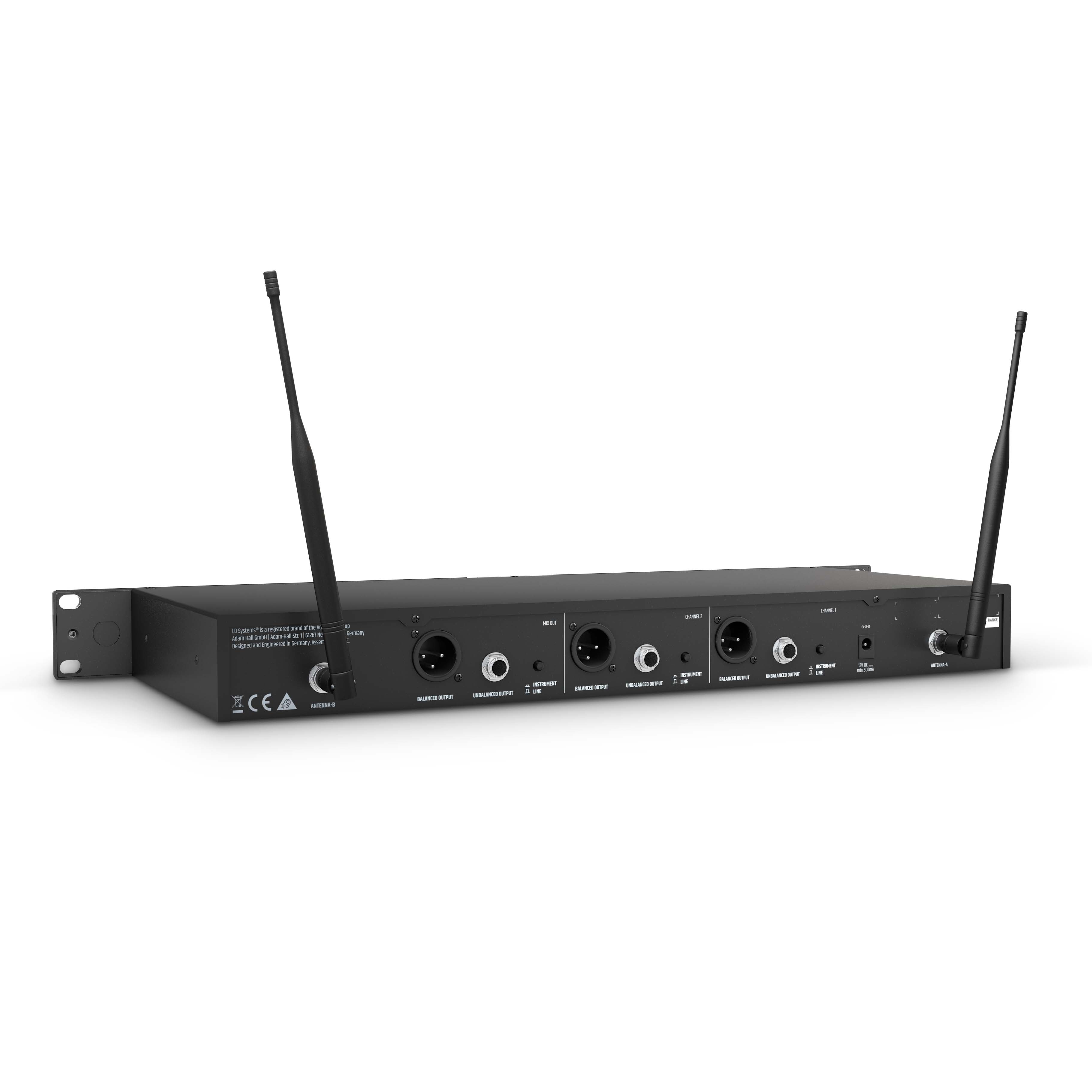

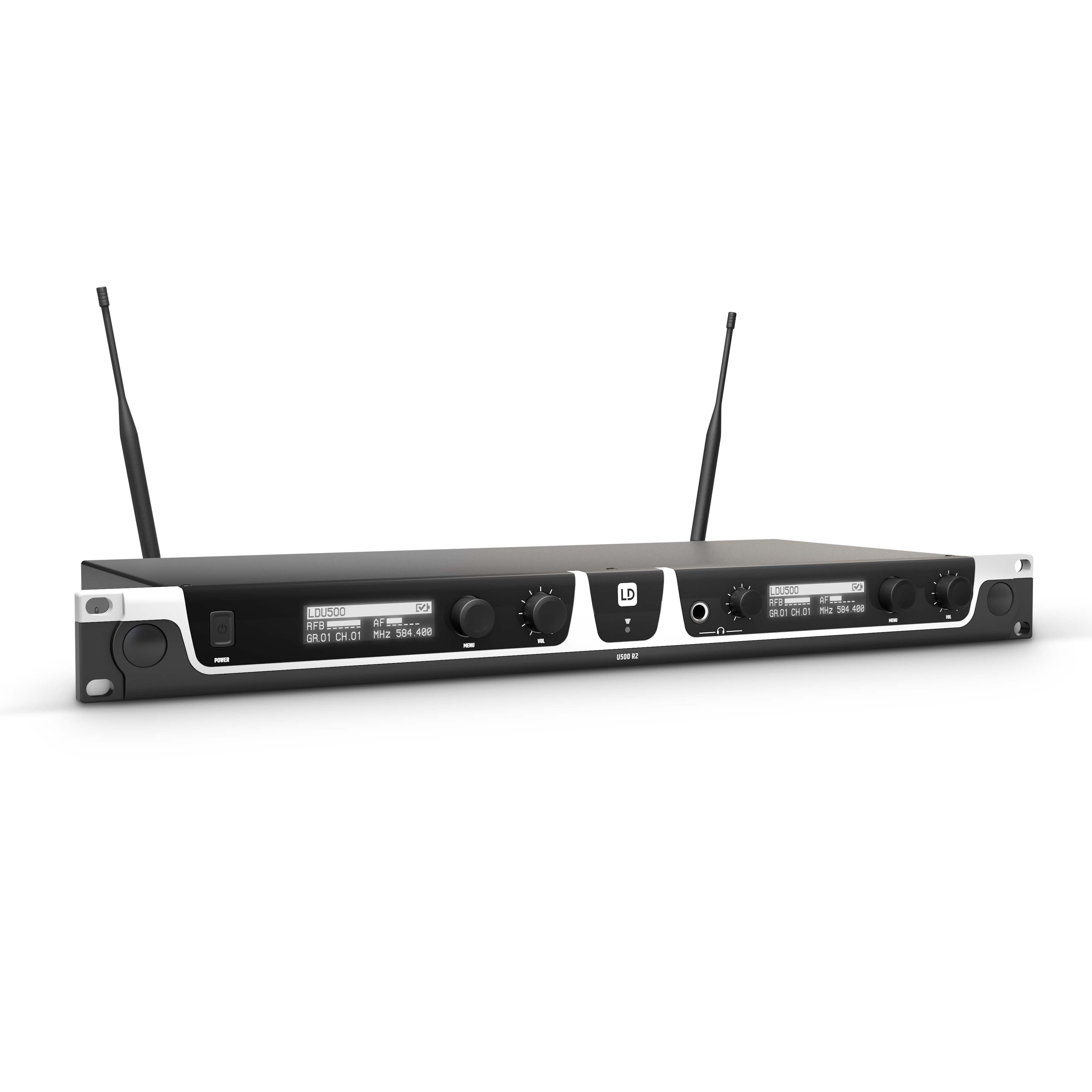

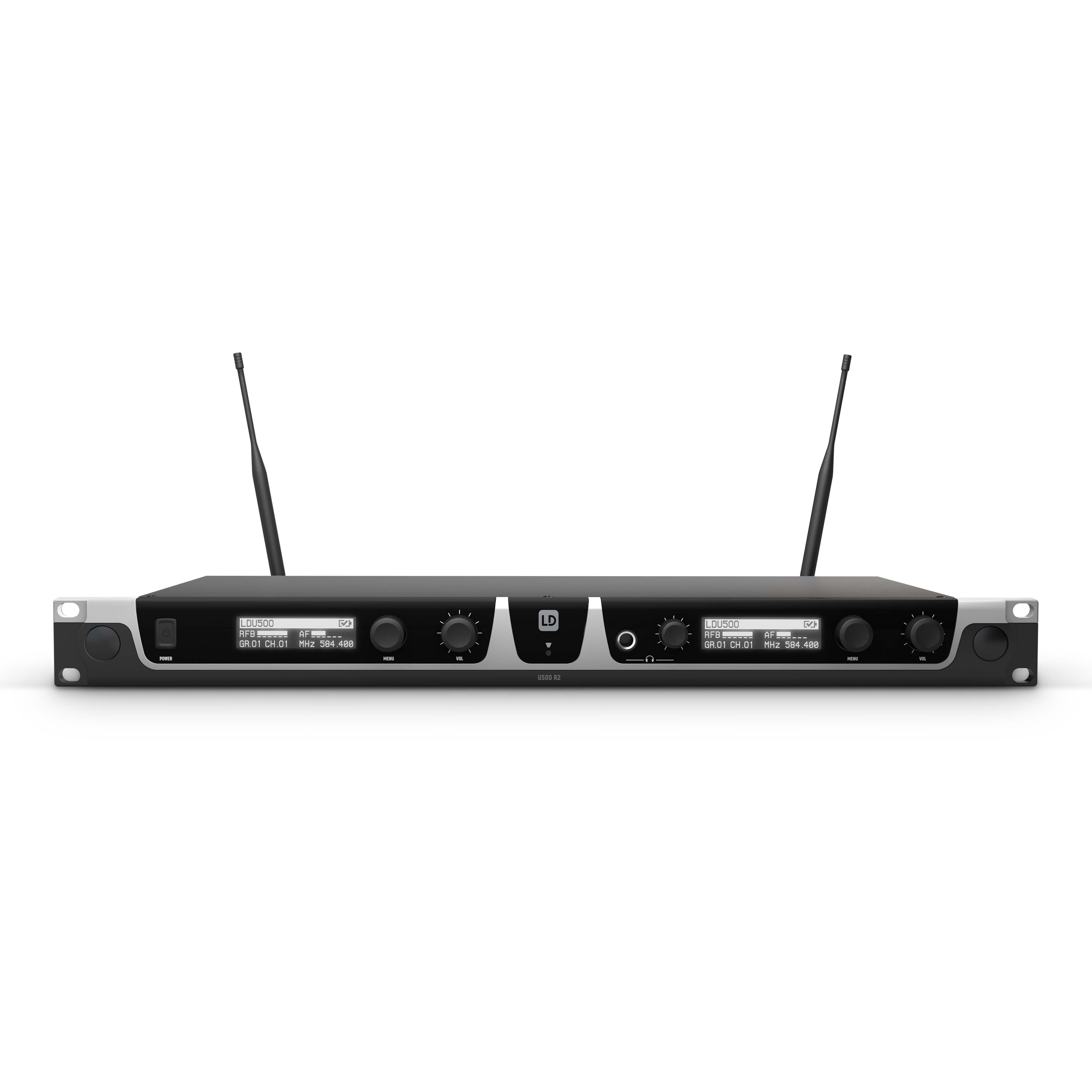

SPREJEMNIK
Product type
Wireless Microphone System Accessories
Type
Receivers , true diversity
Modulation Type
FM
Channels
2 x 96 (8 groups of 12 channels)
Antenna inputs
2
Antenna connector
BNC
Frequency response
30 – 16000 Hz
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.1 %
Signal-to-noise ratio
> 100 dB
Audio output, balanced
2 x XLR
Audio output, unbalanced
2 x 6.3 mm TS
Audio mix output, balanced
XLR
Audio mix output, unbalanced
6.3 mm jack
Max. output level
+10 dBu
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Controls
2 x volume , Down , Up , volume
Indicators
2 x OLED Display
Operating voltage
12 V DC, 1000 mA
Width
484 mm
Height
44 mm
Depth
200 mm
Weight
2,05 kg
Accessories (included)
2 x antenna , Audio cable , power adapter
Other features
channel search function , Pilot tone

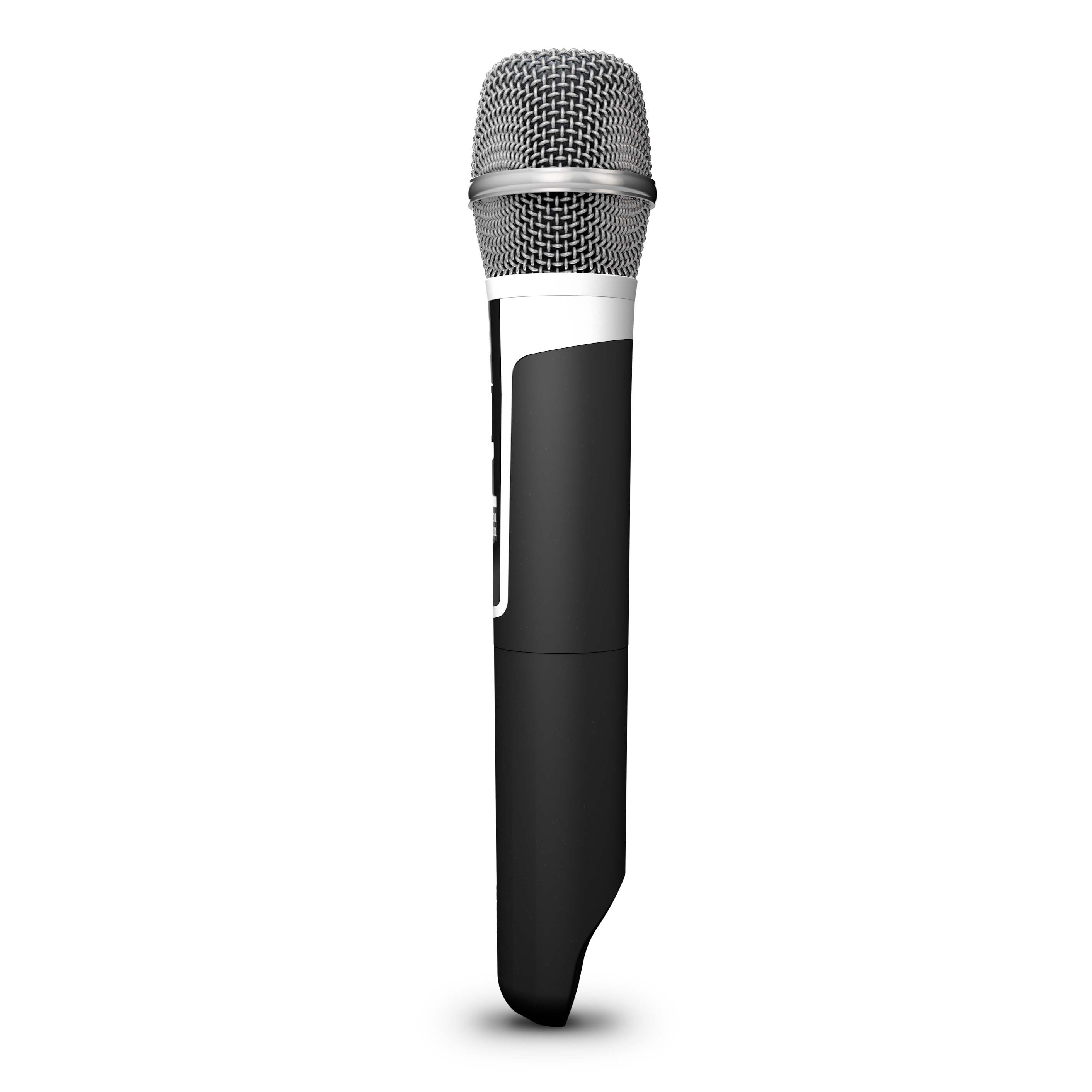

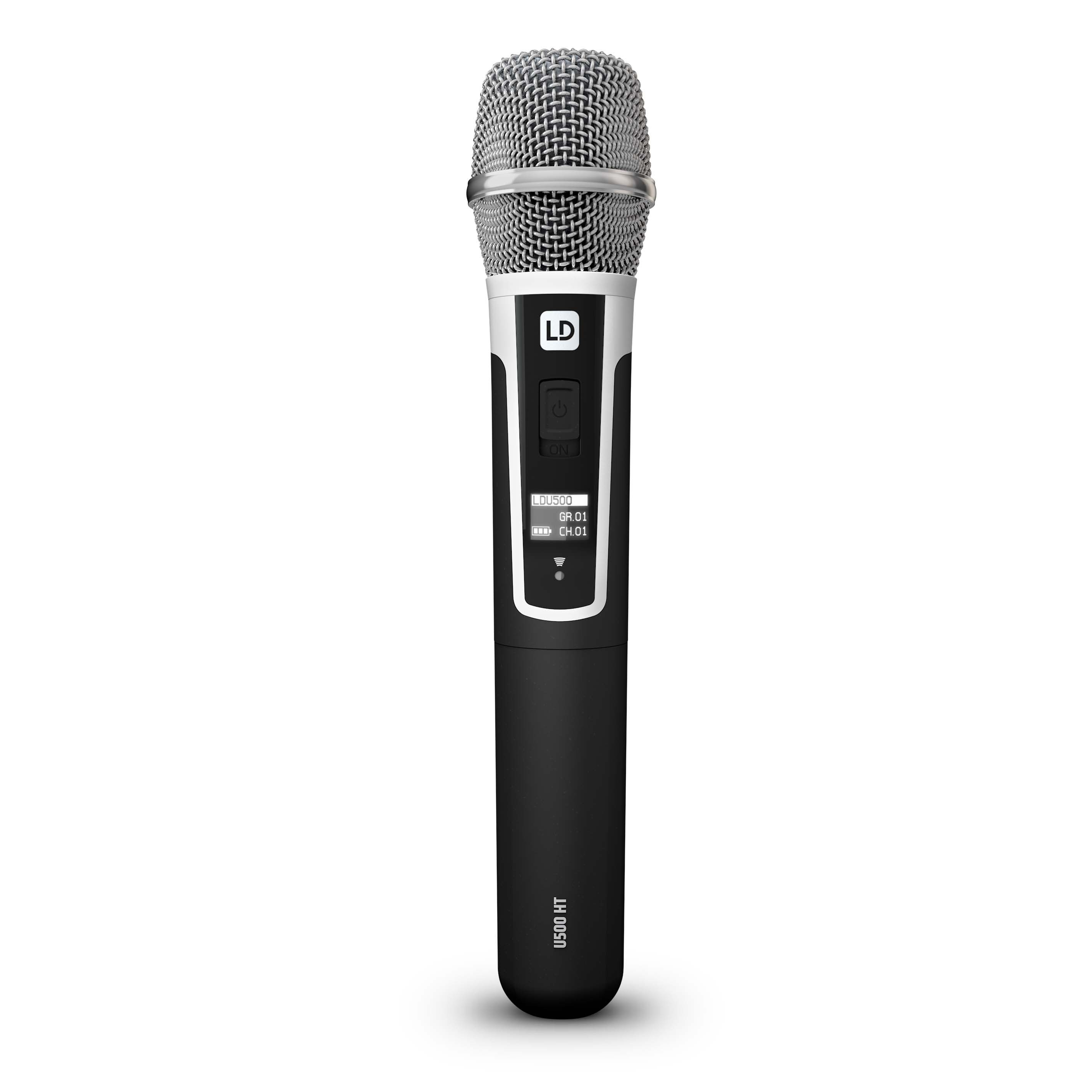

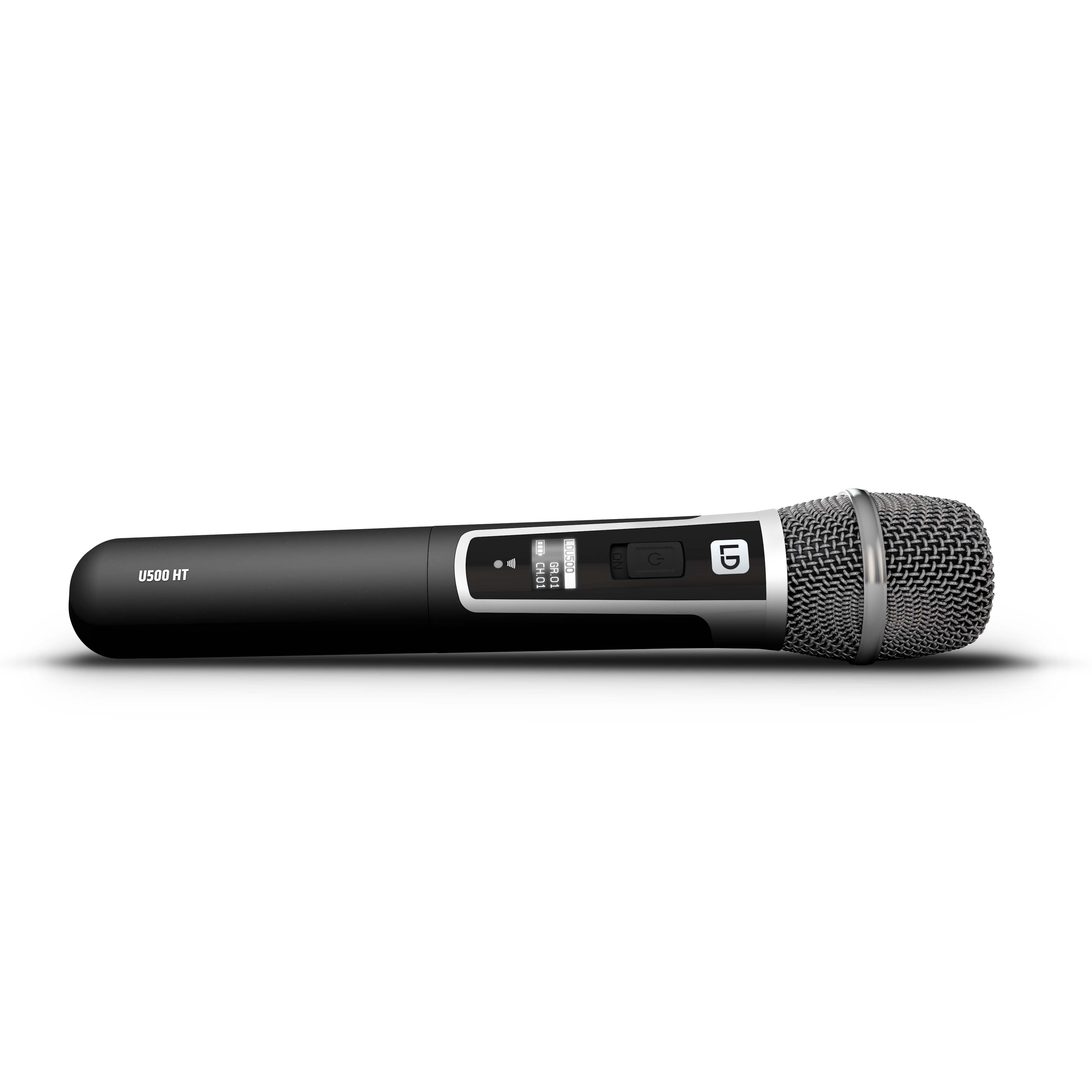

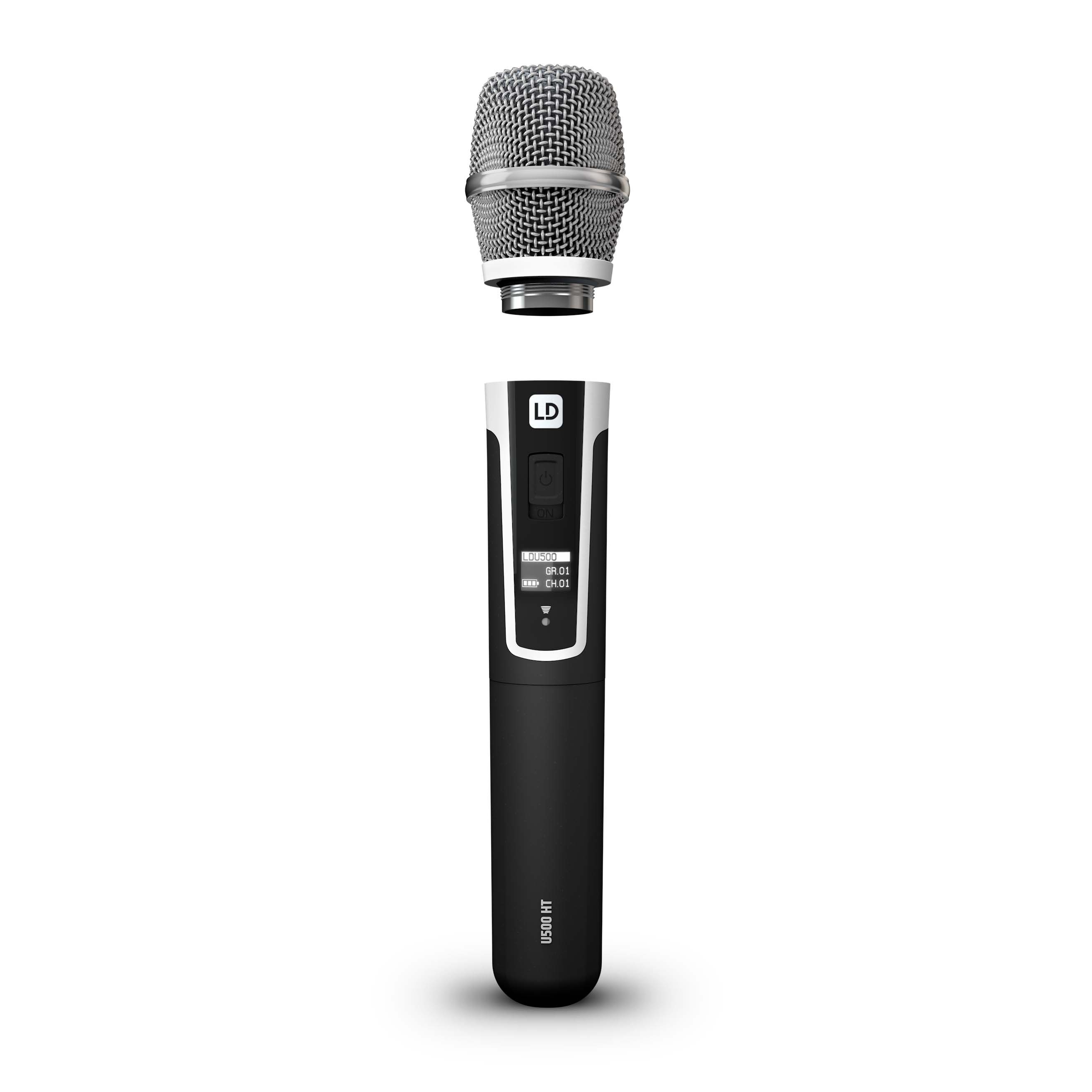

MIKROFON
Transmission frequency range
584 – 608 MHz
Type
Microphones
Groups
8
Channels
96 (8 groups of 12 channels)
Microphone type
condenser
Directivity
Cardioid
Frequency response
60 – 16.000 Hz
Signal-to-noise ratio
>95 dB
Rated HF output power
Variable (2mW, 10mW, 30mW)
Operating voltage
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Length
257 mm
Diameter
50 mm
Controls
arrow keys (up/down value entry) , Power , Power On/Off , select
Indicators
OLED Display
Weight
0,25 kg
Other features
incl. batteries , IR frequency synchronisation
