Brezžični mikrofonski sistem LD Systems U505 HBH 2
Profesionalni brezžični mikrofonski sistemi LD Systems U500 zagotavljajo cenovno ugodno in kvalitetno profesionalno audio opremo, ki je bila razvita v Nemčiji.
Brezžični mikrofonski sistem LD Systems U505 HBH 2 vključuje:
-ročni oddajnik
-sprejemnik
-brezžični ročni mikrofon
-naglavni mikrofon

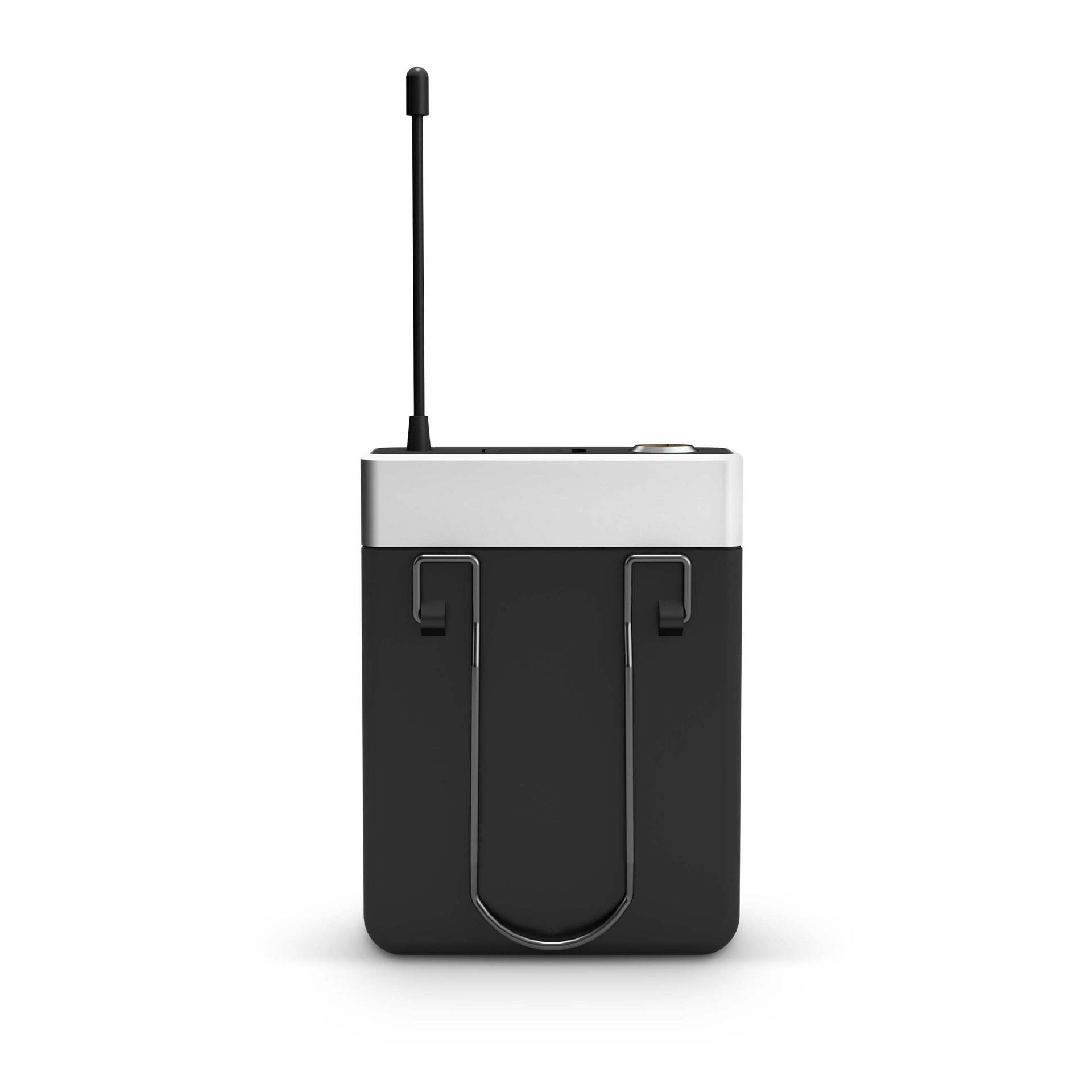

ODDAJNIK
Product type
Wireless Microphone System Accessories
Transmission frequency range
584 – 608 MHz
Type
Bodypack
Channels
96 (8 groups of 12 channels)
Inputs
Mini-XLR (3-pin)
Frequency response
30 – 16000 Hz
Rated HF output power
Variable (2mW, 10mW, 30mW)
Signal-to-noise ratio
>90 dB
Operating voltage
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Controls
2 x arrow keys (up/down value entry) , Power On/Off , Set
Indicators
OLED Display
Width
65 mm
Height
86 mm
Depth
23 mm
Weight
0,09 kg
Other features
detachable antenna , IR frequency synchronisation , Pilot tone squelch, switchable gain , switchable gain , switchable RF power
NAGLAVNI MIKROFON
Type
Headsets
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Frequency response
20 – 20.000 Hz
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Weight
0,049 kg
Accessories (included)
Foam windscreen
ROČNI MIKROFON
Type
Microphones
Groups
8
Microphone type
Dynamic
Frequency response
60 – 16,000 Hz
Signal-to-noise ratio
>95 dB
Length
257 mm
Diameter
51 mm
Controls
arrow keys (up/down value entry) , menu , select
Weight
0,25 kg
Other features
interchangeable capsule
SPREJEMNIK
Type
Receivers , true diversity
Modulation Type
FM
Channels
2 x 96 (8 groups of 12 channels)
Antenna inputs
2
Antenna connector
BNC
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.1 %
Signal-to-noise ratio
> 100 dB
Audio output, balanced
2 x XLR
Audio output, unbalanced
2 x 6.3 mm TS
Audio mix output, balanced
XLR
Audio mix output, unbalanced
6.3 mm jack
Max. output level
+10 dBu
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Controls
2 x volume , Down , Up , volume
Indicators
2 x OLED Display
Operating voltage
12 V DC, 1000 mA
Width
484 mm
Height
44 mm
Depth
200 mm
Weight
2,05 kg
Accessories (included)
2 x antenna , Audio cable , power adapter
Other features
channel search function , Pilot tone
