Brezžični mikrofonski sistem LD Systems U505 BPL 2
Profesionalni brezžični mikrofonski sistemi LD Systems U500 zagotavljajo cenovno ugodno in kvalitetno profesionalno audio opremo, ki je bila razvita v Nemčiji.
Brezžični mikrofonski sistem LD Systems U505 BPL 2 vključuje:
-sprejemnik
-2 x kravatni mikrofon
-2 x oddajnik

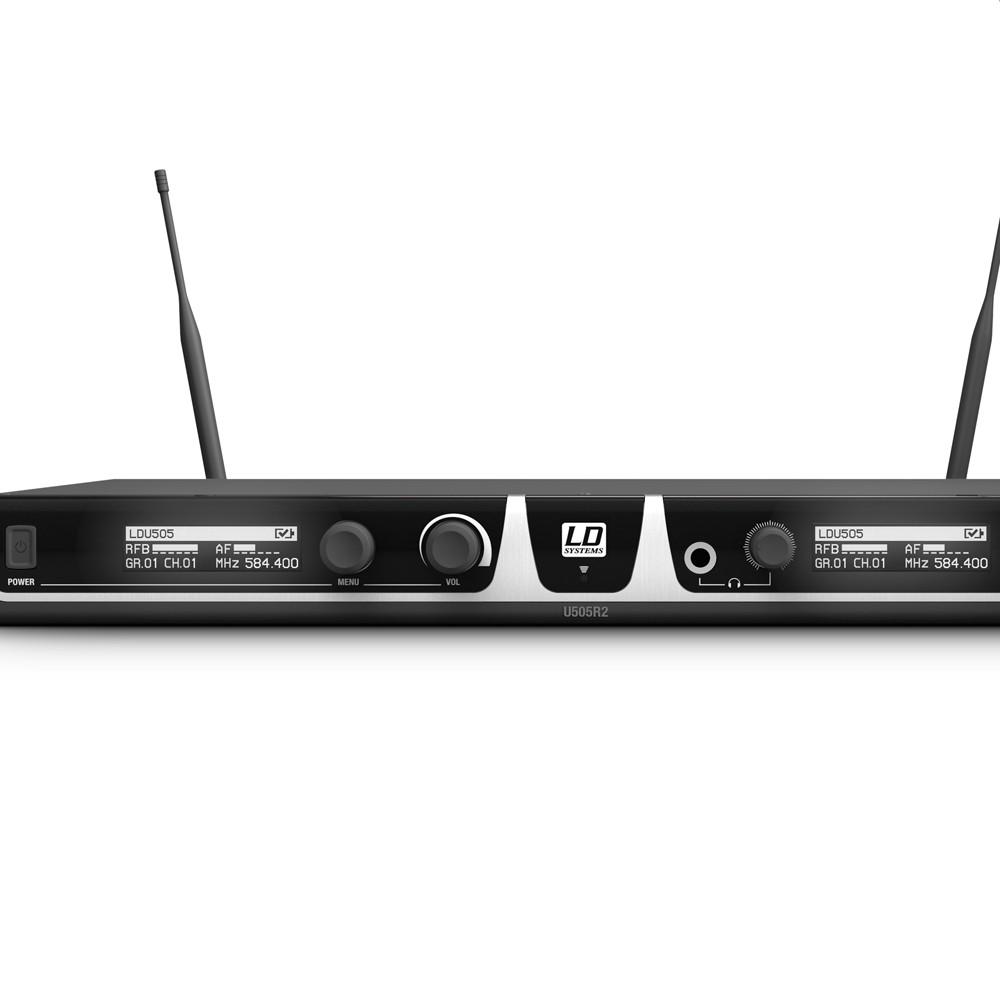

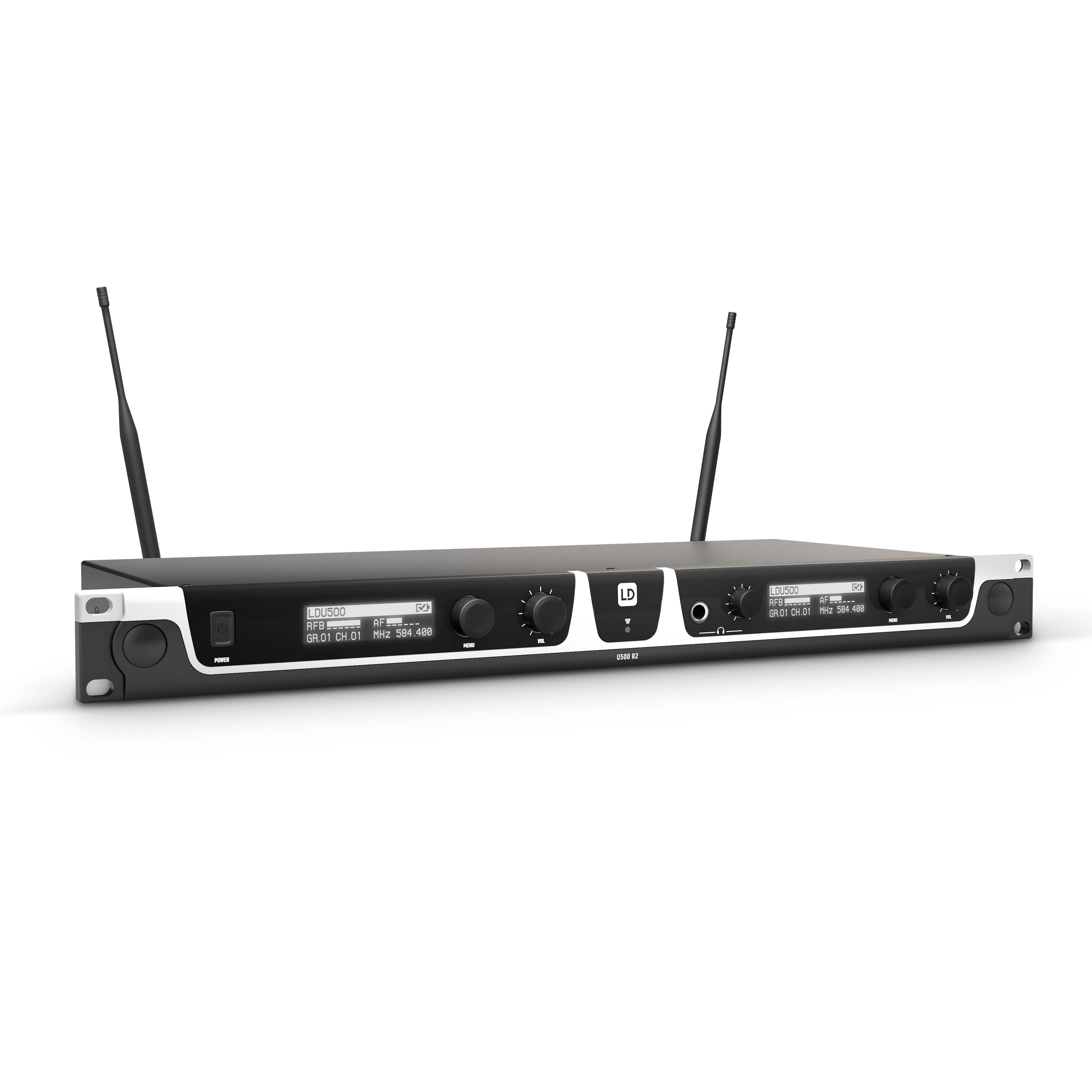

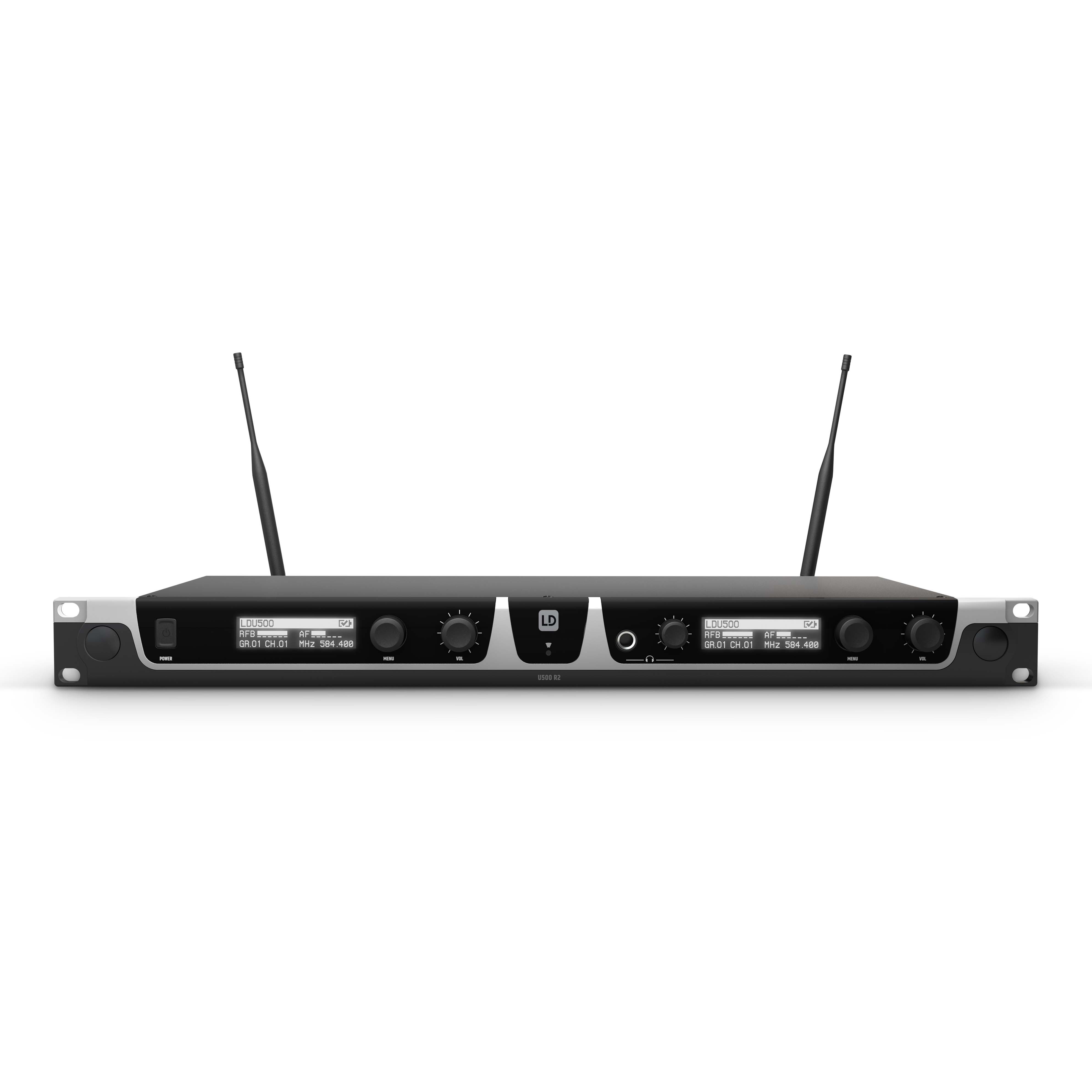

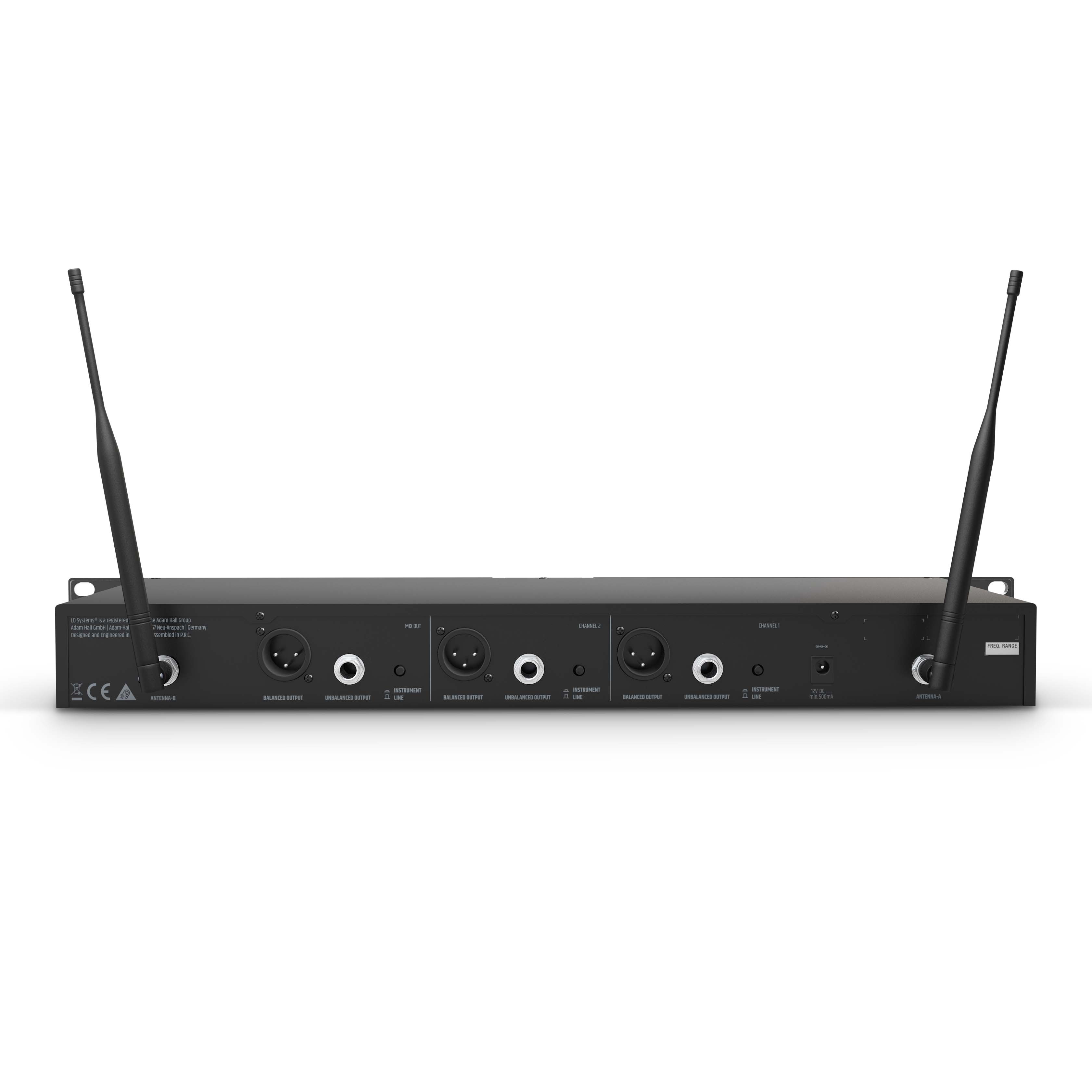

SPREJEMNIK
| Product type | Wireless Microphone System Accessories |
| Type | Receivers |
| Modulation Type | FM |
| Antenna inputs | 2 |
| Antenna connector | BNC |
| Noise reduction | Squelch |
| Total Harmonic Distortion (THD) | < 0.3 % |
| Signal-to-noise ratio | > 100 dB |
| Audio output, balanced | XLR |
| Audio output, unbalanced | 6.3 mm jack |
| Max. output level | +10 dBu |
| Controls | volume |
| Operating voltage | 12 – 18 V DC |
| Operating voltage | 12 V DC, 500 mA |
| Width | 212 mm |
| Height | 44 mm |
| Depth | 159 mm |
| Weight | 0,85 kg |
| Accessories (included) | power adapter |
| Other features | Pilot tone |

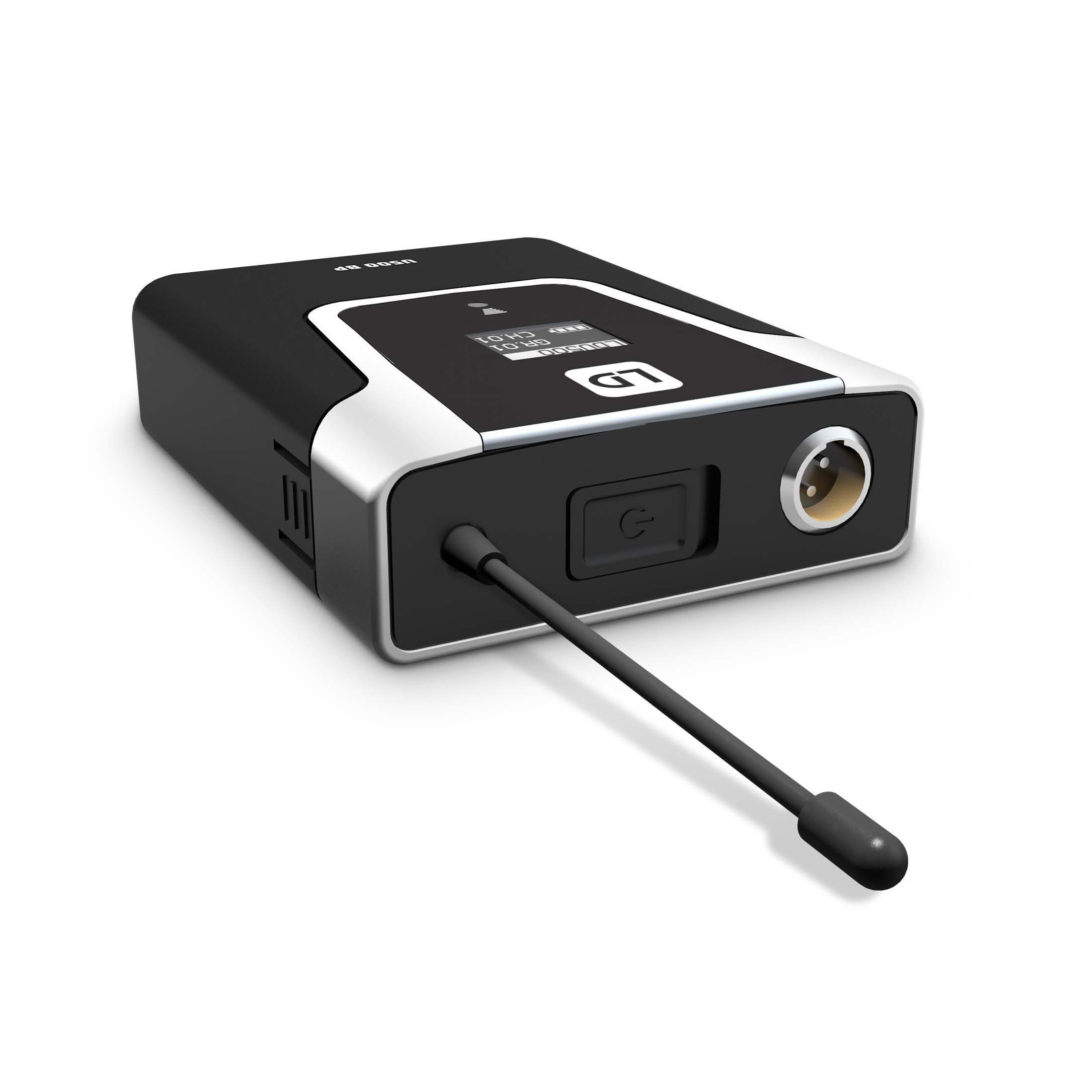

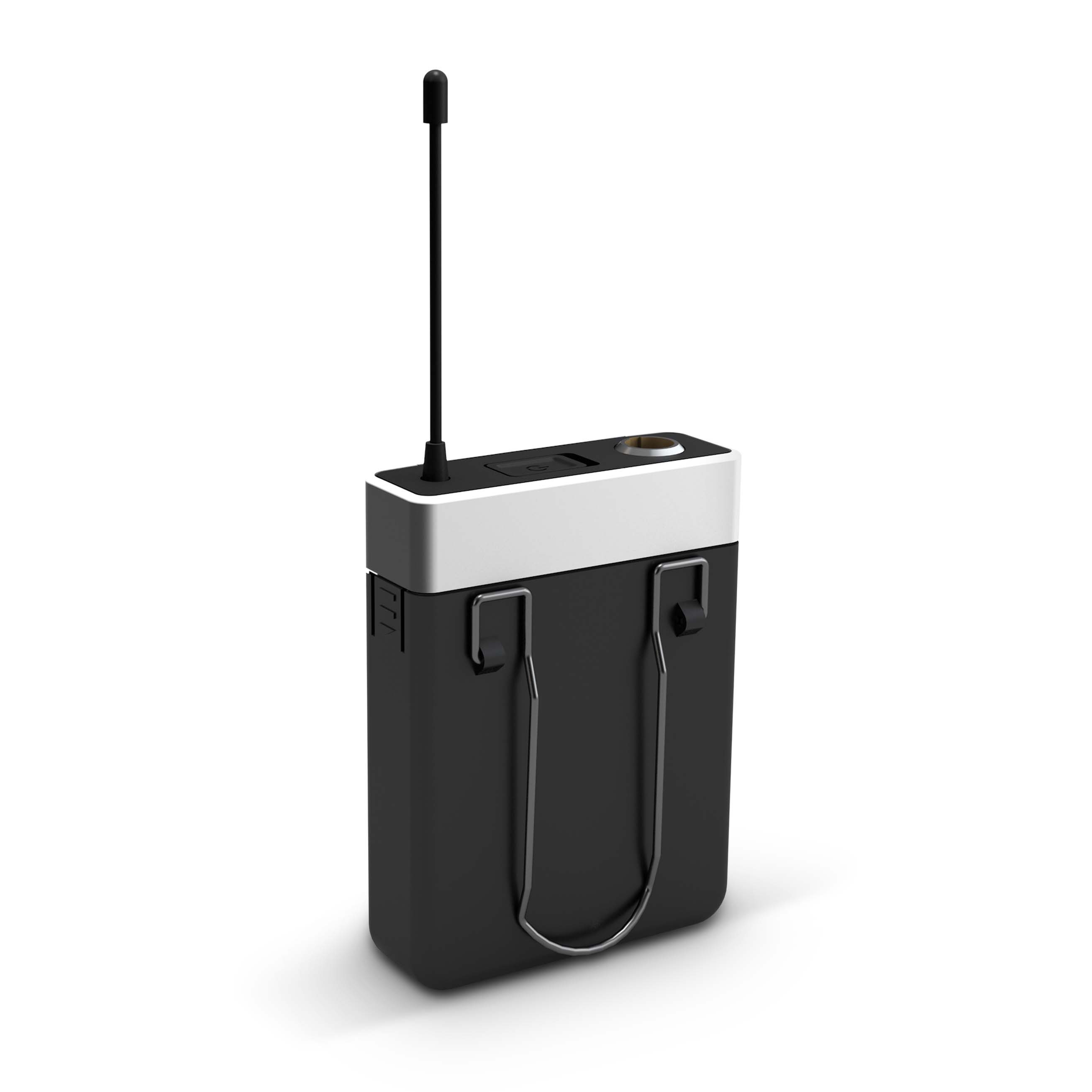

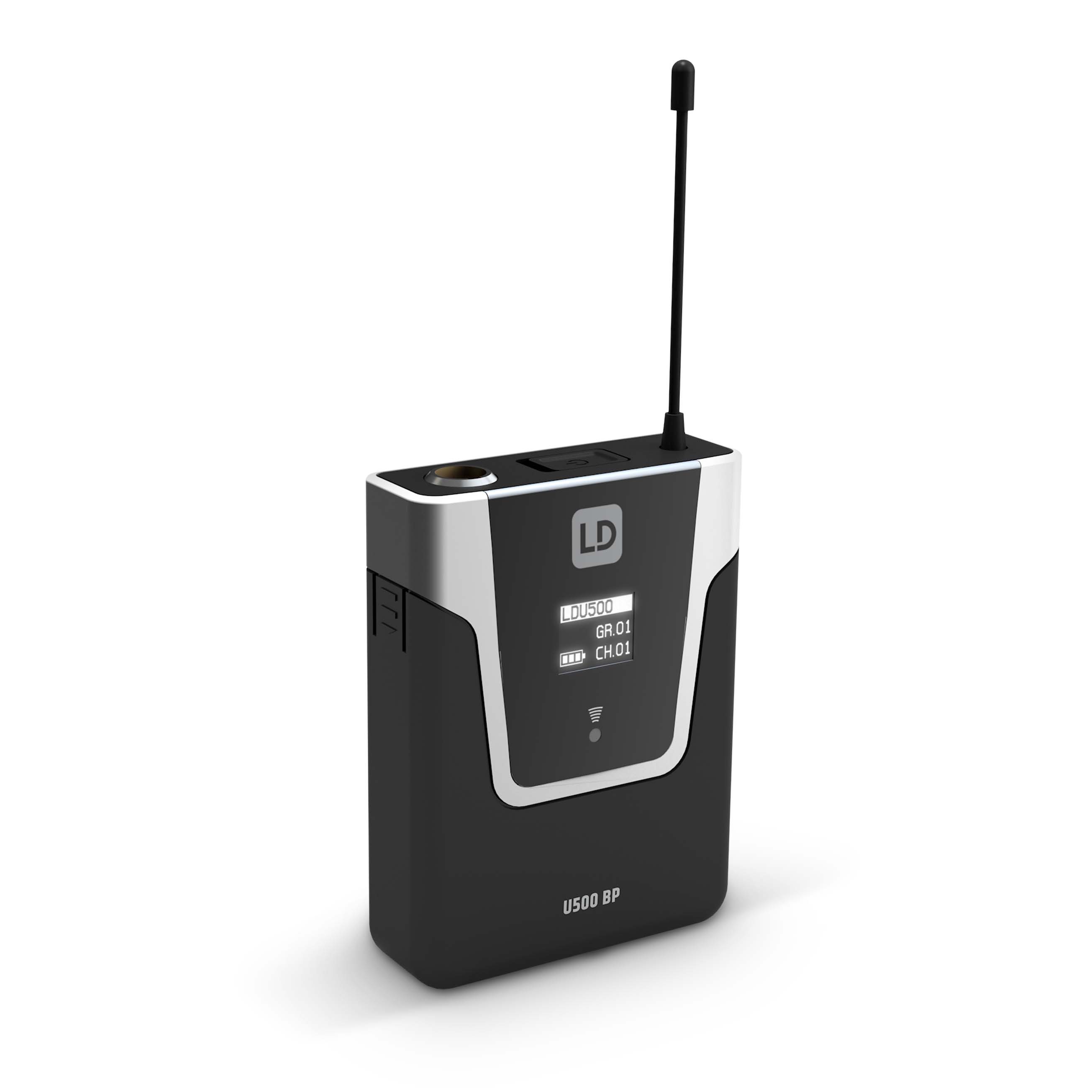

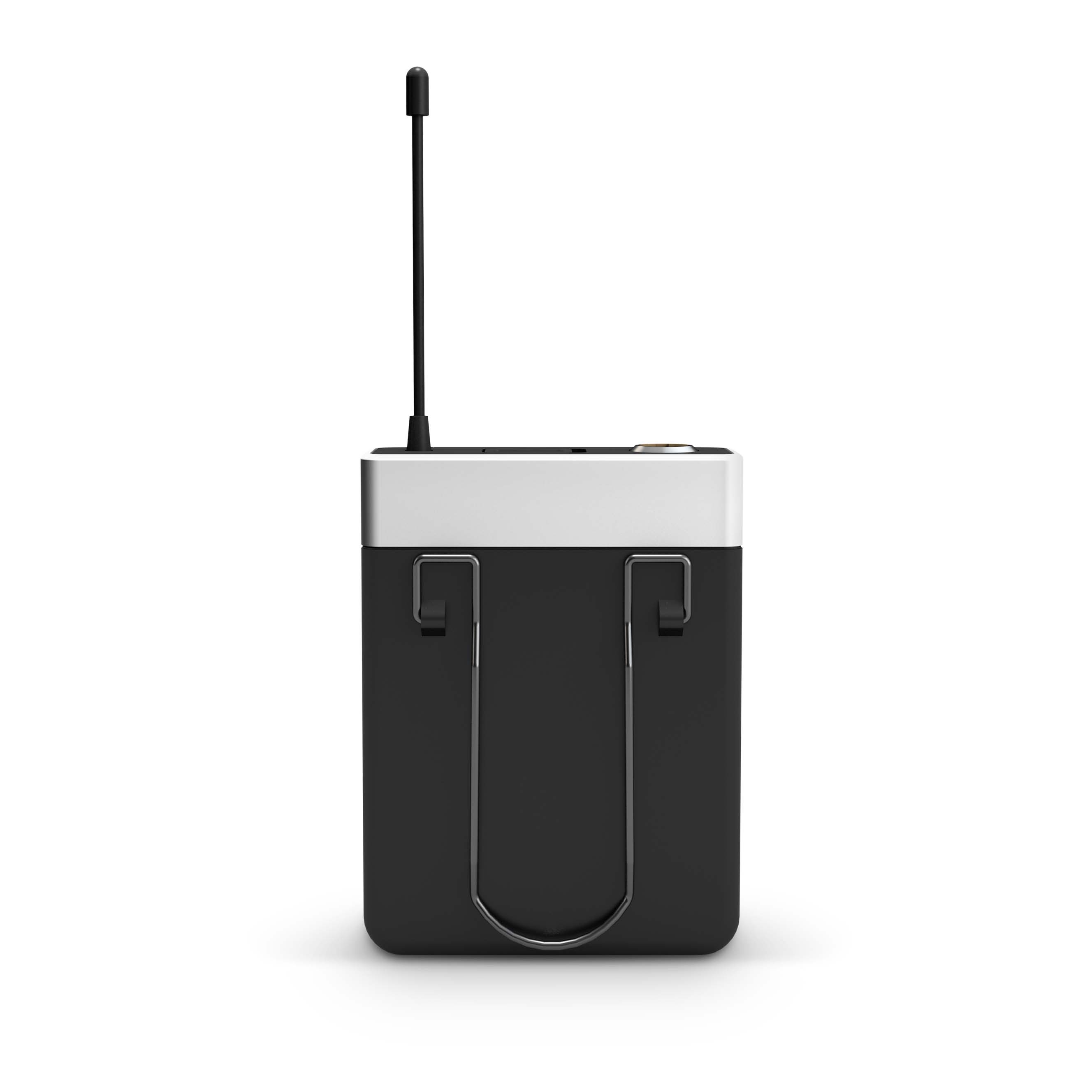

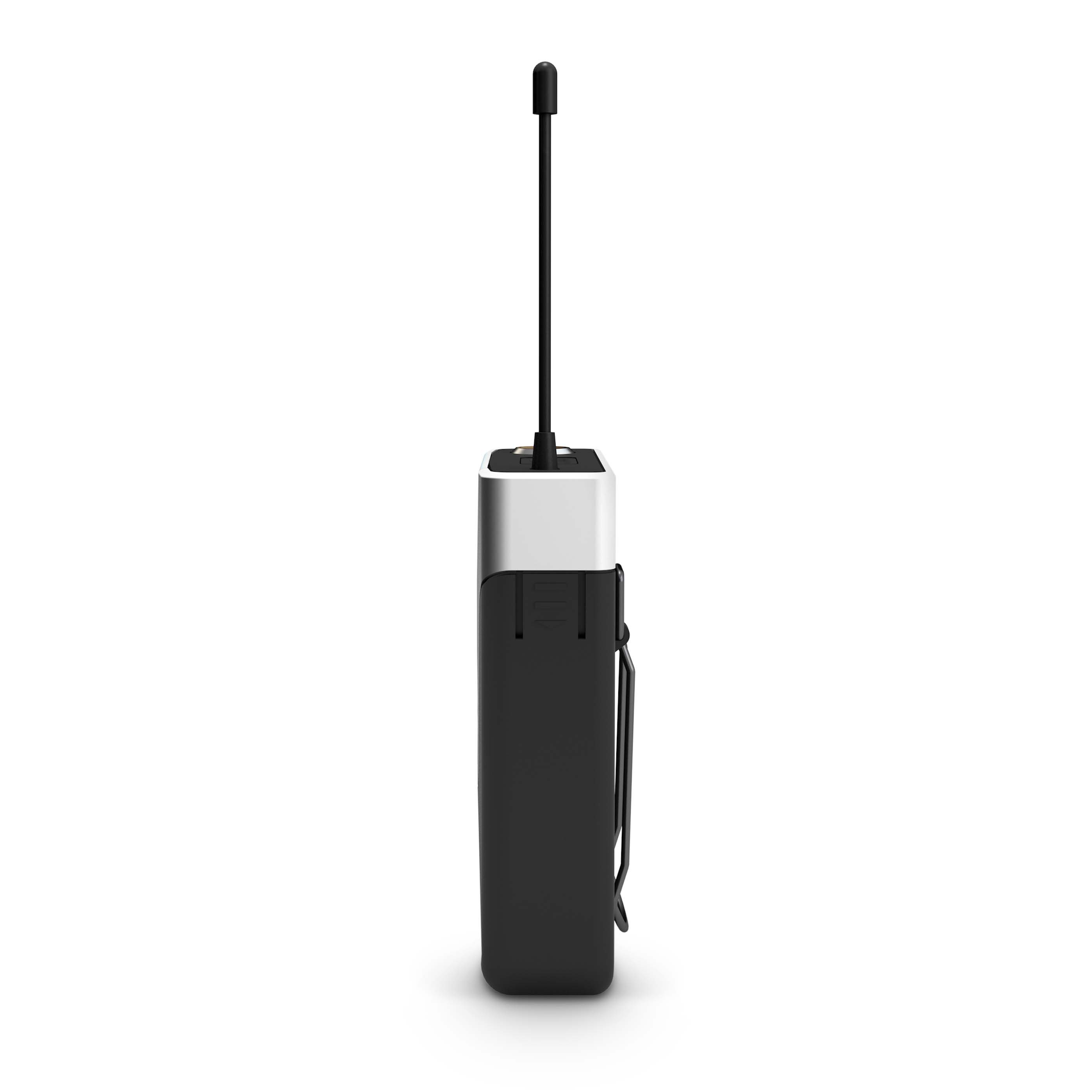

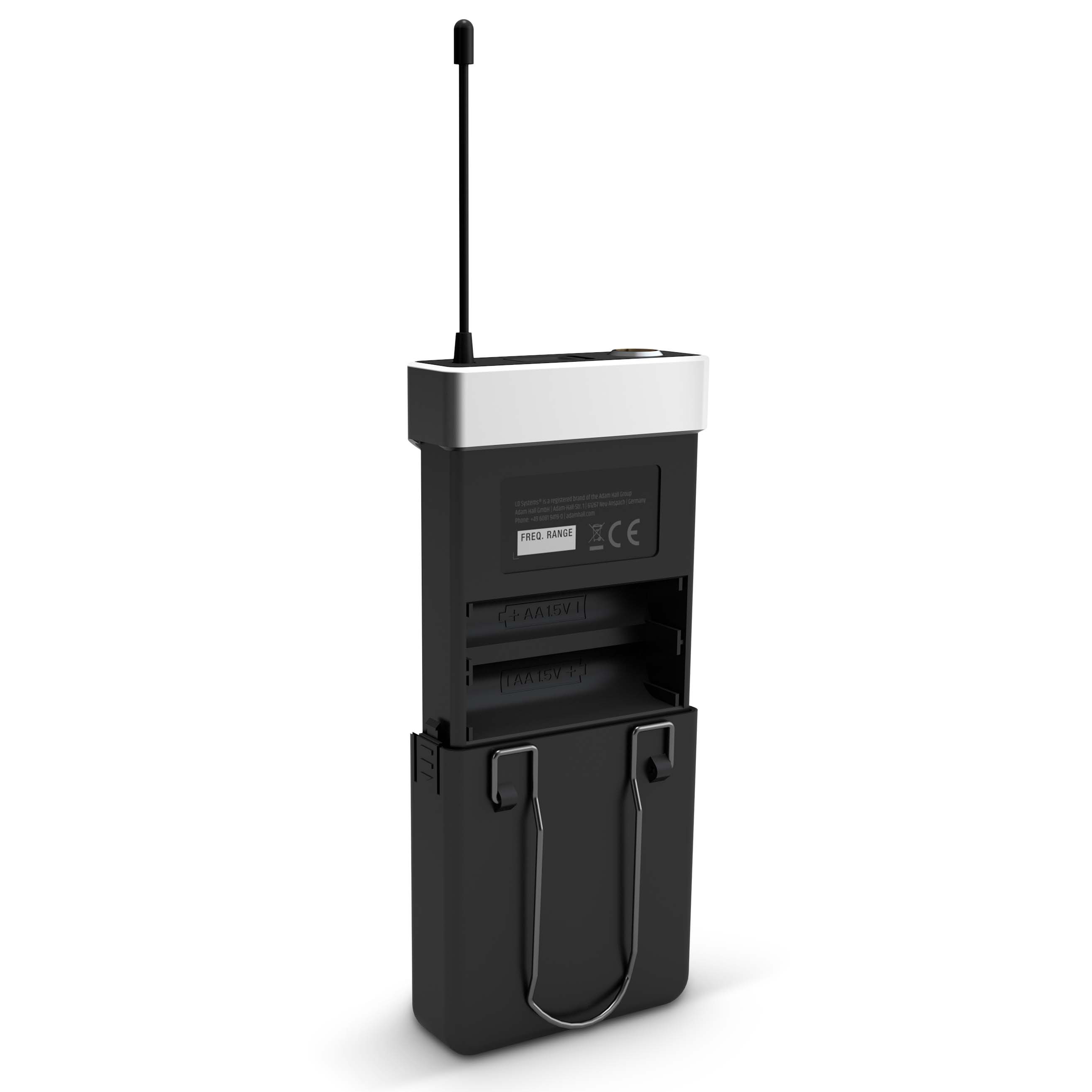

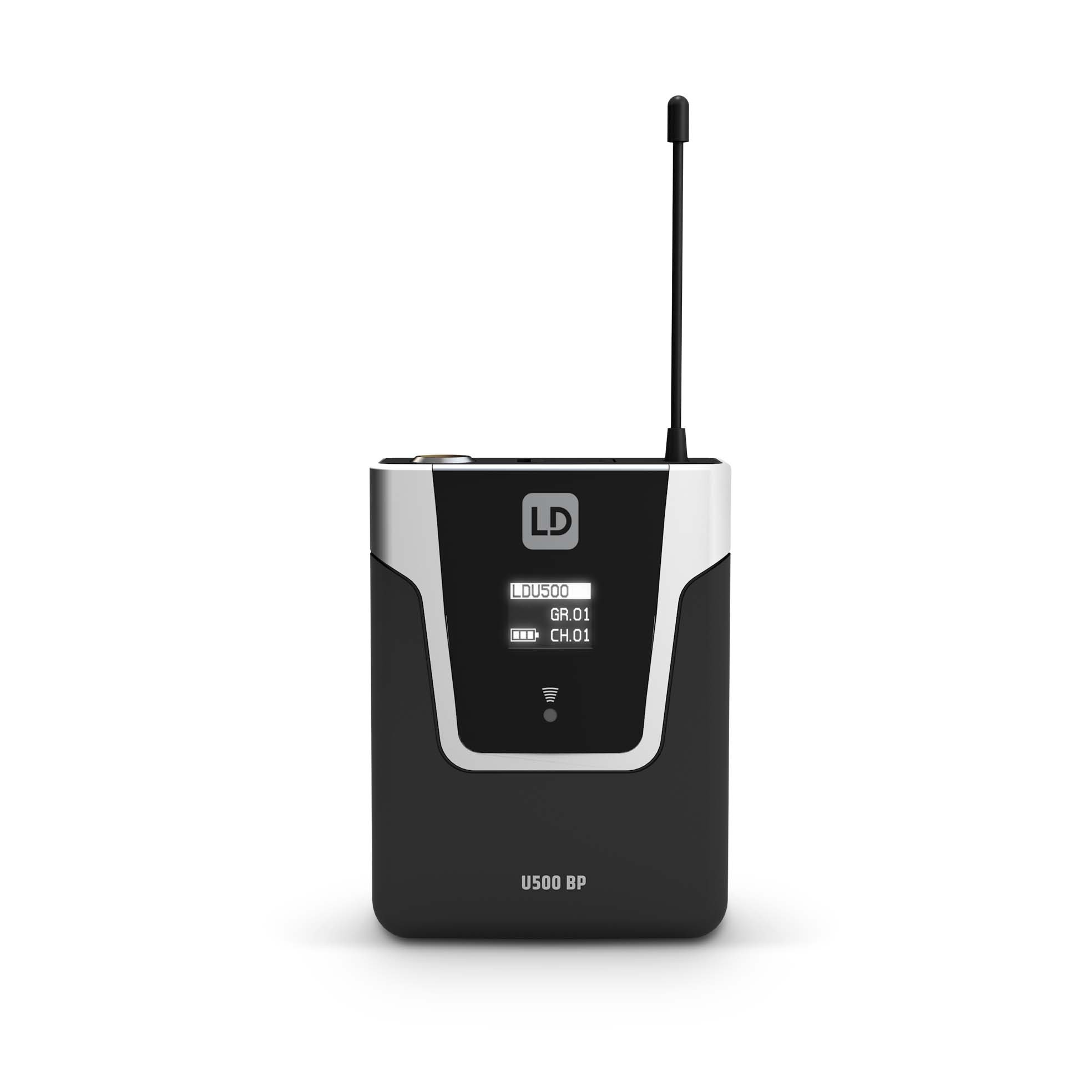

ODDAJNIK
| Transmission frequency range | 584 – 608 MHz |
| Type | Bodypack |
| Channels | 96 (8 groups of 12 channels) |
| Groups | 8 |
| Inputs | Mini-XLR (3-pin) |
| Frequency response | 30 – 16000 Hz |
| Rated HF output power | Variable (2mW, 10mW, 30mW) |
| Signal-to-noise ratio | >90 dB |
| Indicators | OLED Display |
| Operating time | >10 h (with alkaline batteries) |
| Controls | Set |
| Operating voltage | 2 x AA battery |
| Width | 65 mm |
| Height | 86 mm |
| Depth | 23 mm |
| Weight | 0,09 kg |
| Other features | switchable RF power |

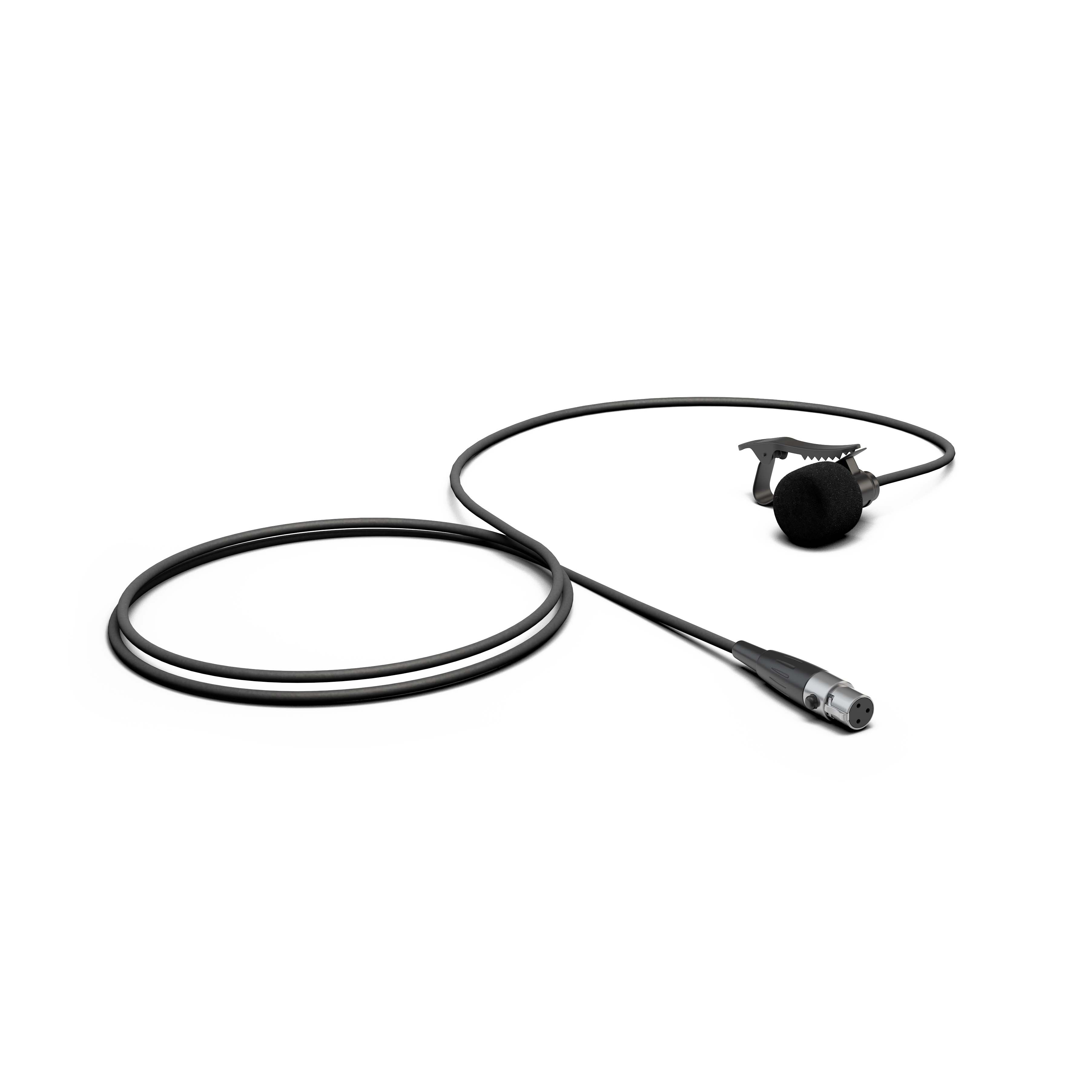

MIKROFON
| Type | Microphones |
| Directivity | Cardioid |
| Nominal impedance | 680 Ohm(s) |
| Frequency response | 20 – 20.000 Hz |
| Phantom power requierements | 5 V |
| Microphone input | Mini-XLR (3-pin, female) |
| Weight | 0,026 kg |
| Accessories (included) | Foam windscreen |
