Brezžični mikrofonski sistem LD Systems U306 BPH
Profesionalni brezžični mikrofonski sistemi LD Systems U300 zagotavljajo odlične zvočne zmogljivosti.

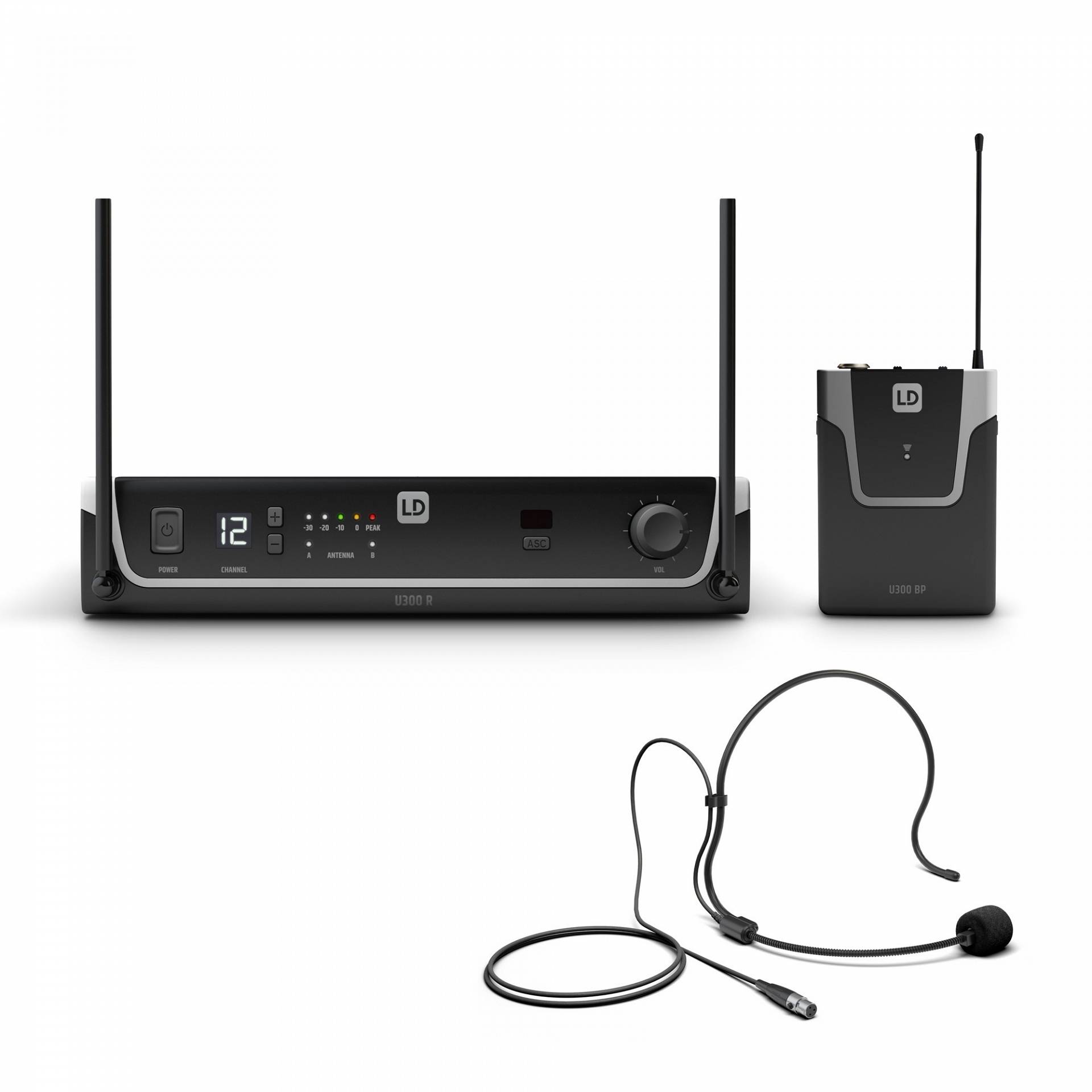

Brezžični mikrofonski sistem LD Systems U306 BPH vključuje:
-sprejemnik
-brezžični naglavni mikrofon
-oddajnik

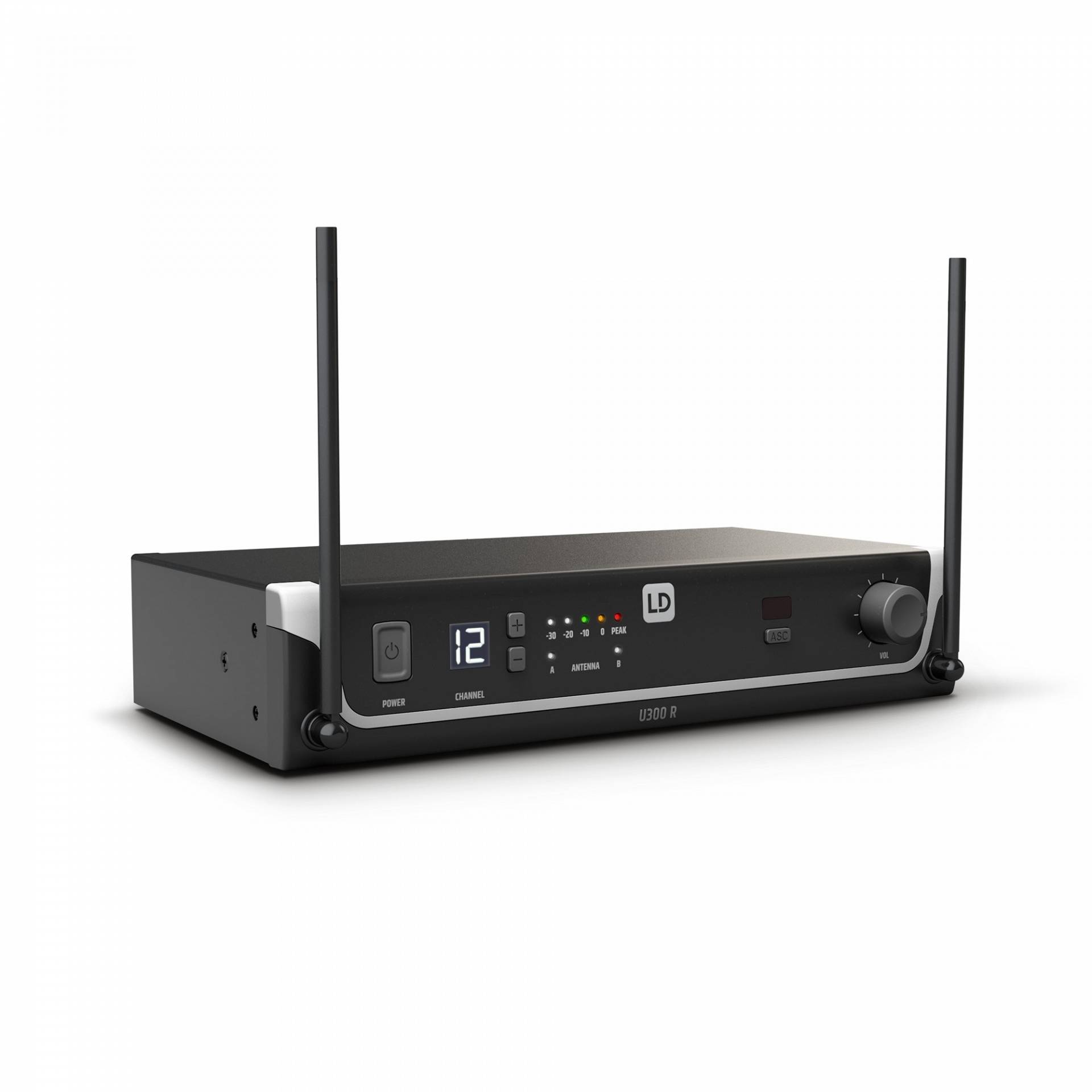

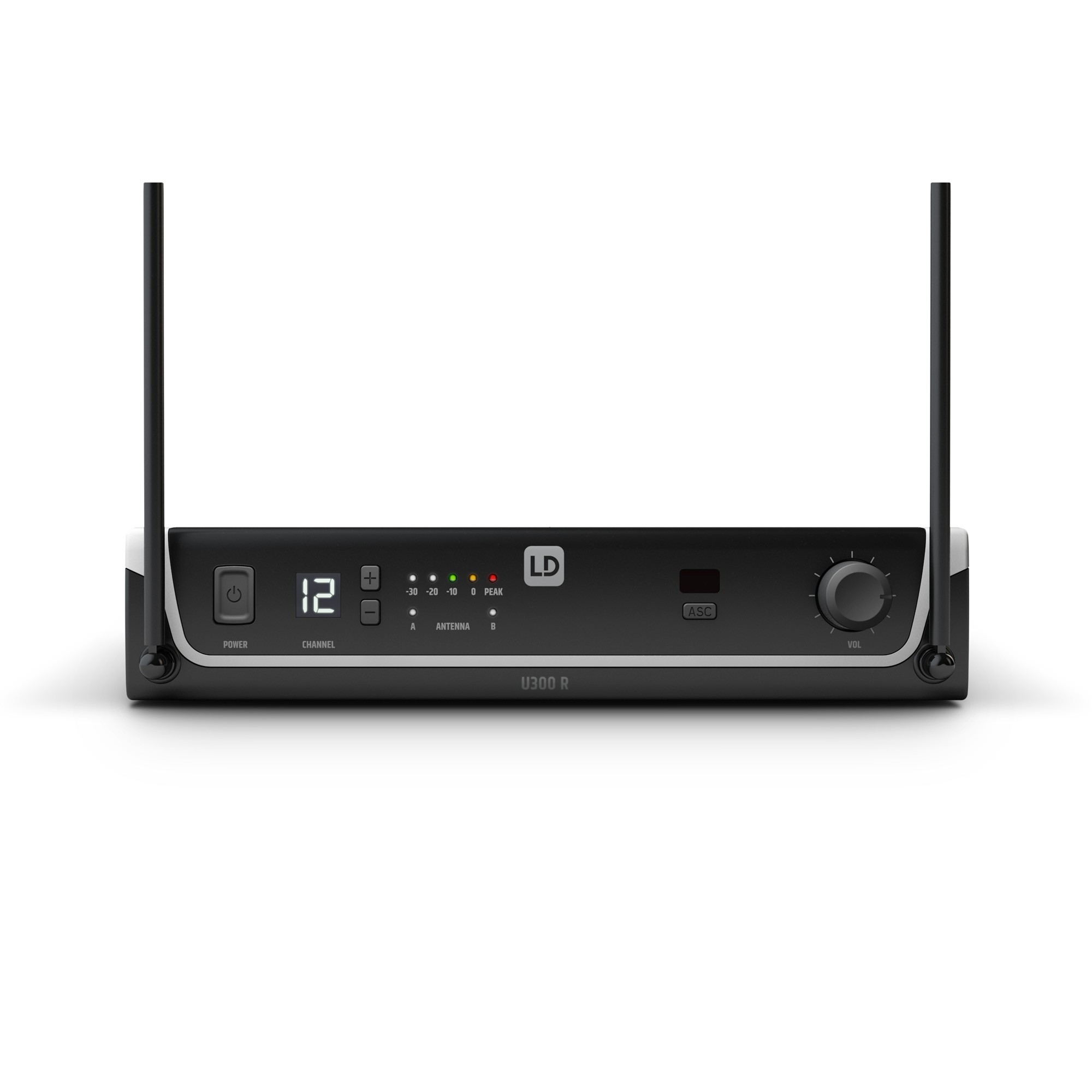

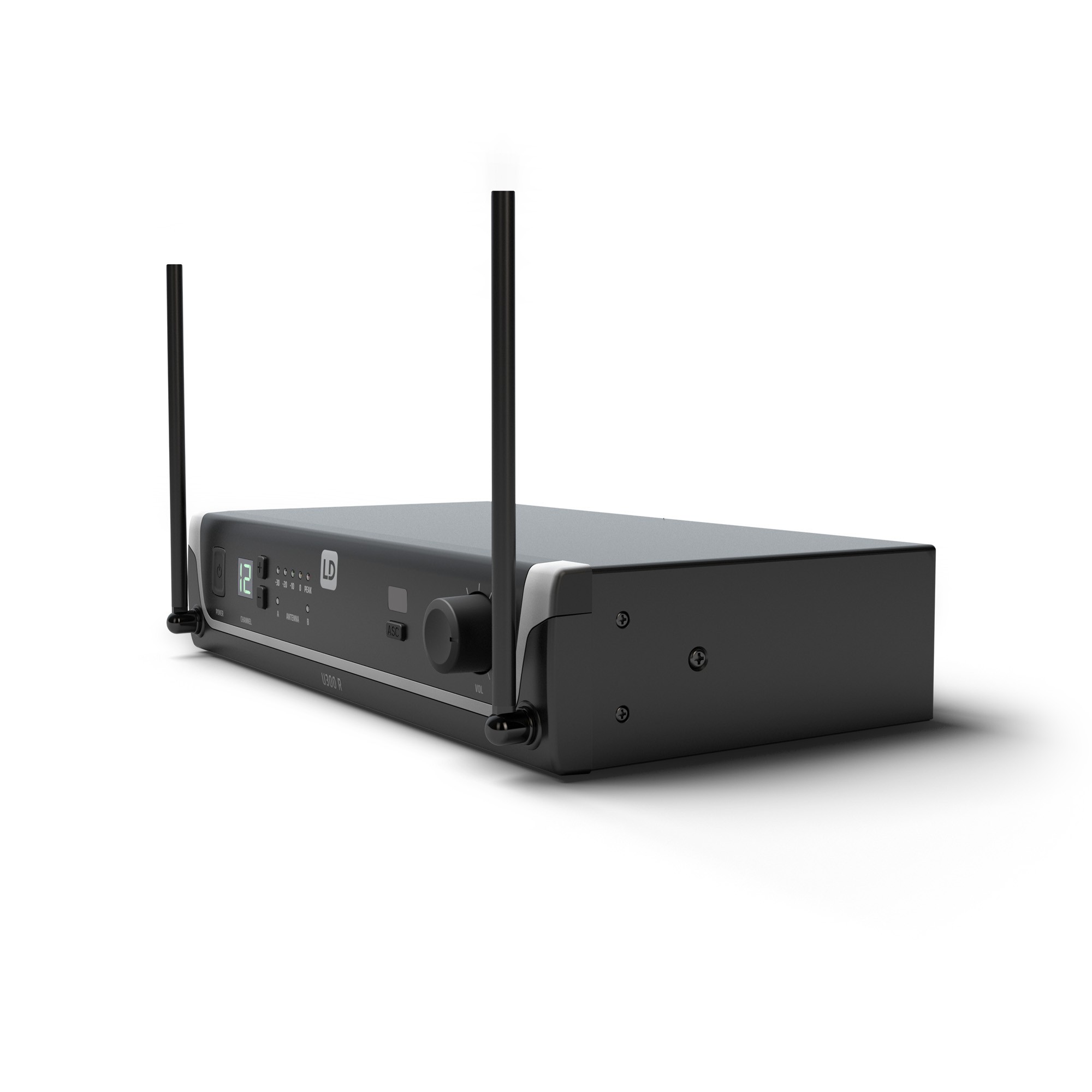

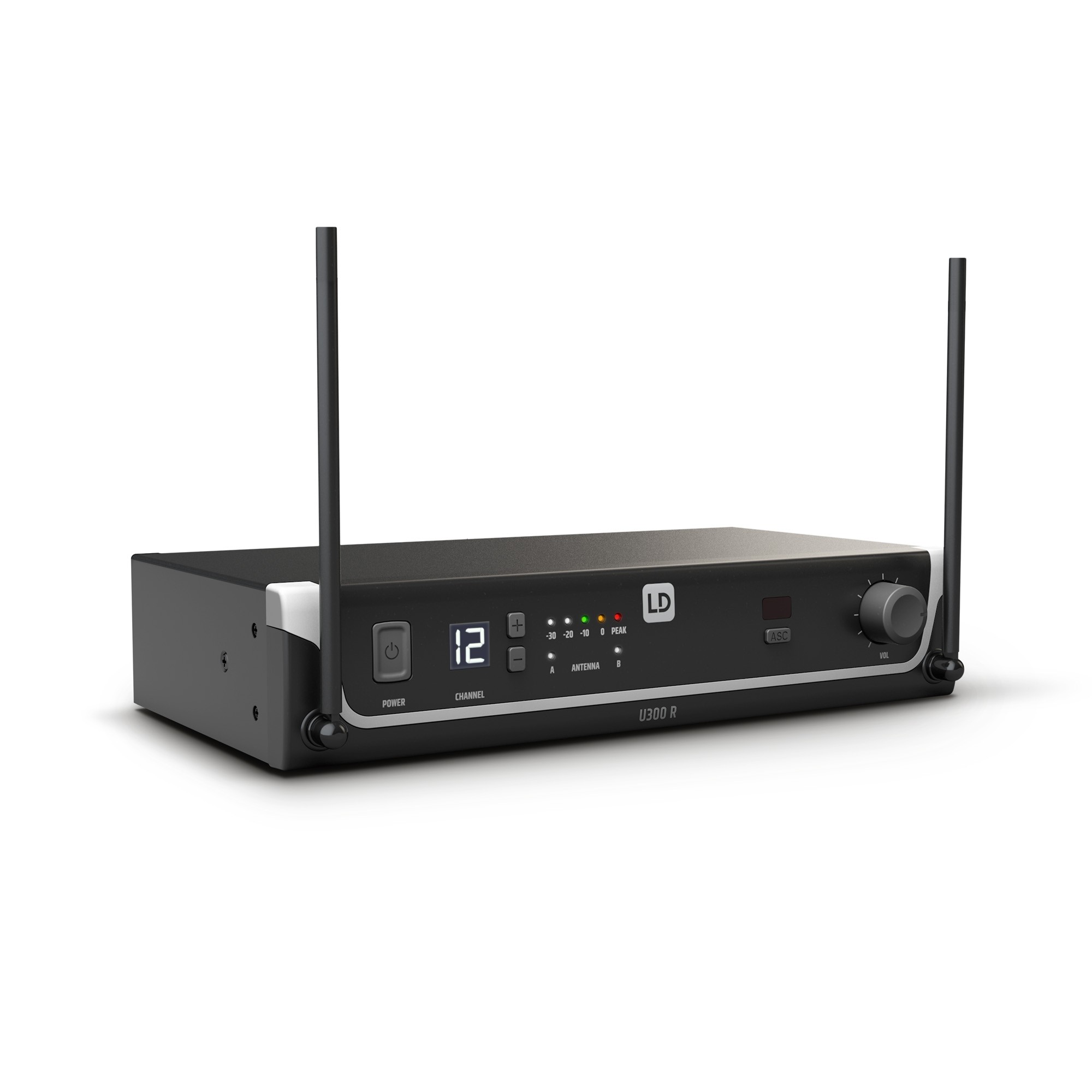

SPREJEMNIK
| Product type | Wireless Microphone System Accessories |
| Type | Receivers |
| Modulation Type | FM |
| Channels | 12 |
| Groups | 1 |
| Antenna inputs | 2 x fixed |
| Noise reduction | Squelch |
| Transmission optimization | Pilot tone |
| Total Harmonic Distortion (THD) | < 0.3 % |

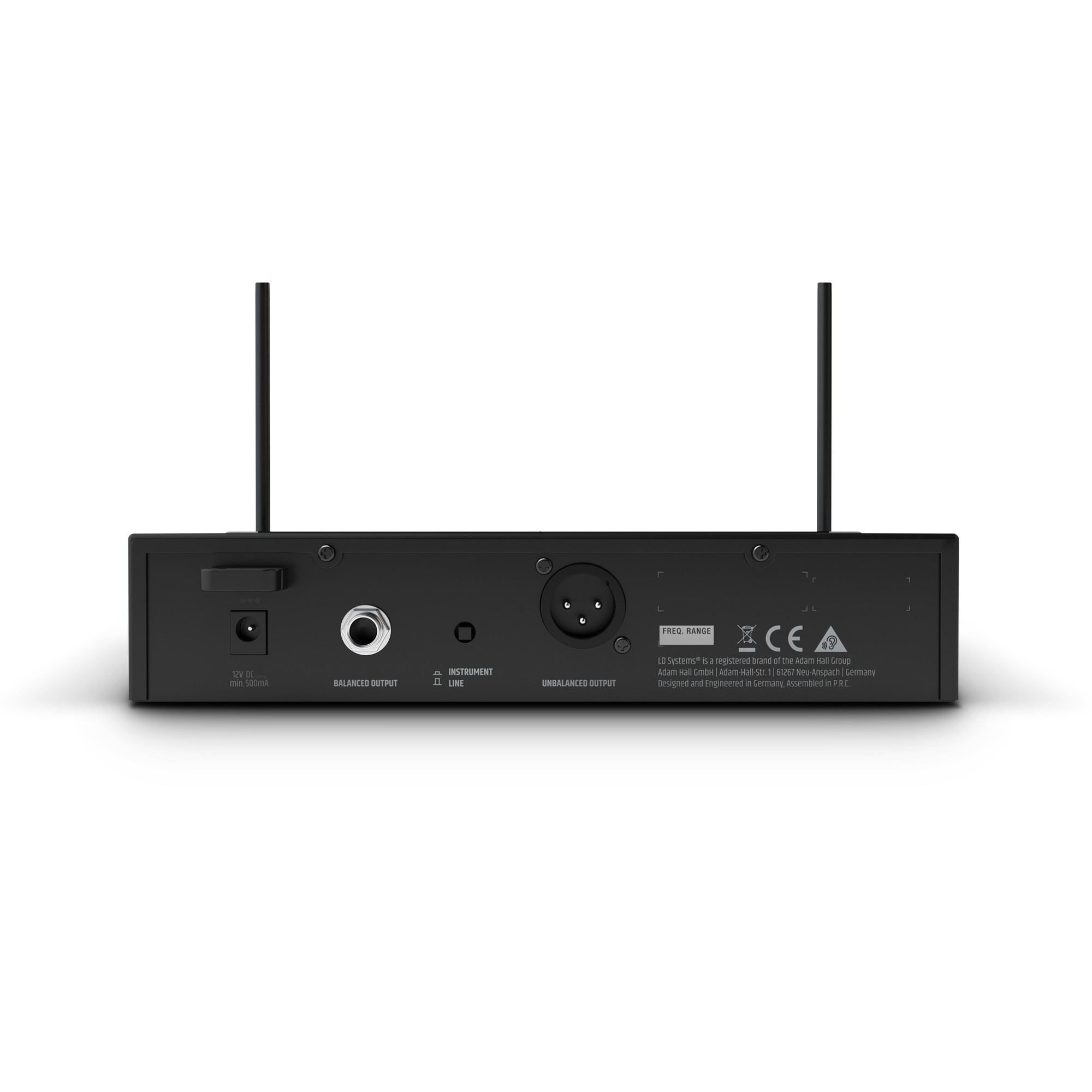

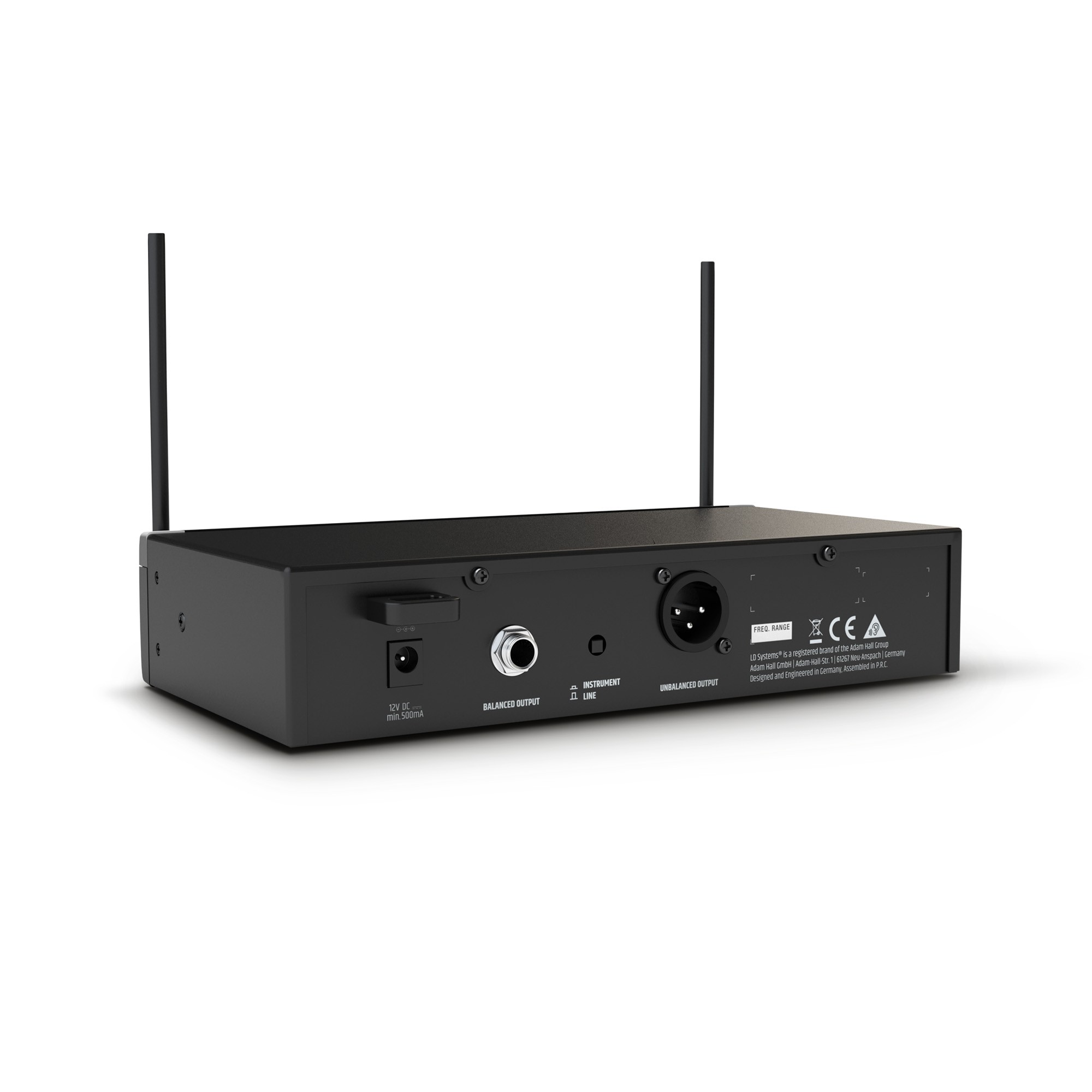

| Audio output, balanced | XLR |
| Audio output, unbalanced | 6.3 mm jack, switchable unbalanced output level |
| Max. output level | +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu |
| Controls | volume |
| Indicators | LC display |
| Operating voltage | 12 V DC – 18 V DC (500 mA), external power supply |
| Width | 211 mm |
| Height | 43 mm |
| Depth | 120 mm |
| Accessories (included) | Power supply |
| Weight | 0,7 kg |

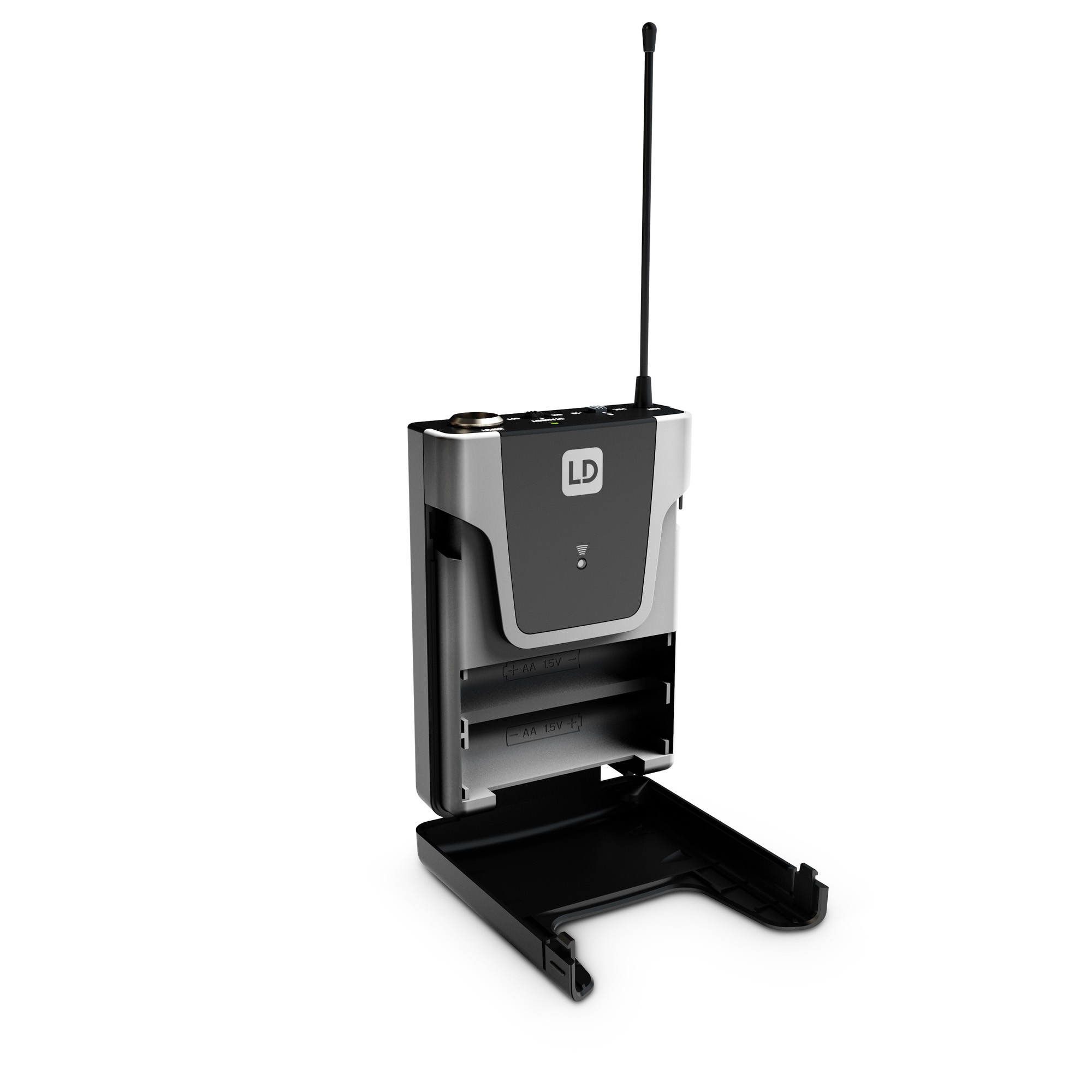

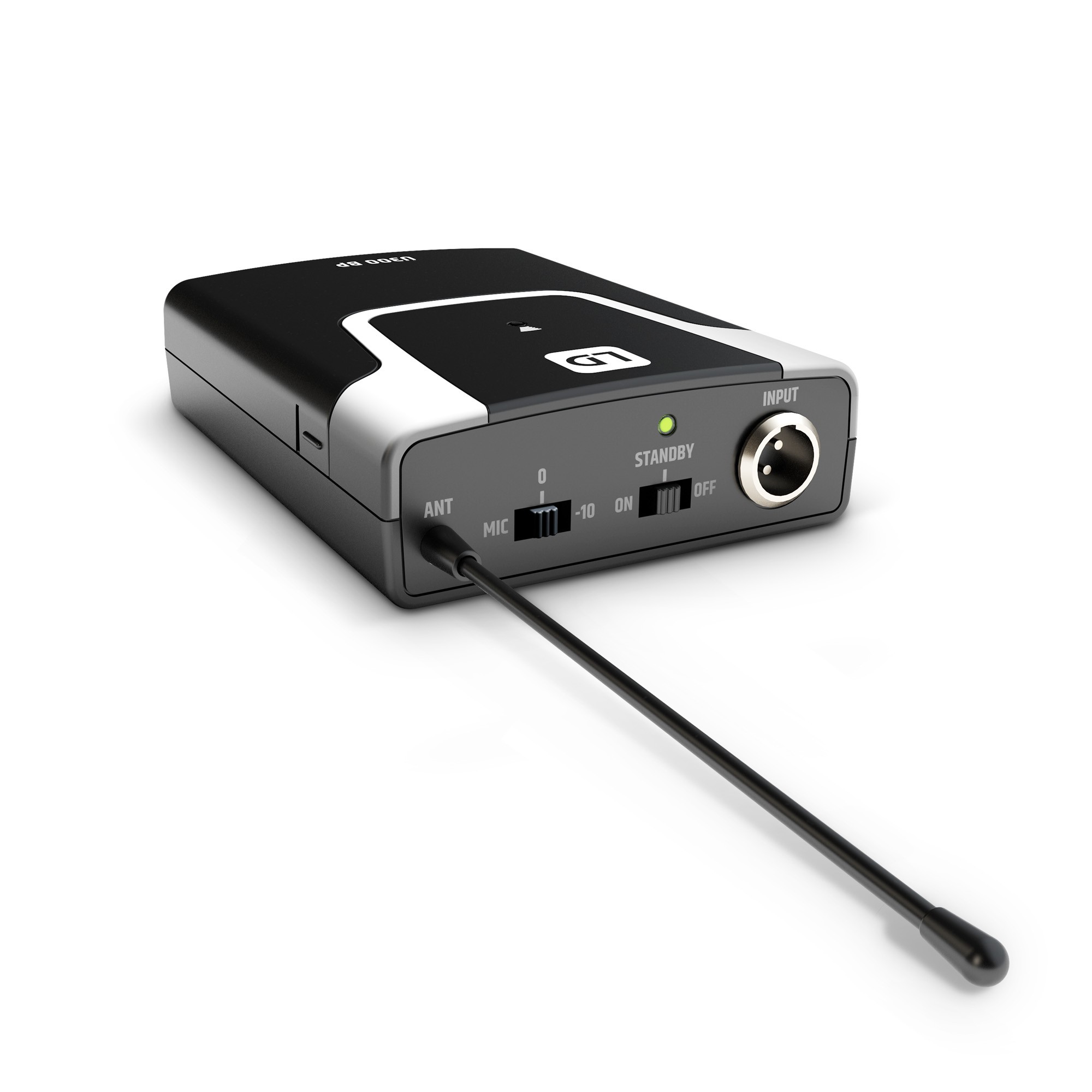

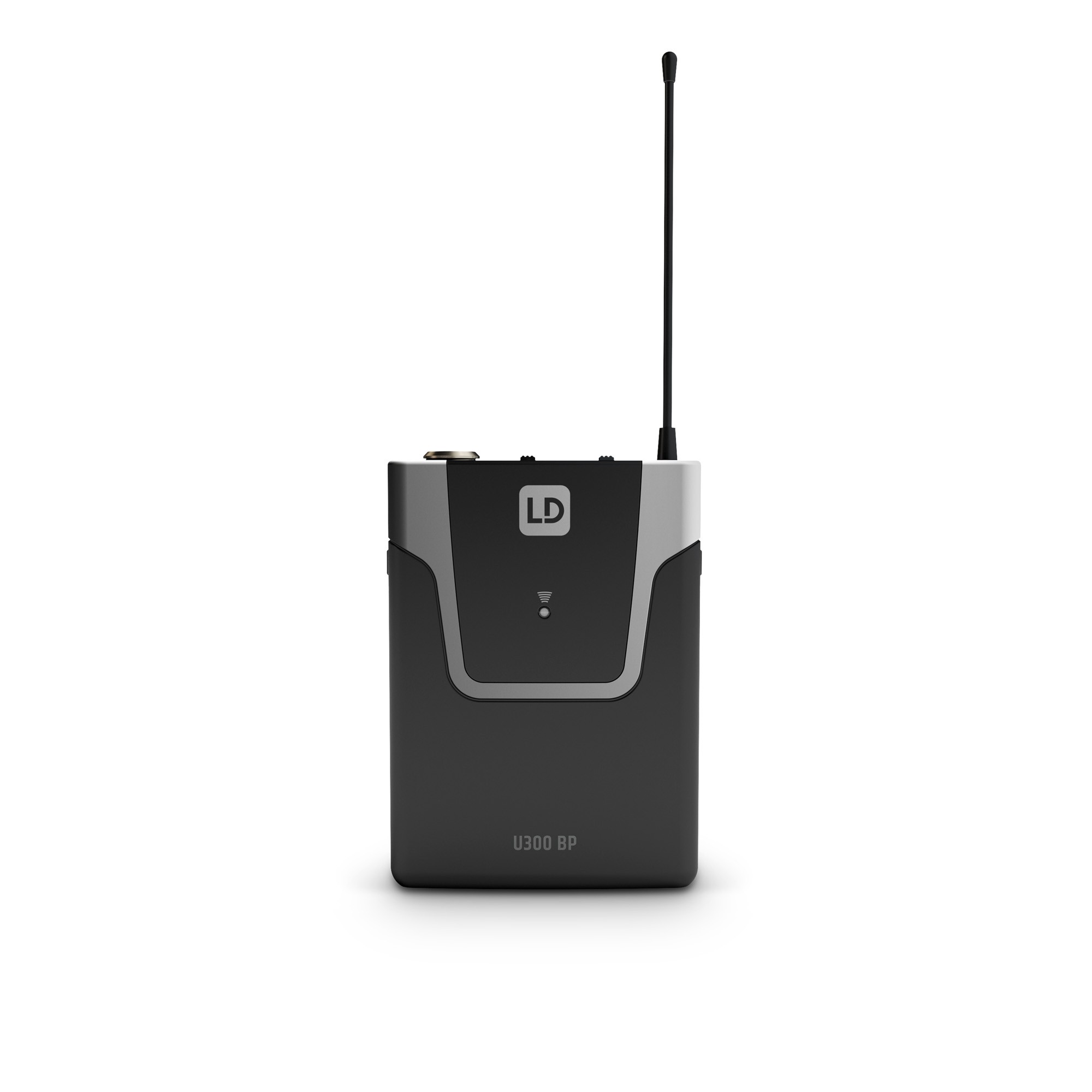

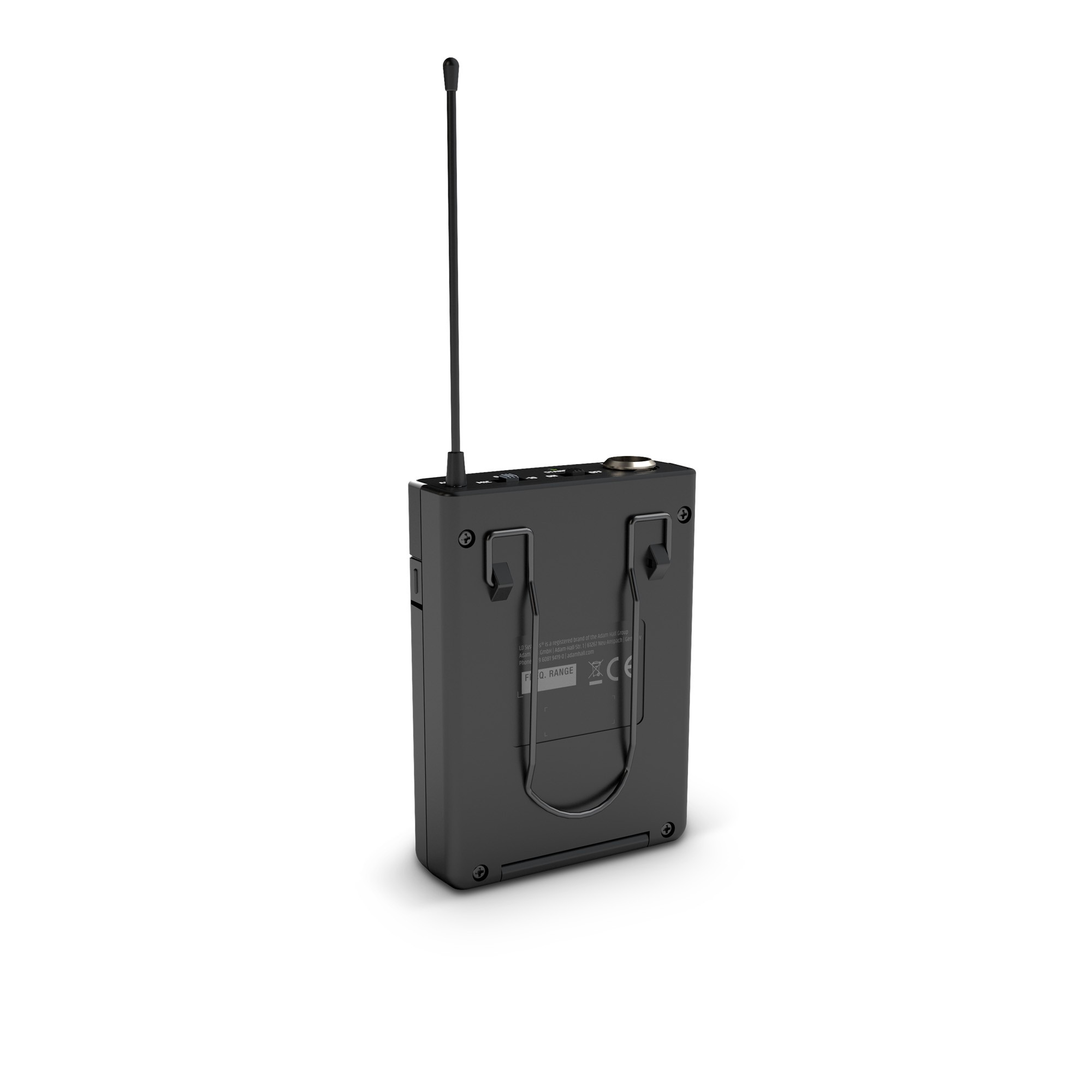

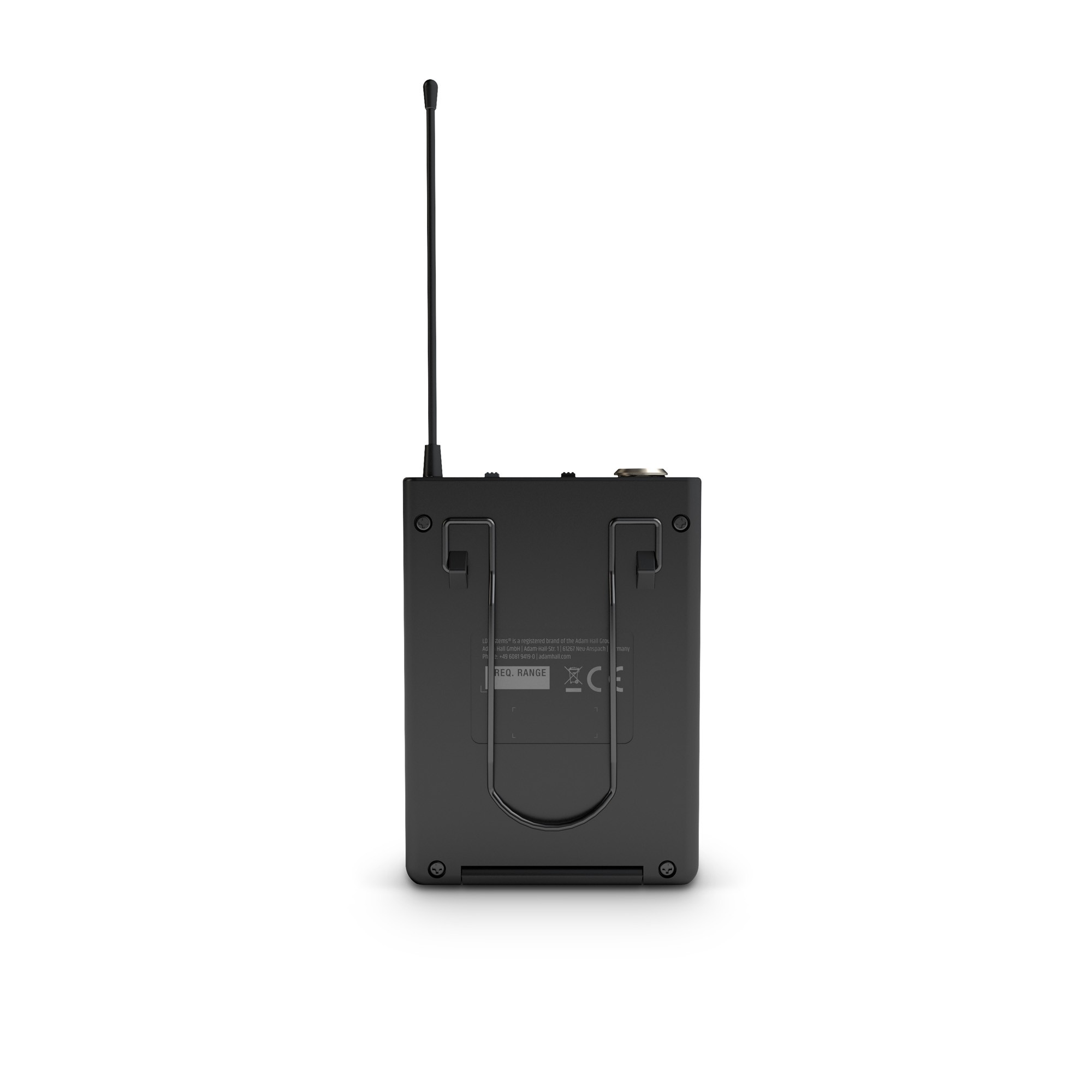

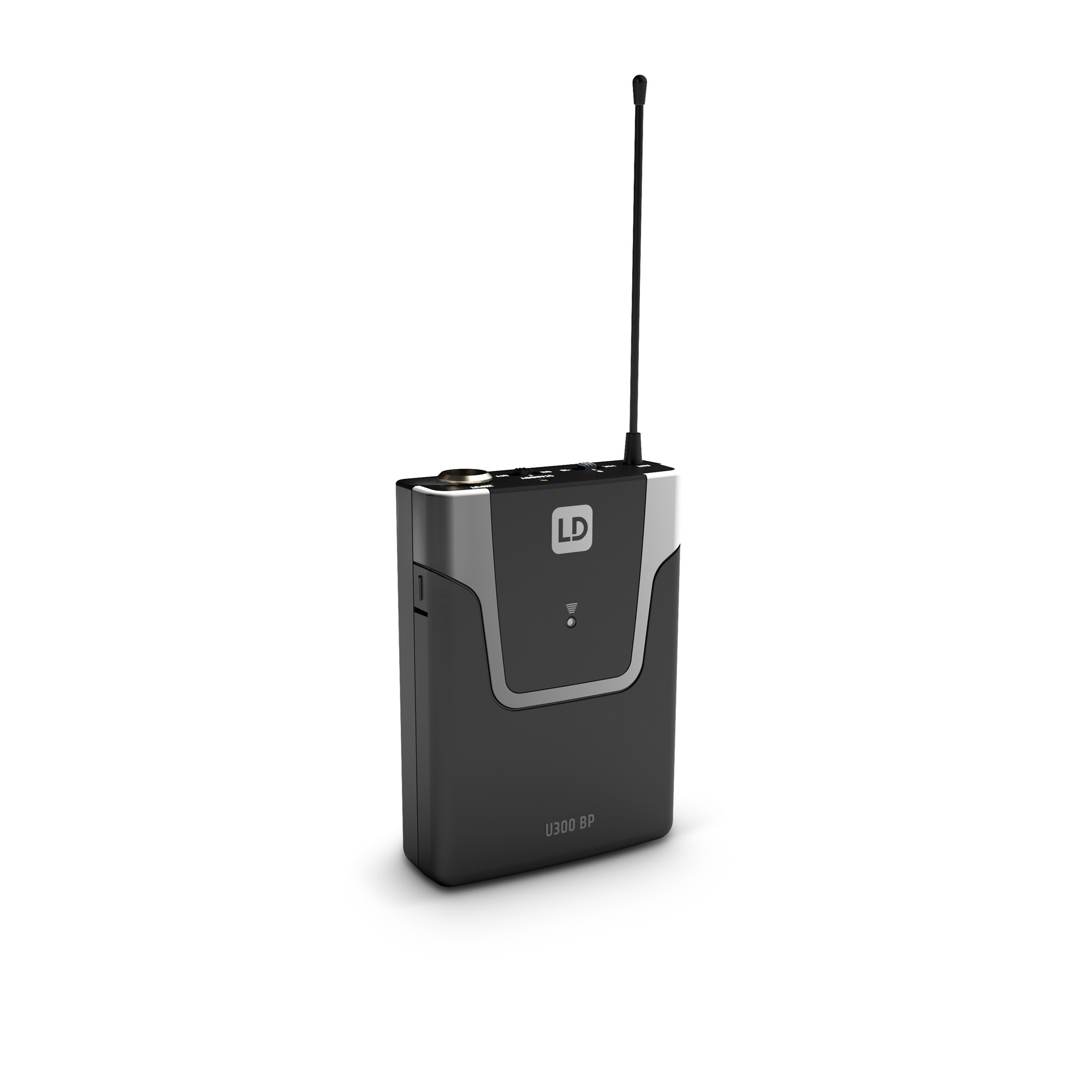

ODDAJNIK
| Type | Bodypack |
| Transmission frequency range | 655 – 679 MHz |
| Inputs | Mini-XLR (Phantom Powered Low-Z / High-Z Instrument) |
| Frequency response | 25 – 16,000 Hz |
| Signal-to-noise ratio | 104 dB |
| Rated HF output power | 10 mW |
| Operating time | > 10 h |
| Controls | Power On/Off |
| Indicators | Power LED (Power ON: green) |
| Other features | Pilot tone |
| Operating voltage | 2 x AA battery |
| Width | 65 mm |
| Height | 91 mm |
| Depth | 25 mm |
| Weight | 0,085 kg |

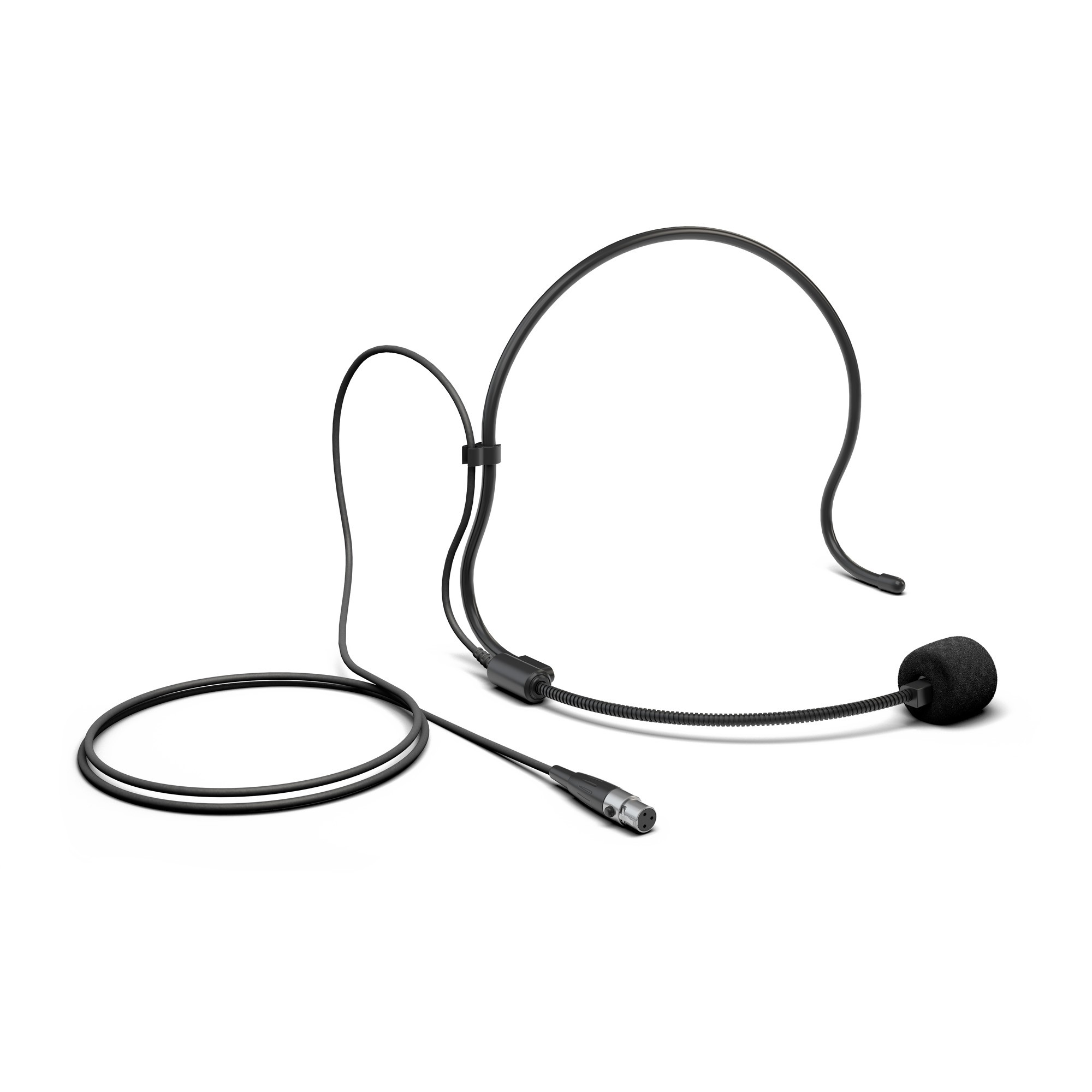

NAGLAVNI MIKROFON
| Type | Headsets |
| Directivity | Cardioid |
| Nominal impedance | 680 Ohm(s) |
| Frequency response | 20 – 20.000 Hz |
| Phantom power requierements | 5 V |
| Microphone input | Mini-XLR (3-pin, female) |
| Accessories (included) | Foam windscreen |
| Weight | 0,049 kg |
