Brezžični mikrofonski sistem LD Systems U305 HHD2
Profesionalni brezžični mikrofonski sistemi LD Systems U300 so bili razviti v Nemčiji. Zagotavljajo odlične zvočne zmogljivosti.
Pohvalijo se lahko s sodobnim dizajnom. V idealnih pogojih dosežejo razpon tudi do 100 metrov.
Brezžični mikrofonski sistem LD Systems U305 HHD2 ponuja sprejemnik ter 2 brezžična mikrofona s frekvenčnim razponom med 584 – 608 MHz.

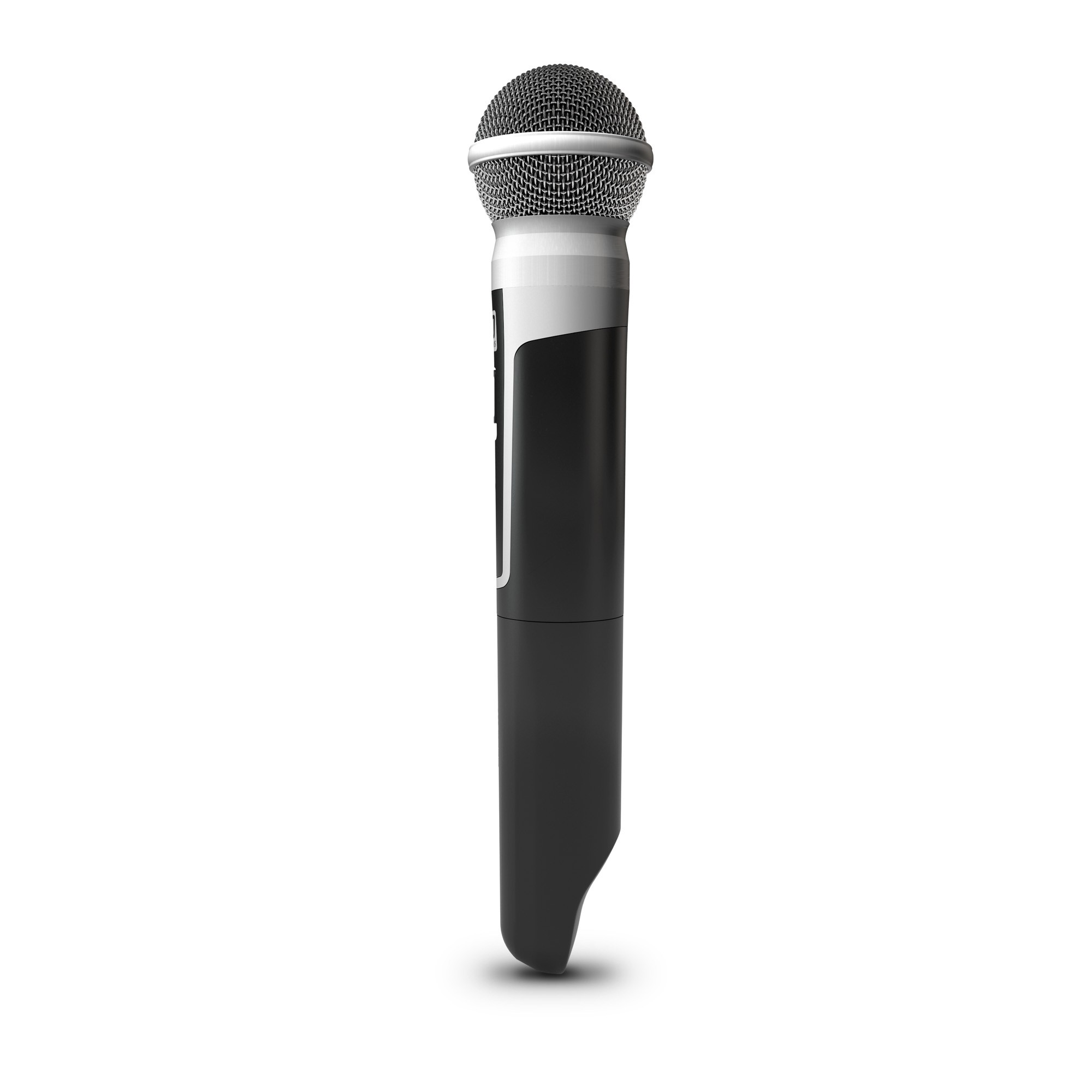

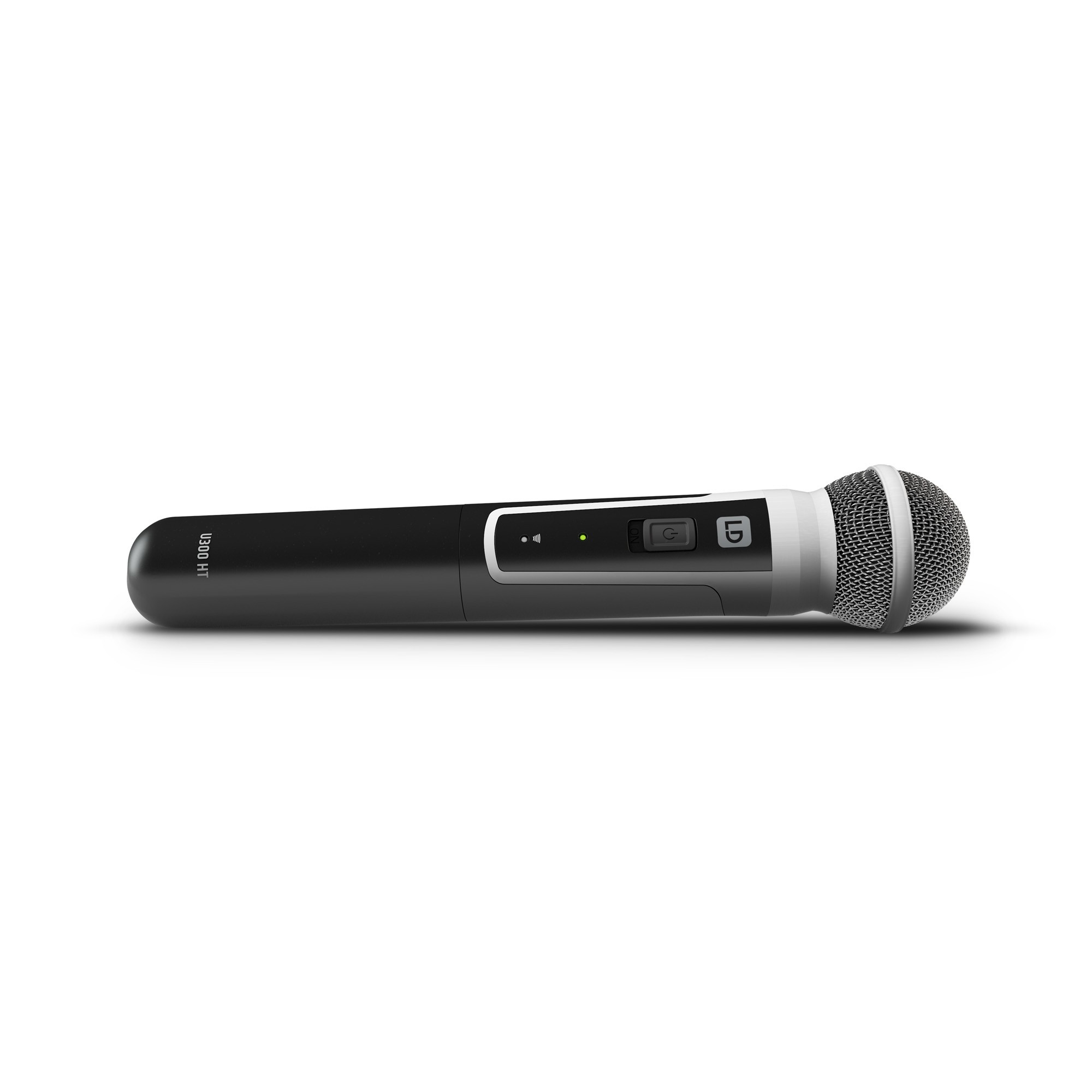

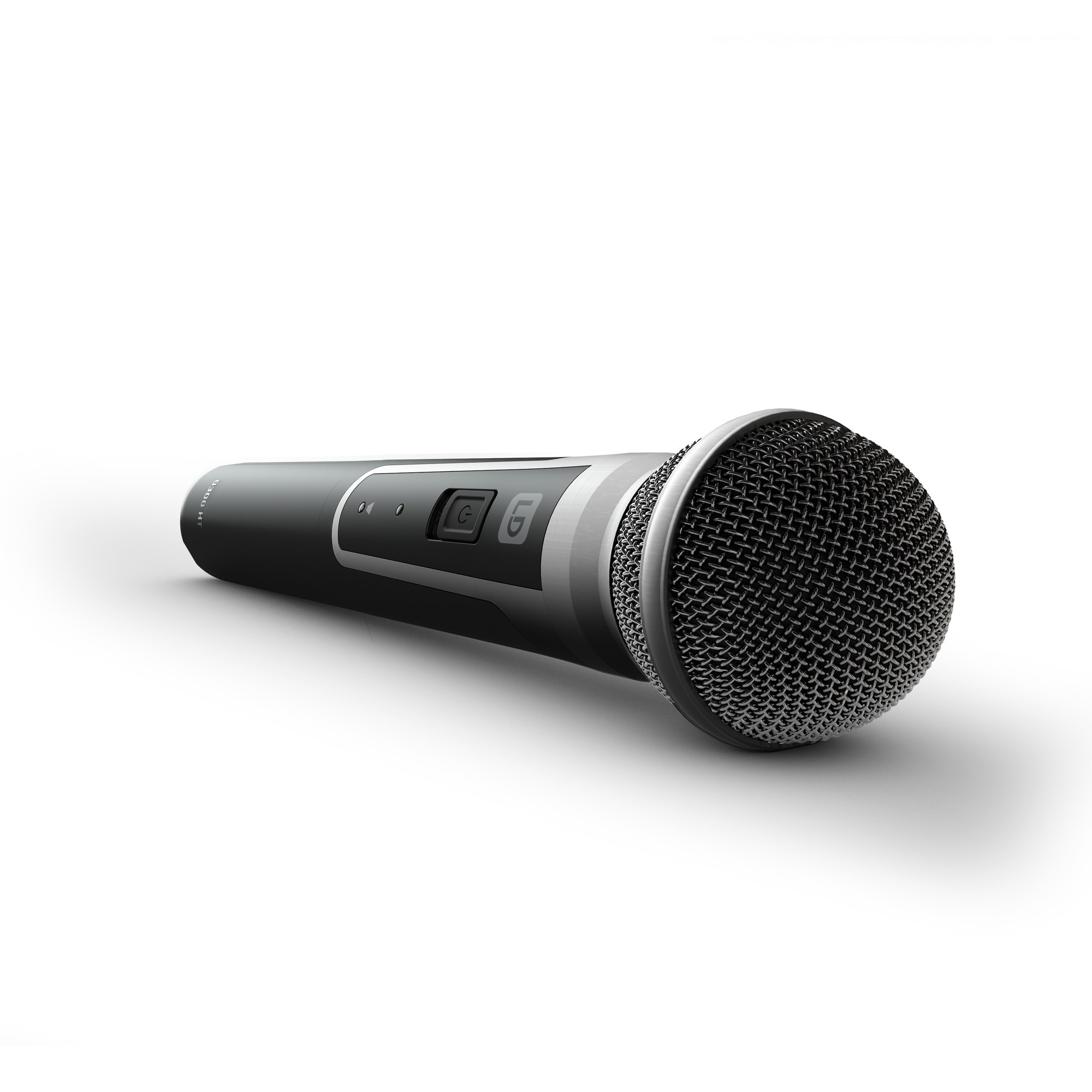

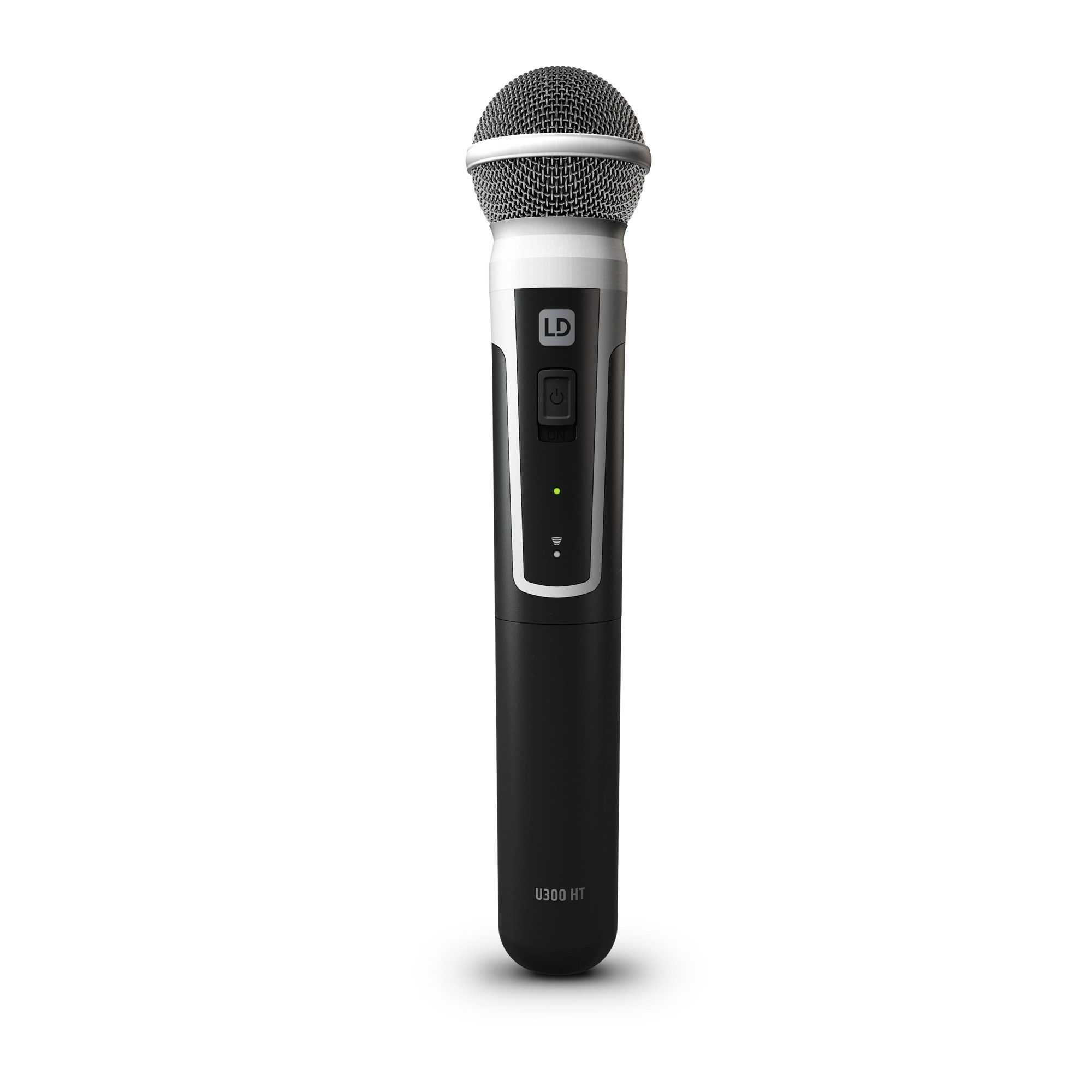

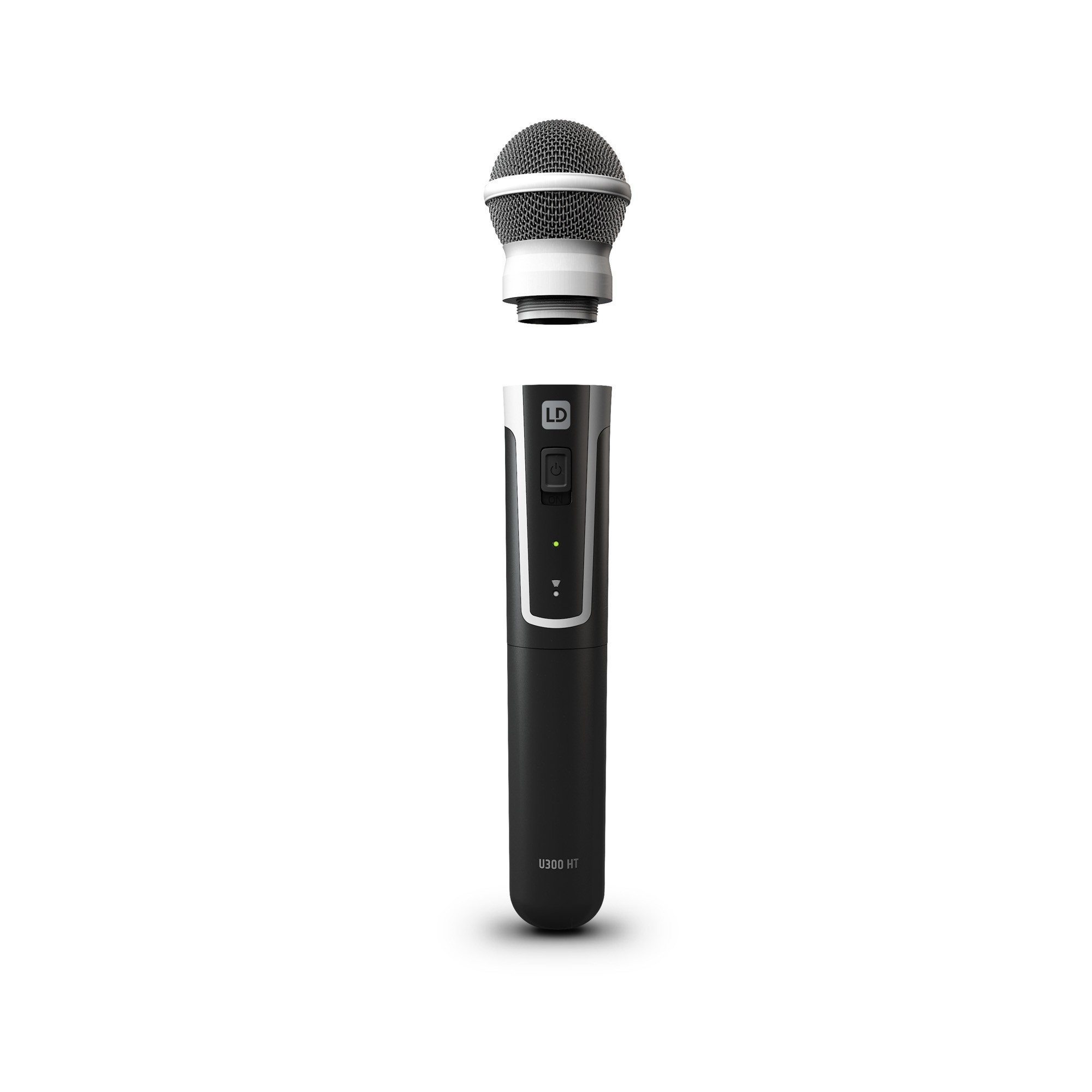

MIKROFON
Product type
Wireless Microphone System Accessories
Transmission frequency range
584 – 608 MHz
Type
Microphones
Channels
12
Groups
1
Microphone type
Dynamic
Directivity
Cardioid
Frequency response
55 – 16000 Hz
Signal-to-noise ratio
104 dB
Rated HF output power
10 mW
Operating voltage

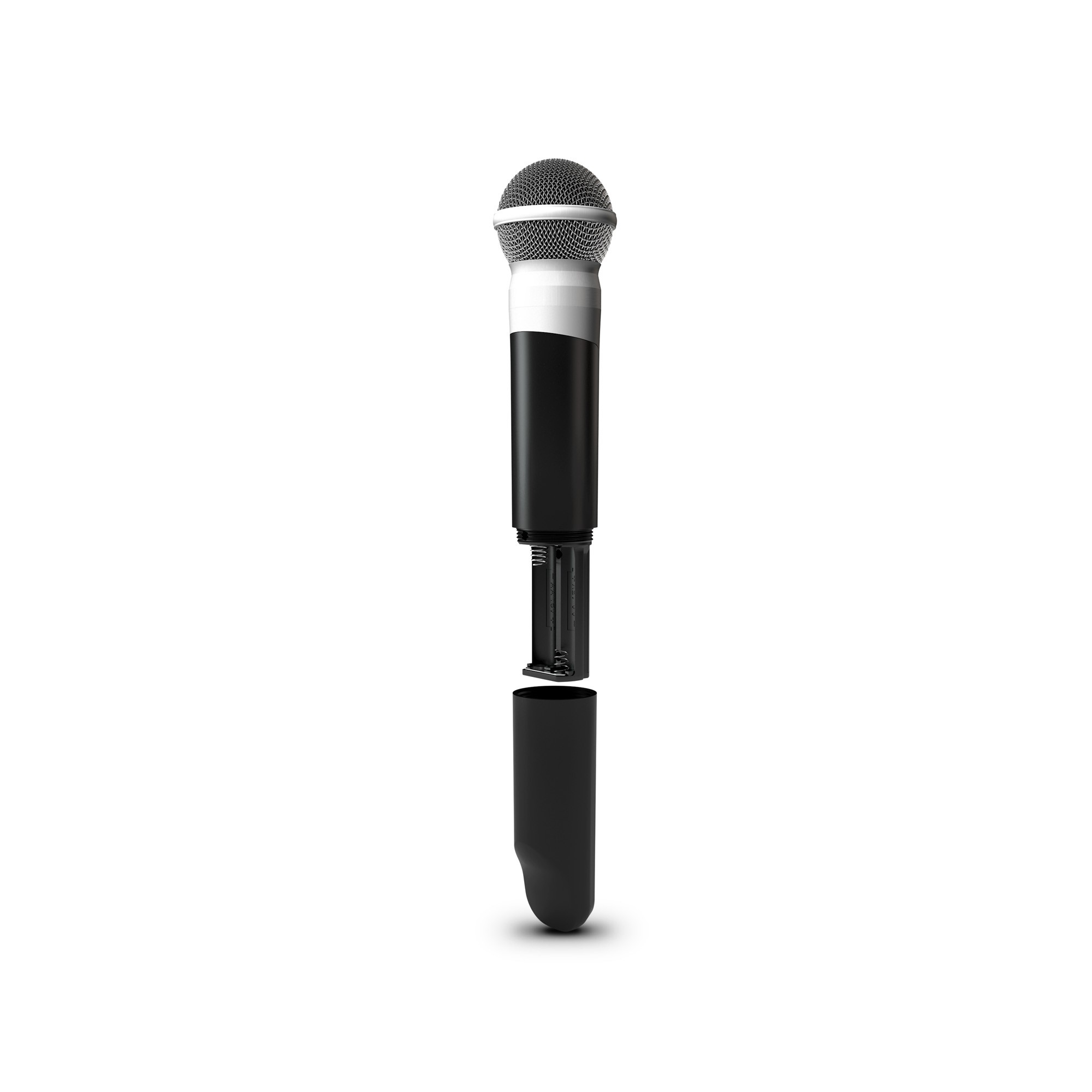

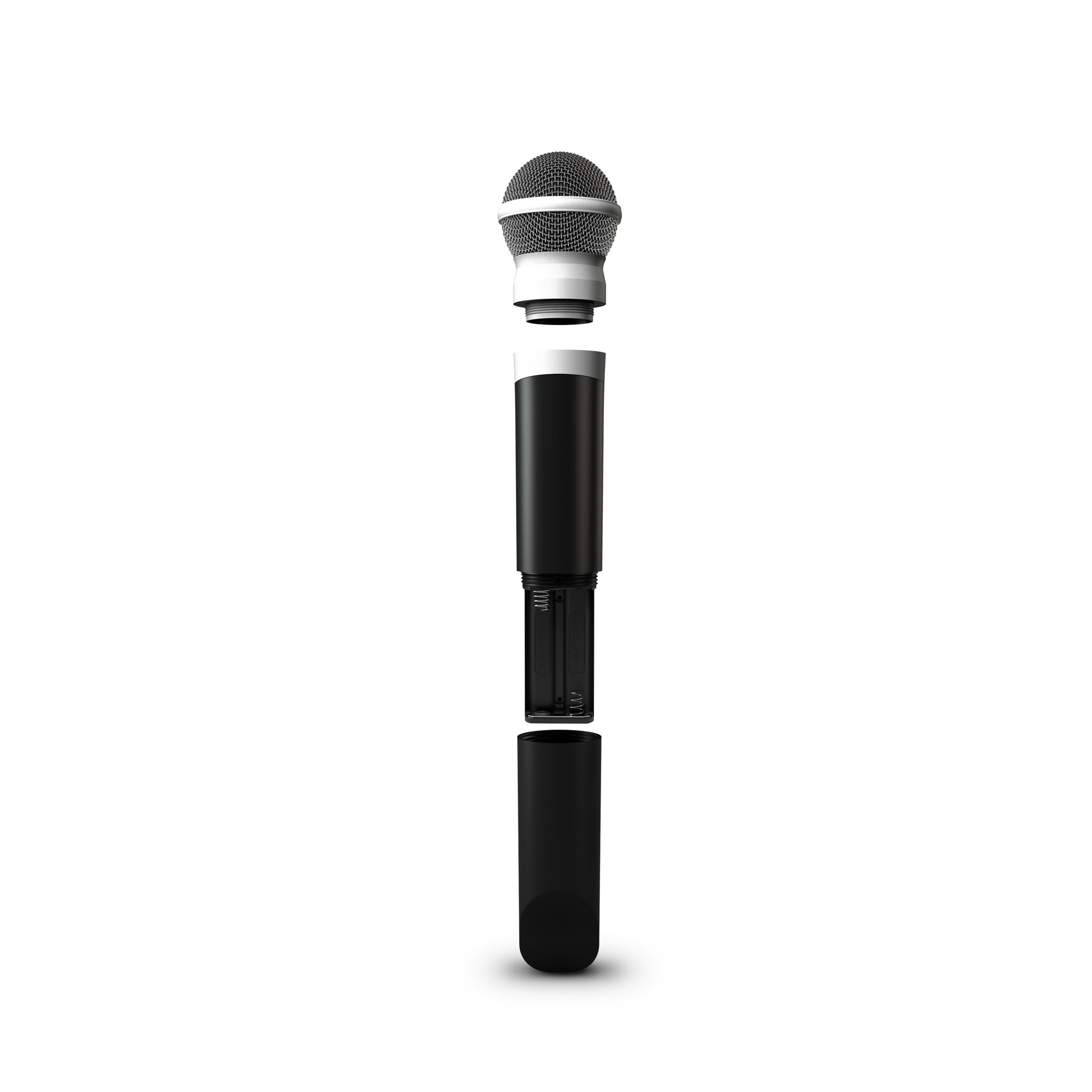

2 x AA battery
Operating time
>10 h
Length
257 mm
Diameter
50 mm
Other features
IR frequency synchronisation , Pilot tone
Controls
Power On/Off
Indicators
ASC IR Sync (Green/Amber Blinking LED) , Battery (low battery: red) , Power LED (Power ON: green)
Weight
0,235 kg

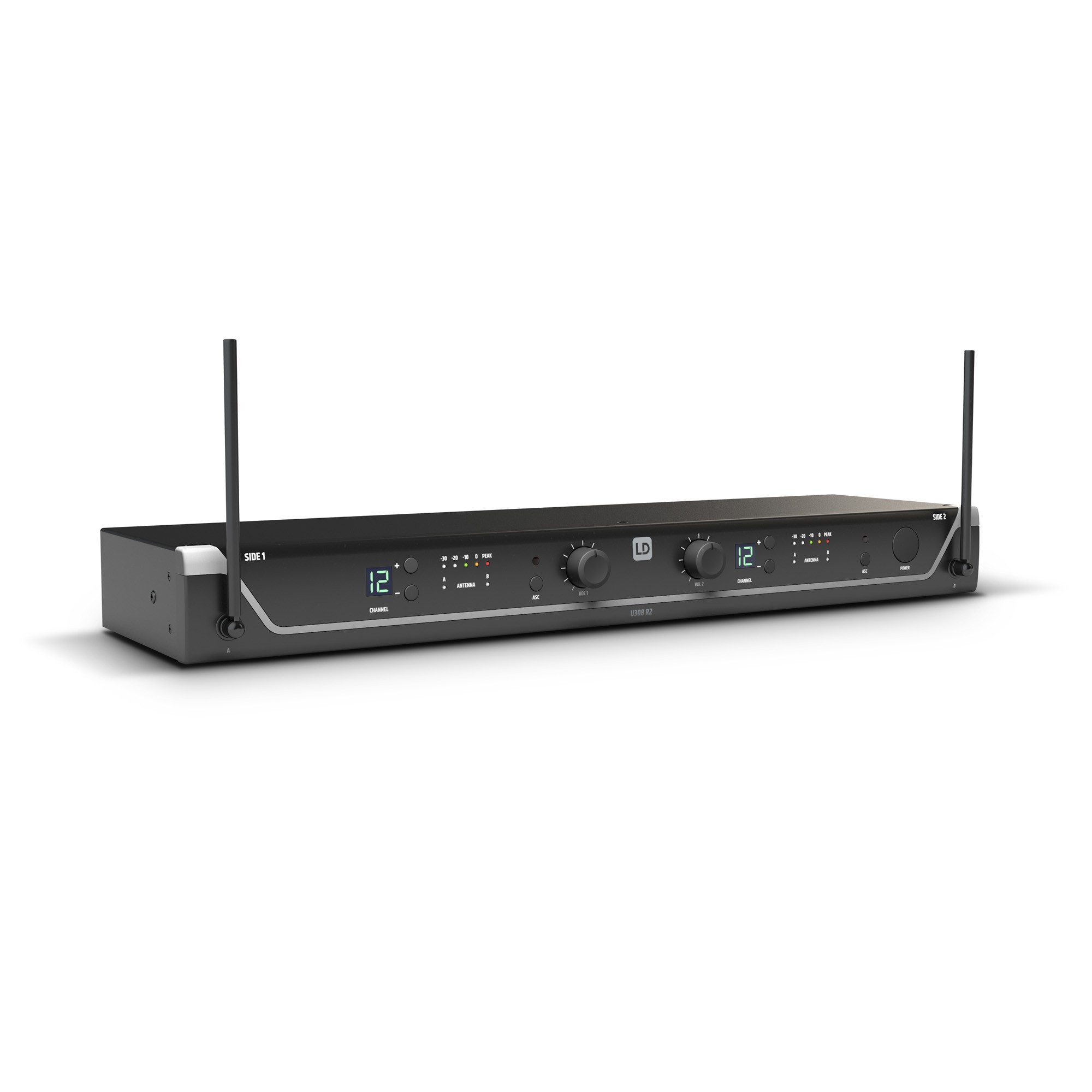

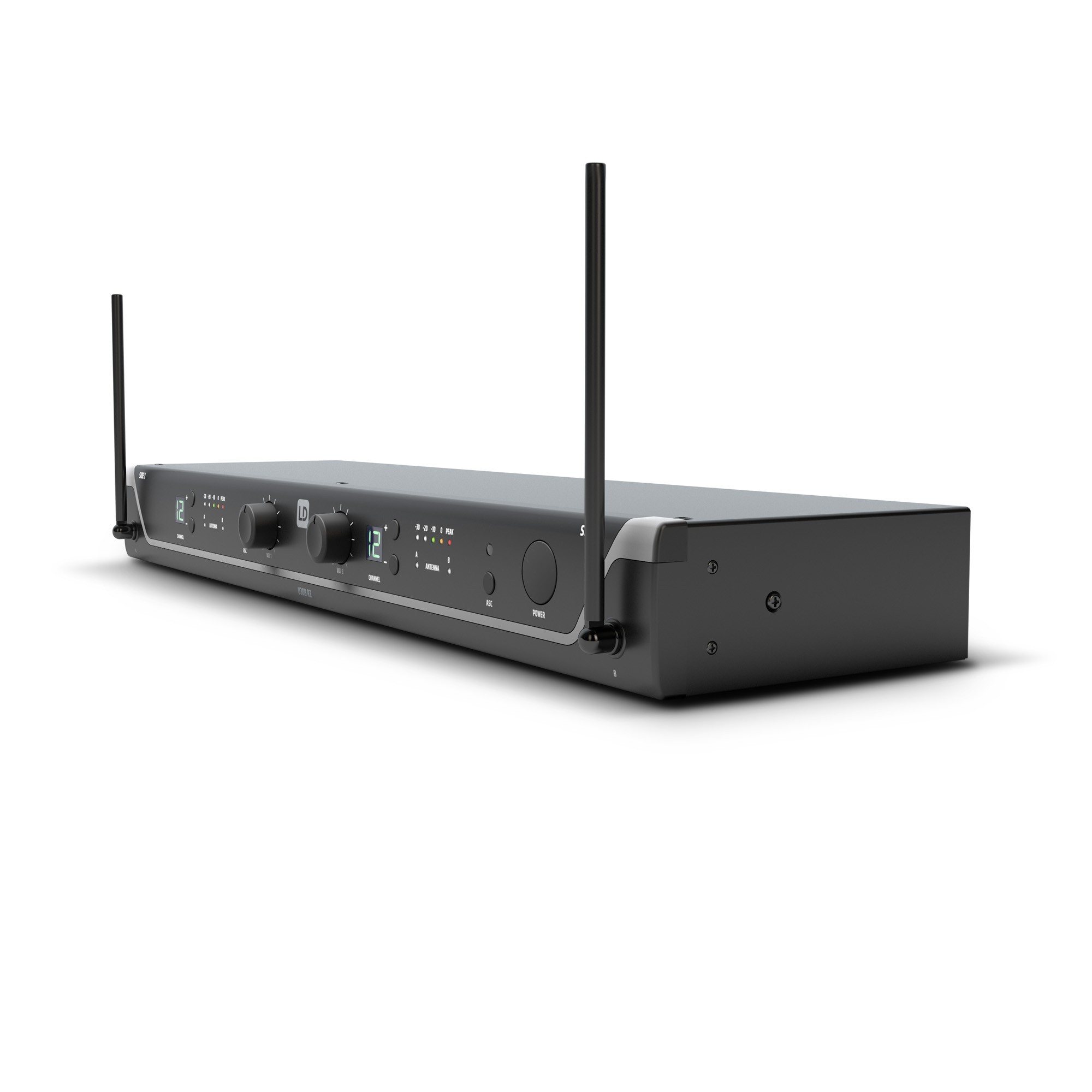

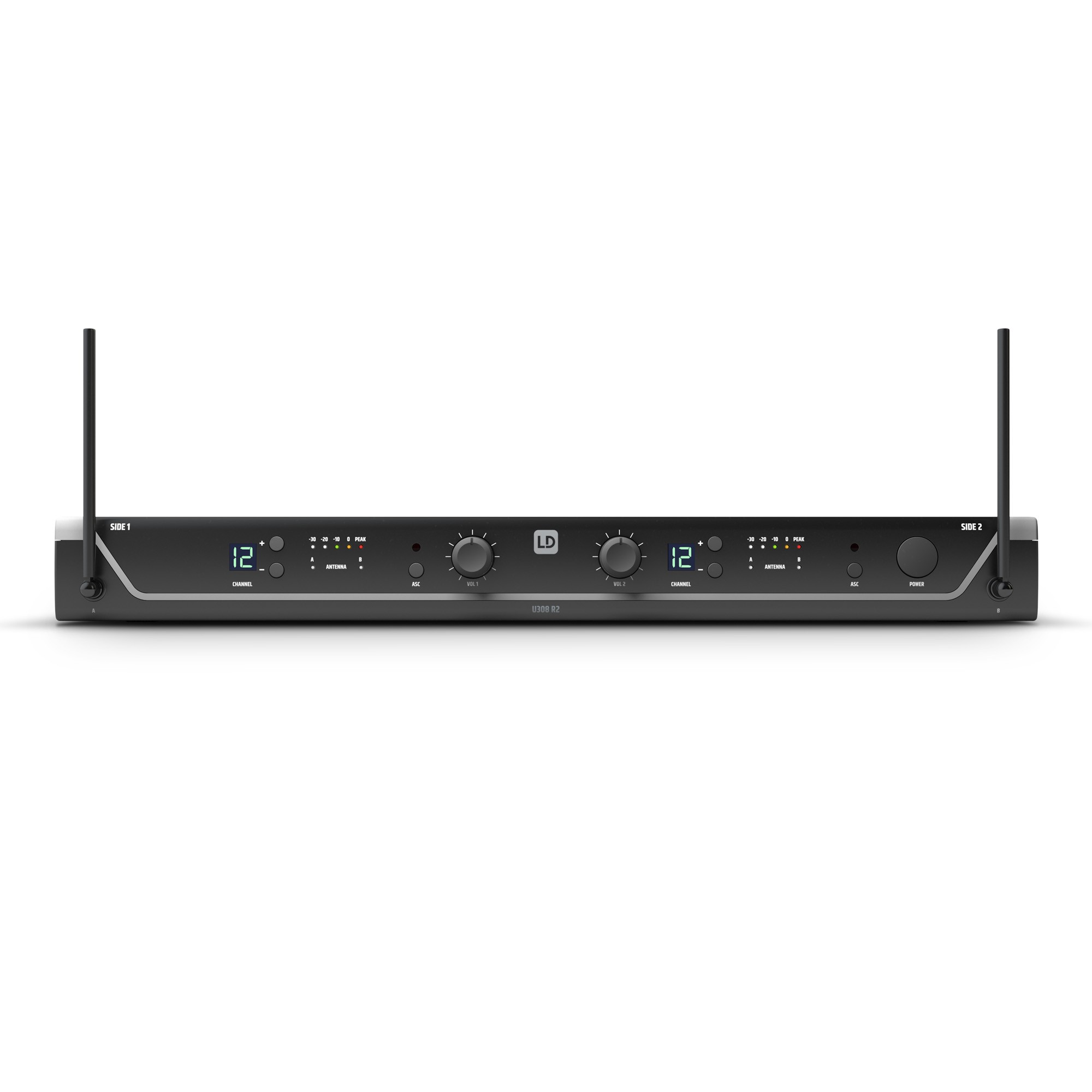

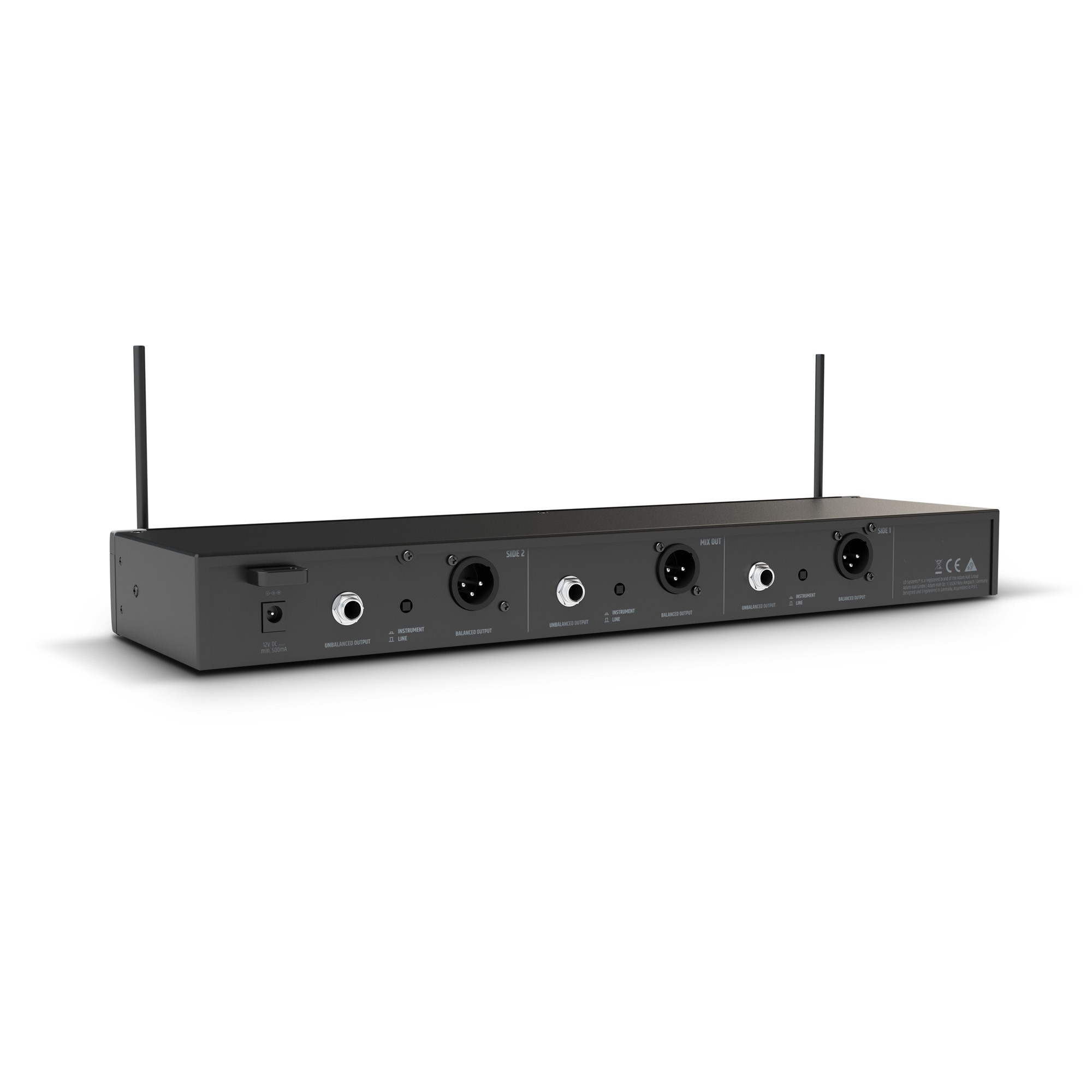

SPREJEMNIK
Type
Receivers
Modulation Type
FM
Antenna inputs
2 x fixed
Frequency response
35 – 16000 Hz
Noise reduction
Squelch
Transmission optimization
Pilot tone
Total Harmonic Distortion (THD)
< 0.3 %

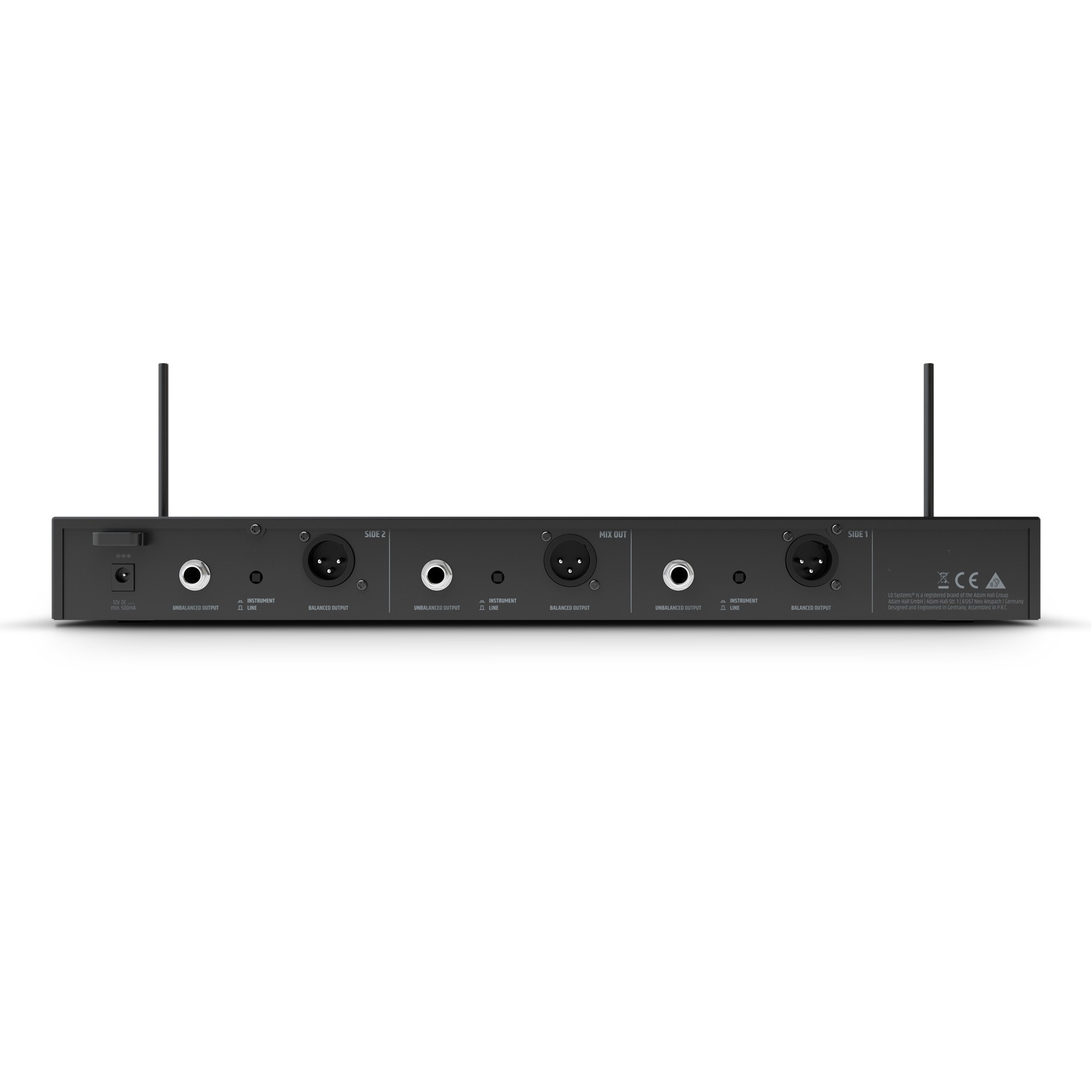

Audio output, balanced
3 x XLR
Audio output, unbalanced
6.3 mm jack , switchable unbalanced output level ( Line/Instrument )
Audio mix output, balanced
XLR
Audio mix output, unbalanced
6.3 mm jack
Max. output level
+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Controls
2 x Volume , Channel down , Channel up , Line/Instrument Level
Indicators
5-LED VU-Meter , Antenna A/B , LC display
Operating voltage
12 V DC, 500 mA
Width
410 mm
Height
43 mm
Depth
120 mm
Weight
1,265 kg
Accessories (included)
2 x AA batteries , Power supply , Rack kit
